ELVATPATransmitter

FCC: This device complies with FCC Rules Part 15 Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. NOTE:The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Industry Canada: This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivant es : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." CATX433

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

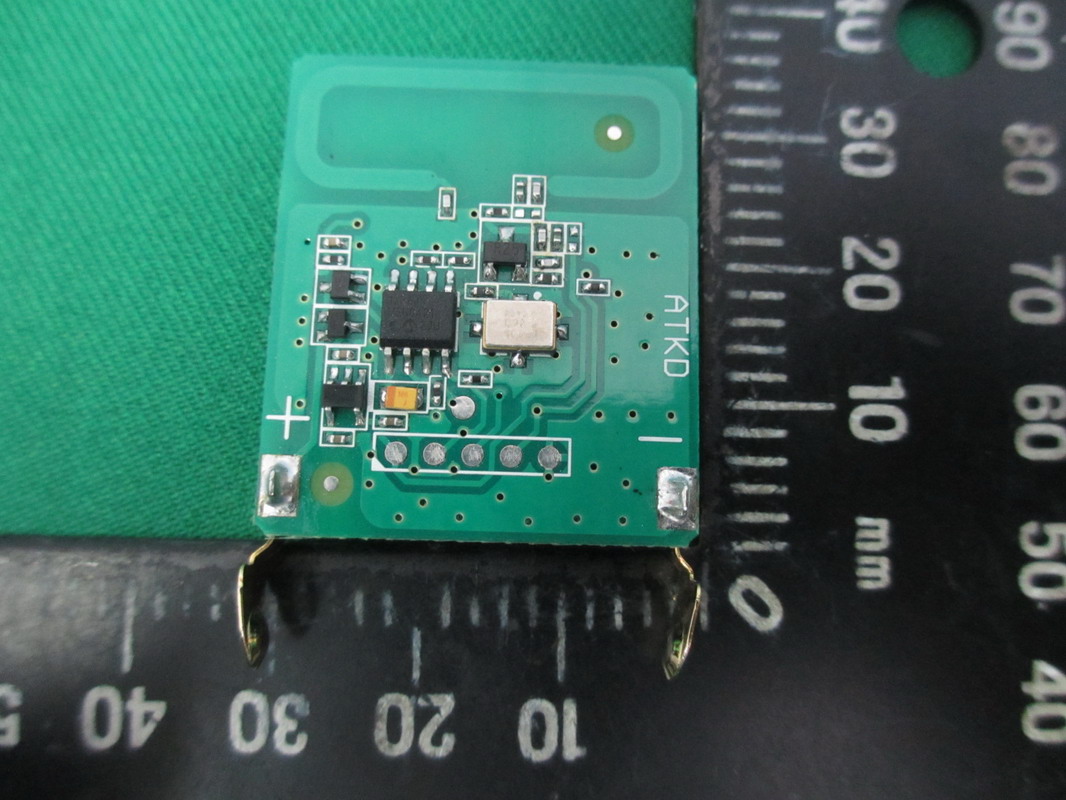

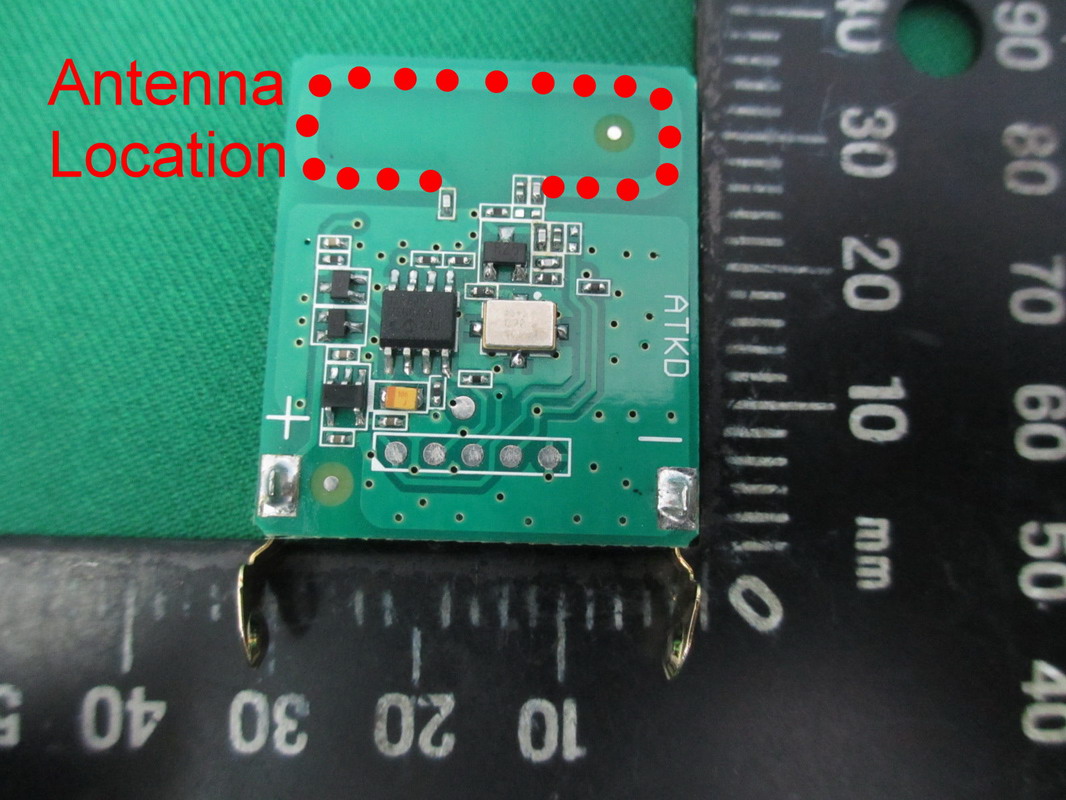

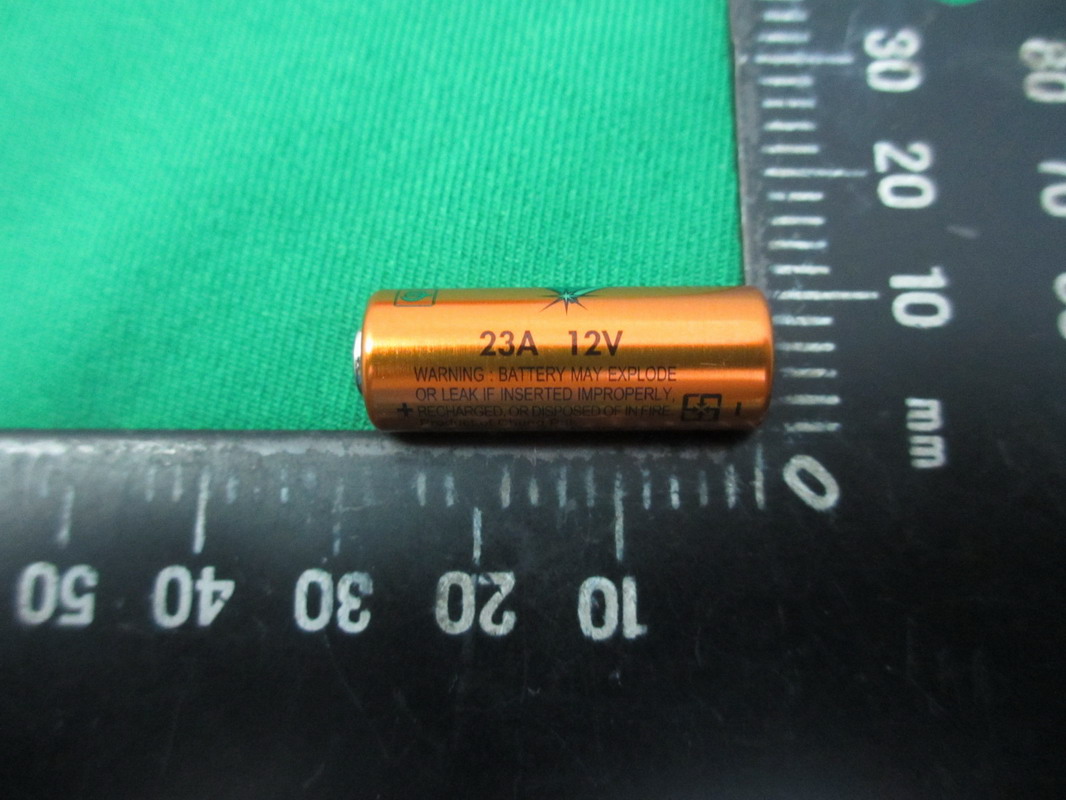

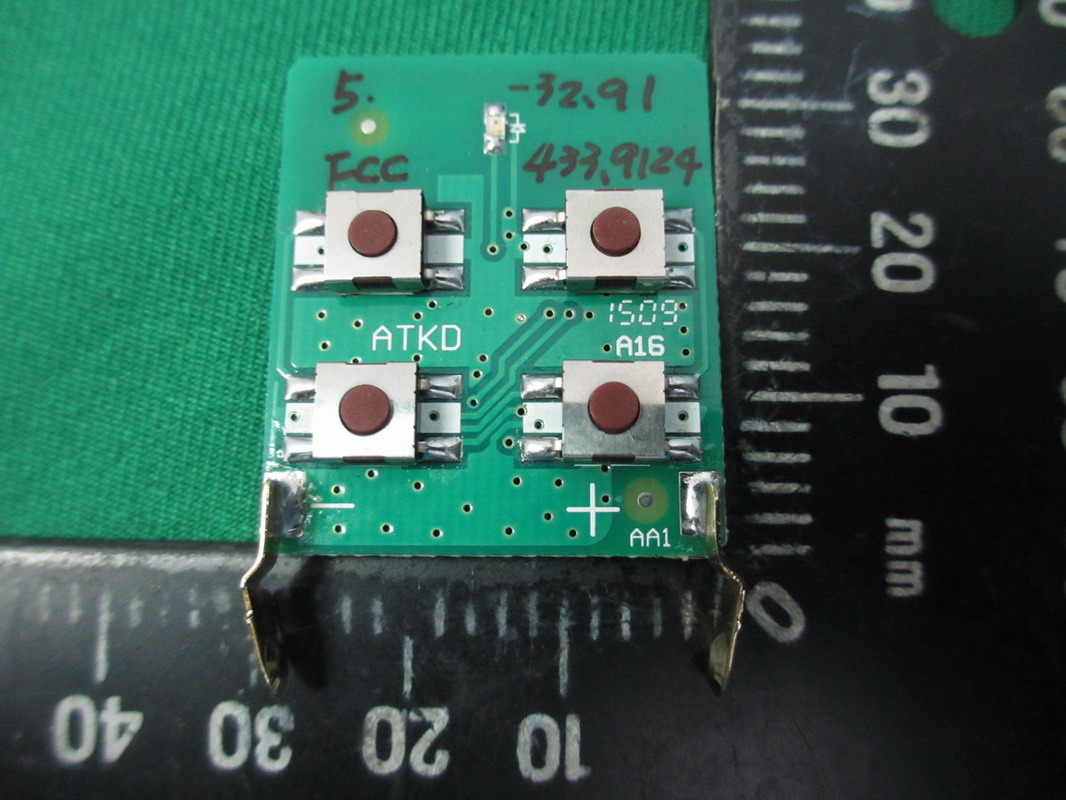

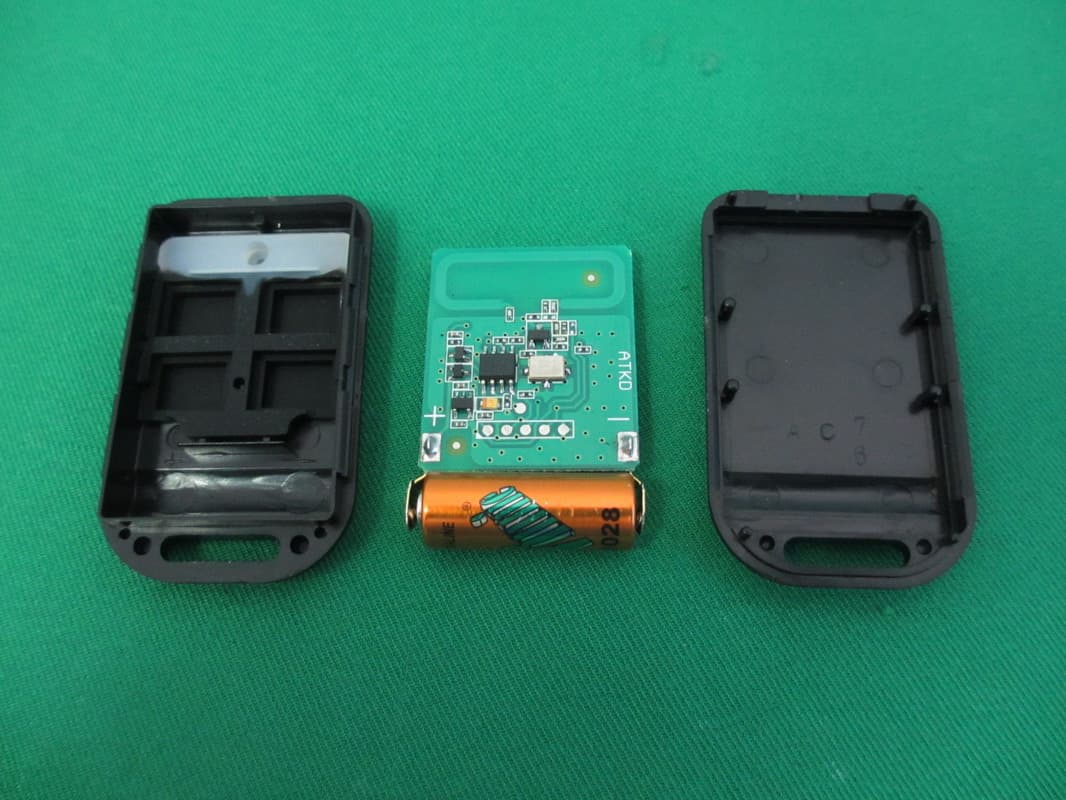

Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 29 of 31 Interocean EMC Technology Corp. Test Report Inner View of EUT View of Battery Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 30 of 31 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 31 of 31 Interocean EMC Technology Corp. Test Report Antenna Location

Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 1 of 31 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 Industry Canada RSS-210 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： CATX433 FCC ID： ELVATPA IC ID： 3671B-CATX4330 Prepared for Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 31 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 2 of 31 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: CATX433 Tested Power Supply: DC 12 V Date of Final Test: Jun. 08, 2015 Revision of Report: Rev. 02 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C Industry Canada RSS-Gen Issue 4 Nov. 2014 Industry Canada RSS-210 Issue 8 Dec. 2010 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2015/06/11 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 3 of 31 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of Tested Peripheral Equipment 6 2.3 Test Facility 7 3 Test Specifications 8 3.1 Test Standard 8 3.2 Operation Mode 8 3.3 Test Step of EUT 8 3.4 Test Equipment 9 4 Radiated Emission Test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 17 4.4 Test Procedure 17 4.5 Test Result 17 5 Emission Bandwidth 21 5.1 Limits 21 5.2 Test Result 21 6 99 % Occupied Bandwidth 23 6.1 Limits 23 6.2 Test Result 23 7 Photographs of Test 25 7.1 Radiated Emission Measurement 25 8 Photographs of EUT 27 Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 4 of 31 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document Results 4 Timing Requirement §FCC15.231(a) RSS-210 A1.1.1 Pass 4 Radiated Emission §FCC15.231(b), 15.209 RSS-210 A1.1.2 Pass 5 Emission Bandwidth §FCC15.231(c) Pass 6 99 % Occupied Bandwidth RSS-210 A1.1.3 Pass Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 5 of 31 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : CATX433 Product SW Version : V1.0 Product HW Version : V1.0 Radio SW Version : V1.0 Radio HW Version : V1.0 Test SW Version : EMI 2000 Series Ver 1.047 RF Power Setting in Test SW : Hardware setting in test, Software does not require Applicant : Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : DC 12 V Operating Frequency : 433.92MHz Type of Modulation : ASK Antenna Description : This device uses PCB antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jun. 05 ~ 08, 2015 Additional Description : 1) The Model Number “CATX433” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 6 of 31 Interocean EMC Technology Corp. Test Report 2.2 Details of Tested Peripheral Equipment N/A Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 7 of 31 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 1 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020  Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Site Accreditation :  Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR 22 SL2-IN-E-0026 for CNS14757-2 / IEC 62040-2 SL2-R1-E-0026 for CNS13439 / CISPR 13 SL2-R2-E-0026 for CNS13439 / CISPR 13 SL2-A1-E-0026 for CNS13783-1 / CISPR 14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15  Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113  Vehicle Safety Certification Center (VSCC) Approval No.: TW16-11-0  TüV NORD Certificate No: TNTW0801R-04  Nemko Authorisation No: ELA 181 Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 8 of 31 Interocean EMC Technology Corp. Test Report 3 Test Specifications 3.1 Test Standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 and Industry Canada RSS-210 procedure and setup followed by ANSI C63.10, 2013 requirements. 3.2 Operation Mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted …

Text truncated - open the document above for the full version.

Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 25 of 31 Interocean EMC Technology Corp. Test Report 7 Photographs of Test 7.1 Radiated Emission Measurement Front View of Below 1GHz Rear View of Below 1GHz Report No.：15A060102R-FRCR FCC ID：ELVATPA IC ID：3671B-CATX4330 Page 26 of 31 Interocean EMC Technology Corp. Test Report Front View of Above 1GHz Rear View of Above 1GHz
