ELVATPCTransmitter

128-9446 1 of 12 Page 1 APS-687TWE Owners Guide Deluxe 7 Channel LED Remote Start System With Keyless Entry PATENTED: www.voxxintlcorp.com/company/patents FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment Table Of Contents: Features and Options Page 2 Your "Spread Spectrum" Transmitters Page 3 Keyless Entry Page 3 - 4 Optional Remote Function Channels Page 4 Optional Additional Remote Channel 4 Page 4 Optional Additional Remote Channel 5, 6, 7 Page 5 Valet Override, Programming & Safety Control Switch Page 6 Vehicle Service / Remote Start Override Mode Page 6 Turbo Timer Operation Page 6 - 7 Remote Starting The Vehicle Page 7 - 8 Automatic Start Timer Operation Page 9 - 10 Telematic Upgrade Page 10 Programmed Transmitter Notification (PTN) Page 10 Programming New or Replacement Transmitters Page 11 Features And Function Setting Chart Page 12 128-9446 2 of 12 Page 2 Deluxe 7 Channel LED Remote Start System With Keyless Entry FEATURES :  1 Five Button LED Programmable RF Transmitters  1 Five Button Programmable RF Transmitters  Seven Channel Receiver (capable of accepting 4 transmitters)  Code Hopping Technology  External Superheterodyne Antenna w/PushButton Switch and LED  Safe Start RF Control (Double Push Of RF Transmitter)  Selectable Automatic Timed Start Mode  Keyless Entry Outputs (-)  On-Board Start Relay  On-Board Accessory Relay  3 On-Board Ignition Relays  On-Board Parking Light Relay  Ignition 2 and 3 Relay Selectable On or Off During Cranking  Ground Output While Running / Shock By-Pass / GM VAT Output  Tach Signal Learning Circuit  Two ( + ) and Two ( - ) Safety Shutdown Circuits  Alarm By-Pass Output  Channel 3 Output for Remote Trunk Release (relay required)  Channel 4, 5, 6, and 7 Output to Control Optional Accessories  Selectable Steady or Flashing Parking Lights for Run Indication  Selectable Run Times  Selectable Door Lock Output Pulse Timing  Optional Illuminated Entry Output (Relay Required)  Vehicle Horn Activation Output For R/S Annunciation  External Activation Control Input  Turbo Timer Mode OPTIONS:  Telematic Upgrade Ready  Plug In Flash Logic By-Pass Capable  Remote Power Window Control  Multiple Vehicle Capable WARNING! Be certain that the vehicle is outdoors before using this or any remote vehicle starting device. A running engine produces dangerous carbon monoxide fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if the car is garaged. 128-9446 3 of 12 Page 3 12 12 YOUR “SPREAD SPRECTUM" TRANSMITTERS The transmitters included with your new security system use the most advanced and secure form of radio frequency transmission available on any current automotive security system. Some of today’s sophisticated auto thieves use a device known as a code grabber, which will receive and store the signal from your keychain transmitter and re-transmit at a later time to disarm your system. Your Spread Spectrum transmitters will shift frequencies making it impos- sible for a theif to grab and rebroadcast your code. If your transmitter button is pressed more than fifty times while it is out of range of the vehicle (children playing with your keys), the transmitter will not operate when you return to the vehicle, and will need to be re-aligned to the receiver. To do this, simply press the lock/unlock button two times within a one second time period. The system will now respond to that transmitter each time a button is pressed. For reference the transmitter packaged with your system may not appear exactly as shown This depiction is for reference only. NOTE: As an option, this system has the ability to operate the vehicle's horn which may require some additional parts. If this feature is installed, the vehicle's horn will beep once when you lock the doors, twice when you unlock the doors, twice when the Remote Start feature is activated, and will beep during the car finder mode to allow you to find the vehicle more easily in a crowded parking lot. THE LED TRANSCEIVER: Shown above right, will respond with an LED flash when any command is issues. Press the lock button, and when the vehicle receives the command, it will report back that the function was executed by flashing the correspond- ing LED, Lock, Unlock, Trunk, or in the case of Remote Start the LED will flash once every 10 seconds while the vehicle is running under it's control. KEYLESS ENTRY 1. To lock your vehicle, exit the vehicle, close all doors, hood and trunk, then simply press the lock button of your keychain transmitter. To unlock your vehicle, simply press the unlock button of your keychain transmitter. As a keyless entry unit, for your convenience, the parking lights will flash 128-9446 4 of 12 Page 4 once when the doors are locked and twice when the door are unlocked. If the optional illuminated entry feature has been added, the interior light will turn on when the doors are unlocked and remain on for 30 seconds or until the ignition is turned on. Holding the lock/unlock transmitter button for 3 seconds will activate the car finder mode causing the parking lights to flash and the optional horn to beep for 30 seconds Activating these button's a second time for 3 seconds. or pressing any other transmitter button while the car finde mode is active will cancel this mode. NOTE: This system has the ability t…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

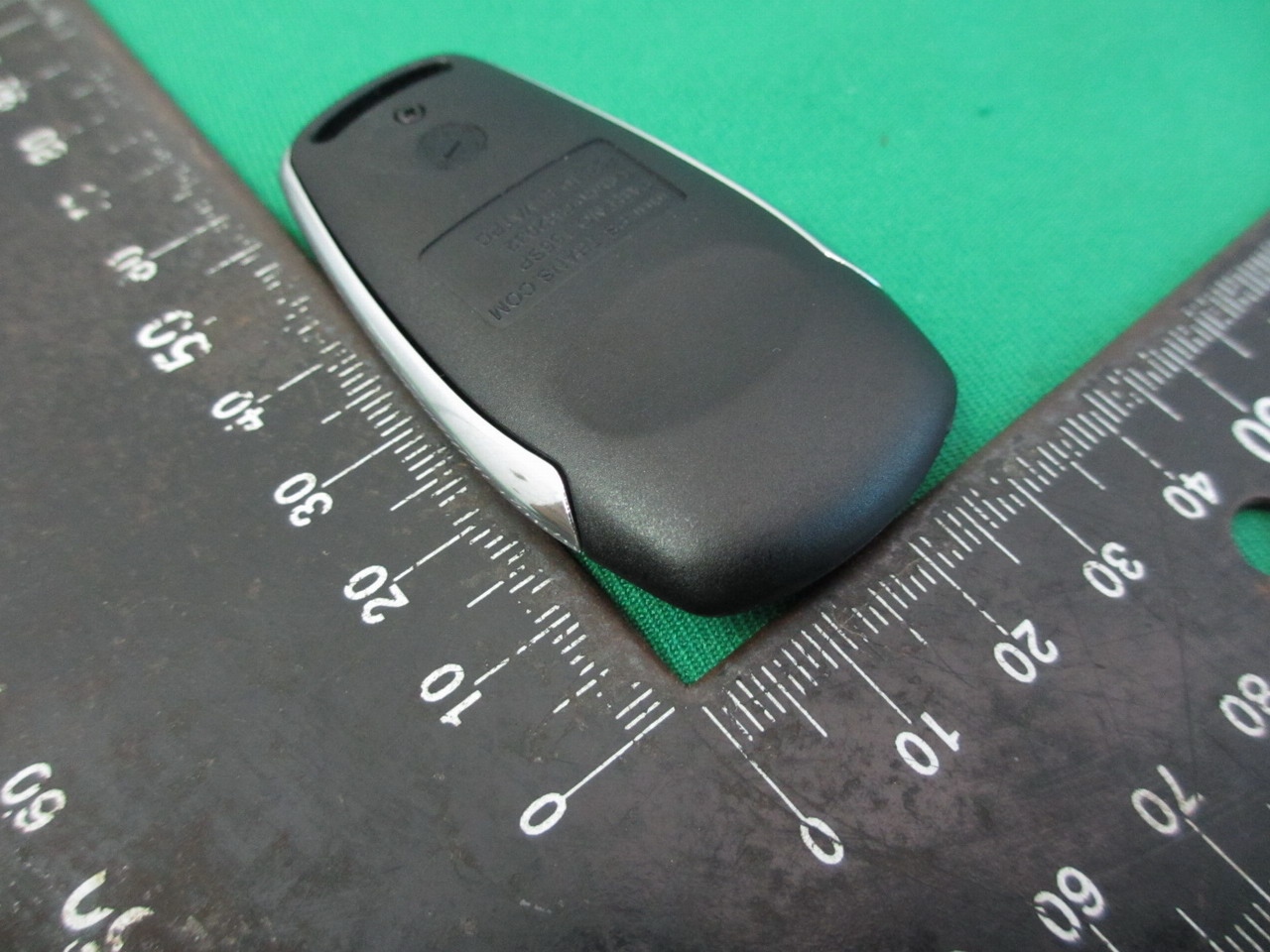

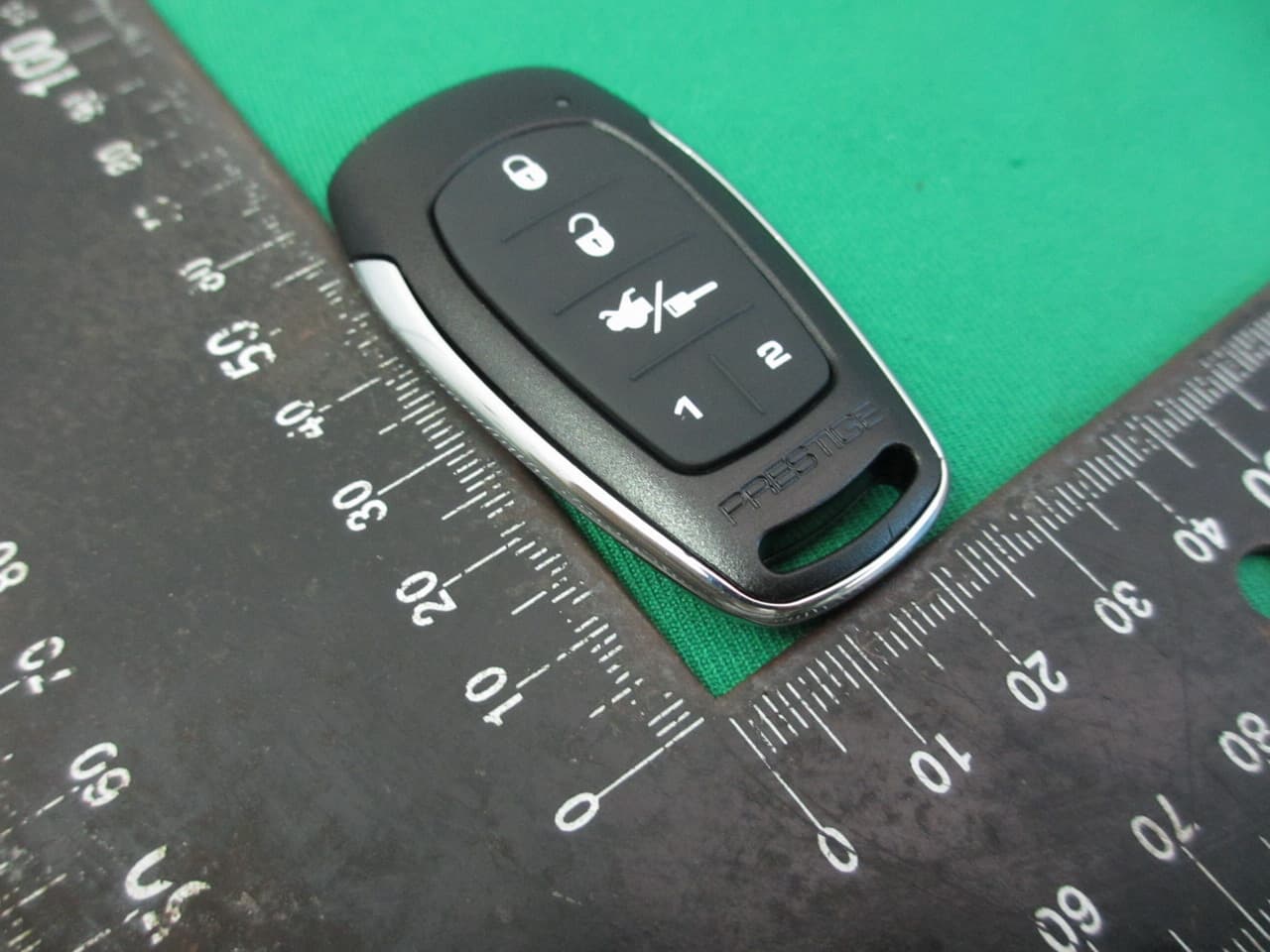

Report No.: 15A090207R-FR FCC ID：ELVATPC Page 38 of 42 Interocean EMC Technology Corp. Test Report 11 Photographs of EUT Front View of EUT Rear View of EUT Report No.: 15A090207R-FR FCC ID：ELVATPC Page 39 of 42 Interocean EMC Technology Corp. Test Report FCC ID

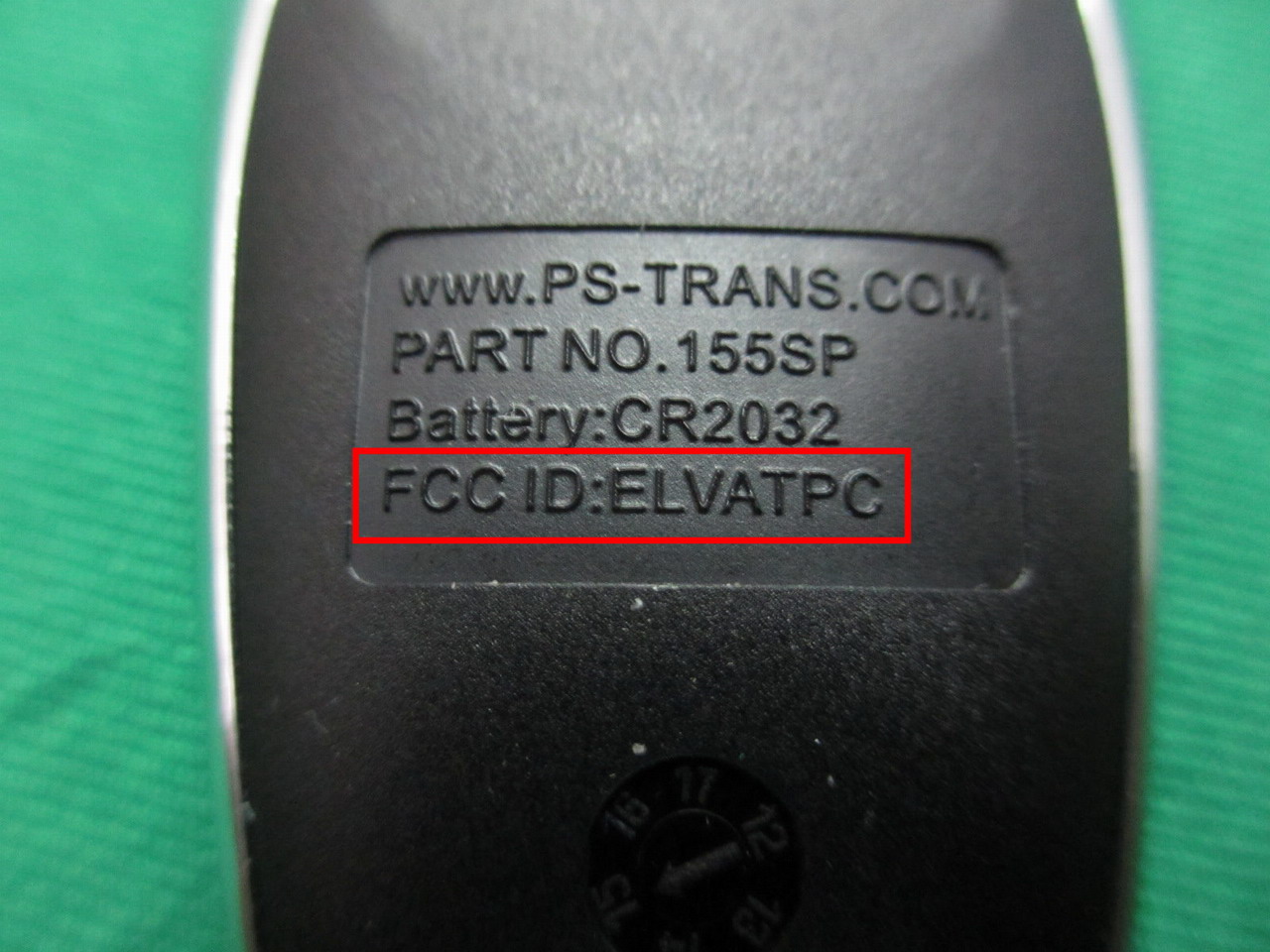

2. Radious will be 0.2 if not specified.1. Texture is same as MT-11020 BODY MATERIAL : PC/ABS 0.100.200.400.08 A 6~30 120~300 30~120 GRADE DIMENSION UNDER 6 ± 0.400.200.800.16 B ± 0.800.402.000.30 C ± FINISHMATERIAL CODE APPD BYCHK BYSHEET OF UNIT: SCALE: DRN BY DATE NUTEK TITLE SIZE CORPORATION DRAWING NO DEPT REV REVISIONS REV. ACC. DESCRIPTION DRN. DATE 0 ： ： ： ： ： www.PS-TRANS.COM PART NO.155SPBattery:CR2032FCC ID:ELVATPC

Report No.: 15A090207R-FR FCC ID：ELVATPC Page 40 of 42 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.: 15A090207R-FR FCC ID：ELVATPC Page 41 of 42 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.: 15A090207R-FR FCC ID：ELVATPC Page 42 of 42 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

FCC ID：ELVATPC Report No.：15A090207R-FR Page 1 of 2 RF Exposure Evaluation E.U.T.： Transmitter Model Number： 155SP Report Issued： 2015/09/22 Project Engineer： Approved： Elli Chang Jerry Liu Applicant： Nutek Corporation Address： NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Issued By： Interocean EMC Technology Corp. LAB Location： No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. FCC ID：ELVATPC Report No.：15A090207R-FR Page 2 of 2 RF Exposure Evaluation Portable Device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498_D01_V05 4.3.1(1) SAR exclusion thresholds by: [max. power of channel, including tune-up tolerance, mW]/(min, test separation distances, mm)]*[√f(GHz)]≦3.0 for 1-g SAR and ≦7.5 for 10-g extremity SAR. Maximum measured transmitter power Frequency Range (MHz) Maximum measured transmitter power (dBm) Tune-up power tolerance (dB) Total Maximum power (dBm) Total Maximum power (mW) 909.6 7.71 (±)2 9.71 9.3541 913.8 7.70 (±)2 9.70 9.3325 918.0 7.67 (±)2 9.67 9.2683 (9.3541/5)*(√0.9096)=1.78425≦7.5 Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: 15A090207R-FR FCC ID：ELVATPC Page 1 of 42 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 155SP FCC ID： ELVATPC Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： The test report consists of 42 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.: 15A090207R-FR FCC ID：ELVATPC Page 2 of 42 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Table for Carrier Frequencies 6 1.3 Hopping Sequence 6 1.4 Details of Tested Supporting System 7 1.5 Test Facility 8 1.6 Test Equipment 9 1.7 Summary of Measurement 10 1.8 Justification 11 2 Test specifications 12 2.1 Test standard 12 2.2 Operation mode 12 2.3 Test Step of EUT 12 3 20dB Bandwidth test 13 3.1 Limit 13 3.2 Configuration of Measurement 13 3.3 Test Procedure 13 3.4 Test Result 13 4 Carrier Frequency Separation test 16 4.1 Limit 16 4.2 Configuration of Measurement 16 4.3 Test Procedure 16 4.4 Test Result 16 5 Number of hopping frequencies test 19 5.1 Configuration of Measurement 19 5.2 Test Procedure 19 5.3 Test Result 19 6 Time of Occupancy (dwell time) test 21 6.1 Limit 21 6.2 Configuration of Measurement 21 6.3 Test Procedure 21 6.4 Test Result 21 7 Maximum Output Power test 23 7.1 Limit 23 7.2 Configuration of Measurement 23 7.3 Test Procedure 23 7.4 Test Result 23 Report No.: 15A090207R-FR FCC ID：ELVATPC Page 3 of 42 Interocean EMC Technology Corp. Test Report 8 RF Conducted spurious emission 26 8.1 Limit 26 8.2 Configuration of Measurement 26 8.3 Test Procedure 26 8.4 Test Result 26 9 RF Radiated spurious emission test 30 9.1 Limit 30 9.2 Configuration of Measurement 30 9.3 Test Procedure 31 9.4 Test Result 31 10 Photographs of Test 36 10.1 Radiated Emission Measurement 36 11 Photographs of EUT 38 Report No.: 15A090207R-FR FCC ID：ELVATPC Page 4 of 42 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 155SP Tested Power Supply: 3Vdc battery Date of Final Test: Sep. 07, 2015 Revision of Report: Rev. 01 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2015/09/22 Project Engineer: Approved: Elli Chang Jerry Liu Report No.: 15A090207R-FR FCC ID：ELVATPC Page 5 of 42 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transmitter Model Number : 155SP Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 3Vdc battery Operating Frequency : 909.6MHz ~ 918MHz Channel Number : 25 channels Type of Modulation : FSK Antenna Description : This device uses Helix antenna. Antenna gain 0dBi. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Sep. 02 ~ 07, 2015 Additional Description : 1) The Model Number “155SP” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.: 15A090207R-FR FCC ID：ELVATPC Page 6 of 42 Interocean EMC Technology Corp. Test Report 1.2 Table for Carrier Frequencies FC (MHz) FC (MHz) FC (MHz) CH0 909.6000 CH9 912.7500 CH18 915.9000 CH1 909.9500 CH10 913.1000 CH19 916.2500 CH2 910.3000 CH11 913.4500 CH20 916.6000 CH3 910.6500 CH12 913.8000 CH21 916.9500 CH4 911.0000 CH13 914.1500 CH22 917.3000 CH5 911.3500 CH14 914.5000 CH23 917.6500 CH6 911.7000 CH15 914.8500 CH24 918.0000 CH7 912.0500 CH16 915.2000 CH8 912.4000 CH17 915.5500 1.3 Hopping Sequence 12, 8, 6, 2, 0, 5, 1, 7, 3, 9, 4, 10, 15, 19, 13, 11, 16, 18, 14, 20, 22, 21, 24, 23, 17 Report No.: 15A090207R-FR FCC ID：ELVATPC Page 7 of 42 Interocean EMC Technology Corp. Test Report 1.4 Details of Tested Supporting System N/A Report No.: 15A090207R-FR FCC ID：ELVATPC Page 8 of 42 Interocean EMC Technology Corp. Test Report 1.5 Test Facility Site Description : Chamber 3 RF Test Room Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020  Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Site Accreditation :  Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.…

Text truncated - open the document above for the full version.

Report No.: 15A090207R-FR FCC ID：ELVATPC Page 36 of 42 Interocean EMC Technology Corp. Test Report 10 Photographs of Test 10.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.: 15A090207R-FR FCC ID：ELVATPC Page 37 of 42 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
