ELVATRJBTRANSCEIVER

128-8841 1 of 8 Your Alarm and/or Remote Start unit has a configurable receiver that allows the transmitter to be programmed to operate the Lock/Unlock functions with one transmitter button or with two transmitter buttons (separate Lock/ Unlock). In addition, the receiver also allows driver priority function. This driver priority function takes place when ever a particular transmitter is used to unlock the vehicle regardless of the selection of one button or two button operation. The following indicates the receiver programmable slots: 1 Lock/Unlock or Lock 2 Unlock if Programmed 3 Trunk Release and/or Remote Start (Optional on some models) 4 Auxiliary Output 5 Auxiliary Output 6 Driver 1 Priority or Seperate Output 7 Driver 2 Priority or Separate Output Receiver channels 6 or 7 will accept the programming of transmitter channel 1 if used as the Lock/Unlock button, or Channel 2 when separate Lock/Unlock buttons are programmed. In this way, whenever the transmitter is used to unlock the vehicle, channel 6 or 7, when programmed, will provide a pulsed ground output. This output can be connected to the driver priority function of the vehicle to reset preset user features. Please consult with your installation center technician to see if this feature is available in your vehicle. NOTE: A total of 4 transmitters may be programmed into any receiver channel. Force programming a transmitter, removing a transmitter, or reprioritizing a transmitter is covered later in this manual. Also, if you do not program a transmitter button into channel 2, which is the separate unlock/disarm channel, then whatever button is programmed into channel 1 will serve as both lock/arm & unlock/disarm. NOTE: The RED Button serves as a function button in combination with other buttons explained in your owner’s manual. This button may not be used to operate a receiver channel. NOTE: The Option Button is predetermined and programmed for access to Time Start, and Temperature Start & Check so it cannot be used for multiple button operation of any other feature. It will however operate for any single button programming. This transmitter is also capable of one button programming for certain model Model SS92 Programming Guide 128-8841 2 of 8 2 THIS PAGE LEFT BLANK INTENTIONALLY 128-8841 3 of 8 Audiovox Alarms. If your alarm is one of these models, then when step 3 is completed on the following page, you can turn the ignition switch off and programming with the default button configurations for the first four chan- nels will be complete. TO ENTER THE PROGRAM MODE: 1. Turn the ignition switch to the “ON” position. 2. Within 10 seconds, press and release the valet/program switch three times. (Siren emits 1 short chirp indicating channel 1 has been entered.) 3. Within 10 seconds, press and hold the button of the first transmitter you wish to control the Lock & Arm feature of your security system until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Lock & Arm feature.) 4. Within 10 seconds, press and release the valet program switch one time. (Siren emits 2 short chirps indicating channel 2 has been entered.) 5. Within 10 seconds, press and hold any unused button(s) of the first transmitter you wish to control the Unlock/Disarm feature of your security system until a long chirp is heard from the siren. NOTE: This channel is used only if you desire separate control of the Lock/Unlock feature. If you wish to operate the Lock/Unlock features from a single button, move onto step 6 as whatever button is programmed into channel 1 will control both Lock & Arm/Unlock & Disarm. (Repeat this for each transmitter you wish to operate the Unlock/Disarm feature.) 6. Within 10 seconds, press and release the valet program switch one time. (Siren emits 3 short chirps indicating channel 3 has been entered.) 7. Within 10 seconds, press and hold any unused button(s) of the first transmitter you wish to control Channel 3 output (Trunk Release), until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 3 output.) 8. Within 10 seconds, press and release the valet program switch one time. (Siren emits 4 short chirps indicating channel 4 has been entered.) 9. Within 10 seconds, press and hold any unused button(s) of the first transmitter you wish to control Channel 4 output (Auxiliary Output 1), until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 4 output.) 3 128-8841 4 of 8 10. Within 10 seconds, press and release the valet program switch one time. (Siren emits 5 short chirps indicating channel 5 has been entered.) 11. Within 10 seconds, press and hold any unused button(s) of the first transmitter you wish to control Channel 5 output, (Auxiliary Output 2) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 5 output.) 12. Within 10 seconds, press and release the valet program switch one time. (Siren emits 6 short chirps, indicating channel 6 has been entered.) 13. Within 10 seconds, press and hold the unlock button, (or any unused button(s)), of the first transmitter you wish to control Channel 6 output, (Driver Priority 1) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 6 output, Driver Priority 1.) 14. Within 10 seconds, press and release the valet program switch one time. (Siren emits 7 short chirps indicating channel 7 has been entered.) 15. Within 10 seconds, press and hold the unlock button (or any unused button(s)) of the first transmitter you wish to control Channel 7 output, (Driver Priority 2) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 7 output, Driver Priority 2.) NOTE: Channels 6 and 7 can be used as a separate output to control a function other than driver priority. Simply programming any unused transmit…

Text truncated - open the document above for the full version.

NUTEK CORPORATION FCC ID.: ELVATRJB No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan Tel : 886 2 2912-3347 Federal Communications Commission Dec. 03 , 2010 Authorization and Evaluation Division ATTESTATION FCC ID: ELVATRJB Product: TRANSCEIVER Model: SS92P We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA.

RF_160, Issue 02 NUTEK CORPORATION Declaration of Authorization We Name: NUTEK CORPORATION Address: No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan City: Taipei County  .  Country: Taiwan.  .  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: TRANSCEIVER Type designation: SS92P Trademark: NUTEK on our behalf. Date:  2010/12/03  .. City:  Taipei County  .. Name:  Charles Chen  .. (2) Function: President Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Report No.: 10B273R-RFUSP43V01 Page : 1 of 10 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 2 of 10 Version:1.0 (3) EUT Photo (4) EUT Photo

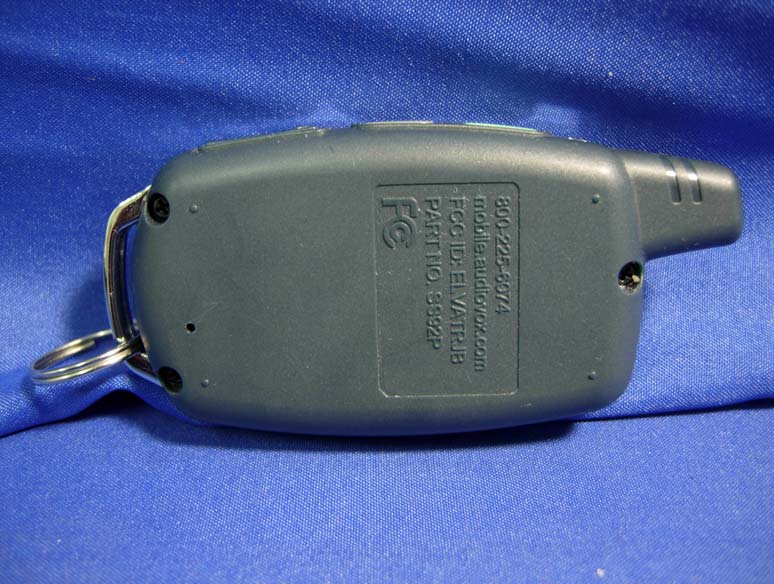

NUTEK CORPORATION FCC ID.: ELVATRJB No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan Tel : 886 2 2912-3347 FCC ID Label The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

NUTEK CORPORATION FCC ID.: ELVATRJB No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan Tel : 886 2 2912-3347 FCC ID Label The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 10B273R-RFUSP43V01 Page : 3 of 10 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 4 of 10 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 5 of 10 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 6 of 10 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 7 of 10 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 8 of 10 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 9 of 10 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 10B273R-RFUSP43V01 Page : 10 of 10 Version:1.0 (19) EUT Photo

Report No. 10B273R-RFUSP43V01 Page: 7 of 50 1.2. Operational Description The EUT is a remote control with built-in 900MHz FHSS transceiver. The number of the channels is 25 in 909 - 919MHz. The device adapts the frequency hopping spread spectrum modulation. The antenna is monopole and solder on PCB and provides diversity function to improve the receiving function. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its 25 channels and over the minimum number of hopping channels (25 channels). The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hop sets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The frequency shift keying (FSK) transceiver intended for use in half-duplex, bidirectional RF links. The multi-channeled FSK transceiver is intended for UHF radio equipment. The transmitter consists of a PLL frequency synthesizer and power amplifier. The frequency synthesizer consists of a voltage-controlled oscillator (VCO), a crystal oscillator, dual modulus prescaler, programmable frequency dividers, and a phasedetector. The loop-filter is external for flexibility and can be a simple passive circuit. The output power of the power amplifier can be programmed to seven levels. A lock-detect circuit detects when the PLL is in lock. In receive mode, the PLL synthesizer generates the local oscillator (LO) signal. The N, M, and A values that give the LO frequency are stored in the N0, M0, and A0 registers. Another detail information please refer to spec of chipset.

1.Frequency Hopping Table CH0 0C CH4 00 CH8 03 CH120F CH1610 CH20 16 CH2411 CH1 08 CH5 05 CH9 09 CH1313 CH1712 CH21 15 CH2 06 CH6 01 CH10 04 CH140D CH180E CH22 18 CH3 02 CH7 07 CH11 0A CH150B CH1914 CH23 17 2.TX Every time transfer new package, it starts transmission from the next channel after last package’s end. 每次傳送新的封包會從上一次結束傳送的下一個channel開始傳送 3.RX Receiver receives signal by scanning. Every channel stops about 1.5ms. If it didn’t receive the correct synchronal data, it would jump to next channel for receiving. Receiver是以SCAN的方式做接收，每個channel大約停留1.5ms，若無接收到正確的同步資料，則 會跳到下一個channel重新接收

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This a portable device and the max peak output power is 4.43 dBm = (2.77 mW). Lower that low threshold 60/f GHz mW = (65.28 mW), d <2.5 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 10B273R-RFUSP43V01 Page: 1 of 50 Test Report Product Name TRANSCEIVER Model No. SS92P FCC ID. ELVATRJB Applicant NUTEK CORPORATION Address No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan Date of Receipt Nov. 12, 2010 Issued Date Dec. 01, 2010 Report No. 10B273R-RFUSP43V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 10B273R-RFUSP43V01 Page: 2 of 50 Test Report Certification Issued Date: Dec. 01, 2010 Report No.: 10B273R-RFUSP43V01 Product Name TRANSCEIVER Applicant NUTEK CORPORATION Address No.167,Lane 235,Bauchiau Rd.,Shindian City,Taipei County,Taiwan Manufacturer NUTEK CORPORATION Model No. SS92P FCC ID. ELVATRJB EUT Rated Voltage AC 100-240V,50-60Hz EUT Test Voltage AC 120V/ 60Hz Trade Name NUTEK Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang) Tested By : (Assistant Engineer / Vincent Chu) Approved By : (Manager / Vincent Lin ) Report No. 10B273R-RFUSP43V01 Page: 3 of 50 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit .....................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................16 4.1. Test Equipment ......................................................................................................................................16 4.2. Test Setup ..............................................................................................................................................16 4.3. Limits.....................................................................................................................................................17 4.4. Test Procedure .......................................................................................................................................18 4.5. Uncertainty ............................................................................................................................................18 4.6. Test Result of Radiated Emission ..........................................................................................................19 5. RF ANTENNA CONDUCTED TEST................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 10B273R-RFUSP43V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 10B273R-RFUSP43V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 10B273R-RFUSP43V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
