128-8859 1 of 4 Transmitter Programming Guide This transmitter is designed for use with your upgrade remote start unit and is programmed by using the remote start's program switch in combination with the transmitter button. This transmitter can be used with any Audiovox unit color coded with an Orange LED in the receiver. To program this transmitter into your remote start upgrade unit: 1) Turn the ignition to the on position. 2) Press and release the programming switch 3 times. 3) Press and hold, for 3 seconds, the button of the transmit- ter you wish to add until the parking light flashes indicating the transmitter has been learned. 4) Repeat step 3 for each transmitter up to a total of 4. Turn the ignition off to exit the program mode. NOTE: Do not allow more than 15 seconds to lapse between steps or the program mode will be automatically exited and you will have to start over. If you notice decreased operating range or if the LED fails to light when activating the unit, the batteries will need replace- ment. Model 09XR2PR 1 128-8859 2 of 4 Battery Replacement After removing the two #0 point phillips screws shown, pry apart case with the edge of a finger nail or a small common screwdriver. Keep hold of the metal key ring loop to prevent its loss as it will separate from the transmitter case. Carefully remove the discharged batteries by sliding them out from under the clip in the direction indicated by the arrow in the diagram. Properly dispose of the exhausted batteries and insert two new CR2032 batteries, taking care to arrange them so that the + is facing up toward the + symbol on the battery clip. Reassemble in the reverse of above. This device complies with FCC Rules Part 15 Operation and is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference that may be received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 2 128-8859 3 of 4 Attention: Transmitter Ordering Dep artment Important: To help us expedite your order, please print all of the information legibly and mail this form and your payment according to the instructions below. 1)Name: _____________________________________ 2) Address:_________________________________________ 3) City:________________State:________Zip Code:__________ 4) Telephone Number: ()_____________________ 5) Total Number Of Transmitters Required:_______ Cost Per Transmitter is:$85.00 Multiply By Number Of Transmitters X 6) Enter Total Amount Enclosed _______ (New York State Residents must include the appropriate sales tax) 7) Method of Payment: Mastercard VisaCheck or Money Order (do not send cash) Make Checks Payable To Audiovox Corporation Credit Card Number:___________________________________ Credit Card Expiration Date: ____/___/____ 8) Mail this form along with your payment to: Transmitter Ordering Dep artment Audiovox Corporation 150 Marcus Blvd., Haupp auge N.Y. 11788 Credit card purchasers can order additional or replacement transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and follow the instructions from the operator interface. ORDER FORM FOR TRANSMITTER 09XR2Pr  3 128-8859 4 of 4 © 2010 Audiovox Electronics Corp., Hauppauge, N.Y. 11788 128-8859

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sep. 03, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Nutek Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Transmitter, Model No.: 09XR2PR, FCC ID: ELVATRJC We affirm that between SIEMIC and Nutek Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Sep. 03, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ELVATRJC We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

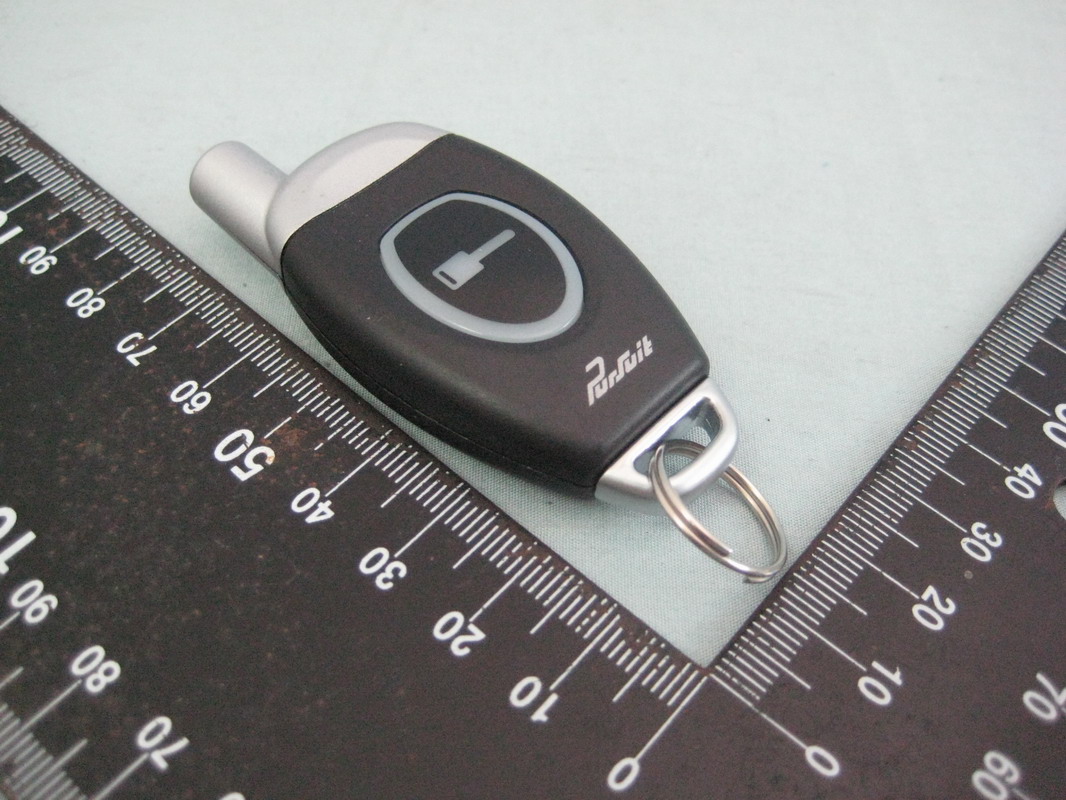

Report No.：10A082502FR FCC ID： ELVATRJC Page 21 of 23 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT
