128-9310 1 of 32 1 Model APS-997E Installation Manual 2 Way LCD Vehicle Security and Remote Start System PATENTED: www.voxxintl.com/company/patents Table Of Contents: Before You Begin Page 2 Wire Harnesses Quick View Page 3, 4, & 5 Installation Of The Major Components Page 6 8 Pin Power Harness Wiring Page 7 - 8 26 Pin Accessory Input/Output Harness Wiring Page 9 - 14 4 Pin GND, Siren & Parking Light Harness Page 15 Door Lock Harness Wiring Page 16 - 18 Telematic Port Information Page 18 6 Pin Antenna Harness Page 18 4 Pin Shock Sensor Harness Page 19 Time Start Program Page 19 Temperature Start Programming & Information Page 19 DBI Port Information Page 19 Diesel Engine Settings Page 19 Diagnostics Access & Information Page 20 Engine Monitoring Selections, (Voltage Tach, DBI, Hybrid,) Page 20 Tach Rate Setting Page 20 & 28 Testing Your Installation Hood Pin Safety Page 21 Manual Override Safety Testing and Operation Page 21 Neutral Safety Switch Testing Page 21 - 23 Dome Delay Learn Circuit Page 24 Adjusting The Shock Sensor Page 24 Completing Your Installation Page 25 Programming Transmitters Page 26 Programming Alarm Feature Bank 2 Page 26 & 27 Programming Remote Start Feature Bank 3 Page 28 & 29 Circuit Wiring Layout Page 30 128-9310 2 of 32 2 Before You Begin PROFESSIONAL INSTALLATION IS STRONGLY RECOMMENDED Roll down window to avoid locking the keys in the vehicle during installation. Avoid mounting components or routing wires near hot surfaces or near moving parts like the steering wheel as it may prevent proper operation of the vehicle. Tape or loom wires under the hood and dash for protection as well appearance. Use grommets when routing wires through metal surfaces to prevent chafing and shorting. Use a Digital Multi Meter for testing and verifying circuits. DO NOT USE A "TEST LIGHT" OR "COMPUTER SAFE PROBE" as these can set off air bags or damage sensitive vehicle computers and electronics. For technical support go to www.avxtech1.com or call 1 800 225 6074 FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment 128-9310 3 of 32 3 26 Pin Main Wiring Harness #1124302 1 Green/White Dome Light Output (-) 2 LT. Blue Ground While Running Output (-) 3 Black/White Horn Output (-) 4 Purple (+) Door Trigger Input 5 Brown/Black (+) Inhibit/Shutdown To Brake Switch 6 DK. Blue/Black External Remote Start Trigger Input (-) 7 Orange/Black (-) Parking Brake Input 8 Green/Yellow Glow Plug Input 9 Brown (-) Door Trigger Input 10 Green/Orange Tachometer Input 11 DK Green (-) Instant Trigger Input 12 NC No Connection, Empty Cavity 13 LT. Green (-) Trigger Input 14 DK. Blue Channel 3 Trunk Release Output (-) 15 Green/Black Channel 4 Output (-) 16 DK.Blue/Red Channel 7 Output (-) 17 Black/LT.Green Pulse After Start Output (-) 18 Black/Blue Pulse Before Start Output (-) 19 Black/Red Pulse After Shut Down Output (-) 20 Black/Yellow Pulse During Crank Output (-) 21 LT. Blue/Black Channel 6 Output (-) 22 LT.Blue/Green Channel 5 Output (-) 23 Gray/Black (-) Inhibit/Shutdown To Hood Switch 24 Orange Start Inhibit Relay Control (-) 25 White/Blue (-) Headlight Activation Output 26 Orange/White N.O Start Inhibit Relay Control (-) 128-9310 4 of 32 4 8 Pin Power / Start Harness #1124299 3 Pin Door Lock Output Harness #1122906 4 Pin 2nd Main Harness #1124301 4 Pin Shock Sensor Harness #1122591 1 Blue Ignition 1 (+) 2 Red/White Battery 1 - 12V (+) 3 Green Ignition 2 (+) 4 Pink Ignition 3 Common Contact 5 Purple Accessory (+) 6 Red Battery 2 - 12V (+) 7 Yellow Starter Output 8 Red/Black Ignition 3 Normally Open Contact 1 Black Chassis Ground 2 White/Red Parking Light Relay Input 3 White/Black (+) Siren Output 4 White Parking Light Relay Output 1 Red (-) Door Lock Output 2 Green (-) Door Unlock Output 3 Red/Black (-) 2nd Door Unlock Output 1 Blue Predetect 2 Green Full Trigger 3 Black Chassis Ground 4 Red + 12 Volts 128-9310 5 of 32 5 6 Pin Antenna Harness #1124293 1 Red + 5 VDC 2 Green RX 3 Black Ground 4 Gray Valet Enable 5 Blue LED Cathode 6 Blue TX 128-9310 6 of 32 6 WARNING!! This unit is to be used in vehicles with AUTOMATIC TRANSMISSIONS only! Although this combination Alarm/Remote Start unit is a sophisticated system with many advanced features, IT MUST NOT be installed into a vehicle with a manually operated transmission. Doing so may result in serious personal injury and property damage! INSTALLATION OF THE MAJOR COMPONENTS: CONTROL MODULE: PART # 1365405 Select a mounting location inside the passenger compartment (up behind the dashboard). The mounting location selected must be within 24" of the ignition switch wiring harness to allow connection of the 6 pin main wiring harness. Be certain that the chosen location will not interfere with proper operation of the vehicle. Avoid mounting the module to or routing the wiring around the steering shaft/column, as the mod- ule or wiring may wrap around or block the steering wheel preventing proper control of the vehicle. The module will be secured after all wiring is completed which will allow complete access until the job is done. CAUTION: Do Not Mount The Module In The Engine Compartment, as it is not waterproof. SIREN: PART# AS9903E Select a location in the engine compartment that is not accessible from below the vehicle. The selected location must be clear of hot or moving parts within the engine compartment The siren must be pointed…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

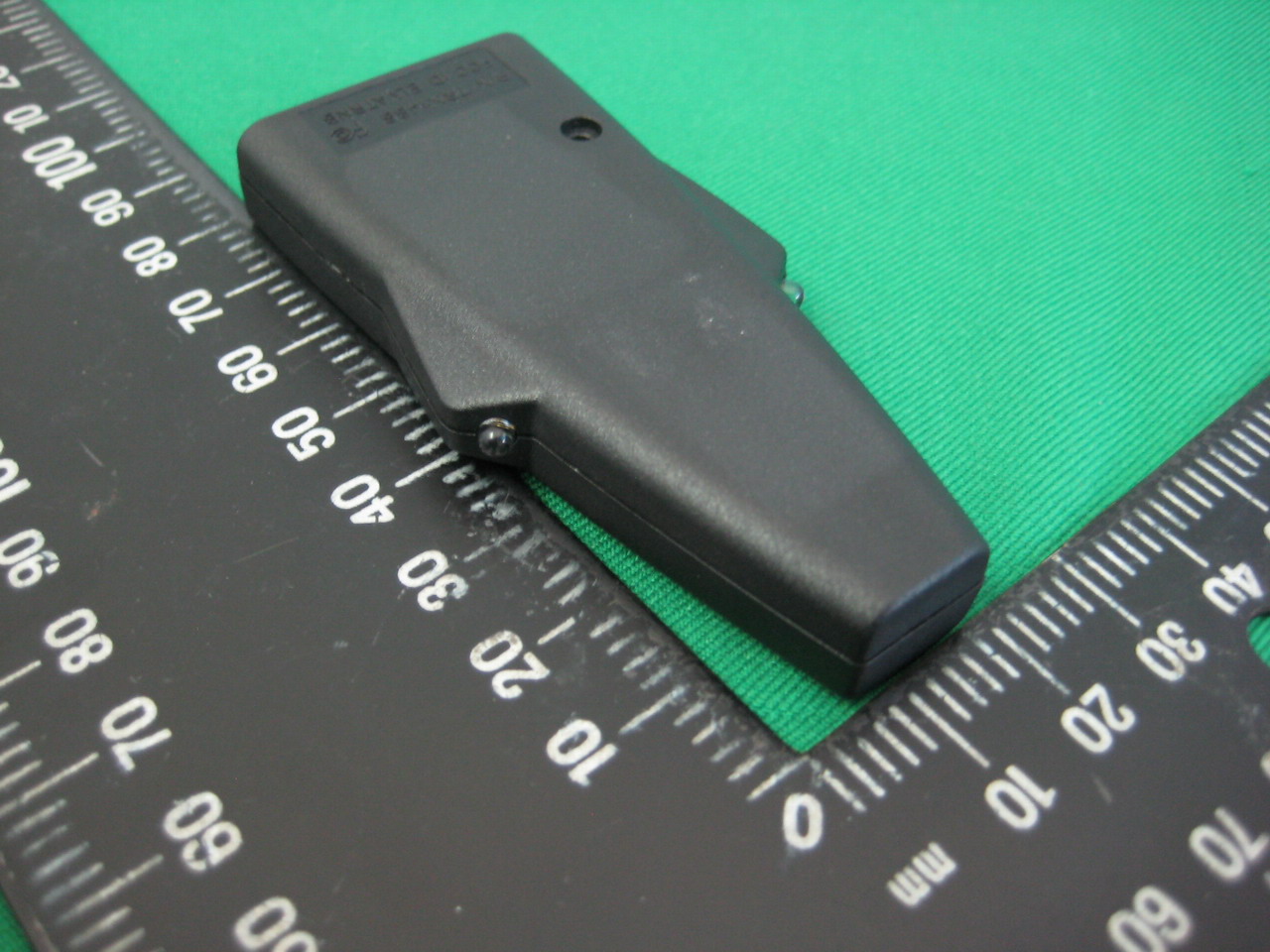

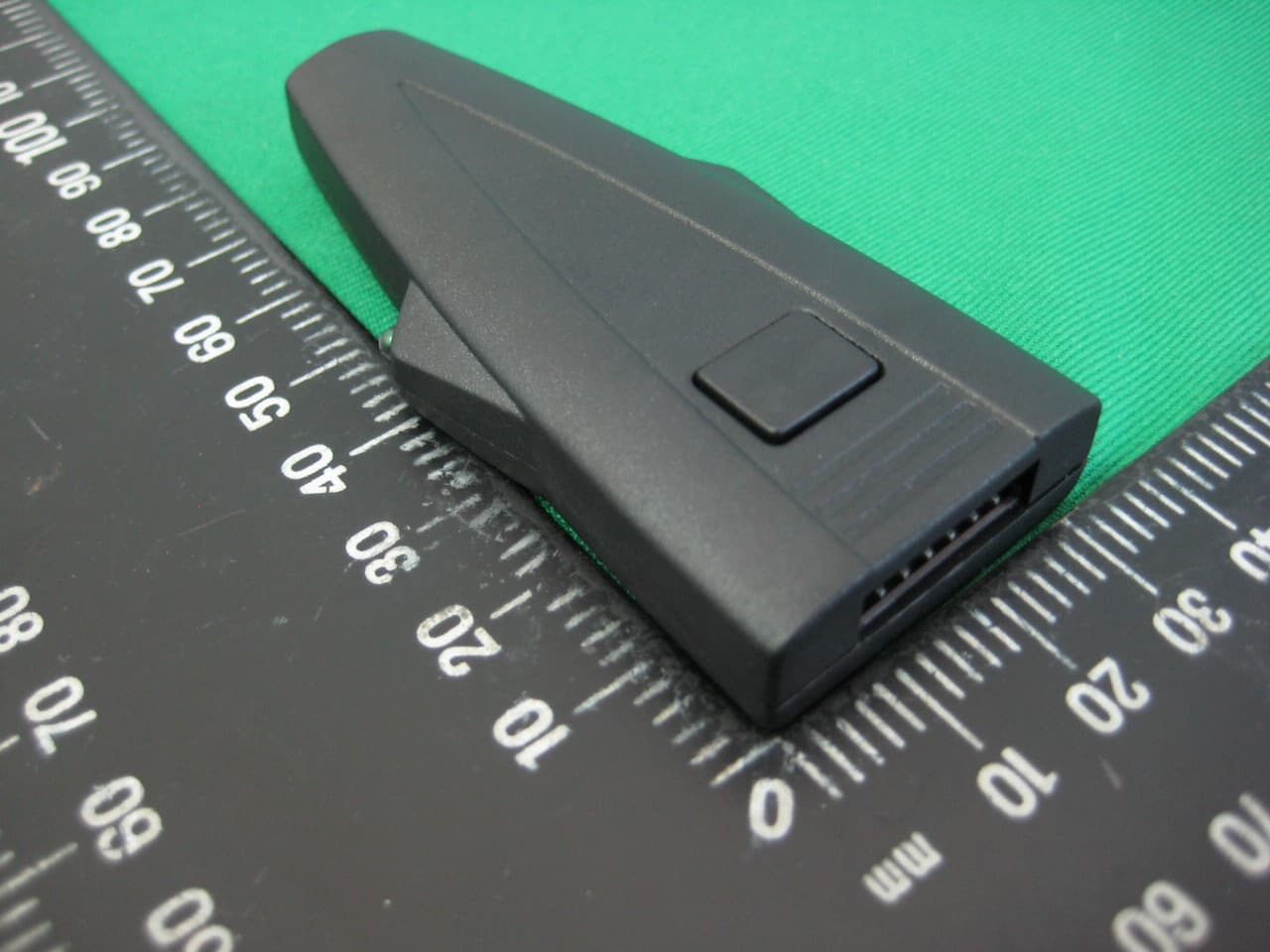

Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 40 of 44 Interocean EMC Technology Corp. Test Report 11 Photographs of EUT Front View of EUT Rear View of EUT Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 41 of 44 Interocean EMC Technology Corp. Test Report FCC ID

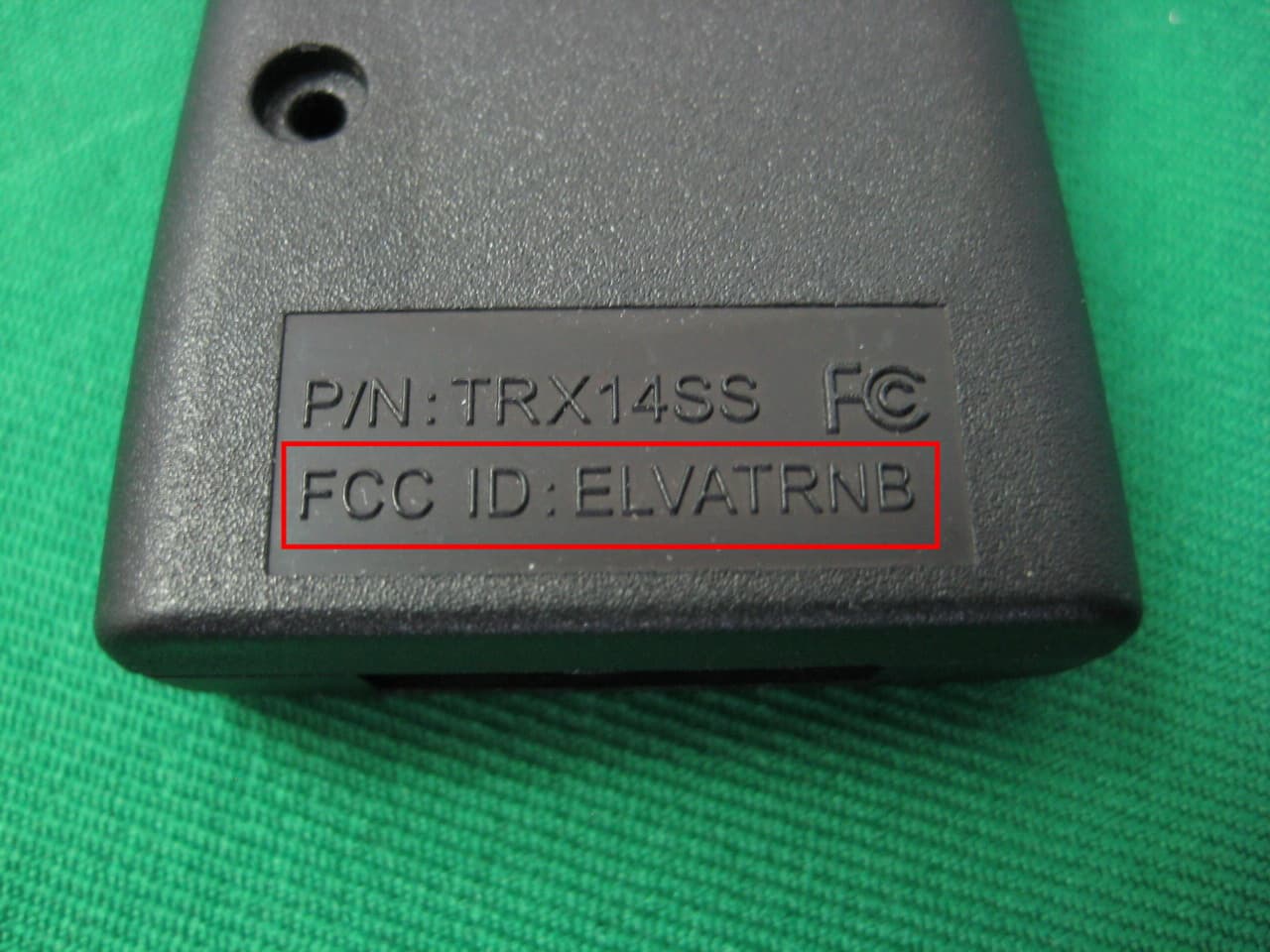

P/N:TRX14SS FCC ID:ELVATRNB MT-11020 0.2 D  B   C FELIX YYS Victor BODY MATERIAL : HI-HEAT ABS+UV MTP02010*1

Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 42 of 44 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 43 of 44 Interocean EMC Technology Corp. Test Report Front View of Main Board-1 Front View of Main Board-2 Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 44 of 44 Interocean EMC Technology Corp. Test Report Rear View of Main Board

FCC ID：ELVATRNB Report No.：14A072105R-FR Page 1 of 2 RF Exposure Evaluation E.U.T.： Transceiver Model Number： TRX14SS Report Issued： 2014/08/08 Project Engineer： Approved： Elli Chang Jerry Liu Applicant： Nutek Corporation Address： NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Issued By： Interocean EMC Technology Corp. LAB Location： No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. FCC ID：ELVATRNB Report No.：14A072105R-FR Page 2 of 2 Portable Device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498_D01_V05 4.3.1(1) SAR exclusion thresholds by: [max. power of channel, including tune-up tolerance, mW]/(min, test separation distances, mm)]*[√f(GHz)]≦3.0 for 1-g SAR and ≦7.5 for 10-g extremity SAR. Maximum measured transmitter power Frequency Range (MHz) Maximum peak power (dBm) Maximum peak power (mW) 909.6 12.64 18.3654 913.8 12.60 18.1970 918.0 12.57 18.0717 (18.3654/5)*(√0.9096)=3.50312≦7.5 Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 1 of 44 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT Product： Transceiver Trade Name： N/A Model Number： TRX14SS FCC ID： ELVATRNB Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： The test report consists of 44 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 2 of 44 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Table for Carrier Frequencies 6 1.3 Hopping Sequence 6 1.4 Details of Tested Supporting System 7 1.5 Test Facility 8 1.6 Test Equipment 9 1.7 Summary of Measurement 10 1.8 Justification 11 2 Test specifications 12 2.1 Test standard 12 2.2 Test Step of EUT 12 3 20dB Bandwidth test 13 3.1 Limit 13 3.2 Configuration of Measurement 13 3.3 Test Procedure 13 3.4 Test Result 13 4 Carrier Frequency Separation test 17 4.1 Limit 17 4.2 Configuration of Measurement 17 4.3 Test Procedure 17 4.4 Test Result 17 5 Number of hopping frequencies test 21 5.1 Configuration of Measurement 21 5.2 Test Procedure 21 5.3 Test Result 21 6 Time of Occupancy (dwell time) test 23 6.1 Limit 23 6.2 Configuration of Measurement 23 6.3 Test Procedure 23 6.4 Test Result 23 7 Maximum Output Power test 25 7.1 Limit 25 7.2 Configuration of Measurement 25 7.3 Test Procedure 25 7.4 Test Result 25 Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 3 of 44 Interocean EMC Technology Corp. Test Report 8 RF Conducted spurious emission 28 8.1 Limit 28 8.2 Configuration of Measurement 28 8.3 Test Procedure 28 8.4 Test Result 28 9 RF Radiated spurious emission test 32 9.1 Limit 32 9.2 Configuration of Measurement 32 9.3 Test Procedure 33 9.4 Test Result 33 10 Photographs of Test 38 10.1 Radiated Emission Measurement 38 11 Photographs of EUT 40 Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 4 of 44 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transceiver Model No.: TRX14SS Tested Power Supply: 5Vdc battery Date of Final Test: Aug. 15, 2014 Revision of Report: Rev. 00 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2014/08/08 Project Engineer: Approved: Elli Chang Jerry Liu Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 5 of 44 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transceiver Model Number : TRX14SS Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 5Vdc battery Operating Frequency : 909.6MHz ~ 918MHz Channel Number : 25 channels Type of Modulation : FSK Antenna Description : This device uses Helix antenna. Antenna gain 0dBi. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jul. 07 ~ Aug. 15, 2014 Additional Description : 1) The Model Number “TRX14SS” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 6 of 44 Interocean EMC Technology Corp. Test Report 1.2 Table for Carrier Frequencies FC (MHz) FC (MHz) FC (MHz) CH0 909.6000 CH9 912.7500 CH18 915.9000 CH1 909.9500 CH10 913.1000 CH19 916.2500 CH2 910.3000 CH11 913.4500 CH20 916.6000 CH3 910.6500 CH12 913.8000 CH21 916.9500 CH4 911.0000 CH13 914.1500 CH22 917.3000 CH5 911.3500 CH14 914.5000 CH23 917.6500 CH6 911.7000 CH15 914.8500 CH24 918.0000 CH7 912.0500 CH16 915.2000 CH8 912.4000 CH17 915.5500 1.3 Hopping Sequence 12, 8, 6, 2, 0, 5, 1, 7, 3, 9, 4, 10, 15, 19, 13, 11, 16, 18, 14, 20, 22, 21, 24, 23,17 Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 7 of 44 Interocean EMC Technology Corp. Test Report 1.4 Details of Tested Supporting System 1.4.1 DC Source DC018 Model Number : HLG-60H-48A Serial Number : RB27017098 Manufacturer : MEAN WELL Output : 48V DC, 1.3A Input : 100-240VAC 0.64A 50/60Hz EMC Compliance : CE Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 8 of 44 Interocean EMC Technology Corp. Test Report 1.5 Test Facility Site Description : OATS 1 RF Test Room Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020  Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registr…

Text truncated - open the document above for the full version.

Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 38 of 44 Interocean EMC Technology Corp. Test Report 10 Photographs of Test 10.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.: 14A072105R-FR FCC ID：ELVATRNB Page 39 of 44 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
