ELVATRPFTransceiver

128-9456 Page 1 PRESTIGE IGN AM PM Z Z 24 S 1 2 INHIBIT A 0 Lock/Arm Unlock/Disarm Trunk Release/ Remote Start Option F Function Button Model PE2RELCD Operators Manual RF Upgrade Kit Check with your installation center for features and functions operational on your system. To Operate System: 1) Press the lock button to lock the doors and arm the alarm if installed. 2) Press the unlock button to unlock the doors and disarm the alarm if installed. 3) Press and hold the Trunk/Start button for 3 seconds to unlock the trunk. 4) Press the Trunk/Start button two times in succession to start the vehicle. The vehicle will start and run the predetermined time set up during installation (5 to 60 minutes selectable). Anytime during the run cycle, enter the vehicle by first unlocking the doors with your transmitter, insert your key and turn it to the run, NOT START, position, then step on the brake, the vehicle is now in control of the ignition key. NOTE: For push to start vehicle systems, simply enter the vehicle with your key in hand, and step on the brake. Consult your installation center for operation and information on convenience options 1 & 2 which may have been connected or added to your vehicle. PATENTED: www.voxxintl.com/company/patents 128-9456 Page 2 Quick Stop Mode: With vehicle running, if you wish to make a quick stop and leave the vehicle running, once you arrive at your destination: a) place the gear selector in Park, b) set the parking brake, c) with your foot off the brake, press the transmitter button two times in succession. The vehicle will now be under control of the remote start system. Turn your ignition switch off, WITHOUT, stepping on the brake, and exit the vehicle. Lock the doors with the key to insure security. In addition to the time, the LCD screen on your remote indicates many things which may be re- lated to the activity of the Keyless Entry, Remote Start, & or Alarm installed in your vehicle. Also you have the ability to set certain functions and features of the remote control itself, like vibrate or tone, count down parking meter timer etc,,,Use the chart shown to identify these events. and the following charts to set the features of your remote. To program the remote for time settings, alarm clock, and count down timers, see chart that follows PRESTIGE IGN AM PM Z Z 24 S 1 2 INHIBIT A 0 Door Entry/Open Indication (14) Sensor Activated Indication (18) Valet Mode Indication (16) Prime or Secondary Car Mode (17) Temperture Start Mode Active (12) Count Down Hour Glass (11) Battery Charge Indicator (19) Battery Save Indicator (20) 24 Hour Start Timer Active (21) (1) Vibrate Mode On (2) Transmit Icon (3) Siren Chirps Active Or Inactive (4) Lock or Unlock Indicator (5) Page From Vehicle Indicator (7) Anti Hijack Indicator Available On Some Models (9) Clock Stop/Watch/Meter Counter Count Down Timer Active(10) Trunk Entry/Open Indication (15) Vehicle Running Indicator (13) (8) Remote Start Inhibit Indicator (6)Light Flash Indicator Page 2 128-9456 Page 3 To program parking meter countdown timer, select tone or vibrate, alarm clock set on/off, Fahr- enheit or Celsius scale, or operate a second vehicle with similar Voxx Electronics remote start alarm system follow the chart below. TRANSMITTER FUNCTION SELECTION TRANSMITTER BUTTON ICON DISPLAYED TONE/VIBRATE TIMING ADJUST MODE (HRS) TIMING ADJUST MODE (MINS) ALARM CLOCK ADJUST MODE (HRS) ALARM CLOCK ADJUST MODE (MINS) ALARM CLOCK & POWER UP MUSIC SELECT TIMING COUNT DOWN ADJUST MODE (HRS) TIMING COUNT DOWN ADJUST MODE (MINS) TIMING COUNT DOWN END MELODY SELECTION TIMING COUNT DOWN MODE SELECT ON/OFF REMOTE START ON MELODY SELECT 2 ALARM CLOCK ADJUST MODE ON/OFF F F F F F F F F F F F PRESS FOR 5 SECONDS PRESS 1X PRESS 2X PRESS 3X PRESS 4X PRESS 5X PRESS 6X PRESS 7X PRESS 8X PRESS 9X PRESS 10X 5 8 AM PM 18:88 AM PM 18:88 AM PM 18:88 AM PM 18:88 AM PM 18:88 8 ON/OFF AM PM 18:88 8 ON/OFF 2 BEEP TONES 5 SELECTIONS PRESS KEY BUTTON OR OPTION BUTTON TO SELECT 5 SELECTIONS PRESS KEY BUTTON OR OPTION BUTTON TO SELECT 5 SELECTIONS PRESS KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT USE KEY BUTTON OR OPTION BUTTON TO SELECT TRANSMITTER FUNCTION OPERATION TRANSMITTER BUTTONS TO PRESS ICON DISPLAYED TONE/VIBRATE 10 MIN PARKING COUNT DOWN TIMER F F F F F F F F F F F 0:20 0:10 1:00 0:30 0:00 ON/OFF MELODY 20 MIN PARKING COUNT DOWN TIMER 30 MIN PARKING COUNT DOWN TIMER 60 MIN PARKING COUNT DOWN TIMER 90 MIN PARKING COUNT DOWN TIMER 120 MIN PARKING COUNT DOWN TIMER PARKING COUNT DOWN TIMER OFF MODE BACKLIGHT DISPLAY FOR 10 SECONDS VIBRATE/TONE SELECT ALARM CLOCK MODE SELECT ON/OFF FAHRENHEIT/CELSIUS SELECT POWER SAVE MODE F + OPTION 1X + OPTION 2X + OPTION 3X + OPTION 4X + OPTION 5X + OPTION 6X + OPTION 7X 1X PRIMARY OR SECONDARY VEHICLE ON/OFF TRUNK/KEY + LOCK BUTTON 5 SECONDS 1 OR 2 2:00 1:30 MELODY MELODY MELODY MELODY MELODY MELODY ILLUMINATES DISPLAY VIBRATES 4 TIMES OR BEEPS 1X MELODY MELODY MELODY MELODY F OR C + + OPTION 1X + KEY 1X S + 1X + 1X Page 3 128-9456 Page 4 Page 4 24 ADDITIONAL REMOTE FEATURES: The two way remote control unit allows you to access status information from the vehicle, check temperature, light the display, toggle the transmitter from beep tones to vibrate mode, initiate daily start timer, and temperature start. Selection of these and other features are shown below: NOTE: Transmitter must be within operating range of the vehicle, approximately 2500ft. Check Vehicle Status Press the lock+key+option buttons simultaneously for 1 second. The vehicle's alarm will display the systems current status. Check Temperature (Only available on certain remote start units) Press the option+key buttons simultaneously for 1 second. The vehicle's alarm will display the temperature. Temperatu…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) FromTo Approved Date Initial Release (obsolete) 1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete) 1.02.0August – 11 - 2008 Updated company template & Added text box (obsolete) 2.03.0Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.04.0March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.05.0 Nov 19 2015

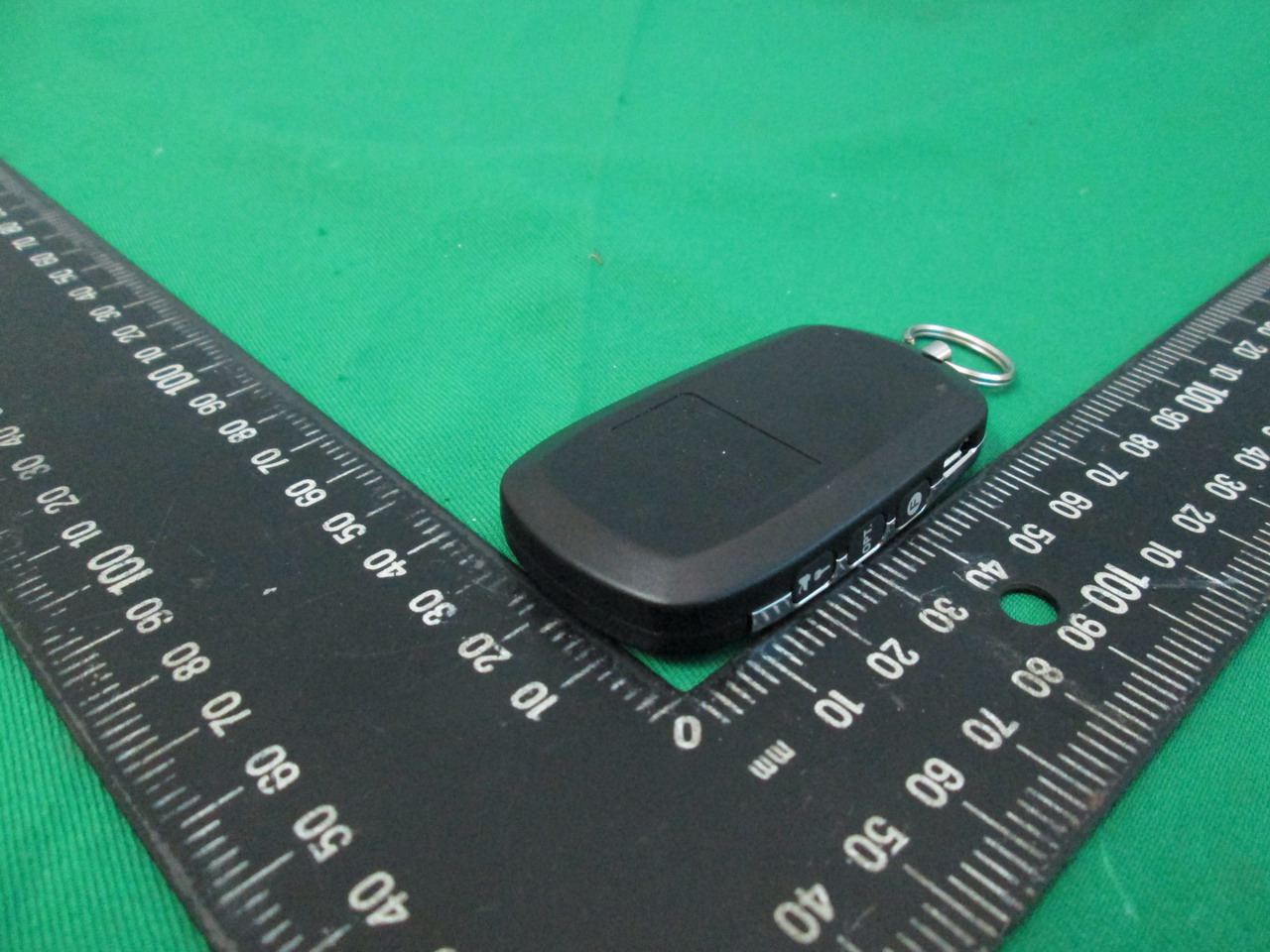

Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 42 of 47 Interocean EMC Technology Corp. Test Report 12 Photographs of EUT Front View of EUT Rear View of EUT Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 43 of 47 Interocean EMC Technology Corp. Test Report FCC ID

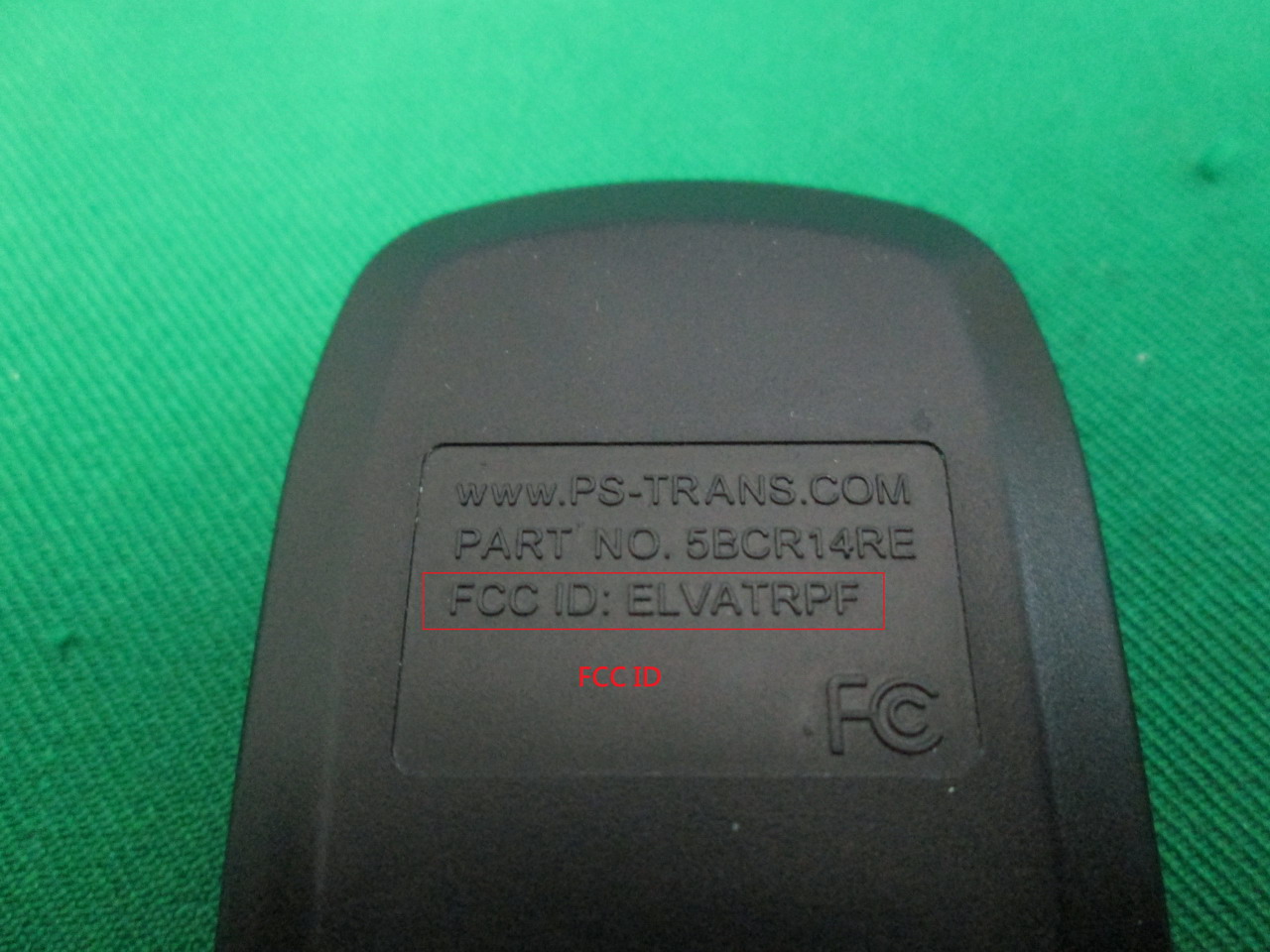

BODY MATERIAL : PC+ABS MT-11010 0.2 Eason YYS Victor O P T . PART NO. 5BCR14RE www.PS-TRANS.COM FCC ID:ELVATRPF

Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 44 of 47 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 45 of 47 Interocean EMC Technology Corp. Test Report Front View of Main Board-1 Front View of Main Board-2 Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 46 of 47 Interocean EMC Technology Corp. Test Report Rear View of Main Board Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 47 of 47 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

FCC ID：ELVATRPF Report No.：15A111203R-FR Page 1 of 2 RF Exposure Evaluation E.U.T.： Transceiver Model Number： 5BCR14RE Report Issued： 2015/11/30 Project Engineer： Approved： Vic Tsao Jerry Liu Applicant： Nutek Corporation Address： NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Issued By： Interocean EMC Technology Corp. LAB Location： No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. FCC ID：ELVATRPF Report No.：15A111203R-FR Page 2 of 2 1 RF Exposure Evaluation Maximum measured transmitter power Total Maximum power Frequency Range (MHz) Continuous transmit power (dBm) Averaging factor (dB) Transmit power (dBm) Tune-up power tolerance (dB) (dBm) (mW) 909.6 15.45 -12.55 2.9 (±)2 4.9 3.0903 913.8 15.4 -12.55 2.85 (±)2 4.85 3.0549 918.0 15.33 -12.55 2.78 (±)2 4.78 3.0061 Averaging factor in dB =20㏒ (duty cycle) The duration of one cycle = 561.6ms Duty Cycle = Ton/duration =132.4 ms / 561.6ms Therefore, the averaging factor is found by 20㏒ 0.23575 = -12.55 dB Portable Device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498_D01_V06 4.3.1(1) SAR exclusion thresholds by: [max. power of channel, including tune-up tolerance, mW]/(min, test separation distances, mm)]*[√ f(GHz)]≦3.0 for 1-g SAR and ≦7.5 for 10-g extremity SAR. Calculation (3.0903/5)*(√0.9096)=0.58946≦7.5 Conclusion No SAR is required. Simultaneous Transmission Evaluation N/A FCC ID：ELVATRPF Report No.：15A111203R-FR Page 3 of 2 Duty Cycle Ref 107 dBμVAtt 10 dB * * CLRWR A 3DB RBW 100 kHz VBW 1 MHz CLRWR Center 909.6 MHz80 ms/ SWT 800 ms SGL * * 1 PK 3 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 91.22 dBμV 89.600000 ms 1 Delta 1 [T1 ] -0.17 dB 561.600000 ms Duration Ref 107 dBμVAtt 10 dB * CLRWR A CLRWR * 3DB RBW 100 kHz VBW 1 MHz Center 909.6 MHz20 ms/ SWT 200 ms SGL * * 1 PK 3 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 78.13 dBμV 38.400000 ms 1 Delta 1 [T1 ] 0.04 dB 132.400000 ms Time Slot

Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 1 of 47 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT Product： Transceiver Trade Name： N/A Model Number： 5BCR14RE FCC ID： ELVATRPF Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： The test report consists of 47 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 2 of 47 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Table for Carrier Frequencies 6 1.3 Hopping Sequence 6 1.4 Details of Tested Supporting System 7 1.5 Test Facility 8 1.6 Test Equipment 9 1.7 Summary of Measurement 10 1.8 Justification 11 2 Test specifications 12 2.1 Test standard 12 2.2 Operation mode 12 2.3 Test Step of EUT 12 3 20dB Bandwidth test 13 3.1 Limit 13 3.2 Configuration of Measurement 13 3.3 Test Procedure 13 3.4 Test Result 13 4 Carrier Frequency Separation test 16 4.1 Limit 16 4.2 Configuration of Measurement 16 4.3 Test Procedure 16 4.4 Test Result 16 5 Number of hopping frequencies test 19 5.1 Configuration of Measurement 19 5.2 Test Procedure 19 5.3 Test Result 19 6 Time of Occupancy (dwell time) test 21 6.1 Limit 21 6.2 Configuration of Measurement 21 6.3 Test Procedure 21 6.4 Test Result 21 7 Maximum Output Power test 23 7.1 Limit 23 7.2 Configuration of Measurement 23 7.3 Test Procedure 23 7.4 Test Result 23 Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 3 of 47 Interocean EMC Technology Corp. Test Report 8 RF Conducted spurious emission 26 8.1 Limit 26 8.2 Configuration of Measurement 26 8.3 Test Procedure 26 8.4 Test Result 26 9 RF Radiated spurious emission test 30 9.1 Limit 30 9.2 Configuration of Measurement 30 9.3 Test Procedure 31 9.4 Test Result 31 10 AC Power Line Conducted Emission test 36 10.1 Limits 36 10.2 Configuration of Measurement 36 10.3 Test Procedures 36 10.4 Test Result 36 11 Photographs of Test 39 11.1 Power Line Conducted Emission Measurement 39 11.2 Radiated Emission Measurement 40 12 Photographs of EUT 42 Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 4 of 47 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transceiver Model No.: 5BCR14RE Tested Power Supply: 3.7Vdc battery Date of Final Test: Nov. 26, 2015 Revision of Report: Rev. 01 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2015/11/30 Project Engineer: Approved: Vic Tsao Jerry Liu Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 5 of 47 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transceiver Model Number : 5BCR14RE Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 3.7Vdc battery Operating Frequency : 909.6MHz ~ 918MHz Channel Number : 25 channels Type of Modulation : FSK Antenna Description : This device uses Helix antenna. Antenna gain 0dBi. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Nov. 12 ~ 26, 2015 Additional Description : 1) The Model Number “5BCR14RE” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 6 of 47 Interocean EMC Technology Corp. Test Report 1.2 Table for Carrier Frequencies FC (MHz) FC (MHz) FC (MHz) CH0 909.60 CH9 912.75 CH18 915.90 CH1 909.95 CH10 913.10 CH19 916.25 CH2 910.30 CH11 913.45 CH20 916.60 CH3 910.65 CH12 913.80 CH21 916.95 CH4 911.00 CH13 914.15 CH22 917.30 CH5 911.35 CH14 914.50 CH23 917.65 CH6 911.70 CH15 914.85 CH24 918.00 CH7 912.05 CH16 915.20 CH8 912.40 CH17 915.55 1.3 Hopping Sequence 12, 8, 6, 2, 0, 5, 1, 7, 3, 9, 4, 10, 15, 19, 13, 11, 16, 18, 14, 20, 22, 21, 24, 23, 17 Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 7 of 47 Interocean EMC Technology Corp. Test Report 1.4 Details of Tested Supporting System 1.4.1 PC PC33 Model Number : SGH017PFW4 CPU Speed : Intel Core 2 Duo E5400 RAM : 2GB DDR3 1333MHz EMC Compliance : CE, TUV, NCC, BSMI: R33275 Hard Disk Driver : 250GB Serial ATA2 3.0Gb/s 7200rpm Manufacturer : HP Switching Power Supply : LiteOn, PS-4321-9HP, 320W Power Cord : Non-shielded, Detachable, 1.8m, w/o core 1.4.2 Monitor MT30 Model Number : CMV 92GH 19” Serial Number : 92GHAGCN9120289 EMC Compliance : FCC, CE, BSMI: R31374, UL, TUV Manufacturer : CHIMEI Power Cord : Non-shielded, Detachable, 1.8m, w/o core D-Sub Cable : Non-shielded, Detachable, 1.8m, with core 1.4.3 Keyboard KB33 (USB) Model Number : Y-U0011 Serial Number : N/A EMC Compliance : CE, FCC, C-Tick, BSMI T51160, VCCI Manufacturer : LOGITECH Data Cable : Non-Shielded, Un-detachable, 1.5m 1.4.4 Mouse USB60 Model Number : M-U0028 Serial Number : N/A EMC Complia…

Text truncated - open the document above for the full version.

Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 39 of 47 Interocean EMC Technology Corp. Test Report 11 Photographs of Test 11.1 Power Line Conducted Emission Measurement Front View Rear View Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 40 of 47 Interocean EMC Technology Corp. Test Report 11.2 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.: 15A111203R-FR FCC ID：ELVATRPF Page 41 of 47 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
