Theft Deterrent System with Keyless Entry Owner's Manual 2 Contents FEATURES .... ........................................................................................................ 3 CONTROL SWITCH / ARMING ............................................................................. 4 PROTECTION WHEN ARMED .............................................................................. 5DISARMING the SYSTEM ..................................................................................... 6 INTRUSION WARNING INDICA TORS .................................................................. 7 VALET / MANUAL OVERRIDE ............................................................................. 8 CHANGING the CHIRP VOLUME ......................................................................... 9 REMOTE PANIC .................................................................................................. 10 REPLACING the TRANSMITTER BA TTERY ..................................................... 11 SUMMARY of SYSTEM INDICA TORS ............................................................... 12 FEATURES z Two 3 Button Transmitters are Included z System can be Controlled from up to 4 Different Transmitters z Code Hopping Radio Frequency Technology z Remote Emergency Panic z Protected Valet Override Mode z 6 Function Dash L.E.D. ( arm - disarm - zone 1 - zone 2 - zone 3 - valet ) z Intrusion Alert with Memory z Audible Arm / Disarm / Defective Zone Confirmation z Starter Disable While Armed z Remote Keyless Entry z Defective Zone By - Pass z Automatic Headlight Activation when Armed and Disarmed z User Selectable Arm / Disarm Chirp Delete z Sounds Existing Vehicle Horn z Parking Light Flasher z Dual Zone Infrasonic Shock Sensor 3 ARMING THE SYSTEM :1. Turn the ignition key off, exit the vehicle, and close all doors, hood, and trunk or rear hatch.2. Press and release the LOCK button on the keychain transmitter. ; The red dash mounted L.E.D. begins to flash slowly. ; Vehicle's parking lights flash one time. … Vehicle's horn sounds one time - Selectable. If the horn sounds 3 times, then you have left a door, hood, or trunk or rearhatch opened. Simply close the opened entry point to provide full protection. ; All of the vehicle's doors lock. ; The headlights turn on for 20 seconds. CONTROL SWITCH :The red dash mounted L.E.D. suppliedwith the system also serves as a controlswitch. Refer to the illustrations at the rightfor an explanation of the switch positions. CONTROL SWITCH / ARMING CONTROL SWITCH OFF POSITION CONTROL SWITCH ON POSITION Red Light in OUT Position Red Light in IN Position 4 PROTECTION WHEN ARMED ; Whenever the system is armed, the red dash mounted L.E.D. indicator will slowly flash. This serves as a visual deterrent to the potential thief. The L.E.D. is a very low current bulb, and willnot drain the vehicle's battery, even when left unattended for extended periods. ; Opening any protected door, hood, or trunk lid will cause the system to immediately activate. The alarm will continue to activate for 30 seconds, then stop and continue to monitor allprotected entry points. If the thief left a door opened, the alarm will activate for six 30 secondcycles, then re - arm and ignore the opened door. ; Whenever the system is armed, the vehicle's starting circuit will be by - passed. If the thief chooses to ignore the activated system, the vehicle's starting circuit is interrupted. ; Whenever the system is activated, the vehicle's parking lights will flash for the full 30 second alarm cycle. The vehicle's horn will also sound for the full 30 second alarm cycle. ; A soft impact to the vehicle's glass will cause the system to sound a series of warn - away tones from the vehicle's horn. ; A strong impact to the vehicle's glass will cause the system to sound for the full 30 second alarm cycle. 5 DISARMING the SYSTEM 1. As you approach the vehicle, press and release the UNLOCK button on the keychain transmitter. ; Red dash mounted L.E.D. turns off. ; Parking lights flash two times. … Vehicle's horn sounds two times - Selectable. If the horn sounds 4 times, then the system was activated in your ab-sence. Before turning the key on, examine the L.E.D. and refer to thesection titled " INTRUSION WARNING INDICATORS " to identify whichzone was triggered. ; Driver's door unlocks. To unlock the remaining doors, press and release the UNLOCK button onthe keychain transmitter two times within 3 seconds. ; Headlights turn on for 20 seconds, or until the ignition key is switched on. 6 INTRUSION WARNING INDICATORS This system will inform you if an intrusion attempt was made while you were away from thevehicle. This is an important feature, as it will allow you to alert the proper authorities at theexact location of the intrusion.If an intrusion attempt has occurred, the vehicle's horn will sound 4 times when you disarm thesystem. Enter the vehicle, and observe the red dash mounted L.E.D. to identify which zone wastriggered. n If the L.E.D. is flashing one time...pause...one time...pause, then an intrusion attempt was made to the shock sensor or hood ( and rear doors in four door RAV4 models, Landcruiser, and 4Runner ). o If the L.E.D. is flashing two times...pause...two times...pause, then an intrusion attempt was made to the vehicle's trunk. p If the L.E.D. is flashing three times...pause...three times...pause, then an intrusion attempt was made through one of the vehicle's doors. ATTENTION ! These intrusion warning indicators are stored in the system's memory, and will be erased when the ignition key is turned to the on position. 7 VALET / MANUAL OVERRIDE The valet mode allows you to temporarily by - pass all alarm functions, eliminating the need tohand your transmitter to parking attendants or garage mechanics. When the system is in valetmode, all alarm functions are by - passed, however the remote panic feature and door locks willremain operational. To use the valet mode ; 1. Enter the vehicle, and tu…

Text truncated - open the document above for the full version.

DATE : 2021/04/26 FCC ID: ELVATUE D ear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Interocean EMC Technology Tin-Fu Laboratory Ad dress: No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Name: Jerry Chang For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America, Inc, still resides with us. Signature FCC grantee contact person information. N ame/Title: Jason Wang / Senior Manager Company Name: Nutek Corporation Address: No.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL: +886 2 2918 9478 FA X: +886 2 2917 9069 Em ail: [email protected]

DATE : 2021/0 4/26 Equipment Autorisation Division Federal Communications Commission 7 435 Oakland Mills Road Columbia, MD 21046 F CC ID: ELVATUE Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature FCC grantee contact person information. Name/Title: Jason Wang / Senior Manager Company Name: Nutek Corporation Address: No.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL: +886 2 2918 9478 FAX: +886 2 2917 9069 Email: [email protected]

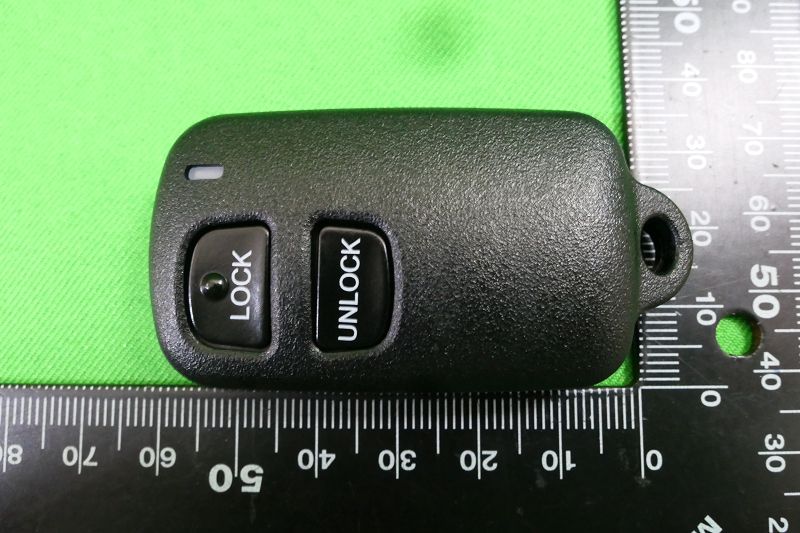

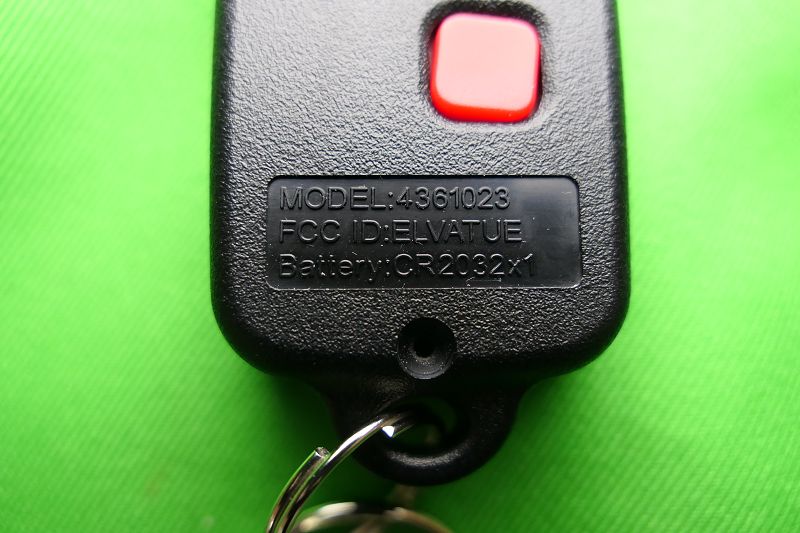

Report No.：21A021801R-FR FCC ID：ELVATUE Page 20 of 24 Interocean EMC Technology Corp. Test Report 8 Photographs of EUT Front View of EUT Rear View of EUT Report No.：21A021801R-FR FCC ID：ELVATUE Page 21 of 24 Interocean EMC Technology Corp. Test Report FCC ID Location

Report No.：21A021801R-FR FCC ID：ELVATUE Page 22 of 24 Interocean EMC Technology Corp. Test Report Inner View of EUT-1 Inner View of EUT-2 Report No.：21A021801R-FR FCC ID：ELVATUE Page 23 of 24 Interocean EMC Technology Corp. Test Report Component View of Main Board Solder View of Main Board Report No.：21A021801R-FR FCC ID：ELVATUE Page 24 of 24 Interocean EMC Technology Corp. Test Report View of Module View of Antenna Location

Report No.：21A021801R-FR FCC ID：ELVATUE Page 1 of 24 Interocean EMC Technology Corp. Test Report 47 CFR Part 15 Subpart C Section 15.231 Test Report Product： Transmitter Trade Name： N/A Model Number： 4361023 FCC ID： ELVATUE Prepared for Nutek Corporation No.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. Interocean EMC Technology Tin-Fu Laboratory No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 24 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in this report is only subjected to the test sample. Report No.：21A021801R-FR FCC ID：ELVATUE Page 2 of 24 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 4 1.1 Description of Equipment Under Test 4 1.2 Test Facility 5 1.3 Test Equipment 6 1.4 Measurement Uncertainty 6 1.5 Summary of Measurement 7 2 Test Specifications 8 2.1 Test Standard 8 2.2 Operation Mode 8 2.3 Test Step of EUT 8 3 Duty Cycle 9 3.1 Limits 9 3.2 Test Procedure 9 3.3 Test Result 9 4 Transmitter Deactivation Time 11 4.1 Limits 11 4.2 Test Procedure 11 4.3 Test Result 11 5 Radiated Emission Test 12 5.1 Limits 12 5.2 Configuration of Measurement 13 5.3 Test Procedure 13 5.4 Test Result 13 6 Emission Bandwidth 18 6.1 Limits 18 6.2 Test Procedure 18 6.3 Test Result 18 7 Photographs of Test 19 7.1 Radiated Emission Measurement (Below 1 GHz) 19 7.2 Radiated Emission Measurement (Above 1 GHz) 19 8 Photographs of EUT 20 Report No.：21A021801R-FR FCC ID：ELVATUE Page 3 of 24 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 4361023 Tested Power Voltage: DC 3V Date of Final Test: Apr. 19, 2021 Revision of Report: Rev. 01 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.10, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. This report shall not be partial reproduced without written approval by Interocean EMC Technology Corporation. 3. Judgment of conformity is based on test result, regardless of measurement uncertainty. Report Issued: 2021/04/29 Prepared by: Approved: Ivan Wang Jerry Chang Report No.：21A021801R-FR FCC ID：ELVATUE Page 4 of 24 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transmitter Model Number : 4361023 Applicant : Nutek Corporation No.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation No.167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : DC 3V Operating Frequency : 433.92 MHz Output Power : 74.25 dBμV/m Type of Modulation : ASK Antenna Description : PCB Antenna. maximum Peak gain: 0dBi. Measurement Software : e3; Ver: 8.120803a7-2 Receipt Date of EUT : Mar. 08, 2021 Date of Test : Apr. 13 ~ 19, 2021 Additional Description : 1) The test model is “4361023” and included in this report. 2) For more detailed specification about EUT, please refer to the user’s manual. Report No.：21A021801R-FR FCC ID：ELVATUE Page 5 of 24 Interocean EMC Technology Corp. Test Report 1.2 Test Facility Site Description :Chamber 3 Name of Firm :Interocean EMC Technology Corp. Company web :http://www.ietc.com.tw Location :No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Designation No.: TW1020 (Test Firm Registration #: 651092) Designation No.: TW1113 (Test Firm Registration #: 959554)  Innovation, Science and Economic Development Canada (ISED) CAB identifier: TW1113 (Ref. No 14962756)  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-11094 Registration No. (Conducted Room): T-11562 Registration No. (OATS 1): R-11040 Registration No. (Chamber 3): G-20080 Site Accreditation :  Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS 13438 / CISPR 22 SL2-R1-E-0026 for CNS 13439 / CISPR 13 SL2-R2-E-0026 for CNS 13439 / CISPR 13 SL2-L1-E-0026 for CNS 14115 / CISPR 15  Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113  American Association for Laboratory Accreditation (A2LA) Certificate Number: 4891.01  Vehicle Safety Certification Center (VSCC) Approval No.: TW16-11 Report No.：21A021801R-FR FCC ID：ELVATUE Page 6 of 24 Interocean EMC Technology Corp. Test Report 1.3 Test Equipment Instrument Manufacturer Model Serial No. Next Cal. Date EMI Test Receiver R&S ESI7 830154/002 2021/05/05 Spectrum Analyzer R&S FSP30 100002 2021/05/12 Loop Antenna Electro-Metrics EM-6879 261 2021/09/16 Bilog Antenna ETC MCTD 2786B BLB17S04020 2021/05/04 Horn Antenna Schwarzbeck BBHA9120 9120D-1051 2021/08/03 Pre-Amplifier EMCI EMC001150 980130 2021/08/02 Pre-Amplifier EMCI EMC051845 980110 2021/07/02 RF Cable HARBOUR 27478LL142 CBL65 2021/07/28 RF Cable Marvelous Microwave MCBL-LL266.50 CBL70 2021/07/28 Measurement Software AUDIX-e3 Note: The above equipments are within the valid calibration period. 1.4 Measurement Uncertainty Item Value Chamber 3: Radiated Emission Test (9 kHz to 30 MHz) 3.2 dB Radiated Emission Test (30 MHz to 200 MHz) 4.6 dB Radiated Emission Test (200 MHz to 1 GHz) (Antenna: without tilting) 5.9 dB Radiated Emi…

Text truncated - open the document above for the full version.

Report No.：21A021801R-FR FCC ID：ELVATUE Page 19 of 24 Interocean EMC Technology Corp. Test Report 7 Photographs of Test 7.1 Radiated Emission Measurement (Below 1 GHz) 7.2 Radiated Emission Measurement (Above 1 GHz)
