ELVETPBTransmitter

RS-265-EDP+ / RS-260-EDP Deluxe 1-Button Keyless Entry & Remote Start December 19, 2014 Operation Guide v.1.1 Temporary cover. Color cover is in a separate file. 1 Table Of Contents Transmitter Overview ...................................................................................................2 Transmitter Functions ...................................................................................................3 Other Remote Start Features .......................................................................................4 Low Battery/Low Temp Automatic Starting ...............................................................4 Turbo Timer Feature .................................................................................................4 Pit-Stop Feature .......................................................................................................4 Manual Transmission Starting ..................................................................................4 2-Way Controller Options (RS-265-EDP+ Only) ..........................................................4 Selecting Mute & Audible Modes ..............................................................................4 Security System Features (OPTIONAL) .......................................................................5 Last Door Arming ......................................................................................................5 Automatic Rearming .................................................................................................5 Pre-Warn Detection ..................................................................................................5 When The System Triggers ......................................................................................5 Using The Valet Switch .................................................................................................6 Emergency Override ................................................................................................6 Valet Mode ................................................................................................................6 The Status Light ...........................................................................................................6 Anti-Carjacking Protection ............................................................................................7 Programming Transmitters ...........................................................................................7 Programming Features .................................................................................................8 User Programmable Features ......................................................................................8 Installer Programmable Features ...............................................................................10 Programmable Features Matrix ..................................................................................15 Transmitter Overview “start” button Transmitter part number: 2-way: 115-03 (RS-265-EDP+ only) 1-way: 117-03 Call your dealer or visit www.caralarm.com to order replacement transmitters. Battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves. Replace the battery and reassemble the transmitter case. 115-03 Battery type: CR2032 (Qty: 1) 117-03 Battery type: CR2016 (Qty: 2) 2 LOCK / ARM: While the system is unlocked / disarmed, Press and hold the “START” button for 1 second. • THE SIREN / HORN WILL CHIRP & THE PARKING LIGHTS WILL FLASH ONCE. • 2-WAY RESPONSE: CONTROLLER WILL BEEP ONCE AND THE BUTTON WILL FLASH ONCE. Transmitter Functions UNLOCK / DISARM: While the system is locked / armed, Press and hold the “START” button for 1 second. • THE SIREN / HORN WILL CHIRP TWICE & THE PARKING LIGHTS WILL FLASH TWICE, THEN ILLUMINATE FOR 30 SECONDS. • 2-WAY RESPONSE: CONTROLLER WILL BEEP TWICE AND THE BUTTON WILL FLASH TWICE. REMOTE START: Press and release the “START” button twice within 5 seconds. (see user feature #8 for additional options) • THE PARKING LIGHTS WILL FLASH ONCE & THE STATUS LIGHT WILL FLASH RAPIDLY. • 2-WAY RESPONSE: THE CONTROLLER WILL PLAY A MELODY. • THE SYSTEM WILL PROCEED TO START THE ENGINE. • ONCE THE ENGINE IS RUNNING, THE PARKING LIGHTS WILL FLASH EVERY 1.5 SECONDS & THE STATUS LIGHTS WILL FLASH SLOWLY. • 2-WAY RESPONSE: THE CONTROLLER BUTTON WILL FLASH ONCE EVERY 2 SECONDS. • If the engine stalls, the system will make up to 3 more attempts. • Each time you park, set the climate controls as desired when you use the remote start. The engine will run for the preset run time (see user feature #1). • Run Time Expiration Warning (2-way models only): The controller will beep once when 1 minute remains in remote start cycle. • Run Time Extender: Press the “START” button one time during remote start to restart the engine run timer. NOTE: This can only be used once per remote start cycle. • If you decide not to drive your vehicle, you can turn off the remote start using the same method to turn it on (Default = press “START” twice in 5 seconds) NOTE: If remote start activation is programmed for 1 press, the 1st press activates Run Time Extender so an additional press is required to turn off remote start. • Upon entering the vehicle during remote start mode, turn the ignition key to the “ON/RUN” posi- tion (NOT START!!). When you press the brake pedal, the remote start will turn off, allowing the ignition key to take over. x2 3 LOW BATTERY/LOW TEMP AUTOMATIC STARTING Other Remote Start Features NOTE: Temperature Related Features Are Only Available On EDP+ models. This feature will automatically start the engine if the vehicle battery drops below 11 volts or the interior temperature drops to 15 (or 32) degrees fahrenheit. You must activate these features each time you park your car to use them. They can be activated with the following steps: • Turn the ignition switch “on”, then “off” (engine not runni…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

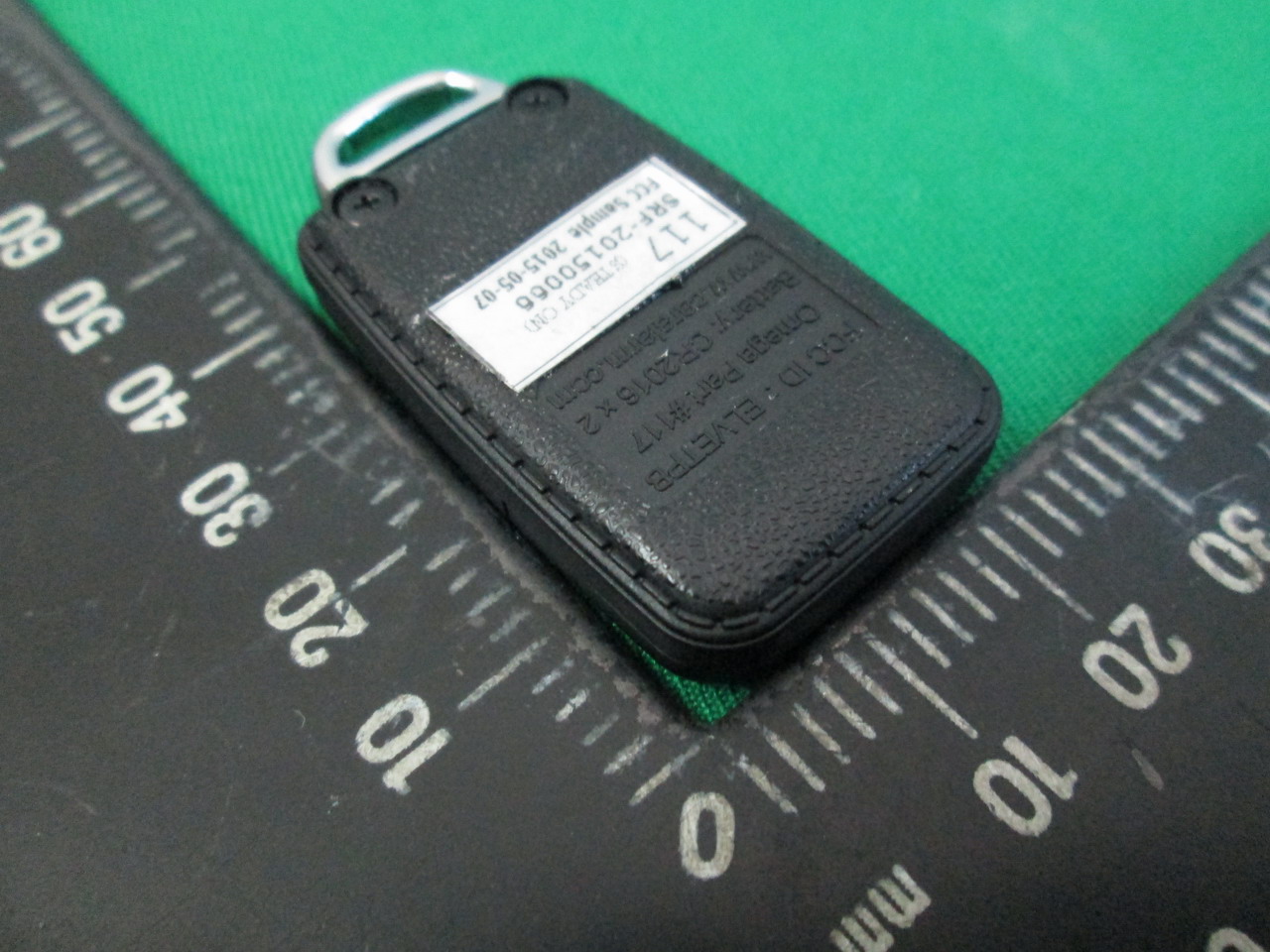

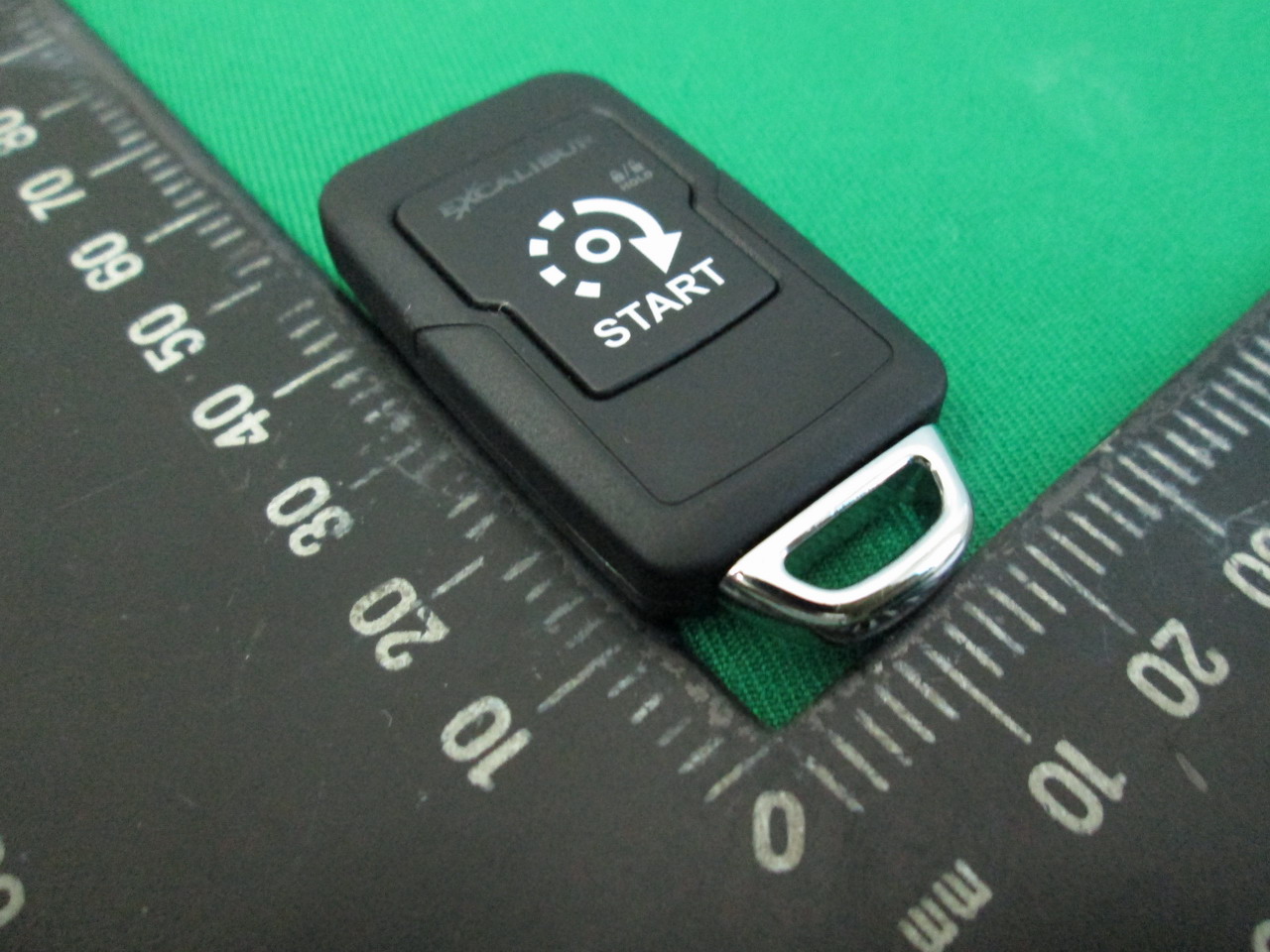

Report No.：15A051101R-FR FCC ID： ELVETPB Page 23 of 27 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT Report No.：15A051101R-FR FCC ID： ELVETPB Page 24 of 27 Interocean EMC Technology Corp. Test Report FCC ID

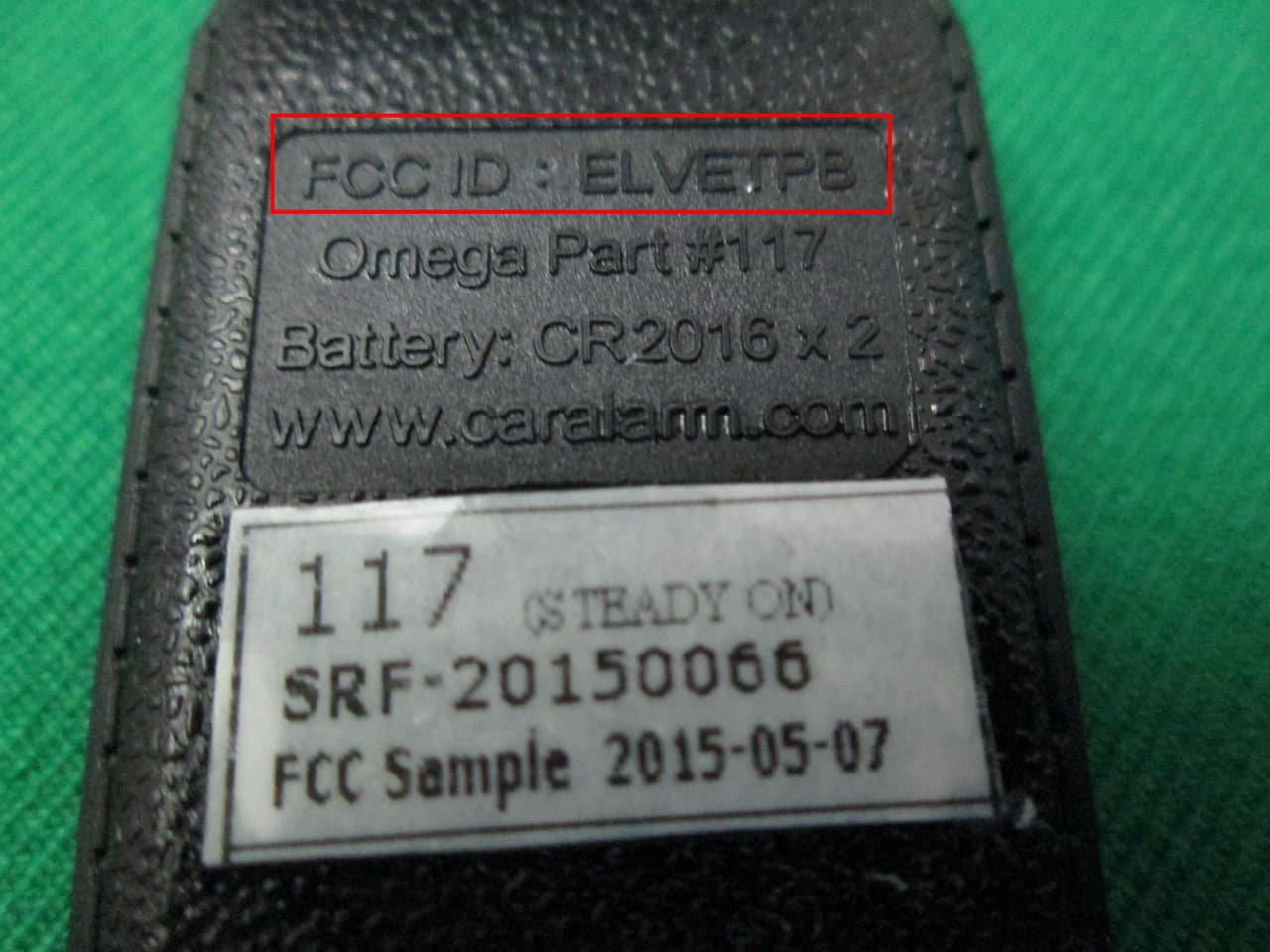

BODY MATERIAL : ABS MT-11010 0.2 Eason YYSVictor B  C D  START Battery: CR2016 x 2 FCC ID  ELVETPB Omega Part #117 www.caralarm.com

Report No.：15A051101R-FR FCC ID： ELVETPB Page 25 of 27 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：15A051101R-FR FCC ID： ELVETPB Page 26 of 27 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.：15A051101R-FR FCC ID： ELVETPB Page 27 of 27 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

Report No.：15A051101R-FR FCC ID： ELVETPB Page 1 of 27 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 117 FCC ID： ELVETPB Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 27 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.：15A051101R-FR FCC ID： ELVETPB Page 2 of 27 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 117 Tested Power Supply: 6Vdc Battery Date of Final Test: May 14, 2015 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2015/05/18 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：15A051101R-FR FCC ID： ELVETPB Page 3 of 27 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of Tested Peripheral Equipment 6 2.3 Test Facility 7 3 Test Specifications 8 3.1 Test Standard 8 3.2 Operation Mode 8 3.3 Test Step of EUT 8 3.4 Test Equipment 9 4 Radiated Emission Test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission Bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 Photographs of Test 21 6.1 Radiated Emission Measurement 21 7 Photographs of EUT 23 Report No.：15A051101R-FR FCC ID： ELVETPB Page 4 of 27 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Timing requirement §15.231(a) Pass 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission Bandwidth §15.231(c) Pass Report No.：15A051101R-FR FCC ID： ELVETPB Page 5 of 27 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : 117 Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 6Vdc Battery Operating Frequency : 433.92MHz Type of Modulation : ASK Antenna Description : This device uses PCB Printed antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : May 12 ~ 14, 2015 Additional Description : 1) The Model Number “117” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：15A051101R-FR FCC ID： ELVETPB Page 6 of 27 Interocean EMC Technology Corp. Test Report 2.2 Details of Tested Peripheral Equipment N/A Report No.：15A051101R-FR FCC ID： ELVETPB Page 7 of 27 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 1 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020  Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Site Accreditation :  Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR 22 SL2-IN-E-0026 for CNS14757-2 / IEC 62040-2 SL2-R1-E-0026 for CNS13439 / CISPR 13 SL2-R2-E-0026 for CNS13439 / CISPR 13 SL2-A1-E-0026 for CNS13783-1 / CISPR 14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15  Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113  Vehicle Safety Certification Center (VSCC) Approval No.: TW16-11-0  TüV NORD Certificate No: TNTW0801R-04  Nemko Authorisation No: ELA 181 Report No.：15A051101R-FR FCC ID： ELVETPB Page 8 of 27 Interocean EMC Technology Corp. Test Report 3 Test Specifications 3.1 Test Standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.10, 2013 requirements. 3.2 Operation Mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode 3.3 Test Step of EUT 3.3.1 Setup the fixture to EUT for power supplying. 3.3.2 Turn on the power of all equipment. 3.3.3 Let the EUT continuous transmission. Executed the test. Report No.：15A051101R-FR FCC ID： ELVETPB Page 9 of 27 Interocean EMC Technology Corp. Test Report Test Equipment Instrument Manufacturer Model Serial No. Next Cal. Date Spectrum Analyzer R&S FSP40 100478 2015/06/02 Preamplifier…

Text truncated - open the document above for the full version.

Report No.：15A051101R-FR FCC ID： ELVETPB Page 21 of 27 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.：15A051101R-FR FCC ID： ELVETPB Page 22 of 27 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
