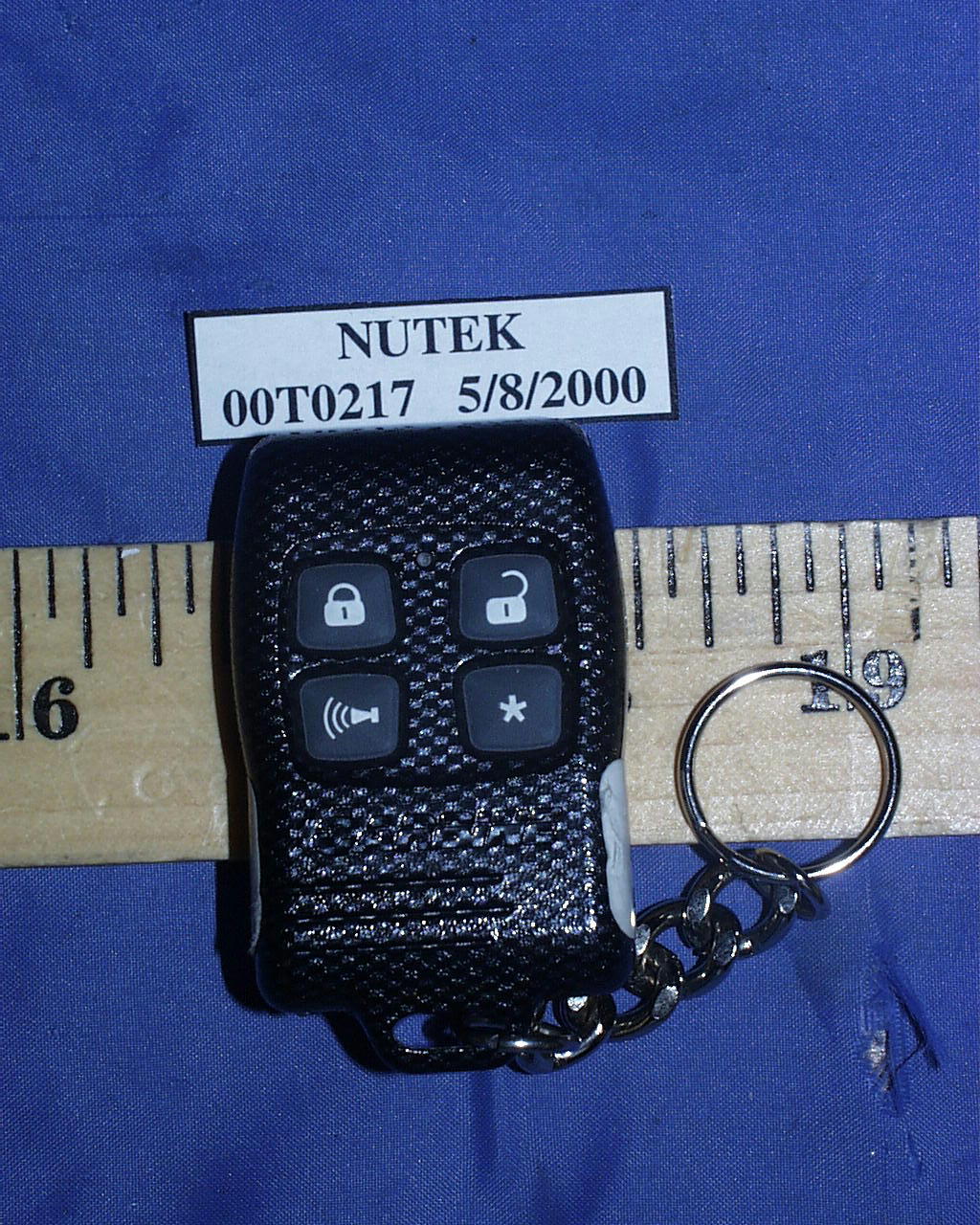

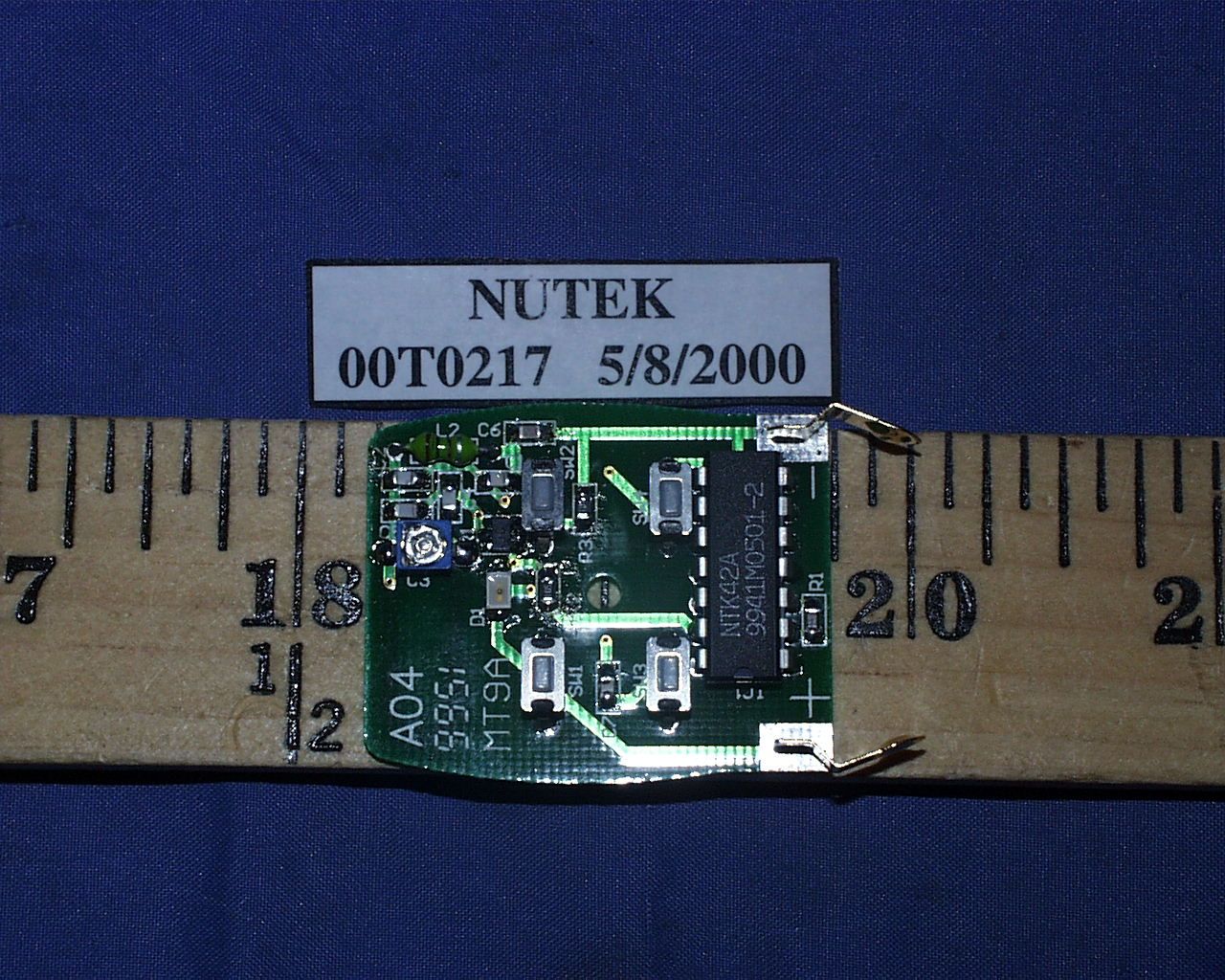

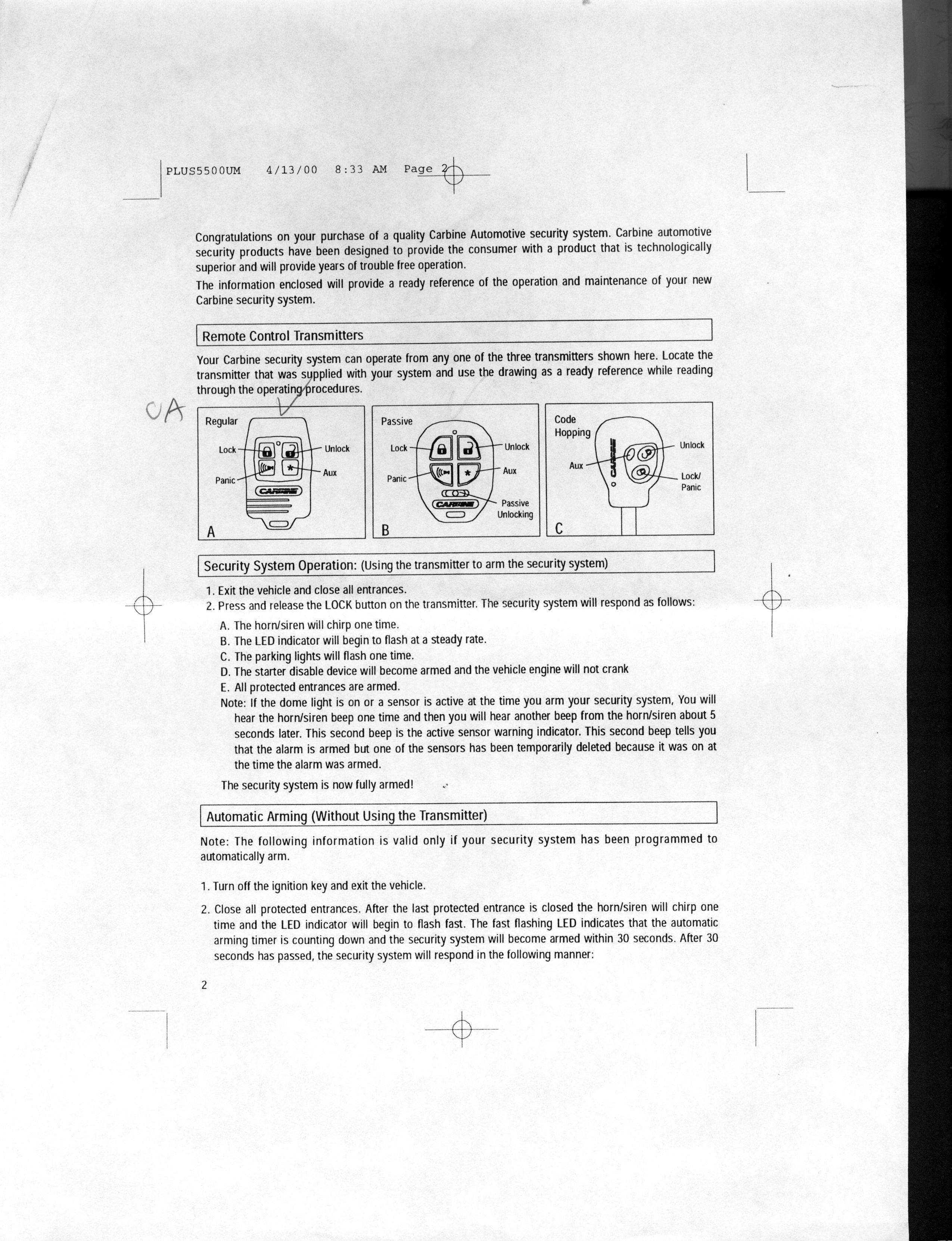

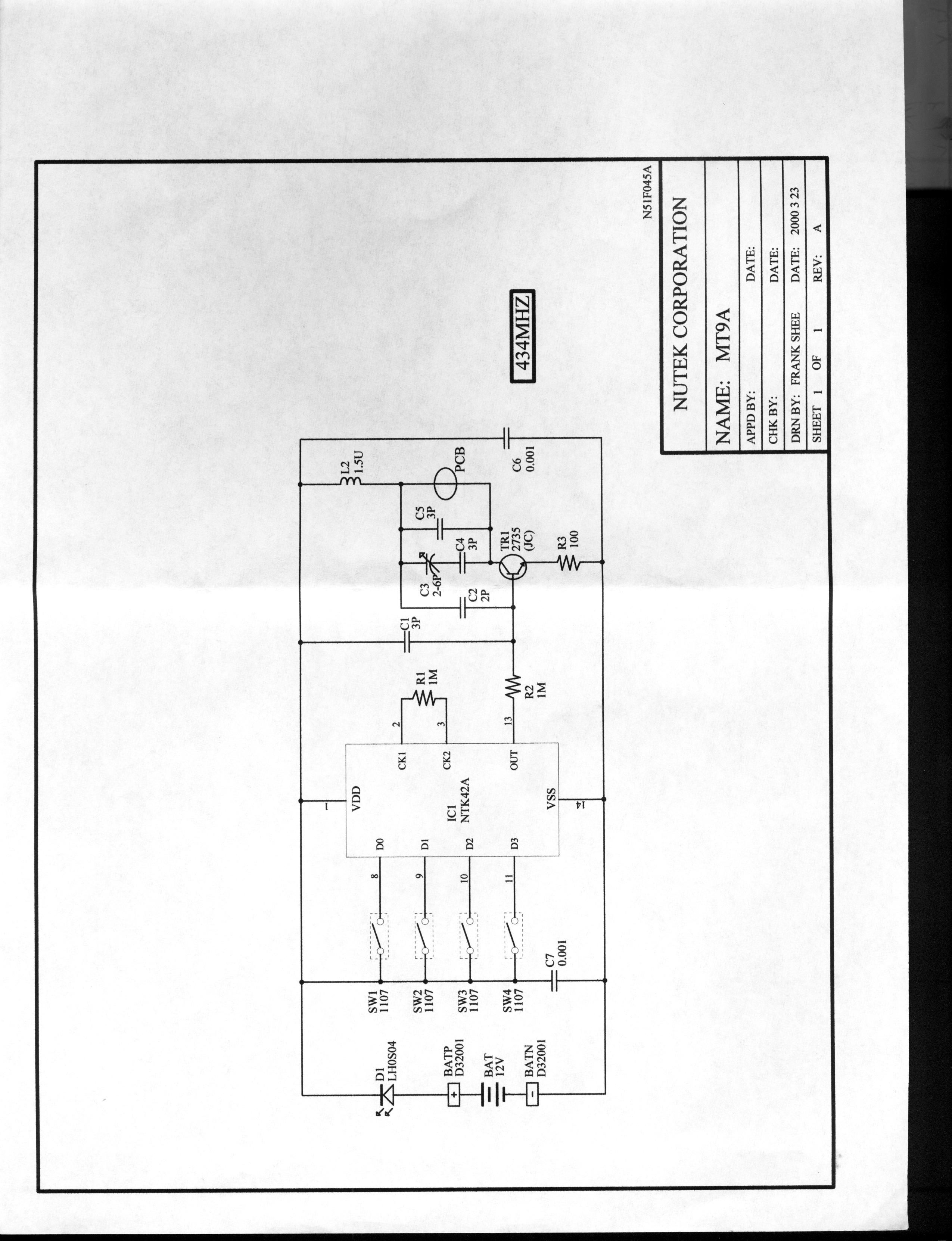

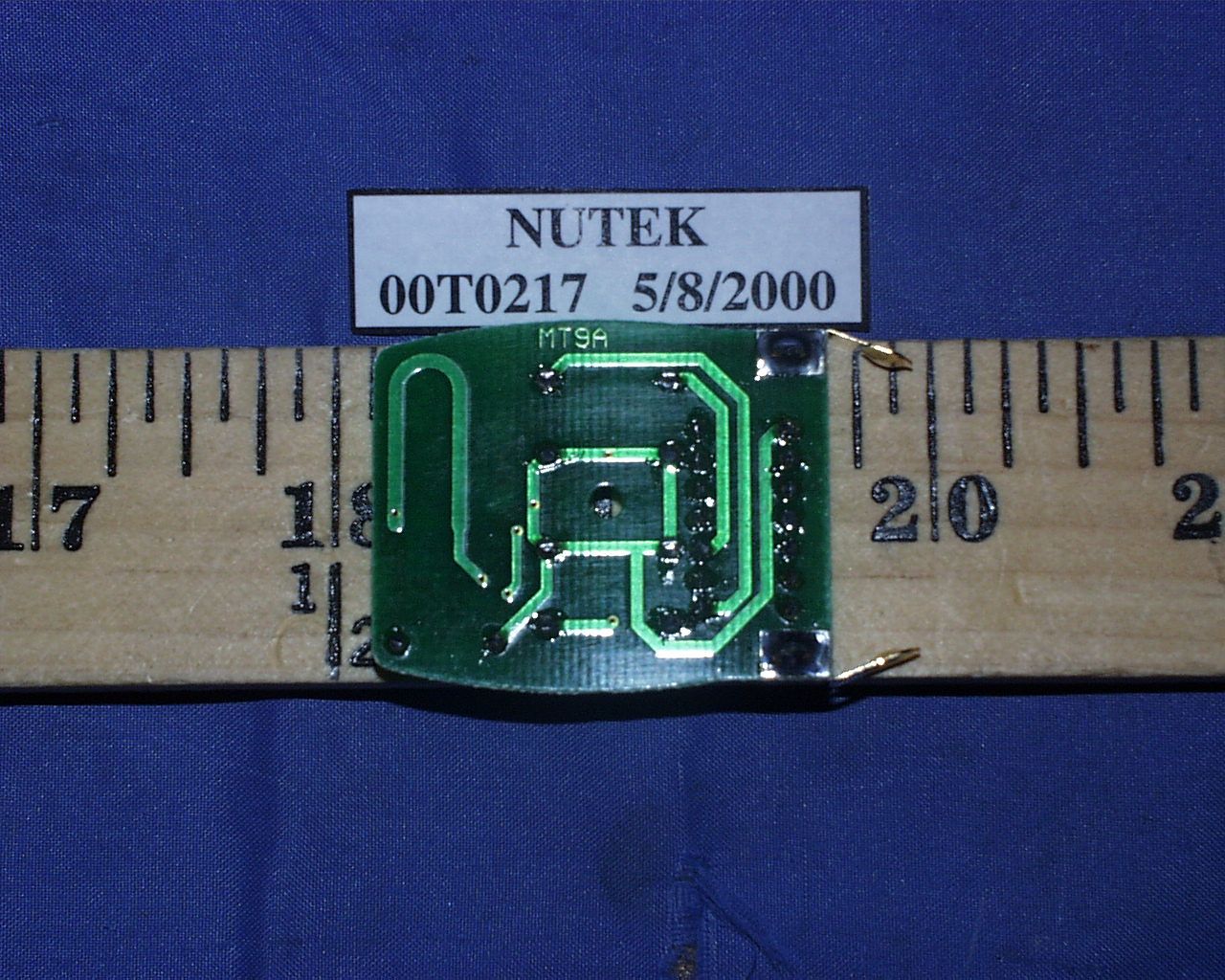

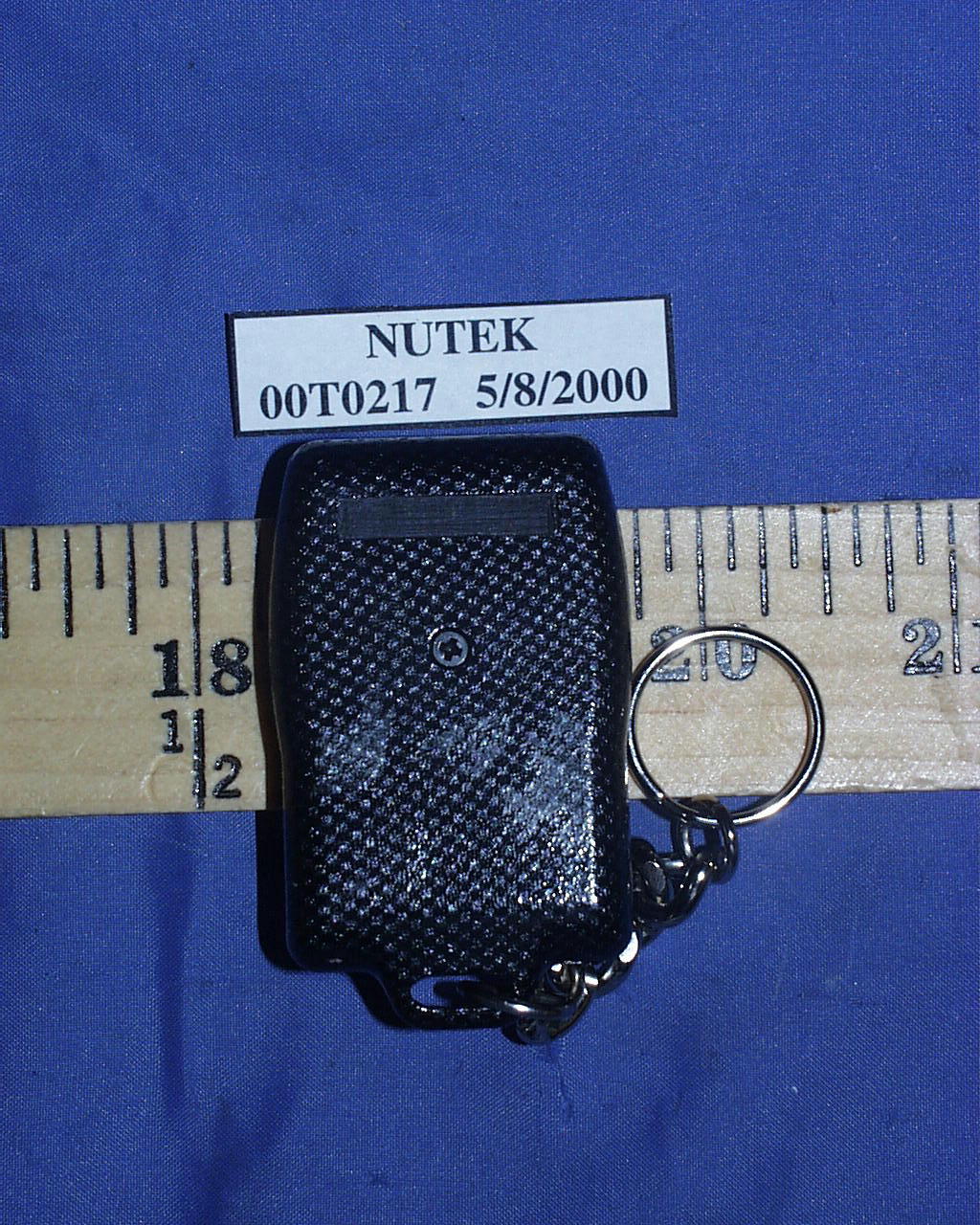

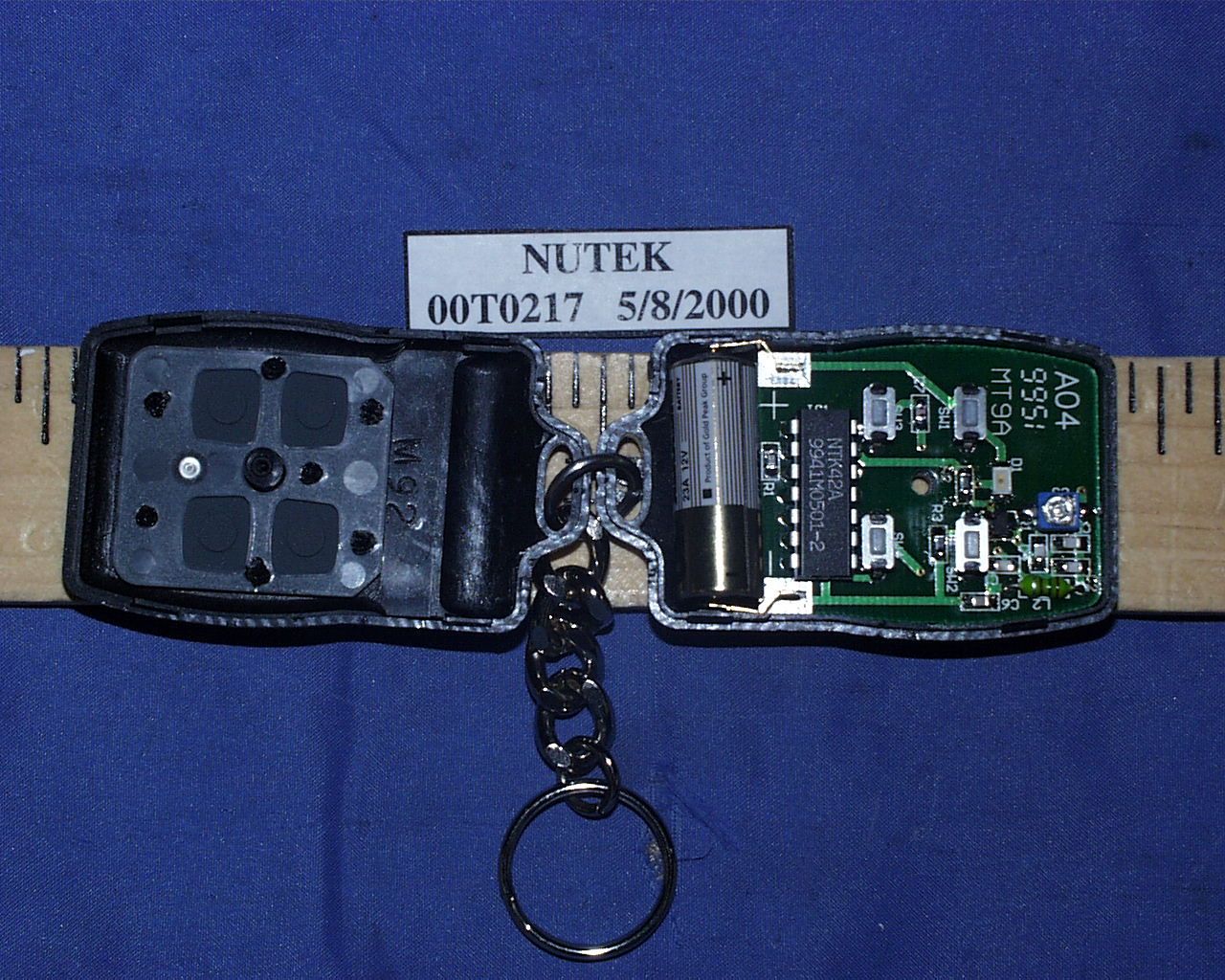

ELVMT0A434 MHz Car Alarm Transmitter

PROPOSED FCC ID LABEL AND LOCATION NUTEK CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ELVMT0A FCC ID LABEL

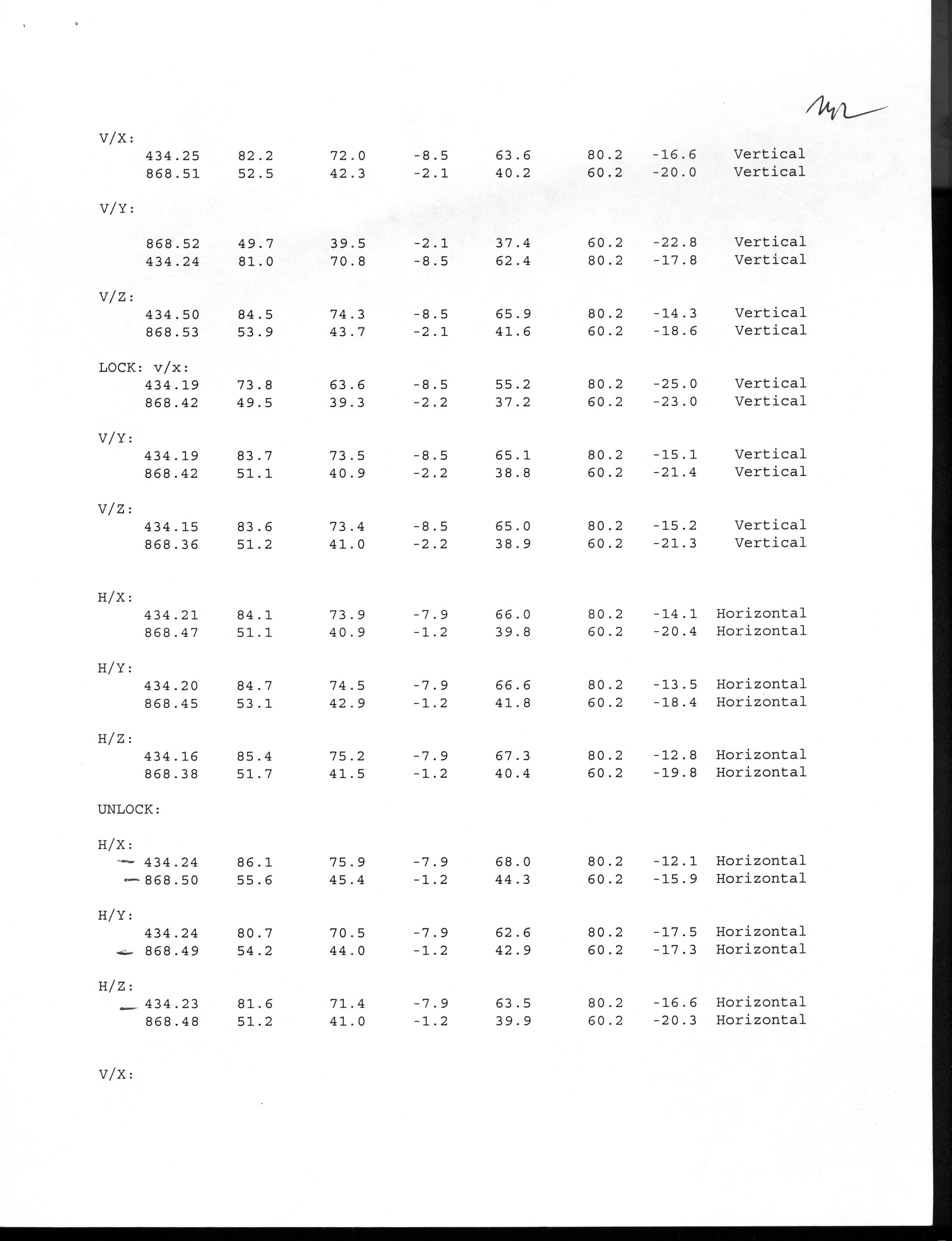

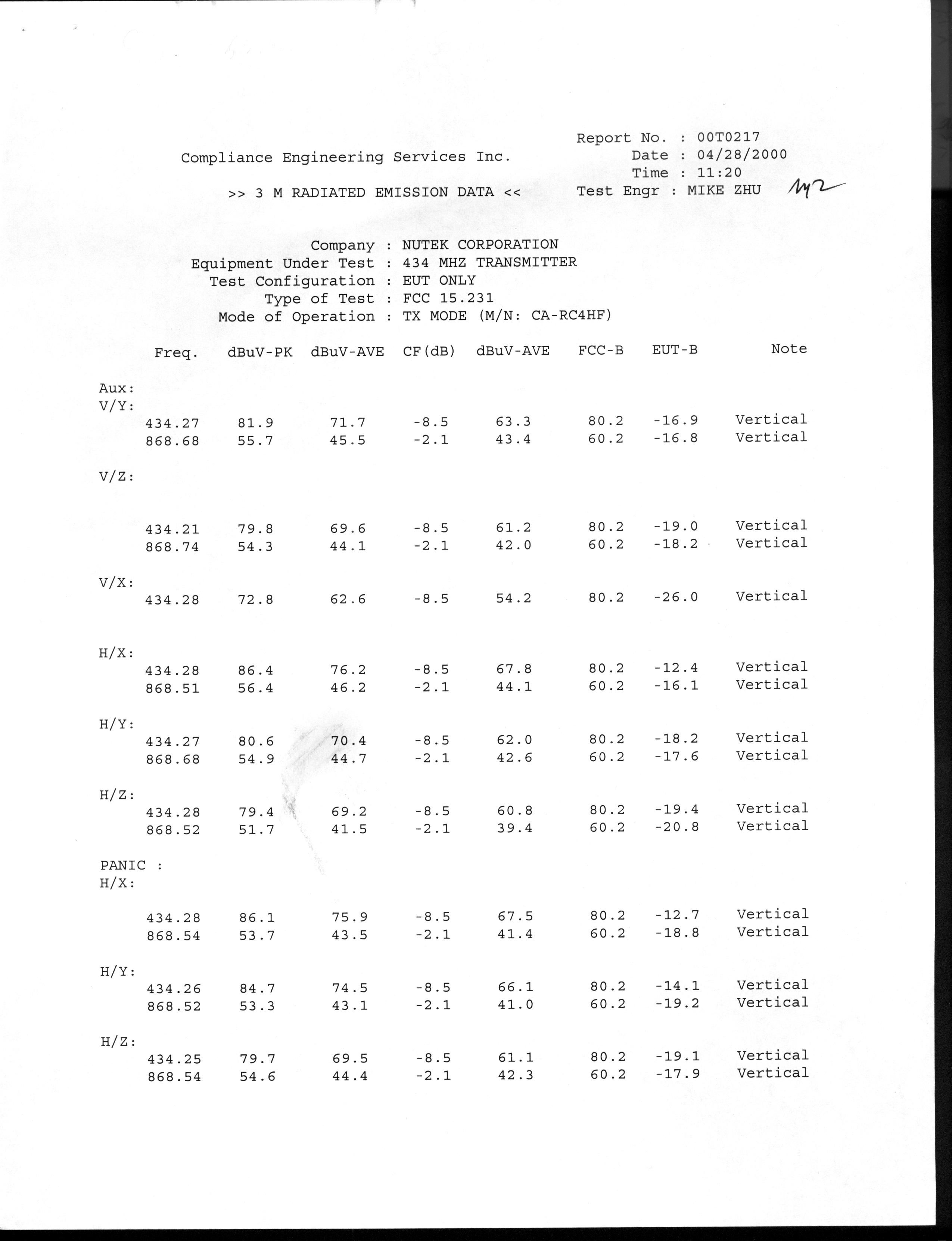

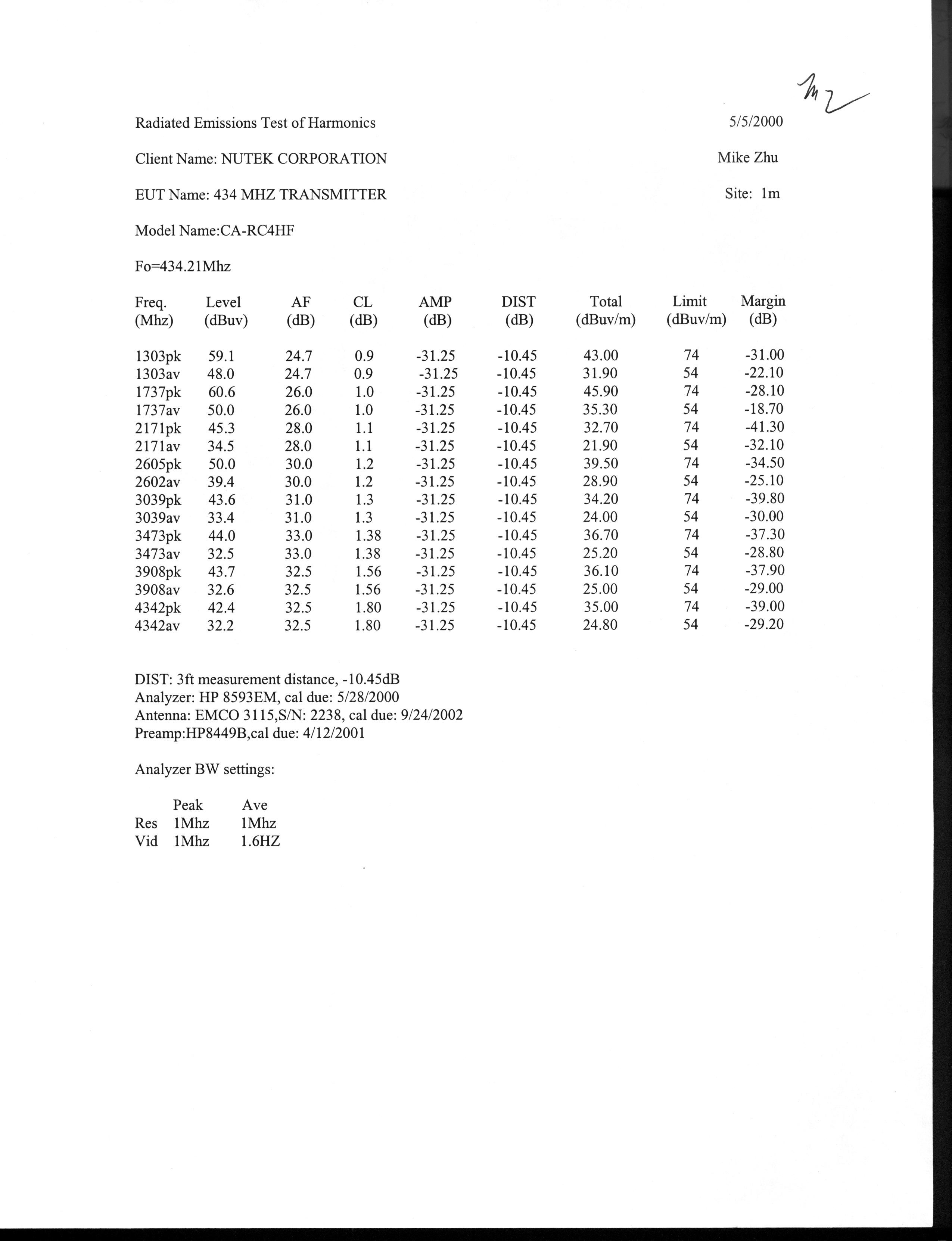

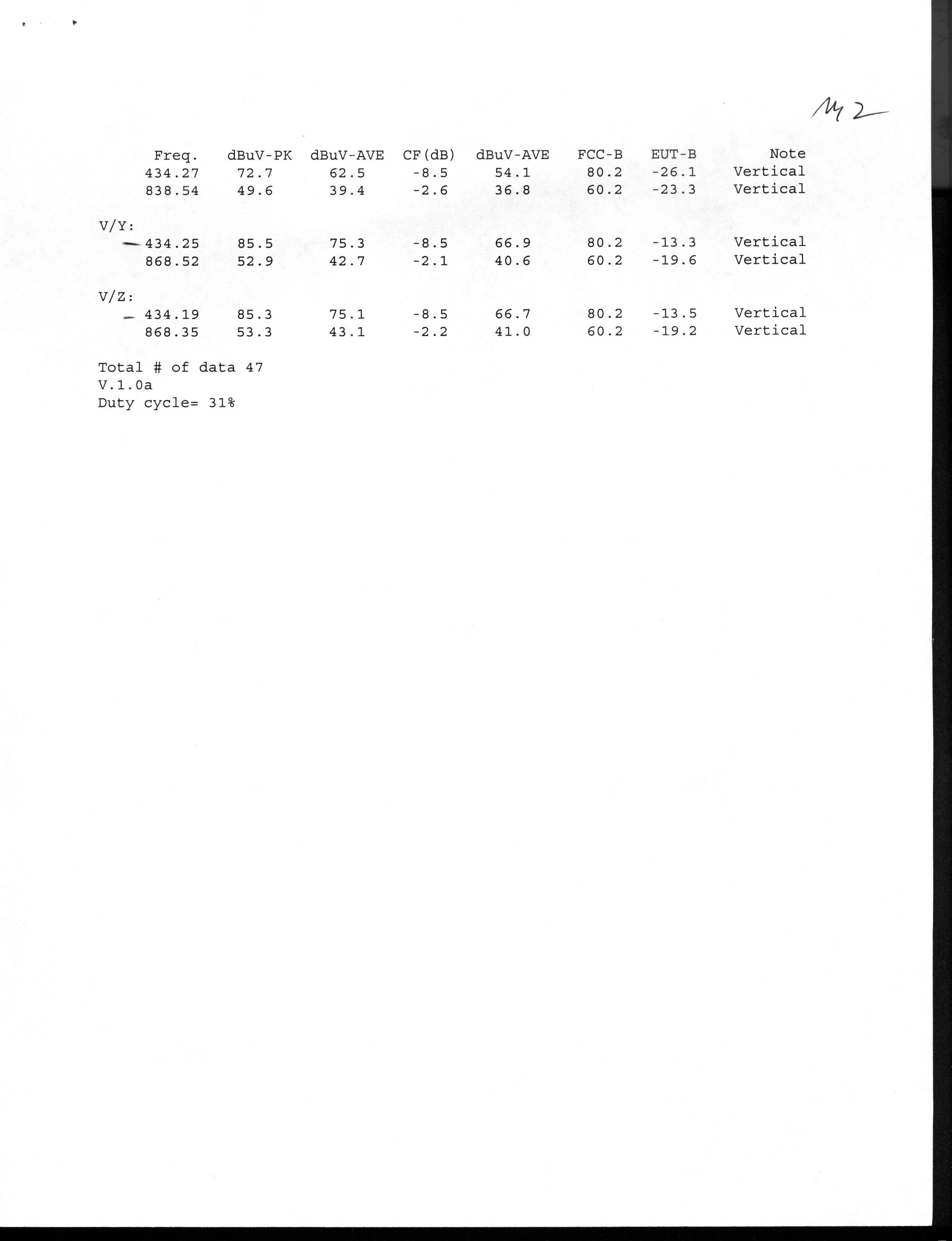

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 434 MHz CAR ALARM TRANSMITTER MODEL NO: CA-RC4HF FCC ID NO: ELVMT0A REPORT NO: 00T0217-1 ISSUE DATE: MAY 05, 2000 Prepared for NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45 PAO-HSING ROAD, HSIN TIEN, TAIPEI TAIWAN, R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:00T0217-1 FCC ID:ELVMT0A DATE:MAY 05, 2000 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ........................................................................................ 1 2. Product Description..................................................................................................................... 2 3. Test Facility ................................................................................................................................. 2 4. Measurement Standards .............................................................................................................. 2 5. Test Methodology........................................................................................................................ 2 6. Measurement Equipment Used ...................................................................................................2 7. POWERLINE RFI LIMIT ..........................................................................................................3 8. RADIATED EMISSION LIMITS .............................................................................................. 3 9. SYSTEM TEST CONFIGURATION......................................................................................... 4 10. Test Procedure........................................................................................................................... 5 11. Equipment Modifications .......................................................................................................... 6 12. TEST RESULT ......................................................................................................................... 7 12.1 Maximum Modulation Percentage (M%) ............................................................................... 7 12.2 The Emissions Bandwidth....................................................................................................... 7 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:00T0217-1 FCC ID:ELVMT0A DATE:MAY 05, 2000 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME:NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING ROAD HSIN TIEN, TAIPEI, TAIWAN R. O. C. CONTACT PERSON:RUBY HSIEH TELEPHONE NO.:02-2918-9478 EUT DESCRIPTION:434 MHz CAR ALARM TRANSMITTER MODEL NAME/NUMBER: CA-RC4HF FCC ID:ELVMT0A DATE TESTED:MAY 05, 2000 REPORT NUMBER:00T0217-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE434 MHz CAR ALARM TRANSMITTER MEASUREMENT PROCEDUREANSI C63.4 / 1992 LIM IT TYPEC ERT IF IC AT ION FCC RULECFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00T0217-1 FCC ID:ELVMT0A DATE:MAY 05, 2000 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. Product Description Fundamental Frequency 434 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: ELVAR8B 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15…

Text truncated - open the document above for the full version.

REPORT NO:00T0217-1 FCC ID:ELVMT0A DATE:MAY 05, 2000 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
