ELVMTBACar Alarm Transmitter

CARC5HF User’s Manual The NUTEK CORPORATION Model: CARC5HF (referred to as the EUT in this report) is a Transmitter of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 433.92 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 12V, Battery Operated E). Receiver type : Superheterodyne ≤ FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two condition.(1).this device may not cause harmful interference. (2).this device must accept any interference received, including interference that may cause undesired operation Warning: Note: This equipment has been tested and found to comply with the limits for digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference in to radiate communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different form that to which the receiver in connected. l Consult the dealer or an experienced radio/TV technician for help. THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH ODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. ’

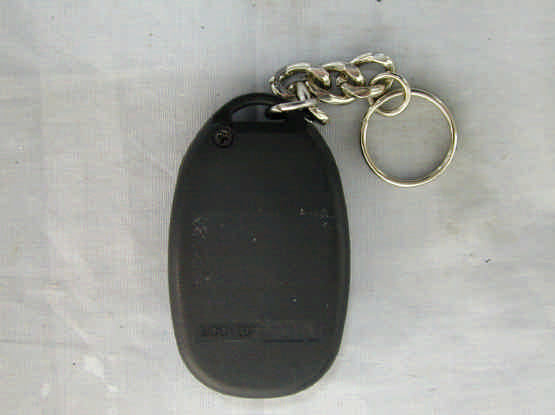

Photo # 1 Front View Rear View 02E2149 02E2149

NEUTRON EMC LAB. FCC ID: ELVMTBA 5/22 2. Product Labeling 2-1. FCC ID Label The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT FCC ID : ELVMTBA 0.4cm 2.4cm 02E2149

Photo # 2 Unit Partially Disassembled 02E2149 Photo # 3 Unit Partially Disassembled 02E2149 02E2149 Photo # 4 Unit Partially Disassembled 02E2149

(CARC5HF) Operational Description The NUTEK CORPORATION Model: CARC5HF (referred to as the EUT in this report) is a Transmitter of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 433.92 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 12V, Battery Operated E). Receiver type : Superheterodyne ≤ The car alarm transmitter is a low powered, hand unit for remote controlling the car locks and other features. See the function description in attached. The transmitter is powered by a 12 volt battery. It is designed to operated on a single fixed frequency at 434MHz. See the attached block diagram and schematic. There are 4 buttons trigger the integrated circuit (IC1) which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/amplifier circuit comprised of a 434MHz crystal(XTAL) and a npn transmitter(TR1). The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The coupling network comprised of C2,C3, C4 and C5. The strip antenna is attached on PCB permanently around 30mm. The transmitter is manually operated by the buttons pushed and will automatically deactivated instant after the button being released. This feature is incorporated by the IC1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

NEUTRON EMC LAB. FCC ID: ELVMTBA 1/22 MEASUREMENT/TECHNICAL REPORT APPLICTNT:NUTEK CORPORATION MODEL NO.:CARC5HF FCC ID:ELVMTBA This report concerns ( check one ) : Original Grant 3 Class II Change Equipment type: 433.92 MHz Remote Controller (Transmitter) Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No 3 If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce meant of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No 3 If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name NUTEK CORPORATION Address 5F., NO. 3, Alley 6, Lane 45, Pao-Hsing Rd., Taipei, Taiwan, R.O.C. Applicant Signature Charles Chen / President NEUTRON EMC LAB. FCC ID: ELVMTBA 2/22 CERTIFICATION We hereby certify that: The test data, data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15. Prepared by Carol Chen Reviewed by Vincent Su Approved by George Yao Issued Date Mar. 18, 2002 Report No. NEI-FCCB-02048 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL: (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: ELVMTBA 3/22 Table of Contents 1.General Information.................................................................................................................... 1-1 Product Description.............................................................................................................4 1-2 Related Submittal(s)/Grant(s).............................................................................................4 1-3 Test Methodology.............................................................................................................4 1-4 Test Facility...................................................................................................................4 2.Product Labeling......................................................................................................................... Figure 2-1 FCC ID Label...........................................................................................................5 Figure 2-2 Location of Label on EUT........................................................................................5 3.System Test Configuration......................................................................................................... 3-1 EUT Configuration...............................................................................................................6 3-2 EUT Exercise......................................................................................................................6 3-3 Test Procedure.......................................................................................................................6 3-4 Limitation.............................................................................................................................7 3-5 Special Accessories..............................................................................................................7 3-6 Equipment Modifications.....................................................................................................7 3-7 Test Set-UP...........................................................................................................................8 3-8 Test Equipment....................................................................................................................9 4.Block Diagram(s).........................................................................................................................10 5.Radiated Measurement Photos............................................................................ Figure 5-1. Radiated Emission Data...................................................................................11 6.Radiated Emission Data............................................................................................................ 6-1 Radiated Emission Data........................................................................................................12 6-2 Field Strength Calculation....................................................................................................16 6-3 Duty Cycle Correction Factor Calculated ........................................................................17 7.Supplementary Information for Section 15.231(C) Requirement ......................................18 8.Attachment.................................................................................................................................. A. Technical Information of Pulse Code Definition & Timing Chart ......................................20 B. Photos of Tested EUT..............................................................................................................21 C. User Manual............................................................................................................................22 NEUTRON EMC LAB. FCC ID: ELVMTBA 4/22 1. GENERAL INFORMATION 1-1. Product Description The NUTEK CORPORATION Model: CARC5HF (referred to as the EUT in this report) is a Transmitter of car alarm security system. It offers wireless remote control, ideal for use in vehicle security system to activate the function of center door lock control system and car searching except the alarm system. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 433.92 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Sup…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. FCC ID: ELVMTBA 11/22 5. Radiated Measurement Photos
