ELVNTREAAlarm Device

Your Alarm and or Remote Start unit has a configurable receiver that allows the transmitter to be programmed to operate the Lock Unlock functions with one transmitter button or with two transmitter buttons (separate Lock/Unlock). In addition, the receiver also allows driver priority function. This driver priority function takes place when ever a particular transmitter is used to unlock the vehicle regardless of the selection of one button or two button operation. The following indicates the receiver programmable slots. 1 Lock/Unlock or Lock 2 Unlock if Programmed 3 Trunk Release & or Remote Start (Optional on some models) 4 Auxiliary Output 5 Auxiliary Output 6 Driver 1 Priority or Sperate Output 7 Driver 2 Priority or Separate Output Receiver channels 6 or 7 will accept the programming of transmitter channel 1 if used as the Lock/Unlock button, or Channel 2 when separate Lock Unlock buttons are programmed. In this way, whenever the transmit- ter is used to unlock the vehicle, channel 6 or 7, when programmed, will provide a pulsed ground output. This output can be connecter to the driver priority function of the vehicle to reset preset user features. Please consult with your installation center’s technician to see if this feature is available in your vehicle. NOTE: A total of 4 transmitters may be programmed into any receiver channel. Two two way and two one way or four one way transmitter combinations only. Force programming a transmitter, removing a transmitter, or re-prioritizing a transmitter is covered later in this manual. Also, if you do not program a transmitter button into channel 2 which is the separate unlock/disarm channel, then whatever button is programmed into channel 1 will serve as both lock/arm & unlock/disarm. Note: The “F” Button serves as a function button in combination with other buttons explained in your owners manual. This button may not be used to operate a receiver channel. NOTE: The Option Button is predetermined and programmed for access to Time Start, and Temperature Start & Check so it cannot be used for multiple button operation of any other feature. It will however operate for any single button programming. This transmitter is also capable of one button programming for certain model Audiovox Alarms. If your alarm is one of these models, then when step 3 is completed on the following page, you can turn the ignition switch off and programming with the default button configurations for the first four channels will be complete. Model UTX-ETX Programming Guide TO ENTER THE PROGRAM MODE: 1. Turn the ignition switch to the “ON” position. 2. Within 10 seconds, Press and release the valet/program switch three times. (Siren emits 1 short chirp indicating channel 1 has been entered) 3. Within 10 Seconds, Press and hold the button of the first transmitter you wish to control the Lock & Arm feature of your security system until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Lock/Arm feature). NOTE: If single button programming is available on your alarm system, then programming is complete at this step. You can turn off your ignition switch. (Check your owners manual for advise of this feature availability). 4. Within 10 seconds, press and release the valet program switch one time. (Siren emits 2 short chirps indicating channel 2 has been entered) 5. Within 10 Seconds, Press and hold any unused button(s) of the first transmitter you wish to control the Unlock/Disarm feature of your security system until a long chirp is heard from the siren. NOTE: This channel is used only if you desire separate control of the Lock/Unlock feature. If you wish to operate the Lock/Unlock features from a single button, move onto step 6 as whatever button is programmed into channel 1 will control both Lock & Arm/Unlock & Disarm. (Repeat this for each transmitter you wish to operate the Unlock/Disarm feature). 6. Within 10 seconds, press and release the valet program switch one time. (Siren emits 3 short chirps indicating channel 3 has been entered) 7. Within 10 Seconds, Press and hold any unused button(s) of the first transmitter you wish to control Channel 3 output, (Trunk Release) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 3 output (Trunk Release) 8. Within 10 seconds, press and release the valet program switch one time. (Siren emits 4 short chirps indicating channel 4 has been entered) 9. Within 10 Seconds, Press and hold any unused button(s) of the first transmitter you wish to control Channel 4 output, (Auxiliary Output 1) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 4 output) 10. Within 10 seconds, press and release the valet program switch one time. (Siren emits 5 short chirps indicating channel 5 has been entered) 11. Within 10 Seconds, Press and hold any unused button(s) of the first transmitter you wish to control Channel 5 output, (Auxiliary Output 2) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 5 output) 12. Within 10 seconds, press and release the valet program switch one time. (Siren emits 6 short chirps indicating channel 6 has been entered) 13. Within 10 Seconds, Press and hold the unlock button, (or any unused button(s)), of the first transmitter you wish to control Channel 6 output, (Driver Priority 1) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to operate the Channel 6 output, Driver Priority 1) 14. Within 10 seconds, press and release the valet program switch one time. (Siren emits 7 short chirps indicating channel 7 has been entered) 15 .Within 10 Seconds, Press and hold the unlock button (or any unused button(s)) of the first transmitter you wish to control Channel 7 output, (Driver Priority 2) until a long chirp is heard from the siren. (Repeat this for each transmitter you wish to o…

Text truncated - open the document above for the full version.

NUTEK CORPORATION 5F,NO.3,ALLEY 6, LANE 45 PAO-HSING RD.,HSING-TIEN CITY,TAIPEI,TAIWAN. Tel: 02-2918-9478#120 Date :JAN. 16, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, charles Retail Program Manager

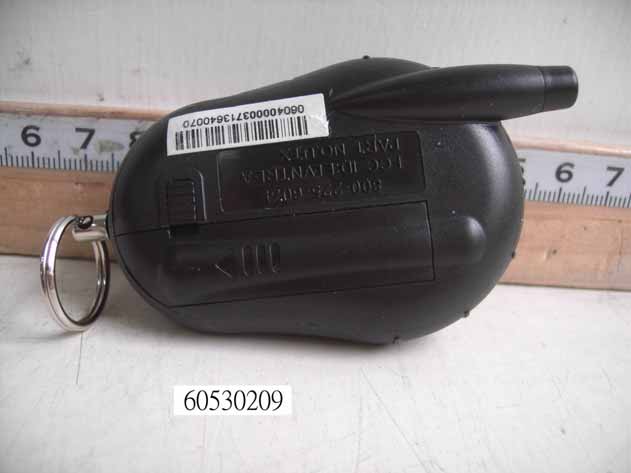

Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 1 Total Page: 6 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 3 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: NUTEK CORPORATION FCC ID: ELVNTREA FCC ID: ELVNTREA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 60530209 Date of Issue: July 05, 2006 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 1 of 24 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS For INTENTIONAL RADIATOR of ALARM DEVICE FCC ID Number : ELVNTREA Trade Name : N/A Model Number : UTX Agency Series : N/A Report Number : 60530209-RP1 Date : July 05, 2006 Issued to NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45 PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE................................................................ 3 2. PRODUCT DESCRIPTION ................................................................................. 4 3. TEST FACILITY.................................................................................................... 4 4. MEASUREMENT STANDARDS ........................................................................ 4 5. TEST METHODLOGY......................................................................................... 4 6. MEASUREMENT EQUIPMENT USED............................................................ 5 7. POWERLINE RFI LIMIT .................................................................................... 5 8. RADIATED EMISSION LIMITS........................................................................ 6 9. SYSTEM TEST CONFIGURATION.................................................................. 6 10. TEST PROCEDURE.............................................................................................. 8 11. EQUIPMENT MODIFICATIONS ...................................................................... 9 12. TEST RESULT ..................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%) ............................... 10 12.2. THE EMISSIONS BANDWIDTH ................................................................. 10 APPENDIX I TEST DATA ........................................................................................ 11 Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45 PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN. CONTACT PERSON : Gritty Chang TELEPHONE NO. : 02-2918-9478#120 EUT DESCRIPTION : ALARM DEVICE MODEL NAME/NUMBER : UTX FCC ID : ELVNTREA DATE TESTED : May 28, 2006 & May 30, 2006 REPORT NUMBER : 60530209-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz ALARM DEVICE MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 1.5VDC Transmitting Time Periodic < 5 seconds Associated Transceiver FCC ID: ELVATRFB 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # J Name of Equipment ManufacturerModel Serial Number Calibration Due SITE NSA CCS J Site N/A 10/15/2006 MEASURE RECEIVER SCHAFFNER SCR3501 330 06/11/2007 SPECTRUM ANALYZER ADVANTEST R3132 120900003 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2800 09/24/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3629 10/08/2006 CABLE BELDEN 9913 N-TYPE #J3 04/14/2007 ATTENUATOR MCL UNAT-6 AT06-8 12/02/2006 THERMO- HYGRO METER TFA N/A NO.3 11/02/2006 EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 00022256 01/12/2007 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1 02/06/2007 CABLE (1-18GHz) HUBER +SUHNER SUCOFL…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Compliance Certification Services Inc. Report No.: 60530209-RP1 FCC ID: ELVNTREA Date of Issue: July 05, 2006 Page 7 Rev. 00 Radiated Open Site Test Set-Up (Receiver Mode)
