ELVNTRFAALARM DEVICE

Nutek Corporation

Click to zoom

Application Details

Equipment Class: DSR - Part 15 Remote Control/Security Device Transceiver
Date of Grant: Sep 11, 2006
Application Purpose: Original Equipment
Date of Application: Sep 11, 2006
Equipment Note: ALARM DEVICE
Frequency Range: 433.40000000 - 434.40000000
Company: Nutek Corporation
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Rev. 1/1/03 NUTEK CORPORATION 5F., NO. 3, ALLEY 6, LANE 45 PAO-HSING RD., HSING-TIEN CITY, TAIPEI TAIWAN, R.O.C. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ELVNTRFA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shella Lin August 30, 2006

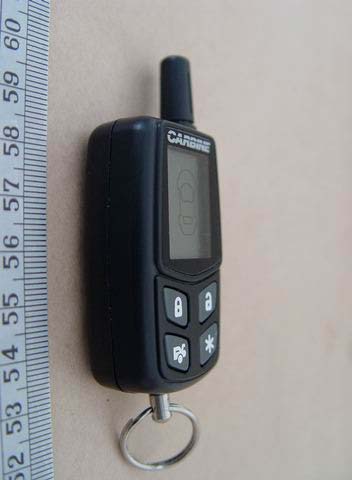

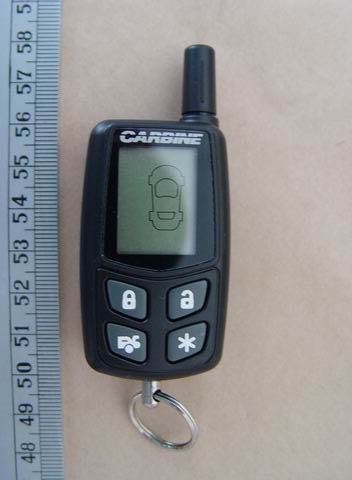

External Photos

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. External photos ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd.

ID Label/Location Info

Internal Photos

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Internal photos ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd.

Test Report

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: ELVNTRFA Test report no.: W6M20608-7251-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 21 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 DETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 4 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 T ECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST EQUIPMENT UTILIZED 6 2.4 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 SPURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3. 8 SPURIOUS EMISSION RADIATED, RECEIVER 18 3.9 DUTY CYCLE 19 3.10 CONDUCTED MEASUREMENT AT (AC) POWER LINE 20 APPENDIX 21 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 21 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: August 9, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: August 9, 2006 Steven Chuang Date ETS Name Signature ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 21 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : NUTEK CORPORATION Street : 5F, NO.3, ALLEY 6, LANE 45 PAO-HSING RD Town : HSING-TIEN CITY, TAIPEI Country : Taiwan R.O.C. Telephone : +886-2-2918-9478*190 Fax : +886-2-2917-9069 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 21 1.4 Application details Date of receipt of application : August 2, 2006 Date of receipt of test item : August 3, 2006 Date of test : from August 4, 2006 to August 9, 2006 1.5 Test item Description of test item : ALARM DEVICE Type identification : CA-RFLCD2 Brand name : ./. Serial number : Test sample without serial number Transmitting frequency : 433.9 MHz Operation mode : duplex Voltage supply : 1.5 VDC ( battery ) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 433.9 MHz Antenna type : spiral antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 21 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 (a) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 1.5 VDC ( battery ) ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20608-7251-C-1 FCC ID: ELVNTRFA ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 21 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2005/10/27 2006/10/26 ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO-LINE V-NETWORK ESH3-Z5 840731/011 R&S 2005/10/25 2006/10/24 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2005/10/21 2006/10/20 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S 2004/11/11 2006/11/10 ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-U…
