al-185X-eDPb Deluxe 2-way alarm & Remote Start may 29, 2013 Operation guide Temporary cover. Color cover is in a separate fi le. 2 Table Of Contents Controller & Transmitter Overview3 The 2-Way Controller 3 The 1-Way Transmitter 3 Controller & Transmitter Functions 3 Other Remote Start Features 7 Low Battery/Low Temp Automatic Starting 7 Turbo Timer Feature 8 Pit-Stop Feature 8 Manual Transmission Starting 8 Security System Features 8 Last Door Arming 8 Automatic Rearming 9 Pre-Warn Detection 9 When The System Triggers 9 Using The Valet Switch 9 Emergency Override 9 Valet Modes 10 SecureCode 10 The Status Light 11 Multi-Car Operation 12 Selecting CAR #1 or CAR #2 12 Controller Options12 LCD Screen Icons 12 In-Range Indicator 12 Setting The Clock 13 Changing remote start melodies 13 Power Save Mode 13 Selecting Melody & Vibrate modes13 Parking Timer & Remote Start Timer 13 Button Lock 13 Anti-Carjacking Protection 14 Programming Controllers/Transmitters 15 Programming Features 15 User Programmable Features 16 Installer Programmable Features 19 Programmable Features Matrix 23 3 The 2-Way COnTROlleR Controller & Transmitter Overview Controller part number: 154-03 (black w/ CR2032 batteries) 157-03 (red w/ rechargeable battery) 158-03 (black w/ rechargeable battery) 1) antenna: Sends commands to the system and receives confi rmations for 2-way functions. 2) lCD Display: Displays all controller func- tions as well as the status of your system. 3) Control buttons: Will light up when pressed 4) Charging Port (rechargeable models only): The buttons will fl ash while charging. When fi nished, the buttons will stay lit. 5) Programming button: This is used for setting controller features. 1 2 “lock” button “trunk” button “unlock” button “start” button Transmitter part number: 148-03 (w/o antenna & blue light) 1410-03 (w/ antenna & red light) Call your dealer or visit www.caralarm.com to order replacement transmitters. Transmitter battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves Replace the battery with the same type and reassemble the transmitter case The 1-Way TRanSmiTTeR lOCK / aRm: Press and release the “LOCK” button THE SIREN WILL CHIRP & THE PARKING LIGHTS WILL • FLASH ONCE UPON RECEIVING CONFIRMATION FROM YOUR SYS-• TEM, THE CONTROLLER WILL SHOW THE LOCK/ARM ICON AND BEEP ONCE nOTe: PReSSing lOCK TWiCe in 5 SeCOnDS STaRTS The PaRKing TimeR. The ClOCK Will Change TO 0:00 anD STaRT COunTing in minuTeS & hOuRS. (1-WAY TRANSMITTER: PRESS THE LOCK BUTTON) Controller & Transmitter Functions 4 5 3 3 4 Controller & Transmitter Functions (cont’d) unlOCK / DiSaRm: Press and release the “UNLOCK” button THE SIREN WILL CHIRP TWICE & T…

Text truncated - open the document above for the full version.

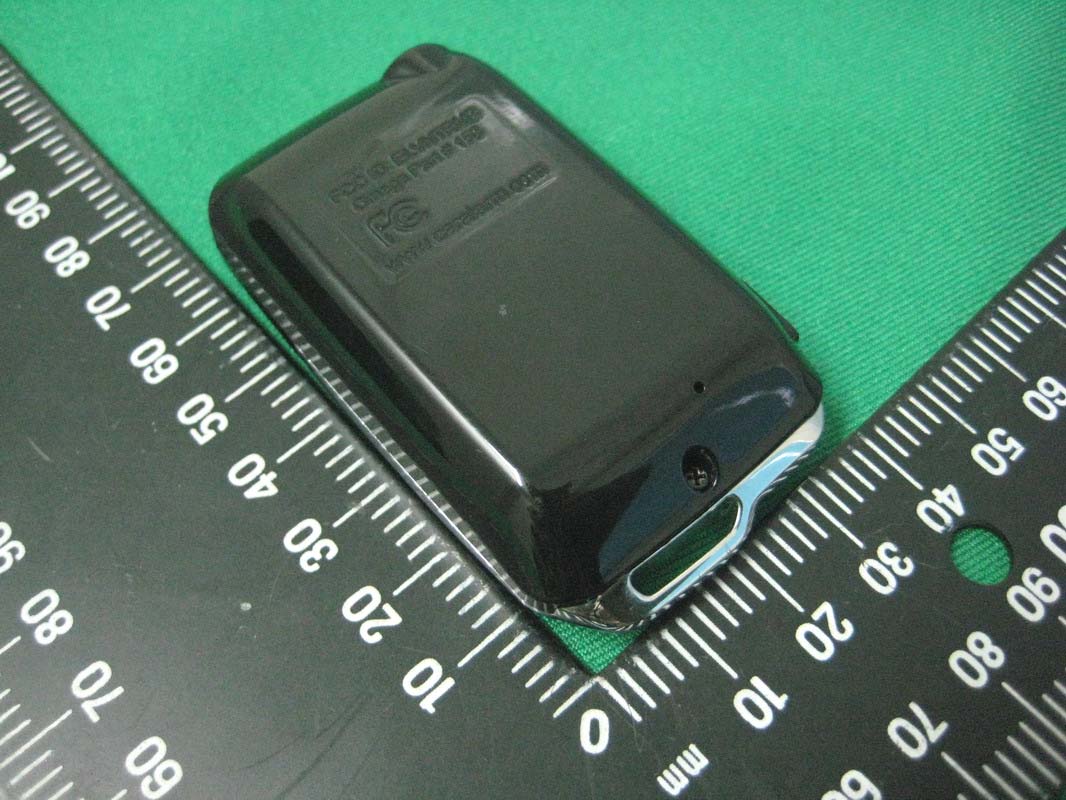

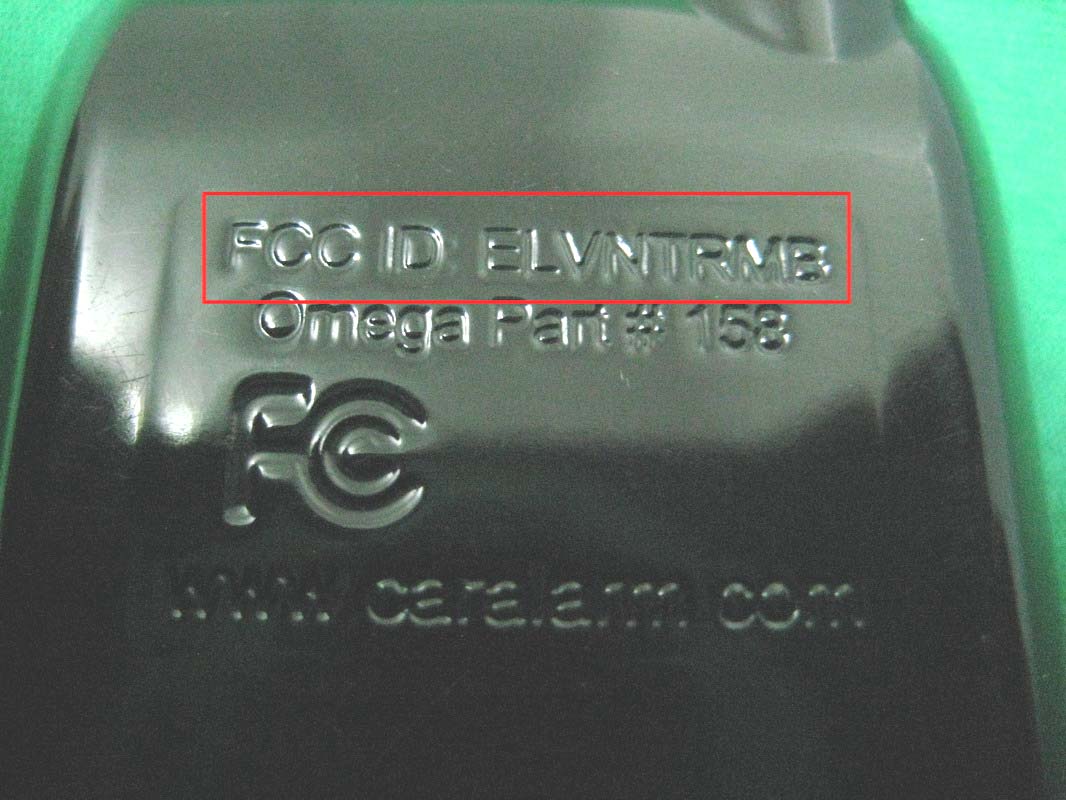

Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 27 of 32 Interocean EMC Technology Corp. Test Report 8 Photographs of EUT Front View of EUT Rear View of EUT Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 28 of 32 Interocean EMC Technology Corp. Test Report FCC ID Location View of I/O Port

Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 29 of 32 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 30 of 32 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 31 of 32 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 32 of 32 Interocean EMC Technology Corp. Test Report Front View of Panel Board Rear View of Panel Board

Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 1 of 32 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Deluxe 2-way Alarm & Remote start Trade Name： N/A Model Number： 158 FCC ID： ELVNTRMB Prepared for Nutek Corporation No.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 32 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 2 of 32 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Deluxe 2-way Alarm & Remote start Model No.: 158 Tested Power Supply: 3.7Vdc Battery Date of Final Test: Jun. 26, 2013 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2013/07/12 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 3 of 32 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Step of EUT 8 3.4 Test Equipment 9 4 Radiated Emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission Bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 AC Power Line Conducted Emission test 21 6.1 Limits 21 6.2 Configuration of Measurement 21 6.3 Test Procedures 21 6.4 Test Result 21 7 Photographs of Test 24 7.1 Conducted Emission Measurement 24 7.2 Radiated Emission Measurement 25 8 Photographs of EUT 27 Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 4 of 32 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Timing requirement §15.231(a) Pass 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission Bandwidth §15.231(c) Pass 6 AC Power Line Conducted Emission test §15.207 Pass Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 5 of 32 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Deluxe 2-way Alarm & Remote start Model Number : 158 Applicant : Nutek Corporation No.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Manufacturer : Nutek Corporation No.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 3.7Vdc Battery Operating Frequency : 433.92MHz Type of Modulation : ASK Antenna description : This device uses Helix antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jun. 24 ~ 26, 2013 Additional Description : 1) The Model Number “158” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 6 of 32 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment 2.2.1 Power Adapter Model Number : DSC-5WU-05 FUS Manufacturer : Nutek Power Input : 100-240Vac, 50/60Hz, 0.2A Power Output : 5Vdc, 0.5A Power Cable : Non-shielded, Detachable, 0.7m, w/o core Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 7 of 32 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : Conducted 2 OATS 1 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 145171 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 2): Site# 4437A-2 Registration No. (OATS 3): Site# 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-04 Report No.：13A062102R-FR FCC ID： ELVNTRMB Page 8 of 32 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode 3.3 Test Step of EUT 3.3.1 Setup the fixtur…
