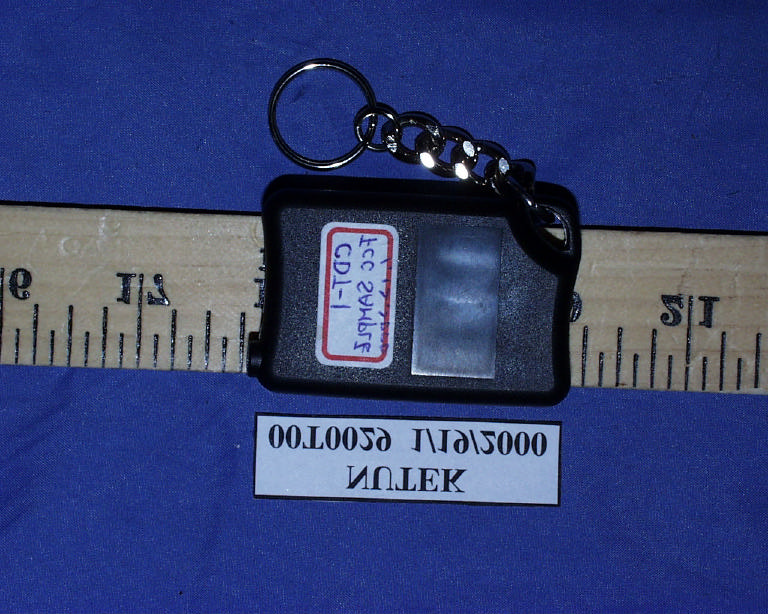

ELVUT0A434MHz Transmitter

1 Operators Manual for the TR4 Transmitter The TR4 is an extremely easy transmitter to use. The following will explain each of the button functions of the trans mi tter. Button 1 :Arm/Disarm Pressing this button for 1 second will indicate to your receiver to arm your home security panel. Pressing this button again will indicate to the receiver that you wish to disarm your panel. Button 2: Panic Pressing this button for 1 second will indicate to your receiver to send a panic signal to your home security panel. Button 3: Garage/Door Pressing this button for 1 second will indicate to your receiver to send an open garage./door signal to your home security panel. Button 4: Medic Alert Pressing this button for 1 second will indicate to your receiver to send a medic alert signal to your home security panel. NOTE: Pressing any button for 3 seconds will generate a PANIC alarm signal. Your transmitter also has the capability to send a battery low condition to your receiver unit. This signal will be generated when pressing any of the 4 transmitter buttons.

PROPOSED FCC ID LABEL AND LOCATION NUTEK CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ELVUT0A FCC ID LABEL FCC ID

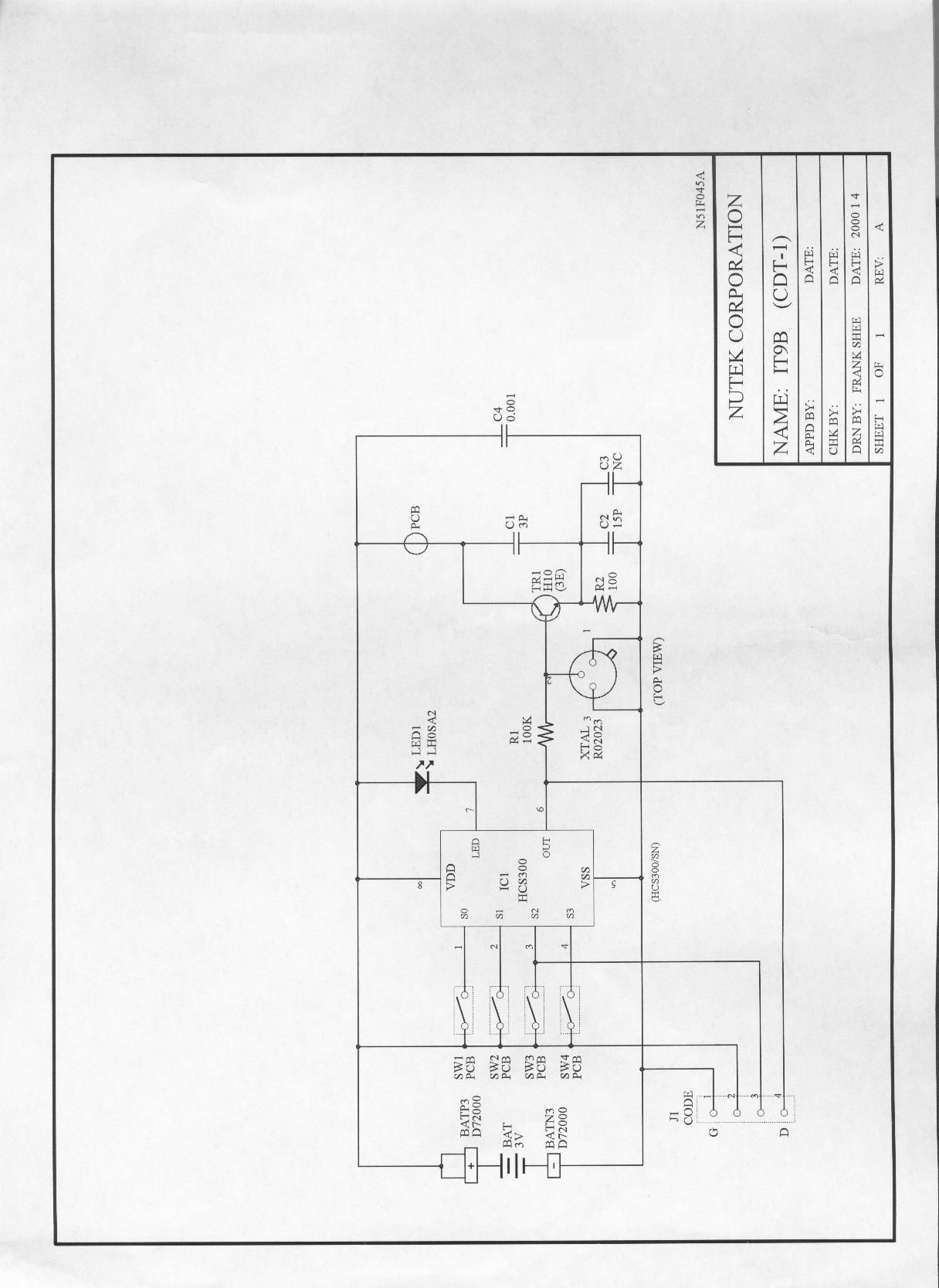

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 434 MHz TRANSMITTER MODEL NO: IT9B FCC ID NO: ELVUT0A REPORT NO: 00T0029-1 ISSUE DATE: JANUARY 17, 2000 Prepared for NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45 PAO-HSING ROAD, HSIN TIEN, TAIPEI TAIWAN, R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:00T0029-1 FCC ID:ELVUT0A DATE:JANUARY 17, 2000 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ........................................................................................ 1 2. Product Description..................................................................................................................... 2 3. Test Facility ................................................................................................................................. 2 4. Measurement Standards .............................................................................................................. 2 5. Test Methodology........................................................................................................................ 2 6. Measurement Equipment Used ...................................................................................................2 7. POWERLINE RFI LIMIT ..........................................................................................................3 8. RADIATED EMISSION LIMITS .............................................................................................. 3 9. SYSTEM TEST CONFIGURATION......................................................................................... 4 10. Test Procedure........................................................................................................................... 5 11. Equipment Modifications .......................................................................................................... 6 12. TEST RESULT ......................................................................................................................... 7 12.1 Maximum Modulation Percentage (M%) ............................................................................... 7 12.2 The Emissions Bandwidth....................................................................................................... 7 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:00T0029-1 FCC ID:ELVUT0A DATE:JANUARY 17, 2000 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME:NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING ROAD HSIN TIEN, TAIPEI, TAIWAN R. O. C. CONTACT PERSON:RUBY HSIEH TELEPHONE NO.:02-2918-9478 EUT DESCRIPTION:434 MHz TRANSMITTER MODEL NAME/NUMBER: IT9B FCC ID:`ELVUT0A DATE TESTED:JANUARY 17, 2000 REPORT NUMBER:00T0029-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE434 MHz TRANSMITTER MEASUREMENT PROCEDUREANSI C63.4 / 1992 LIM IT TYPEC ERT IF IC AT ION FCC RULECFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00T0029-1 FCC ID:ELVUT0A DATE:JANUARY 17, 2000 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. Product Description Fundamental Frequency 434 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: ELVAR8B 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. Measurement Equipment Used Manufacturer Model Number DescriptionCal Due Date H.P.8568ASpectrum Analyzer (100Hz – 1.5GHz) 02/00 H.P.8566BSpectrum Analyzer (100Hz – 22GHz) 09/00 EMCO3146Antenna (200-1000 MHz) 10/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/00 EMCO3115Antenna(1 - 18GHZ)11/00 H.P.8449BPreamplifier (1-26.5GHZ)03/00 REPORT NO:00T0029-1 FCC ID:ELVUT0A DATE:JANUARY 17, 2000 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SECTION 15.205 AND S…

Text truncated - open the document above for the full version.

Sheet1 COMPLIANCE ENGINEERING SERVICES, INC. Radiated Emissions 01/04/2000 15.231 (B) Kerwin CorpuzF site (1.0 Meter) NUTEK CORPORATION REMOTE 434 MHz TX; M/N:IT9Bfo=434 MHzMeasurements were taken with EUT in X,Y and Z axis orientations with measurement antenna in horizontal and vertical polarities. EUT in Y-axis and measurement antenna vertical produced highest emissions. Readings shown are peak, which passes average limits. F(MHz) READING AF CL AMP DIST HPF TOTAL LIMIT MARGIN NOTE (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk Pk Ave Pk 433.91 72.77 15.97 3.24 -27.46 0 0 64.52 80.8 -16.3 Y,VER 867.81 44.98 21.31 4.82 -27.53 0 0 43.58 60.8 -17.2 Y,VER 1301.7 50.5 24.7 2.55 -35 -9.5 0 33.25 54 -20.8 Y,VER *1735.6 45.7 26.2 2.55 -35 -9.5 0 29.95 60.8 -30.9 HOR *2169.5 44.9 28.1 3.23 -35 -9.5 0 31.73 60.8 -29.1 HOR *2603.4 44.9 29.2 3.48 -35 -9.5 0 33.08 60.8 -27.7 HOR *3037.3 44.3 31 3.74 -35 -9.5 0 34.54 60.8 -26.3 HOR *3471.2 43.2 33 4.25 -35 -9.5 0 35.95 60.8 -24.9 HOR *3905.1 43.1 32 4.76 -35 -9.5 0 35.36 54 -18.6 HOR *4339.1 42.5 32.4 5 -35 -9.5 0 35.4 54 -18.6 HOR * Measured noise floorNOTE: ALL READINGS ARE VERTICAL ANALYZER SETTINGS DIST : Correction to extrapolate reading to 3m specification distance Res bw Avg. bw 1M measurement distance: -9.5dB PEAK(Pk ) :1MHz 1MHz above 1GHz AF : Antenna Factor 100KHz 100KHz below 1GHz AMP : Pre-amp gain CL : Cable loss (17ft) HPF : High pass filter insertion loss (1.8GHz) FSY(S/N:001) Page 1
