EMJ64293Wireless Trackball

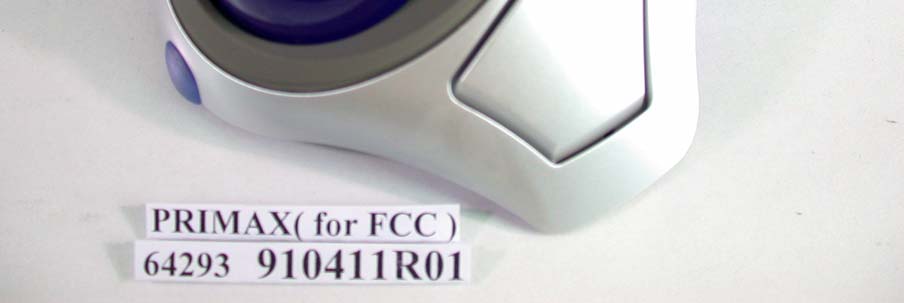

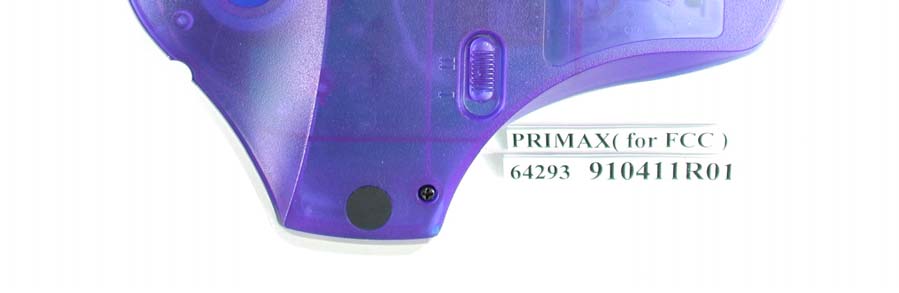

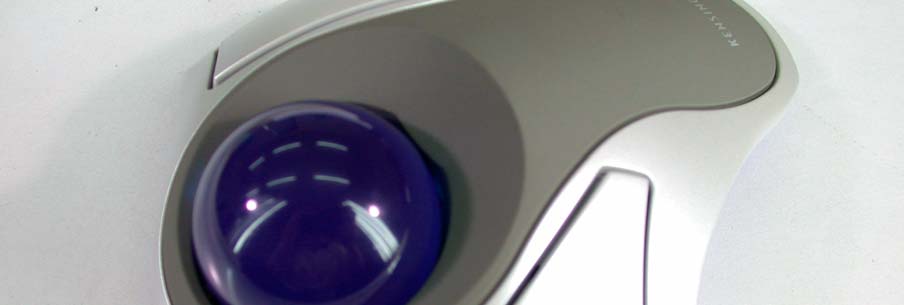

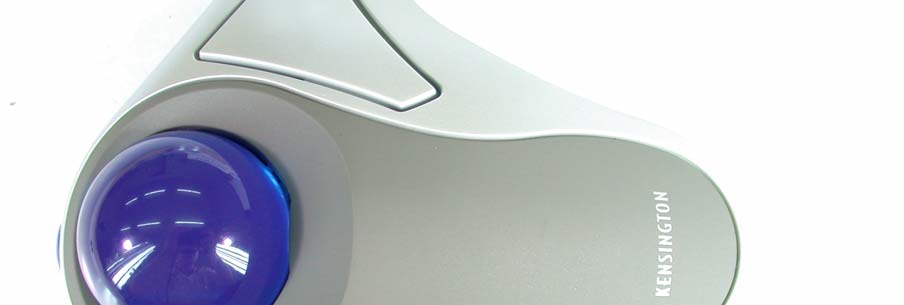

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: EMJ64293 ADT No.910411R01 Operational Description The transmitter of the EUT (Orbit Elite Wireless) is powered by 3V Battery. The receiver is powered by host equipment. Both transmitter and receiver use Loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: EMJ64293 Report No.: RF910411R011Issued: June 25, 2002 FCC TEST REPORT REPORT NO.: RF910411R01 MODEL NO.: 64293 RECEIVED: April 11, 2002 TESTED: April 18 ~ June 13, 2002 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: EMJ64293 Report No.: RF910411R012Issued: June 25, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................7 4TEST PROCEDURE AND RESULT.................................................................8 4.1CONDUCTED EMISSION MEASUREMENT...................................................8 4.2RADIATED EMISSION MEASUREMENT........................................................8 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................8 4.2.2 TEST INSTRUMENT .......................................................................................9 4.2.3 TEST PROCEDURE......................................................................................10 4.2.4 TEST SETUP................................................................................................. 11 4.2.5 EUT OPERATING CONDITION..................................................................... 11 4.2.6 TEST RESULT...............................................................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................14 6INFORMATION ON THE TESTING LABORATORIES...................................15 FCC ID: EMJ64293 Report No.: RF910411R013Issued: June 25, 2002 1 CERTIFICATION PRODUCT : Orbit Elite Wireless BRAND NAME : PRIMAX OEM BRAND NAME: Kensington MODEL NO : 64293 APPLICANT : PRIMAX ELECTRONIC LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from April 18 ~ June 13, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: EMJ64293 Report No.: RF910411R014Issued: June 25, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –24.4dBuV at 54.30MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: EMJ64293 Report No.: RF910411R015Issued: June 25, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Orbit Elite Wireless MODEL NO. 64293 POWER SUPPLY DC 2.4V ~ 3.3V MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.050MHz & 27.195MHz BANDWIDTH OF EACH CHANNEL +/-7.5KHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE 1.2m (Shielded) I/O PORTS USB, PS2 ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of an Orbit Elite Wireless. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: EMJ64293 Report No.: RF910411R016Issued: June 25, 2002 3.2 DESCRIPTION OF TEST MODES Two channels are provided in this EUT. ChannelFrequency 127.050MHz 227.195MHz Channel 2, worst case one, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of Orbit Elite Wireless. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. FCC ID: EMJ64293 Report No.: RF910411R017Issued: June 25, 2002 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NO.PRODUCTBRANDMODEL NO.SERIAL NO.FCC ID 1 PERSONAL COMPUTER HPBRIO BA410SG12902766 FCC DoC APPROVED 2PS2/MOUSELOGITECHM-S61HCA12001828JNZ211403 3PRINTEREPSONLQ-300+DCGY017096 FCC DoC APPROVED 4MODEMACEEX1414980020510IFAXDM1414 5 PS/2 KEYBOARD BTC5121WA00801156E5XKB5121WTH01 6 COLOR MONITOR ADICM100 026058T102006 11 A FCC DoC APPROVED NO.SIGNAL CABLE DESCRIPTION OF THE ABOVE SUPPORT UNITS 1NA 21.8 mNon shielded wire, terminated with PS/2 connector via drain wire, w/o core. 3 1.2m braid shielded wire, terminated with DB25 and Centronics connector via metallic frame, w/o core 4 1.2 m braid shielded wire, terminated with DB25 and DB9 connector…

Text truncated - open the document above for the full version.

FCC ID: EMJ64293 Report No.: RF910411R0114Issued: June 25, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
