EMJB81116Bluetooth Headset

Confidential User Guide for Bluetooth Headset PHS-4 By Primax Electronics Ltd. Confidential User Guide Primax Electronics Ltd. 2 Change History Version Date Author Status Comment 0.1 16.05.2006 River.Yang Draft Initial Draft 0.2 27.Jun.2006 River.Yang Draft Update because the UI change 0.3 31.Jul.2006 River.Yang Draft Update because the UI change 0.4 1.Aug.2006 River.Yang Draft Update because the UI change Confidential User Guide Primax Electronics Ltd. 3 Table of Contents 1. INTRODUCTION.................................................................................................4 2. GETTING STARTED...........................................................................................6 3. CHARGING THE BATTERY...............................................................................6 4. PAIRING THE BLUETOOTH HEADSET WITH A COMPATIBLE PHONE........6 5. DISCONNECTING THE BLUETOOTH HEADSET FROM THE PHONE............7 6. RECONNECTING THE PAIRED BLUETOOTH HEADSET TO THE COMPATIBLE PHONE..............................................................................................7 7. POWERING UP...................................................................................................8 8. MAKING CALLS.................................................................................................8 9. ANSWERING AND ENDING A CALL................................................................8 10. REJECTING A CALL......................................................................................8 11. REDIALING THE LAST DIALED NUMBER....................................................8 12. MUTING AN ONGOING CALL........................................................................8 13. VOICE DIALING..............................................................................................9 14. ADJUSTING THE EARPHONE VOLUME......................................................9 15. SWITCHING THE CALL BETWEEN PHONE AND HEADSET......................9 16. ERASE ALL PAIRED DEVICE INFORMATION..............................................9 17. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT.................................................................................................10 Confidential User Guide Primax Electronics Ltd. 4 1. Introduction Thanks for purchasing PHS-4.Your PHS-4 is a stylish headset that enables comfortable handsfree communication with compatible phone that supports Bluetooth technology. The PHS-4 contains the following parts, as shown in Figure 1. Figure 1 1.1 Power/Send/End key (1) • Switches the headset on and off • Answer incoming call • End active call 1 - Power/Send/End key 2 - Indication light 3 - Volume up key 4 - Volume down key 5 - Charger connector 6 - Earpiece Confidential User Guide Primax Electronics Ltd. 5 • Reject incoming call 1.2 Indicator Light (2): • Power on –Blue light constant on for 1 seconds and beep once. • Pairing state –Blue/Red light flashing alternatively, the flashing continues for approximately 3 minutes or until the headset is connected to a compatible phone. If the headset can’t be connected to the phone during this time, the headset enter connectable status. • Connectable –Blue light flashing once every 5 seconds. • Connection active –Blue light flashing twice every 8 seconds • Incoming call –Blue light flashing 3 times every 1 second. • Active call –Blue/Red light flashing alternatively every 5 seconds. • Power off –Red light constant on for 1 seconds and beep once. • Low battery – The Led frequence is ten times of the Led current status,and beep on every 20 seconds 1.2 Volume up (3): Increase the earpiece volume 1.3 Volume down (4): Decrease the earpiece volume 1.5 Charger connector (5): For headset battery charging 1.6 Earpiece (6): Relay the caller’s voice. Confidential User Guide Primax Electronics Ltd. 6 2. Getting started Take out all components from the package. 1. PHS-4 Headset 2. Charger 3. User guide 4. Quick reference (optional) 3. Charging the battery Before using PHS-4, you must charge the product for approximately 2 hours. When the battery is fully charged, it provides up to 7 hours of talk time and up to 200 hours of standby time. 1. Connect the charger cable to PHS-4 2. Plug the AC adapter into a wall outlet. When PHS-4 is charging, red indicator light will display. 3. When the battery is fully charged, the Red light is off. Unplug the charger cable from the wall outlet and PHS-4. 4. Pairing the Bluetooth headset with a compatible phone Pairing is the process of linking the headset with your Bluetooth enabled mobile phone. After this process is completed, you can use the PHS-4 only with this paired mobile phone. If you want to use PHS-4 with another mobile phone, you must repeat the pairing process again. The PHS-4 can be paired with up to 8 compatible phones but connected to only one phone at a time. 1. Make sure that the compatible phone is turned on and within 10 meters of the headset. 2. Turn on PHS-4 and make sure the headset is charged. Press and hold volume up key and volume down key together for about 2 seconds. The blue and red LEDs will flash alternatively. Release both buttons and the headset is now in pairing mode. 3. Activate the Bluetooth connection from the phone. You may need to consult with user guide of your phone regarding how to do that. 4. Set the phone to start searching for Bluetooth devices as instructed in user guide of your phone. 5. Select the PHS-4 from the list. 6. Enter the pin code 0000 to connect (or “pair”) PHS-4 to the phone. Confidential User Guide Primax Electronics Ltd. 7 PHS-4 beeps once and an active Bluetooth connection is displayed by a blinking blue indicator light. If PHS-4 is turned on within 10 meters of several paired phones, the headset will try to connect to the last connected phone within 20 seconds. If the headset cannot connect to the last connected phone(for example, phone is turned off or it rejects the connection), it remains connectab…

Text truncated - open the document above for the full version.

Date: Aug 31, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJB81116 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: Aug 31, 2006 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

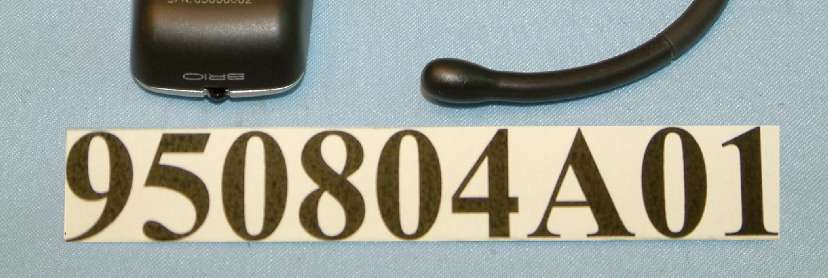

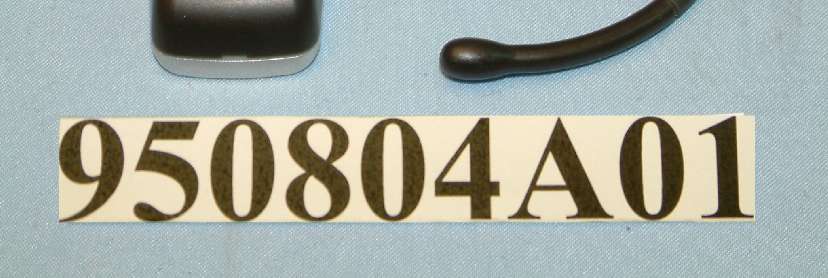

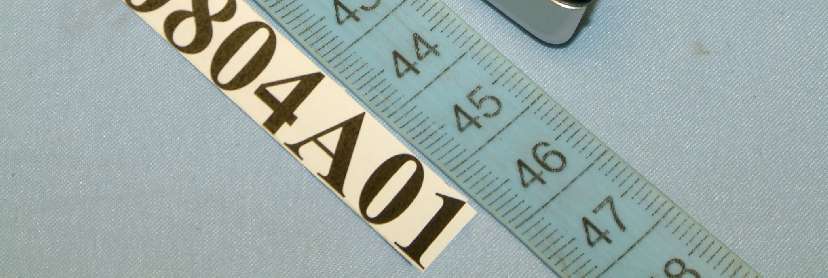

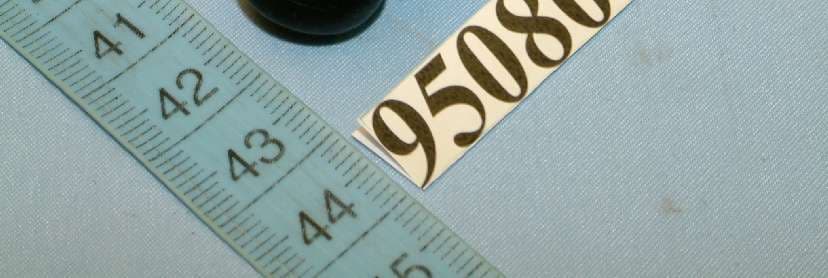

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: EMJB81116 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 7 Page 8 Page 9

FCC ID: EMJB81116 Report No.: RF950804A01 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Dipole Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA950804A011 RF EXPOSURE REPORT REPORT NO.: SA950804A01 TYPE: PHS-4 MODEL NO.: PHS-4A, PHS-4D, VS610, BH-200, PHS-4B, PHS-4C ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950804A012 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950804A013 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950804A014 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power5.363.436 EIRP Power3.362.168 *Note: The antenna is Dipole antenna with -2dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 3.436mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950804A011Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950804A01 TYPE: PHS-4 MODEL NO.: PHS-4A, PHS-4D, VS610, BH-200, PHS-4B, PHS-4C RECEIVED: Aug. 4, 2006 TESTED: Aug. 4 ~ 9, 2006 ISSUED: Aug. 28, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950804A012Report Format Version 2.0.5 TABLE OF CONTENTS 1.CERTIFICATION.............................................................................................4 2.SUMMARY OF TEST RESULTS.....................................................................5 2.1MEASUREMENT UNCERTAINTY..................................................................6 3.GENERAL INFORMATION..............................................................................7 3.1GENERAL DESCRIPTION OF EUT................................................................7 3.2DESCRIPTION OF TEST MODES..................................................................9 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................10 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................11 3.3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................13 3.3.4DESCRIPTION OF SUPPORT UNITS..........................................................13 4.TEST TYPES AND RESULTS.......................................................................14 4.1CONDUCTED EMISSION MEASUREMENT................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................14 4.1.2TEST INSTRUMENTS..................................................................................14 4.1.3TEST PROCEDURES...................................................................................15 4.1.4DEVIATION FROM TEST STANDARD.........................................................15 4.1.5TEST SETUP................................................................................................16 4.1.6EUT OPERATING CONDITIONS..................................................................16 4.1.7TEST RESULTS............................................................................................17 4.2RADIATED EMISSION MEASUREMENT.....................................................29 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...................................29 4.2.2TEST INSTRUMENTS..................................................................................30 4.2.3TEST PROCEDURES...................................................................................31 4.2.4DEVIATION FROM TEST STANDARD.........................................................31 4.2.5TEST SETUP................................................................................................32 4.2.6EUT OPERATING CONDITIONS..................................................................32 4.2.7TEST RESULTS............................................................................................33 4.3NUMBER OF HOPPING FREQUENCY USED.............................................39 4.3.1LIMIT OF HOPPING FREQUENCY USED...................................................39 4.3.2TEST INSTRUMENTS..................................................................................39 4.3.3TEST PROCEDURES...................................................................................39 4.3.4DEVIATION FROM TEST STANDARD.........................................................40 4.3.5TEST SETUP................................................................................................40 4.3.6TEST RESULTS............................................................................................40 4.4DWELL TIME ON EACH CHANNEL.............................................................42 4.4.1LIMIT OF DWELL TIME USED......................................................................42 4.4.2TEST INSTRUMENTS..................................................................................42 4.4.3TEST PROCEDURES...................................................................................42 4.4.4DEVIATION FROM TEST STANDARD.........................................................42 4.4.5TEST SETUP................................................................................................43 4.4.6TEST RESULTS............................................................................................43 4.5CHANNEL BANDWIDTH..............................................................................48 4.5.1LIMITS OF CHANNEL BANDWIDTH............................................................48 4.5.2TEST INSTRUMENTS..................................................................................48 Report No.: RF950804A013Report Format Version 2.0.5 4.5.3TEST PROCEDURE.....................................................................................48 4.5.4DEVIATION FROM TEST STANDARD.........................................................49 4.5.5TEST SETUP................................................................................................49 4.5.6EUT OPERATING CONDITION....................................................................49 4.5.7TEST RESULTS............................................................................................50 4.6HOPPING CHANNEL SEPARATION............................................................52 4.6.1LIMIT OF HOPPING CHANNEL SEPARATION...............…

Text truncated - open the document above for the full version.

Report No.: RF950804A0165Report Format Version 2.0.5 5.PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode B) Report No.: RF950804A0166Report Format Version 2.0.5 (Mode C) Report No.: RF950804A0167Report Format Version 2.0.5 RADIATED EMISSION TEST (Mode A) Report No.: RF950804A0168Report Format Version 2.0.5 (Mode B) Report No.: RF950804A0169Report Format Version 2.0.5 (Mode C)
