EMJD50701BT 2.0 Dongle

致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 1 (10) Primax Electronics Ltd. - 1 User Guide of Bluetooth USB Adapter Owner: Wendy Oy Document ID: Version: 0.1 Status: Draft Copyright„ 2005 PRIMAX Electronics. All rights reserved. This material, including documentation and any related computer programs, is protected by copyright controlled by PRIMAX Electronics. All rights are reserved. Copying, including reproducing, storing, adapting or translating, any or all of this material requires the prior written consent of PRIMAX Electronics. This material also contains confidential information, which may not be disclosed to others without the prior written consent of PRIMAX Electronics. 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 2 (10) Primax Electronics Ltd. - 2 Change History Version Date Status Handled by Comments 0.1 28.Oct.05 Draft Wendy Oy For Toshiba Version 3.03.10© References N/A 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 3 (10) Primax Electronics Ltd. - 3 Contents 1. SPECIFICATION............................................................................................................4 2. BLUETOOTH USB ADAPTER QUICK START..............................................................5 2.1. Include in this package....................................................................................................5 2.2. System Requirements.....................................................................................................5 2.2.1. Hardware Requirements...................................................................................................5 2.2.2. Operating System Requirements......................................................................................5 2.3. Registration.....................................................................................................................5 3. INSTALLATION INSTRUCTIONS..................................................................................6 3.1. Windows Users Installation.............................................................................................6 3.2. Mac OS X users ( 10.2.8 or later ).................................................................................10 4. DECLARATION............................................................................................................11 4.1. Federal Communications Commission Radio Frequency Interference Statement.........11 4.2. Declaration of Conformity Compliance Statement for the Primax BT dongle.................11 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 4 (10) Primax Electronics Ltd. - 4 1. Specification Communication Method :Bluetooth standard n Frequency :2400 ~ 2483.5 MHz n Power Requirements :5V DC n Operation Temperature Range :-5°C to +50°C 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 5 (10) Primax Electronics Ltd. - 5 2. Bluetooth USB Adapter Quick Start 2.1. Include in this package n Bluetooth USB Adapter n CD-ROM with Bluetooth software and manual n This quick start guide 2.2. System Requirements 2.2.1. Hardware Requirements n PC with a Pentium process or equivalent or any Macintosh computer running OS 10.2.8 or later n Available USB port ( USB 2.0 or 1.1 ) n CD-ROM drive 2.2.2. Operating System Requirements n Windows 98 Second Edition n Windows ME n Windows XP Professional (Service Pack 1 or above ) n Windows XP Home (Service Pack 1 or above) n Windows 2000 Professional (Service Pack 3 or Above) n Mac OS 10.2.8 or later 2.3. Registration Please read this Quick Start guide to learn valuable information about the proper use and installation of your new Bluetooth USB adapter. 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 6 (10) Primax Electronics Ltd. - 6 3. Installation Instructions 3.1. Windows Users Installation n Step1: Put the installation CD in your CD drive. n Step2: Click “Installation” button to Start Install Process (If CD does not auto play, select Start > Run ... and type: D:\Setup.exe, where ‘D’ is the letter of your CD drive) 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 7 (10) Primax Electronics Ltd. - 7 n Step3: Click “Next” to begin n Step4: Select “I accept the terms in the license agreement”, and click “Next” 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 8 (10) Primax Electronics Ltd. - 8 n Step5: Click “Install” to Begin Installing the software. A status window shows the progress of the installation. n Step6: Click “Yes” to continue install process n Step7: Click “OK” to continue Note: If this warning appears, plug the Bluetooth USB adapter into an available USB port. 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 9 (10) Primax Electronics Ltd. - 9 n Step8: Click “Finish” and then click “Exit “on the main CD contents screen n Step9: Click “Yes” to restart Windows 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. User Guide of Generic Bluetooth USB Adapter Product name: BT Dongle Primax No.: Document No.: Rev.: 0.1 Date: 2005/10/28 10 (10) Primax Electronics Ltd. - 10 3.2. Mac OS X users ( 10.2.8 or later ) n Step1: After you pl…

Text truncated - open the document above for the full version.

Power of Attorney Date: 2005/10/27 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, --------------------------------------------- C.T. Huang Director Phone: 886-2-2798-1710 Fax: 886-2-8797-1565 Email: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJD50701 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, --------------------------------------------- C.T. Huang Director Phone: 886-2-2798-1710 Fax: 886-2-8797-1565 Email: [email protected]

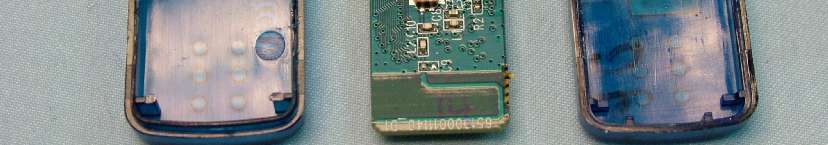

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: EMJD50701 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

21.00 1 0 . 0 0 14.55 R 2 . 1 5 R 0 . 5 0 Model:Bluetooth 2.0 Dongle FCC ID: EMJD50701 Made in China Rating: 5V 55mA 21.00 1 0 . 0 0 14.55 R 2 . 1 5 R 0 . 5 0 Model:Bluetooth 2.0 Dongle FCC ID: EMJD50701 Made in China Rating: 5V 55mA

Page 3 Page 4

FCC ID: EMJD50701 Report No.: RF940801A03 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

FCC ID: EMJD50701 Report No: SA940801A031 RF EXPOSURE REPORT REPORT NO.: SA940801A03 MODEL NO.: 26-50701 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. FCC ID: EMJD50701 Report No: SA940801A032 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: EMJD50701 Report No: SA940801A033 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: EMJD50701 Report No: SA940801A034 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power0.091.021 EIRP Power-3.410.456 *Note: The antenna is Printed antenna with –3.5dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.021mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

FCC ID: EMJD50701 Report No.: RF940801A031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940801A03 MODEL NO.: 26-50701 RECEIVED: Aug. 1, 2005 TESTED: Aug. 8 ~ 9, 2005 ISSUED: Sep. 22, 2005 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: EMJD50701 Report No.: RF940801A032Report Format Version 2.0.4 TABLE OF CONTENTS 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY.................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................10 4TEST PROCEDURES AND RESULTS.........................................................11 4.1CONDUCTED EMISSION MEASUREMENT...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................11 4.1.2TEST INSTRUMENTS.................................................................................11 4.1.3TEST PROCEDURES.................................................................................12 4.1.4DEVIATION FROM TEST STANDARD........................................................12 4.1.5TEST SETUP..............................................................................................13 4.1.6EUT OPERATING CONDITIONS................................................................13 4.1.7TEST RESULTS..........................................................................................14 4.2NUMBER OF HOPPING FREQUENCY USED...........................................20 4.2.1LIMIT OF HOPPING FREQUENCY USED..................................................20 4.2.2TEST INSTRUMENTS.................................................................................20 4.2.3TEST PROCEDURES.................................................................................20 4.2.4DEVIATION FROM TEST STANDARD........................................................21 4.2.5TEST SETUP..............................................................................................21 4.2.6TEST RESULTS..........................................................................................21 4.3DWELL TIME ON EACH CHANNEL............................................................23 4.3.1LIMIT OF DWELL TIME USED....................................................................23 4.3.2TEST INSTRUMENTS.................................................................................23 4.3.3TEST PROCEDURES.................................................................................23 4.3.4DEVIATION FROM TEST STANDARD........................................................24 4.3.5TEST SETUP..............................................................................................24 4.3.6TEST RESULTS..........................................................................................25 4.4CHANNEL BANDWIDTH.............................................................................29 4.4.1TEST INSTRUMENTS.................................................................................29 4.4.2TEST PROCEDURE....................................................................................29 4.4.3DEVIATION FROM TEST STANDARD........................................................30 4.4.4TEST SETUP..............................................................................................30 4.4.5EUT OPERATING CONDITION...................................................................30 4.4.6TEST RESULTS..........................................................................................31 4.5HOPPING CHANNEL SEPARATION...........................................................33 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION...........................................33 4.5.2TEST INSTRUMENTS.................................................................................33 FCC ID: EMJD50701 Report No.: RF940801A033Report Format Version 2.0.4 4.5.3TEST PROCEDURES.................................................................................33 4.5.4DEVIATION FROM TEST STANDARD........................................................33 4.5.5TEST SETUP..............................................................................................33 4.5.6TEST RESULTS..........................................................................................34 4.6MAXIMUM PEAK OUTPUT POWER..........................................................37 4.6.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........37 4.6.2INSTRUMENTS...........................................................................................37 4.6.3TEST PROCEDURES.................................................................................37 4.6.4DEVIATION FROM …

Text truncated - open the document above for the full version.

FCC ID: EMJD50701 Report No.: RF940801A0355Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: EMJD50701 Report No.: RF940801A0356Report Format Version 2.0.4 RADIATED EMISSION TEST
