EMJD51301Bluetooth Wireless USB Adapter

Bluetooth Keyboard Mouse Set User Manual Bluetooth Keyboard Mouse Set About this manual Thank you for your purchase of this Bluetooth keyboard mouse set. This topics covered in this manual are listed as following. ▶ Introduction ▶ Installing the Batteries ▶ Setting up the Keyboard and Optical Mouse ▶ Installing the WIDCOMM Bluetooth Stack ▶ Using the Keyboard and Optical Mouse ▶ Using the Bluetooth Stack ▶ Troubleshooting Contents Bluetooth Keyboard Mouse Set Introduction ................................................ 1 Package List .....................................................................1 Features ...........................................................................2 Installing the Batteries ................................... 3 Keyboard .......................................................................... 3 Optical Mouse ..................................................................4 Installing and Uninstalling the WIDCOMM Bluetooth Stack ......................................................... 5 Installing the WIDCOMM Bluetooth Stack ........................5 Uninstalling the WIDCOMM Bluetooth Stack ...................8 Setting up the Keyboard and Optical Mouse ......... 9 Automatic Pairing in Boot Mode .......................................9 Quick Pairing in Windows ...............................................10 Pairing on WIDCOMM Bluetooth Stack ..........................12 Using the Keyboard and Optical Mouse .............. 14 Using the Keyboard ........................................................14 Using the Optical Mouse ................................................15 Power Status of the Keyboard and Optical Mouse .........15 Use of the WIDCOMM Bluetooth Stack ............... 17 Using the Stack for the First Time ..................................17 Connecting to the other HID Devices .............................18 Troubleshooting .......................................... 19 FCC/ Industry Canada Notice ............................. 20 Bluetooth Keyboard Mouse Set 1 Introduction 1.1 Package List Before you start using the set, check the following contents in your package. If anything is missing, contact your retailer. WWW Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Print Insert Delete Home End Pause Scroll )( _ Screen + Break / Lock _ !~ @ # $ ^% & * *Num Lock ` Ta b 1 2 3 4 5 6 7 8 9 0 - = Q W E R T Y U I O P { } | 8 +7 9 ][ \ Home PgUp Caps Lock A S D F G H J K L : ; " ' Enter 54 6 Shift Z X C V B N M < > ? Shift 21 3 Enter Ctrl Alt , . Alt / Page Page Ctrl End 0 PgDn . Up Down Ins Del Keyboard Batteries for the keyboard and mouse Optical Mouse USB Bluetooth dongle User’s Manual 1 1.2 Features Bluetooth Keyboard Mouse Set Keyboard Features • 103-key design • Power saving mode (after idling for ten minutes) • Internet and multimedia hotkeys Optical Mouse Features • With scroll wheel and two buttons • Power saving mode • LED indicator a. Red: dead battery b. Flashing red and green: mouse/keyboard pairing USB Bluetooth Dongle Features • Bluetooth specification v1.2 and v2.0 compliant • Supports both keyboard and mouse • Supports additional Bluetooth devices System Requirements • Bluetooth / USB keyboard & mouse supported computer • Microsoft Windows 98/ME/2000/XP or later 2 Bluetooth Keyboard Mouse Set 2 Installing the Batteries The keyboard and mouse both need two AA size batteries. Follow the steps below to install the batteries. 2.1 Keyboard 1. Remove the battery cover as shown. 2. Install two "AA" batteries while observing the polarity (+ and -) marks indicated inside the compartment. 3. Replace the battery cover. 3 Bluetooth Keyboard Mouse Set 2.2 Optical Mouse 1. Press the button and the battery cover pops out. 2. Install two "AA" batteries while observing the polarity (+ and -) indicated inside the mouse. 3. Replace the battery cover. p 4 Bluetooth Keyboard Mouse Set 3 Installing and Uninstalling the WIDCOMM Bluetooth Stack 3.1 Installing the WIDCOMM Bluetooth Stack Before installing the WIDCOMM Bluetooth stack, plug the USb Bluetooth dongle into a USB port of your computer. 1. Insert the provided Installation CD in the CD ROM drive. 2. The installation stack loads automatically. If not, click the Setup.exe in the bin folder of the CD ROM. 3. The welcome screen introduces you to the installation process. Click Next to continue. 5 Bluetooth Keyboard Mouse Set 4. Read the agreement and select “I accept he terms in the license agreement ”. Click Next to continue. 5. The program will be installed in the folder as shown. Click Change to install in a different location. Click Next to continue. 6 Bluetooth Keyboard Mouse Set 6. Click Install to start the installation. The installation may need some time to complete. 7. The following screen appears to indicate the installation is complete. 8. Remove the dongle and plug it back in, the keyboard and mouse will pair automatically. Click Finish to exit the installation. 7 Bluetooth Keyboard Mouse Set The following prompt requires you to restart the computer so that the Bluetooth stack takes effect. Click Yes to restart your computer now or No to restart later. 3.2 Uninstalling the WIDCOMM Bluetooth Stack Follow the steps below to uninstall the WIDCOMM Bluetooth stack from your computer. 1. Remove the USB Bluetooth dongle. 2. Click Start > Settings > Control Panel > Add/Remove Programs. 3. Select WIDCOMM Bluetooth Software from the program list and click Remove. 4. The system starts to remove the program, it may take some time to uninstall. 5. When the program has been removed, a prompt requires you to restart the computer. Click Yes to restart your computer now or No to restart later. 8 Bluetooth Keyboard Mouse Set 4 Setting up the Keyboard and Optical Mouse 4.1 Automatic Pairing in Boot Mode Follow the steps below to enable the keyboard and mouse in boot mode. 2 1 1. Plug the USB Bluetooth dongle into one of USB ports before starting your computer. 2. Power on the mouse. (The power switch is o…

Text truncated - open the document above for the full version.

Date: July 31, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJD51301 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: 2005/8/1 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

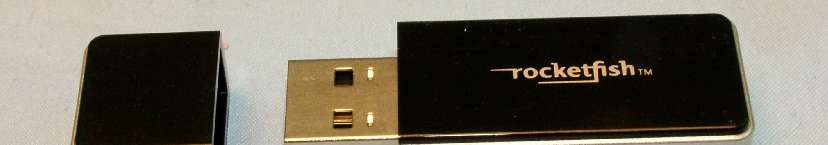

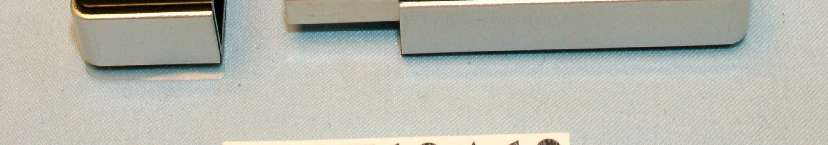

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: EMJD51301 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4

FCC ID: EMJD51301 Report No.: RF950712A05B Reference No.: 950712A12 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA950712A05B1 Reference No.: 950712A12 RF EXPOSURE REPORT REPORT NO.: SA950712A05B MODEL NO.: RF-BTAPDT ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950712A05B2 Reference No.: 950712A12 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950712A05B3 Reference No.: 950712A12 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950712A05B4 Reference No.: 950712A12 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power5.423.483 EIRP Power5.423.483 *Note: The antenna is Printed antenna with 0dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 3.483mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950712A05B1Report Format Version 2.0.5 Reference No.: 950712A12 FCC TEST REPORT REPORT NO.: RF950712A05B MODEL NO.: RF-BTAPDT RECEIVED: May 26, 2006 TESTED: July 17 ~ 25, 2006 ISSUED: Aug. 1, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950712A05B2Report Format Version 2.0.5 Reference No.: 950712A12 TABLE OF CONTENTS 1.CERTIFICATION.............................................................................................4 2.SUMMARY OF TEST RESULTS.....................................................................5 2.1MEASUREMENT UNCERTAINTY..................................................................6 3.GENERAL INFORMATION..............................................................................7 3.1GENERAL DESCRIPTION OF EUT................................................................7 3.2DESCRIPTION OF TEST MODES..................................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.............................................9 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................10 3.3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................12 3.3.4DESCRIPTION OF SUPPORT UNITS..........................................................12 4.TEST TYPES AND RESULTS.......................................................................13 4.1CONDUCTED EMISSION MEASUREMENT................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................13 4.1.2TEST INSTRUMENTS..................................................................................13 4.1.3TEST PROCEDURES...................................................................................14 4.1.4DEVIATION FROM TEST STANDARD.........................................................14 4.1.5TEST SETUP................................................................................................15 4.1.6EUT OPERATING CONDITIONS..................................................................15 4.1.7TEST RESULTS............................................................................................16 4.2RADIATED EMISSION MEASUREMENT.....................................................28 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...................................28 4.2.2TEST INSTRUMENTS..................................................................................29 4.2.3TEST PROCEDURES...................................................................................30 4.2.4DEVIATION FROM TEST STANDARD.........................................................30 4.2.5TEST SETUP................................................................................................31 4.2.6EUT OPERATING CONDITIONS..................................................................31 4.2.7TEST RESULTS............................................................................................32 4.3NUMBER OF HOPPING FREQUENCY USED.............................................40 4.3.1LIMIT OF HOPPING FREQUENCY USED...................................................40 4.3.2TEST INSTRUMENTS..................................................................................40 4.3.3TEST PROCEDURES...................................................................................40 4.3.4DEVIATION FROM TEST STANDARD.........................................................41 4.3.5TEST SETUP................................................................................................41 4.3.6TEST RESULTS............................................................................................41 4.4DWELL TIME ON EACH CHANNEL.............................................................44 4.4.1LIMIT OF DWELL TIME USED......................................................................44 4.4.2TEST INSTRUMENTS..................................................................................44 4.4.3TEST PROCEDURES...................................................................................44 4.4.4DEVIATION FROM TEST STANDARD.........................................................44 4.4.5TEST SETUP................................................................................................45 4.4.6TEST RESULTS............................................................................................45 4.5CHANNEL BANDWIDTH..............................................................................51 4.5.1LIMITS OF CHANNEL BANDWIDTH............................................................51 4.5.2TEST INSTRUMENTS..................................................................................51 Report No.: RF950712A05B3Report Format Version 2.0.5 Reference No.: 950712A12 4.5.3TEST PROCEDURE.....................................................................................51 4.5.4DEVIATION FROM TEST STANDARD.........................................................52 4.5.5TEST SETUP................................................................................................52 4.5.6EUT OPERATING CONDITION....................................................................52 4.5.7TEST RESULTS............................................................................................53 4.6HOPPING CHANNEL SEPARATION............................................................57 4.6.1LIMIT OF HOPPING C…

Text truncated - open the document above for the full version.

Report No.: RF950712A05B77Report Format Version 2.0.5 Reference No.: 950712A12 5.PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950712A05B78Report Format Version 2.0.5 Reference No.: 950712A12 RADIATED EMISSION TEST
