Title: Primax PBD-2 User manual Product Name: PBD-2 致伸科技股份有限公司 PRIMAX ELECTRONICS LTD. Version #: 1.0 Date: 2006/3/6 Primax Bluetooth Dongle PBD-2 User Guide 1. Get started The dongle contains a blue indicator light and a pairing button. It is shown in the figure below. Blue LED Pairing button Driver No driver and application needed if operating system is Windows 2000 or Windows XP. PIN The PIN is 0000. Blue LED indication Pairing state: Fast blinking (200 ms blue and 200 ms off). Paging state: Normal blinking (200 ms blue and 2000 ms off). Connectable state: Slow blinking (200 ms blue and 5000 ms off). Connected state: Continuously on. Pairing button User can press the Pairing button for more than 2 seconds, and then dongle will enter into pairing state. A headset is waiting for a connection Scenario 1: If the dongle did NOT have connected to a headset in last connection, 1. Plug the dongle to a computer. 2. The dongle will enter pairing state (fast blinking). Then the dongle tries to discover and pair a headset. 3. Within 60 seconds, the headset answering the inquiry, the dongle will transit to paging state (normal blinking). 4. Within 30 seconds, the dongle succeeds connecting to the headset, and then the dongle will transit to connected state (continuously on). Scenario 2: If the dongle has connected to a headset in last connection, 1. Plug the dongle to computer. 2. The dongle will enter paging state (normal blinking). The dongle tries to discover and page a headset. The headset is the last one device, which has been connected to the dongle. 3. Within 30 seconds, the dongle succeed connecting to the last paired device, and then the dongle will transit to connected state (continuously on). No any headset is waiting for a connection Scenario 1: If the dongle did NOT have connected to a headset in last connection, 1. Plug the dongle to a computer. 2. The dongle will enter pairing state (fast blinking). Then the dongle tries to discover and pair a headset. 3. After 60 seconds, no any headset answering the inquiry, the dongle will transit to connectable state (slow blinking). Scenario 2: If the dongle has connected to a headset in last connection, 1. Plug the dongle to computer. 2. The dongle will enter paging state (normal blinking). The dongle tries to discover and page a headset. The headset is the last one device, which has been connected to the dongle. . 3. After 30 seconds, no any headset answering the paging, the dongle will transit to connectable state (slow blinking). Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Date: 2006/02/09 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJD7PBD2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: 2006/02/10 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

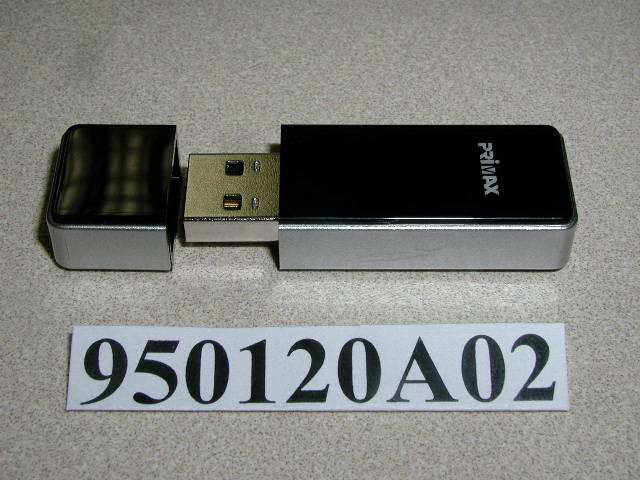

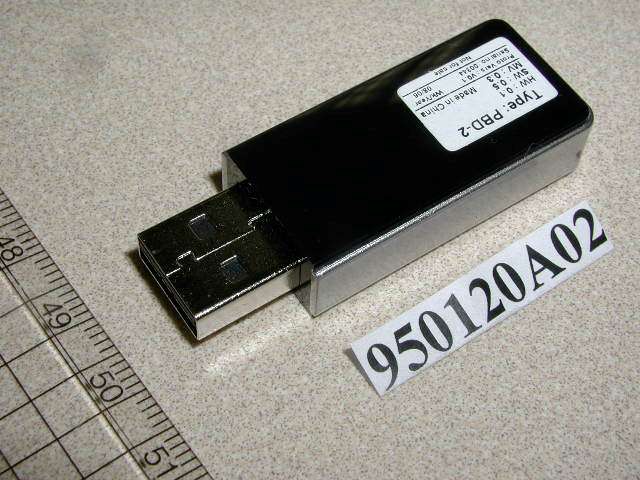

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: EMJD7PBD2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

COMPANYCONFIDENTIAL PRIMAXELECTRONICSLTD BACK SimplexFrontH=0.89mm AD-47Wtypelabelproposal20060304 Scanneddata:VVVVVVYWWDLLSSSSSSS WEEE_symbol_5mm ESNANDDATAMATRIXFORMAT: VVVVVV=MANUFACTURESCODE,6DIGITS(400577) Y=YEAR,1NUMBER(2004=4,2005=5...) WW=WEEK,2DIGITS(01~53) D=DAY,1NUMBER(Mod=1,Tue=2,Wed=3,Thu=4,Fri=5,Sat=6,Sun=7) LL=PRODUCTIONLINE,2NUMBER(01~99) SSSSSSS=SERIALNUMBER,7DIGITS(0000000~9999999) ;0750621=;ProdId(7DIGITS) FCC_LOGO_5mm

Page 3 Page 4

FCC ID: EMJD7PBD2 Report No.: RF950120A02 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Chip Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No.: RF950120A021Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950120A02 MODEL NO.: AD-47W, PBD-2 RECEIVED: Jan. 20, 2006 TESTED: Jan. 24, 2006 ISSUED: Feb. 13, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. Report No.: RF950120A022Report Format Version 2.0.5 TABLE OF CONTENTS 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY.................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................10 4TEST PROCEDURES AND RESULTS.........................................................11 4.1CONDUCTED EMISSION MEASUREMENT...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................11 4.1.2TEST INSTRUMENTS..................................................................................11 4.1.3TEST PROCEDURES.................................................................................12 4.1.4DEVIATION FROM TEST STANDARD........................................................12 4.1.5TEST SETUP..............................................................................................13 4.1.6EUT OPERATING CONDITIONS................................................................13 4.1.7TEST RESULTS..........................................................................................14 4.2RADIATED EMISSION MEASUREMENT...................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2TEST INSTRUMENTS.................................................................................21 4.2.3TEST PROCEDURES.................................................................................22 4.2.4DEVIATION FROM TEST STANDARD........................................................22 4.2.5TEST SETUP..............................................................................................23 4.2.6EUT OPERATING CONDITIONS................................................................23 4.2.7TEST RESULTS..........................................................................................24 4.3NUMBER OF HOPPING FREQUENCY USED...........................................28 4.3.1LIMIT OF HOPPING FREQUENCY USED..................................................28 4.3.2TEST INSTRUMENTS.................................................................................28 4.3.3TEST PROCEDURES.................................................................................28 4.3.4DEVIATION FROM TEST STANDARD........................................................29 4.3.5TEST SETUP..............................................................................................29 4.3.6TEST RESULTS..........................................................................................29 4.4DWELL TIME ON EACH CHANNEL............................................................31 4.4.1LIMIT OF DWELL TIME USED....................................................................31 4.4.2TEST INSTRUMENTS.................................................................................31 4.4.3TEST PROCEDURES.................................................................................31 4.4.4DEVIATION FROM TEST STANDARD........................................................32 4.4.5TEST SETUP..............................................................................................32 4.4.6TEST RESULTS..........................................................................................33 4.5CHANNEL BANDWIDTH.............................................................................37 4.5.1LIMITS OF CHANNEL BANDWIDTH..........................................................37 Report No.: RF950120A023Report Format Version 2.0.5 4.5.2TEST INSTRUMENTS.................................................................................37 4.5.3TEST PROCEDURE....................................................................................37 4.5.4DEVIATION FROM TEST STANDARD........................................................38 4.5.5TEST SETUP..............................................................................................38 4.5.6EUT OPERATING CONDITION...................................................................38 4.5.7TEST RESULTS..........................................................................................39 4.6HOPPING CHANNEL SEPARATION...........................................................41 4.6.1LIMIT OF HOPPING CHANNEL SEPARATION...........................................41 4.6.2TEST INSTRUMENTS.................................................................................41 4.6.…

Text truncated - open the document above for the full version.

Report No.: RF950120A0254Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950120A0255Report Format Version 2.0.5 RADIATED EMISSION TEST
