EMJKKBBT53811Bluetooth Keyboard

Page 1 of 8 BLUETOOTH® KEYBOARD Rev 0.1 Page 2 of 8 BLUETOOTH® KEYBOARD Rev 0.1 User’s Quick Guide Congratulations on your purchase of the Primax KBBT53811 Bluetooth® Keyboard! This guide will take you through all the functions of this keyboard. Introduction Primax KBBT53811 Bluetooth® Keyboard is the latest in a wide range of tablet peripherals manufactured by Primax and is designed to provide you with the highest level of comfort available while also allowing for maximum functionality. Safety Guidelines Physical discomfort and injury can be caused by the incorrect use of your keyboard. Follow these guidelines to ensure such problems are avoided: Sit up straight in your chair, with your elbows by your side. Adjust the height of your chair so your arm bends at a 90-degree angle respective to your desk. Position your keyboard in front you, to the side of your keyboard. Do not slouch or hunch over your workspace. It is important to keep your wrists, arms and shoulders relaxed. If necessary, use a wrist rest or a palm rest to alleviate extra stress placed on your joints when typing or using the keyboard, especially for long periods of time. If you experience any feelings numbness, cramp, swelling or stiffness in your wrist, arms, neck or shoulders, consult your local doctor or nearest health institution immediately. Page 3 of 8 BLUETOOTH® KEYBOARD Rev 0.1 Bluetooth® keyboard connection settings Follow below steps to connect the Bluetooth® keyboard and the tablet system. 1. Turn on the power switch in front of the Bluetooth® keyboard. The keyboard connection indicator light blinks blue. Note: If the Bluetooth® indicator lights stop blinking, long press the connect buttons on the keyboard to restart the connection process. Note: If the indicator blinks quickly, it means this keyboard has been paired before. Long press the connection button to clean the paired data and restart the connection. 2. Turn on Bluetooth in Tablet/iPad settings. Tablet/iPad will start discovering the list of available Bluetooth® devices for pairing. Note: If AROWANA Bluetooth Keyboard is not found, long press the Keyboard connect button and manually trigger the device search again in tablet/iPad. 3. Select the AROWANA Bluetooth Keyboard from the list. 4. Using Primax Bluetooth® Keyboard to enter the pairing code and press the Enter key to complete the Bluetooth connection. After the pairing process is completed, the last paired data will be stored. Auto connection will be supported in later operation. Bluetooth® keyboard Hotkey support The hotkey function support, position or printing might be various while shipping. Enclosed is iPad2 version. Page 4 of 8 BLUETOOTH® KEYBOARD Rev 0.1 LED Indicator This Keyboard includes one LED in the left side with 2 colors presenting connection and power status. 1. In Pairing (Blue): Blinking one time every 1 second, time out after 5 minutes. 2. In Reconnecting (Blue): Double blinking every 1 second, time out after 10 seconds. 3. Connected (Blue): Steady for 2 seconds. 4. Cleaned up the paring list (Orange and Blue): Both orange and blue indicators shall be turned on and flashing twice then turned off. 5. Low Power (Orange): Blinking orange LED one time every 1 second until it enters another mode. 6. Charging (Orange): Orange LED on. It will be off after the battery is full. Page 5 of 8 BLUETOOTH® KEYBOARD Rev 0.1 Power Supply This keyboard has built-in rechargeable Li-on battery. When user first time opens the box, it’s recommended to fully charge the battery with bundled cable through MicroUSB port. Troubleshooting Question: My keyboard is not working. What should I do? Answer: 1. Check if the Bluetooth® connection is turned on correctly in the system side. 2. Other system devices, such as PC cards, may cause conflicts that prevent your keyboard from working properly. Check the settings of these devices and make any changes as necessary. Reboot your computer and re-attach the keyboard. Low Battery Notification When the keyboard is running out of power, the indicator will blink orange. Please re-charge the batteries with microUSB connector to continue to use the keyboard. Wake up the keyboard Press any button to wake up the keyboard while the keyboard is in the standby mode. Page 6 of 8 BLUETOOTH® KEYBOARD Rev 0.1 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This…

Text truncated - open the document above for the full version.

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: November 14, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJKKBBT53811 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: November 14, 2011 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

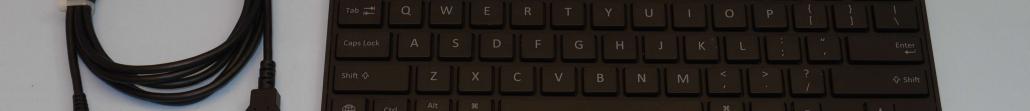

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

1234567 123457 A B C D E A B C D REV. DESCRIPTION ENG. APPROVAL 304008232000 304008232000 29-85301P311 NOTE: 1. Printing:White words on black backgroud. 2. TOL: +0/-0.5mm 2 1/1 7. Requirement of PRIMAX Green Part: 1.Comply with PRIMAX QW-5Q002 "Green Substances Specifion." 2.Follow customei s specification as required., Product Chemical Ruby.Ai Ruby.Ai Violet.Hu 2011/08/01 2 3.Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required. 80#合成纸+雾P 黑底白字 3. The dimensions marked with "*" are important. 4. Glue T=0.025~0.03mm 5. Stickiness: 3.0kg/cm * 2 4 . 5 m m *49.5mm Bluetooth Keyboard Model Number : KBBT53811 Made in China SN: YWWXXXXX SN: Y WW XXXXX Year(2010=0,2011=1,2012=2......) Week(01,02,03,04......) Serial Number(00001,00002,00003......99999) KB BOTTOM LABEL 2 內容更新 Ruby.Ai Violet.Hu 11/11/10 2 6. Product must be halogen free FCC ID:EMJKKBBT53811

LABEL LOCATION Label Location

Page 3 Page 4 Page 5

FCC ID: EMJKKBBT53811 Report No.: RF111024D07 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA111024D07 1 Report Format Version 4.0.0 RF EXPOSURE REPORT REPORT NO.: SA111024D07 MODEL NO.: KBBT53811 FCC ID: EMJKKBBT53811 RECEIVED: Oct. 24, 2011 TESTED: Oct. 26 ~ 28, 2011 ISSUED: Nov. 14, 2011 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No: SA111024D07 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION..............................................................................................4 2. CONCLUSION.................................................................................................5 Report No: SA111024D07 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA111024D07 Original release Nov. 14, 2011 Report No: SA111024D07 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Bluetooth Keyboard BRAND NAME: PRIMAX MODEL NO.: KBBT53811 APPLICANT: PRIMAX ELECTRONICS LTD. TESTED: Oct. 26 ~ 28, 2011 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Celia Chen / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No: SA111024D07 5 Report Format Version 4.0.0 2. CONCLUSION No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power -2.5 0.6 EIRP Power -3.1 0.5 *Note: The antenna is Printed antenna with -0.56dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 0.6mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold ---END---

Report No.: RF111024D07 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111024D07 MODEL NO.: KBBT53811 FCC ID: EMJKKBBT53811 RECEIVED: Oct. 24, 2011 TESTED: Oct. 26 ~ 28, 2011 ISSUED: Nov. 14, 2011 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist.,New Taipei City, Taiwan ( R.O.C. ) This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111024D07 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD................................................................................4 1. CERTIFICATION........................................................................................5 2. SUMMARY OF TEST RESULTS...............................................................6 2.1 MEASUREMENT UNCERTAINTY.............................................................7 3. GENERAL INFORMATION........................................................................8 3.1 GENERAL DESCRIPTION OF EUT..........................................................8 3.2 DESCRIPTION OF TEST MODES............................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........11 3.3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................13 3.3.4 DESCRIPTION OF SUPPORT UNITS.....................................................13 4. TEST TYPES AND RESULTS..................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT...........................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................14 4.1.2 TEST INSTRUMENTS.............................................................................15 4.1.3 TEST PROCEDURES.............................................................................15 4.1.4 DEVIATION FROM TEST STANDARD....................................................16 4.1.5 TEST SETUP...........................................................................................16 4.1.6 EUT OPERATING CONDITIONS.............................................................16 4.1.7 TEST RESULTS......................................................................................17 4.2 RADIATED EMISSION MEASUREMENT................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................19 4.2.2 TEST INSTRUMENTS.............................................................................20 4.2.3 TEST PROCEDURES.............................................................................21 4.2.4 DEVIATION FROM TEST STANDARD....................................................21 4.2.5 TEST SETUP...........................................................................................22 4.2.6 EUT OPERATING CONDITIONS.............................................................22 4.2.7 TEST RESULTS......................................................................................23 4.3 NUMBER OF HOPPING FREQUENCY USED........................................28 4.3.1 LIMIT OF HOPPING FREQUENCY USED..............................................28 4.3.2 TEST INSTRUMENTS.............................................................................28 4.3.3 TEST PROCEDURES.............................................................................28 4.3.4 DEVIATION FROM TEST STANDARD....................................................29 4.3.5 TEST SETUP...........................................................................................29 4.3.6 TEST RESULTS......................................................................................29 4.4 DWELL TIME ON EACH CHANNEL........................................................31 4.4.1 LIMIT OF DWELL TIME USED................................................................31 4.4.2 TEST INSTRUMENTS.............................................................................31 4.4.3 TEST PROCEDURES.............................................................................31 4.4.4 DEVIATION FROM TEST STANDARD....................................................31 4.4.5 TEST SETUP...........................................................................................32 4.4.6 TEST RESULTS......................................................................................32 4.5 CHANNEL BANDWIDTH.........................................................................36 Report No.: RF111024D07 3 Report Format Version 4.0.0 4.5.1 LIMITS OF CHANNEL BANDWIDTH.......................................................36 4.5.2 TEST INSTRUMENTS.............................................................................36 4.5.3 TEST PROCEDURE................................................................................36 4.5.4 DEVIATION FROM TEST STANDARD....................................................37 4.5.5 TEST SETUP...........................................................................................37 4.5.6 EUT OPERATING CONDITION...............................................................37 4.5.7 TEST RESULTS......................................................................................38 4.6 HOPPING CHANNEL SEPARATION.......................................................39 4.6.1 LIMIT OF HOPPING CHANNEL SEPARATION.......................................39 4.6.2 TEST INSTRUMENTS......................................................…

Text truncated - open the document above for the full version.

Report No.: RF111024D07 1 Report Format Version 4.0.0 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST – Mode A Report No.: RF111024D07 2 Report Format Version 4.0.0 RADIATED EMISSION TEST – Mode A Report No.: RF111024D07 3 Report Format Version 4.0.0 RADIATED EMISSION TEST – Mode B
