Page 1 of 4 2.4G Wireless Keyboard USRE MANUAL KBRF3871 User’s Quick Guide This guide will take you through all the functions of the Keyboard and explain how to configure them using the Keyboard. Introduction Congratulations on your purchase of the HP 2.4G Wireless Keyboard Model: KBRF3871 Package Contents • Wireless Keyboard x 1 • USB Adaptor ( to operate in coordination for Dongle model : MORFDIUOA-D ) • AAA Battery x 2 • User’s Guide x 1 PC Requirements • Pentium processor or equivalent Operating System: Windows ® XP with Service Pack 1 or higher, Windows ® Vista. Setup 2.4G Wireless Keyboard • Please take off the battery cover and then put 2 AAA alkaline batteries in the battery compartment. Please note batteries are fitting with correct electrode that shows on the inner side of battery cover. • Plug in adaptor to computer USB port. • Press “ Connect “ button to Setup the Keyboard and Adapter ( Dongle ) connection . USB adaptor and Keyboard will automatically connection after Adaptor plug into PC after few seconds. Page 2 of 4 Troubleshooting Question: My Keyboard is not working. What should I do? Answer: Check if the Adapter ( Dongle ) is plugged in correctly to your computer's USB port. A loose connection may result in the computer not being able to detect the device. If your Keyboard is connected to a hub or multi-port USB connector, unplug the device and plug it directly into your computer's USB port, ensuring there is no interference caused by these devices. Other system devices, such as PC cards, may cause conflicts that prevent your Keyboard from working properly. Check the settings of these devices and make any changes as necessary. Reboot your computer and re-attach the Keyboard. Question: The Keyboard pointer is not moving. What should I do? Answer: Ensure all setup procedures have been followed correctly. If software and drivers have already been installed, remove these, reboot your computer and re-install. Ensure that batteries are not out of power. Replace batteries if necessary. Battery Notice: • Press any button to wake up the Keyboard while the Keyboard is in the standby mode. • CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Page 3 of 4 FCC Statement Federal Communications Commission (FCC) requirements, Part 15. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Page 4 of 4 CE Statement CE Declaration Of Conformity Hereby, the manufacturer, declares that this s Mouse Wireless Presenter in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Essential requirements -- Article 3 Protection requirements for health and safety - Article 3.1a --Testing for electric safety according to EN 60950 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility - Article 3.1b --Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-3 has been conducted. These are considered relevant and sufficient Effective use of the radio spectrum -Article 3.2 --Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered relevant and sufficient. IC Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: January 11, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJKKBRF3871 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: January 12, 2011 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, --------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

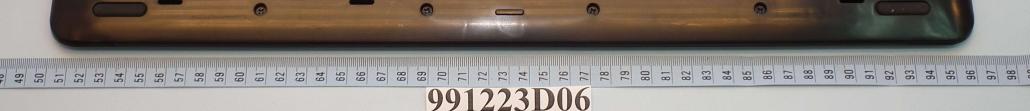

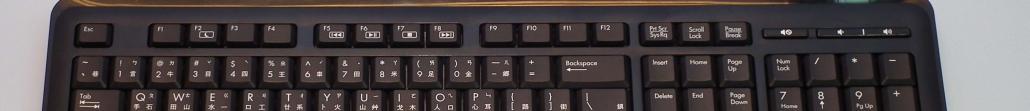

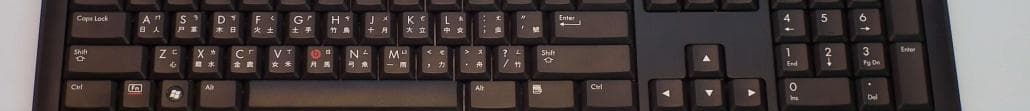

Page 1 CONSTRUCTION PHOTOS OF EUT Brand: HP, Model: KBRF3871
