No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: April 27, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJKKBRF6711 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: April 27, 2012 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiality request regarding application for certification of FCC ID: EMJKKBRF6711 Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until July 31, 2012 in order to ensure sensitive business information remains confidential until the actual marketing of the device. External Photos Test setup photos User’s Manual Internal Photos Sincerely yours, -------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: April 27, 2012 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

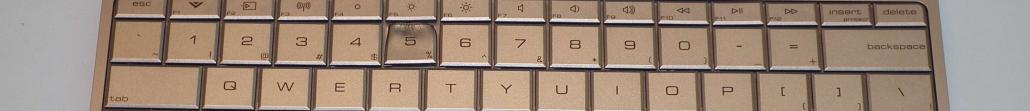

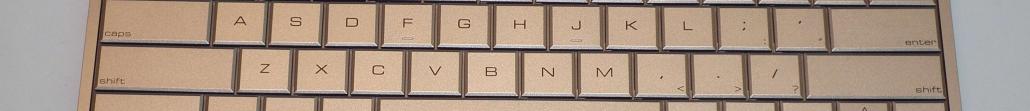

Page 1 CONSTRUCTION PHOTOS OF EUT

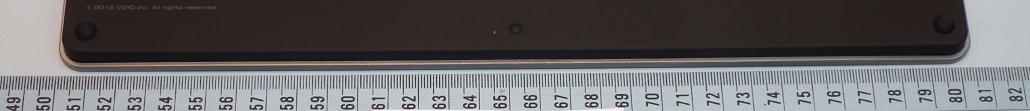

Label Location

Page 2 Page 3 Page 4 Page 5

FCC ID: EMJKKBRF6711 Report No.: RF120405D07 Operational Description The transmitter of the EUT (Keyboard) is powered by 3.0Vdc from batteries. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF120405D07 1 Report Format Version 4.2.0 FCC TEST REPORT REPORT NO.: RF120405D07 MODEL NO.: KBRF6711 FCC ID: EMJKKBRF6711 RECEIVED: Mar. 16, 2012 TESTED: Mar. 16 ~ Apr. 9, 2012 ISSUED: Apr. 18, 2012 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120405D07 2 Report Format Version 4.2.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT..............................................10 4.2 RADIATED EMISSION MEASUREMENT...................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2 TEST INSTRUMENTS................................................................................11 4.2.3 TEST PROCEDURES.................................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.......................................................12 4.2.5 TEST SETUP..............................................................................................13 4.2.6 EUT OPERATING CONDITIONS................................................................13 4.2.7 TEST RESULTS..........................................................................................14 4.3 BAND EDGES MEASUREMENT................................................................14 4.3.1 LIMITS OF BAND EDGES MEASUREMENT.............................................19 4.3.2 TEST INSTRUMENTS................................................................................19 4.3.3 TEST PROCEDURE...................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD.......................................................19 4.3.5 EUT OPERATING CONDITION..................................................................19 4.3.6 TEST RESULTS..........................................................................................19 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................22 6. INFORMATION ON THE TESTING LABORATORIES................................23 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................24 Report No.: RF120405D07 3 Report Format Version 4.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF120405D07 Original release Apr. 18, 2012 Report No.: RF120405D07 4 Report Format Version 4.2.0 1. CERTIFICATION PRODUCT: Keyboard BRAND NAME: VIZIO MODEL NO.: KBRF6711 APPLICANT: PRIMAX ELECTRONICS LTD. TESTED: Mar. 16 ~ Apr. 9, 2012 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Celia Chen / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF120405D07 5 Report Format Version 4.2.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3.0Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -8.5dB at 2390.00MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.78 dB Radiated emissions Above 1GHz 3.36 dB Report No.: RF120405D07 6 Report Format Version 4.2.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Keyboard MODEL NO. KBRF6711 …

Text truncated - open the document above for the full version.

Report No.: RF120405D07 1 Report Format Version 4.2.0 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
