EMJM24702Mouse

HP Wireless Optical Ergo Mouse User’s Manual © Copyright 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Part Number P2357AA #ABA 07/2004: 07/22 FCC STATEMENT This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult a service representative for help. Properly shielded and grounded cables and connectors must be used in order to comply with FCC emission limits. Hewlett-Packard is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment. For regulatory compliance information only, contact: Hardware Quality Eng. Manager Hewlett-Packard Company - CPC 10500 Ridgeview Court Cupertino, CA95014 Telephone: 1(408) 343-5000 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada. Contents Welcome4 Installation5 Configuration7 Troubleshooting8 Welcome Congratulations on purchasing the HP Wireless Optical Ergo Mouse. This guide will provide you with the necessary steps for installing and maintaining your mouse. Package Contents HP Optical 4-Button USB Mouse USB ReceiverCD with Driver/Software 2 AA BatteriesUser’s ManualWarranty Card System Requirements • Available USB Port • CD-ROM Drive - 3 - Compatible with Microsoft® Windows® 98SE/Me/2000/XP Installation Battery Installation STEP 1 - Locate the 2 AA sized 1.5 Volt batteries that came with your HP Wireless Optical Ergo Mouse. STEP 2 - Remove the battery compartment cover located on the bottom of your mouse by pressing the tab forward. STEP 3 - Install the two batteries into the compartment, paying attention to proper polarities. STEP 4 - Close the battery compartment cover. Software Installation Insert the CD into your CD-ROM drive. If the setup program does not appear, click Start, then click Run. Type <drive letter>:\setup. Click OK. (For example, if the disk is in drive D, enter D:\Setup.) Follow the onscreen instructions. - 4 - STEP 1 – Push the button on the receiver once. The LED on the receiver is continuously on. Hardware Installation STEP 1 - Power on your system. STEP 2 - Connect the USB receiver to any available USB port or hub connected to your computer. User Setup By default your mouse works immediately. If the receiver and mouse are not synchronized, perform the followingprocedure STEP 2 – Push the button located on the bottom of the mouse, and then place the mouse on the desk. The LED on the receiver will now be off once your mouse is synchronized. When the mouse is in use, the LED on the receiver will blink. - 5 - - 6 - Configuration You can configure the buttons of this mouse to perform selected functions. Windows XP – Category View Click Start, select Settings / Control Panel / Printers and Other Hardware / Mouse, to customize your mouse settings. Windows 98SE, Me, 2000 and XP – Classic View Click Start, select Settings / Control Panel / Mouse, to customize your mouse settings. You can also click the mouse icon located in your system tray to customize your mouse settings. When the software is installed, you will see the screen above when viewing your mouse settings. - 7 - Troubleshooting • If you have Windows 95 or Windows NT, these operating systems do not support this device. • The Universal Serial Bus Controller and USB root hub may not be properly installed on your system. Contact your computer manufacturer for details. Technical Support For technical assistance call 1-866-314-7239 or visit www.microinv.com/hp Technical Support hours of operation: Monday - Friday 8:30am to 10:00pm E.S.T. - 8 -

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM24702 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang / Sr. Manager Primax Electronics Ltd. Phone: 886(2)2798 9008 ext.1710 Fax: 886(2) 2798 1565 Email: [email protected]

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Mouse MODEL NO.: MORF47BOA TRADE NAME: PRIMAX, HP IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D930728A08 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： PRIMAX ELECTRONICS LTD. (COMPANY NAME) No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. (COMPANY ADDRESS) TEL： +886-2-2798-1710 FAX：+886-2-8797-1565 C.T. Huang Sr. Manager (NAME) (TITLE) 2004/08/09 (SIGNATURE) (DATE)

Power of Attorney To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang / Sr. Manager Primax Electronics Ltd. Phone: 886(2)2798 9008 ext.1710 Fax: 886(2) 2798 1565 Email: [email protected]

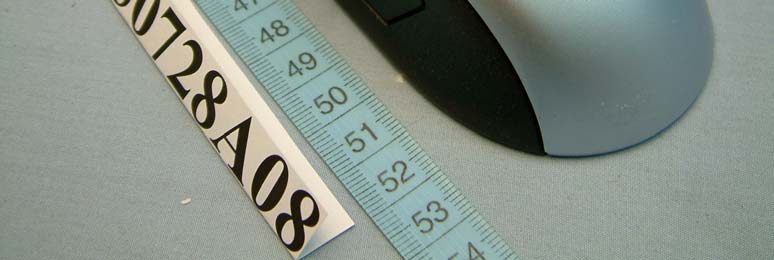

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID:EMJM24702 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

BOTTOM LABEL Fengying.Hsu 1234567 1234567 ABCDE ABCDE USEDFINISHSCALETITLEDWG NO .FILE NAME SHEET REV. SIZE A4 DR.CHKD.APPD. UNIT mm 1 1 1 DO NOT SCALE DRAWING THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PRIMAX ELECTRONICS LTD. AND SHALL NOT BE REPRODUCED COPIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF PRIMAX ELECTRONICS LTD. DIMENSIONS 0.00 TO 30 .00mm +0.10mm 30.01 TO 80 .00mm +0.13mm 80.01 TO 150 .00mm +0.15mm 150.01 +0.20mm TOLERANCE MATERIAL REV. DESCRIPTION ENG. APPROVAL UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS ANGULAR TOLERANCE:+1.0 Cuihua Ai Jianguo Chen 04.08.18 304003671000 20-24702M101 2 2. , TOL:+0,-0.2mm 3. LABEL , 4. 3Kg/cm 5. T=0.022~0.03mm, 6. * . 7. . 8. Requirement of PRIMAX Green Part: a. Comply with PRIMAX QW-5Q002 '' Green Product Chemical Substances Specification'' b. Follow customer's specification as required. S/N : YY MM XXXXXX - - - ( 000001... (1 =01...)(2004=04...) NOTE:1. . 9. CLASS 1 LED PRODUCT 866-314-7239 www.hp.com P/N: P2357AA#ABAM/N: MORF47BOA S/N: YYMMXXXXXX C US R LISTED ACCESSARY E1347802G55ITE Made in China Rating: 5V ---100mA 304003671000 FCC ID: EMJM24702 *51 *24

RECEIVER LABEL Fengying.Hsu 1234567 1234567 ABCDE ABCDE USEDFINISHSCALETITLEDWG NO .FILE NAME SHEET REV. SIZE A4 DR.CHKD.APPD. UNIT mm 1 1 1 DO NOT SCALE DRAWING THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PRIMAX ELECTRONICS LTD. AND SHALL NOT BE REPRODUCED COPIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF PRIMAX ELECTRONICS LTD. DIMENSIONS 0.00 TO 30 .00mm +0.10mm 30.01 TO 80 .00mm +0.13mm 80.01 TO 150 .00mm +0.15mm 150.01 +0.20mm TOLERANCE MATERIAL REV. DESCRIPTION ENG. APPROVAL UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS ANGULAR TOLERANCE:+1.0 Cuihua Ai Jianguo Chen 04.08.18 304003671xxx 20-24702M101 2 2. , TOL:+0,-0.2mm 3. LABEL , 4. 3Kg/cm 5. T=0.022~0.03mm, 6. * . 7. . 8. Requirement of PRIMAX Green Part: a. Comply with PRIMAX QW-5Q002 '' Green Product Chemical Substances Specification'' b. Follow customer's specification as required. S/N : YY MM XXXXXX - - - ( 000001... (1 =01...)(2004=04...) NOTE:1. . 9. Tested To ComplyWith FCC Standards FOR HOME OR OFFICE USE CLASS 1 LED PRODUCT 866-314-7239 www.hp.com P/N: P2357AA#ABA M/N: MORF47BOA S/N: YYMMXXXXXX C US R LISTED ACCESSARY E1347802G55ITE Made in China Rating: 5V ---100mA *52 *43

Page 3 Page 4 Page 5 Page 6

FCC ID: EMJM24702 Report No.: RF930728A08 Operational Description The transmitter of the EUT (Mouse) is powered by 3V Batteries. The type of antenna is printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: EMJM24702 Report No.: RF930728A081Issued: Aug. 11, 2004 FCC TEST REPORT REPORT NO.: RF930728A08 MODEL NO.: MORF47BOA RECEIVED: July 28, 2004 TESTED: July 29, 2004 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any U.S. government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: EMJM24702 Report No.: RF930728A082Issued: Aug. 11, 2004 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 2.1MEASUREMENT UNCERTAINTY ...................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT.................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES...................................14 FCC ID: EMJM24702 Report No.: RF930728A083Issued: Aug. 11, 2004 1 CERTIFICATION PRODUCT : Mouse BRAND NAME : HP, PRIMAX MODEL NO : MORF47BOA APPLICANT : PRIMAX ELECTRONICS LTD. TESTED: July 29, 2004 TEST ITEM: Engineering sample STANDARDS : FCC Part 15, Subpart C (Section 15.227) ANSI C63.4-2001 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Aug. 11, 2004 TECHNICAL ACCEPTANCE:, DATE:Aug. 11, 2004 Responsible for EMI APPROVED BY:, DATE:Aug. 11, 2004 ( Mike Su, Manager ) ( Henry Lai ) ( Annie Chang ) FCC ID: EMJM24702 Report No.: RF930728A084Issued: Aug. 11, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –5.27dB at 437.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTUNCERTAINTY Conducted emissionsN/A Radiated emissions3.74 dB FCC ID: EMJM24702 Report No.: RF930728A085Issued: Aug. 11, 2004 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Mouse MODEL NO.MORF47BOA POWER SUPPLY 3Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Mouse. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual FCC ID: EMJM24702 Report No.: RF930728A086Issued: Aug. 11, 2004 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15, Subpart C (15.227) ANSI C63.4-2001 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT was tested standalone. FCC ID: EMJM24702 Report No.: RF930728A087Issued: Aug. 11, 2004 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverag…

Text truncated - open the document above for the full version.

FCC ID: EMJM24702 Report No.: RF930728A0813Issued: Aug. 11, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
