EMJM29202Focus/Mini Wireless Optical Mouse

26-1662 RadioShack Wireless Mini Optical Mouse User’s Guide SYSTEM REQUIREMENT Windows 98SE, 2000, Me, or XP Computer with one available USB port INSTALLING BATTERY Your mouse requires two AAA type batteries (not supplied) for power. 1. Use your finger nail to push the locking latch downward meanwhile use another hand to push the battery cover outward to open it. 2. Insert two AAA batteries into the battery compartment according to the polarity marked on the battery compartment. 3. Slide the battery cover back on the battery compartment until it clicks on. Note: After long term use, the battery power weakens and the mouse cursor’s movement slows down or dulls, replace the two batteries with fresh ones. Battery Notes: ß Dispose of old batteries promptly and properly. ß Do not burn batteries. ß Use only fresh batteries of the required size and recommended type. ß Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. ß If you do not plan to use the mouse for more than a week, remove the batteries. Batteries can leak chemicals that can damage electronic parts. ß Each time you replace the batteries, repeat the mouse setup by following the “setup for linkage”. INSTALLING THE MOUSE You do not need to install the mouse driver, just follow these procedures to install the mouse. 1. Connect the receiver to your PC’s USB port. 2. Set the On/Off switch on the back of the mouse to On. Note: When not in use, set the switch to off to save battery power. Default Mode Set to this normal mode in case you do not use other RF device which causes interference to the mouse. Receiver: -Press the red button on the top of the receiver over 3 seconds. The receiver’s greed LED flashes after you release the button. When the LED flashes, the default mode is set. Mouse: -The mouse is set to default mode automatically each time you replace the batteries. ID Mode If you are using some other RF devices, set to this mode to avoid interference to the mouse. 1. Press the button on the top of the receiver so the green LED lights. 2. Press the rubber button on the bottom of the mouse so the receiver’s green LED turns off after you release the rubber button. When the green LED turns off, the ID-Mode is set. Note: To switch the ID mode back to default mode, repeat default mode procedure. AVOIDING ENVIRONMENTAL INTERFERENCE To avoid environmental interference which will shorten the effective operating distance, please note the following: ß Do not put the mouse and receiver on a metal cabinet or desk. Metal creates RF interference, which may impair the RF communication and shorten the communication distance. ß Keep a distance of more than 1.5m between your mouse and another operational RF device to avoid interference. ß The mouse’s optical sensor will not work correctly if the mouse is placed on a mirror, glass, or on any reflecting or half-tone painted surface. TROUBLESHOOTING The cursor doesn’t react when I move the mouse. ß This is probably because the distance between the receiver and mouse exceeds the working range (four feet). Move the mouse closer to the receiver. ß Make sure that the mouse is not placed on a reflective surface such as a mirror, glass, half-tone painted surface or on a 3D mouse pad. When using this wireless mouse on a metal table or near metal furniture, use a non-reflective, thick mouse pad to reduce the potential interference. ß Your ID setup may not have worked properly. Please repeat the ID setup process. THE FCC WANTS YOU TO KNOW This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s Reorient or relocate the receiving antenna s Increase the separation between the equipment and receiver s Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. s Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Shielded interface cable, if any, must be used in order to comply with emission limits. FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Product Wireless Mini Optical Mouse Model 26-1662 Responsible Party RadioShack Corporation 300 RadioShack Circle Fort Worth, TX 76102, USA Phone 817-415-3200 Copyright 2005 RadioShack Corporation. All Rights Reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. All trademarks are properties of their respective owners. 26-1662 RadioShack Corporation 01A05 Fort Worth, Texas 76012 Printed in China

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM29202 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: 2005/11/25 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

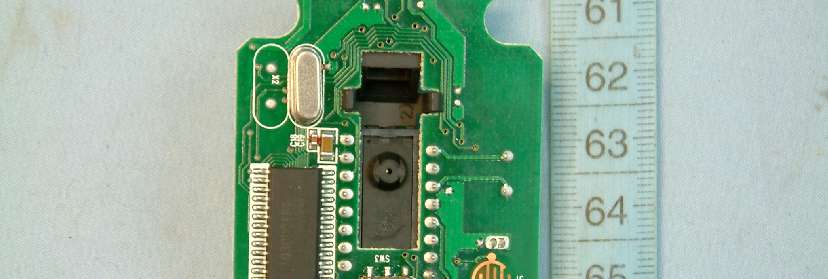

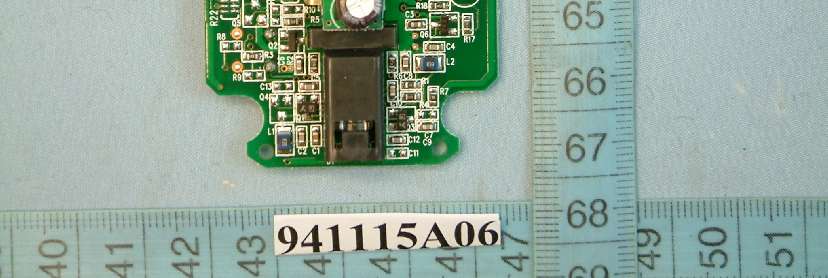

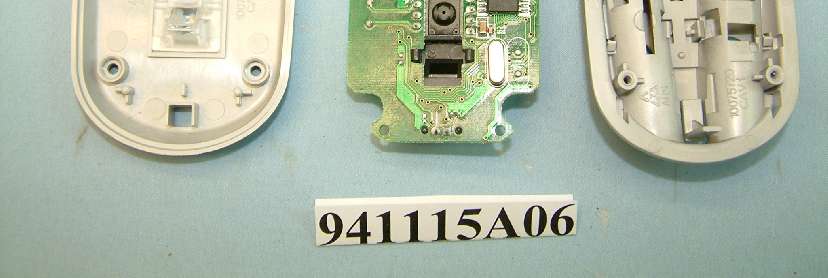

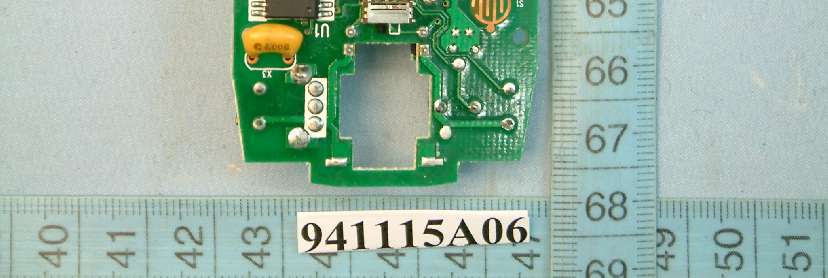

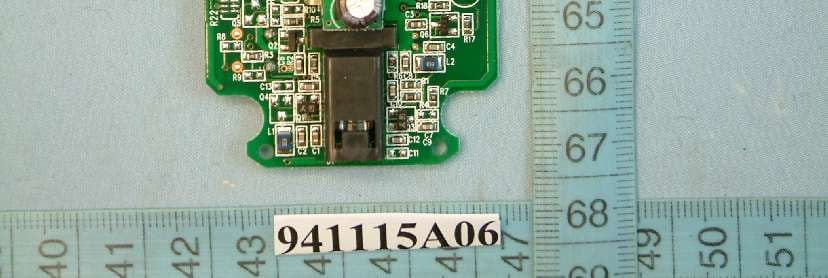

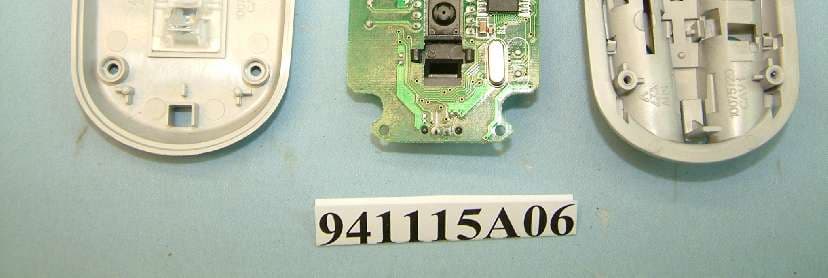

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: EMJM29202 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

27MHz Wireless mini Optical Mouse Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202 27MHz Wireless mini Optical Mouse Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202 27MHz Wireless mini Optical Mouse Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202 Receiver for 26-1662 Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202 Receiver for 26-1662 Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202 Receiver for 26-1662 Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 FCC ID:EMJM29202

Page 2 Page 3

FCC ID: EMJM29202 Report No.: RF941115A06 Operational Description The transmitter of the EUT (Focus / Mini Wireless Optical Mouse) is powered by 3V battery. The type of antenna is Loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: EMJM29202 Report No.: RF941115A061Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941115A06 MODEL NO.: 20-29202A201 / 26-1662 RECEIVED: Nov. 15, 2005 TESTED: Nov. 16, 2005 ISSUED: Nov. 29, 2005 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 17 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: EMJM29202 Report No.: RF941115A062Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT...............................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.1.1CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.................7 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.3DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................15 6INFORMATION ON THE TESTING LABORATORIES..................................16 APPENDIX-A...........................................................................................................A-1 FCC ID: EMJM29202 Report No.: RF941115A063Report Format Version 2.0.4 1 CERTIFICATION PRODUCT: Focus / Mini Wireless Optical Mouse BRAND NAME: PRIMAX / RadioShack MODEL NO.: 20-29202A201 / 26-1662 APPLICANT: PRIMAX ELECTRONICS LTD. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Nov. 16, 2005 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment (Model: 26-1662) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Nov. 29, 2005 ( Annie Chang ) TECHNICAL ACCEPTANCE:, DATE:Nov. 29, 2005 Responsible for RF ( Ken Liu ) APPROVED BY:, DATE:Nov. 29, 2005 ( Cody Chang / Deputy Manager ) FCC ID: EMJM29202 Report No.: RF941115A064Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –10.80dB at 45.55MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementUncertainty Radiated emissions3.86 dB FCC ID: EMJM29202 Report No.: RF941115A065Report Format Version 2.0.4 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Focus / Mini Wireless Optical Mouse MODEL NO. 20-29202A201 / 26-1662 POWER SUPPLY 3.0Vdc from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless Optical Mouse. 2. The EUT has two product names which are identical to each other except for their brand names and model names for marketing differentiation as follows: Product NameBrand NameModel Name FocusPRIMAX20-29202A201 Mini Wireless Optical MouseRadioShack26-1662 For the test, product: Mini Wireless Optical Mouse, brand: RadioShack, model: 26-1662 was selected as the representative model and its data was recorded in this report. 3. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: EMJM29202 Report No.: RF941115A066Report Format Version 2.0.4 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT ChannelFrequency (MHz) 127.045MHz 3.1.1 CONFIGURATION OF SYSTEM UNDER TEST Test Table (Power from b…

Text truncated - open the document above for the full version.

FCC ID: EMJM29202 Report No.: RF941115A0615Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
