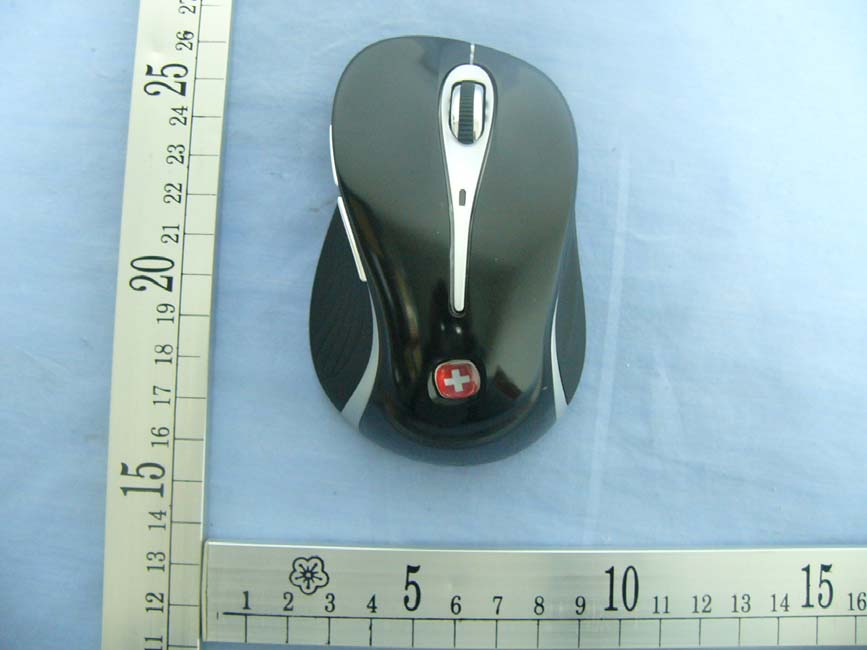

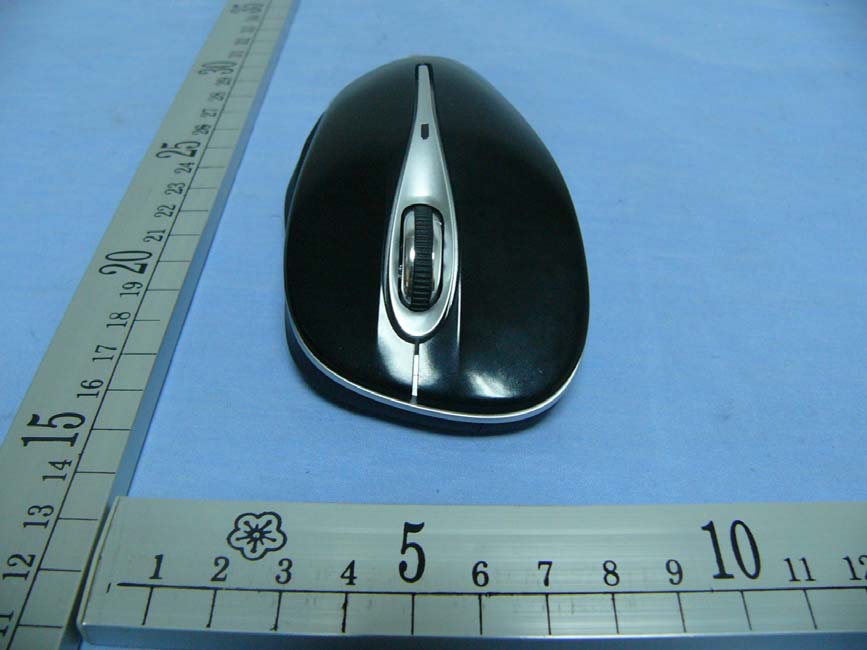

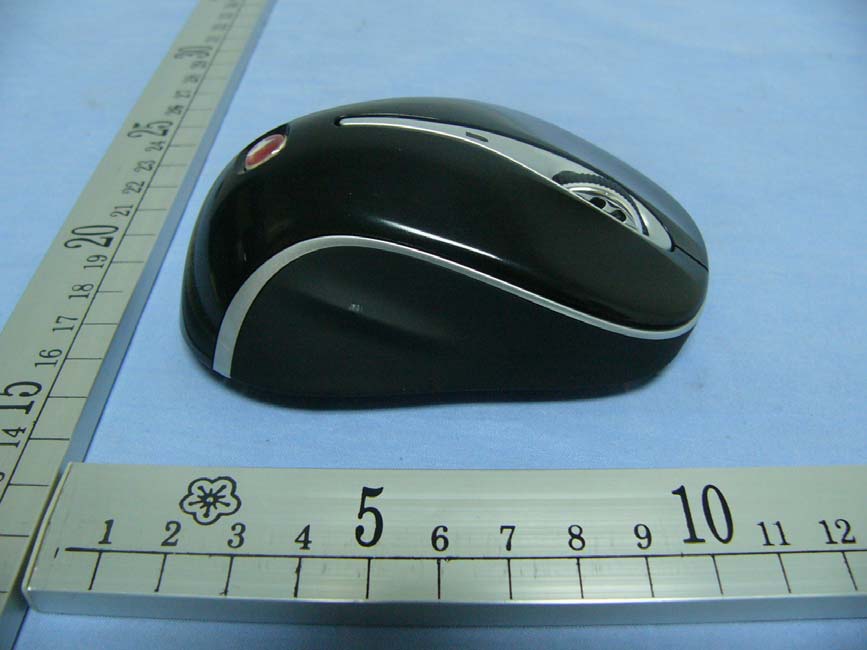

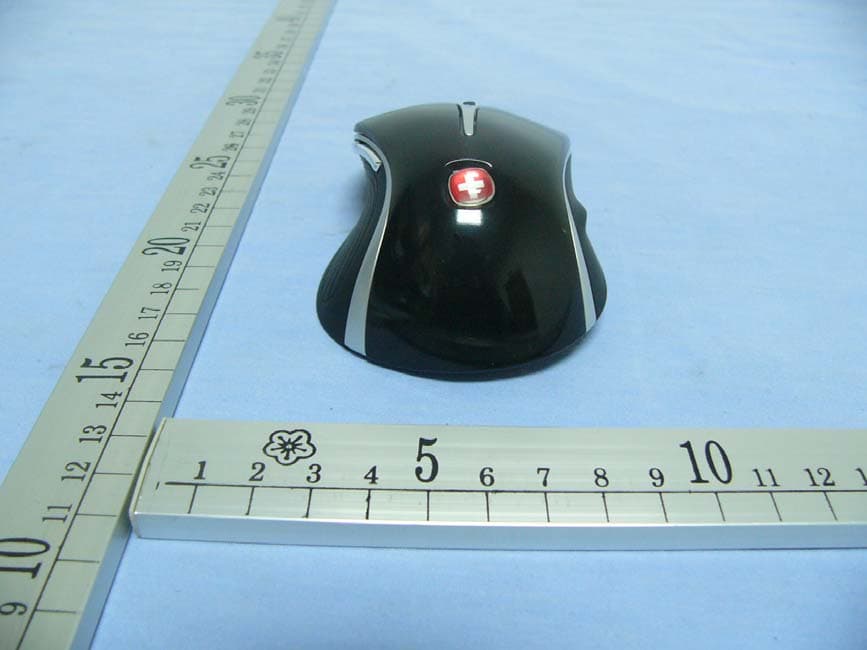

EMJM2AI01Spyder Wireless Laser Mouse

(A) • PC - MAC USB Compatible • Range 27 MHz Wireless Connection • Low Battery Indicator • 2 AAA Alkaline Batteries • Mobile 27 MHz USB receiver • 5 Function Buttons 1. Left, 2. Right, 3. Center Scroll, 4. Internet Backward, 5. Internet Forward • Ergonomic design (universal left and right handed) • Compatible with USB V1.1 low-speed & USB 2.0 High Speed protocol Left Internet Backwards (Non-programmable) Internet Forwards (Non-programmable) Center Scroll Right Low Battery LED Light 5 6 8 Mouse LED Pull Out Push Down 7 Receiver LED PRODUCT REGISTRATION Avenues suggests you register your SWISSGEAR accessory shortly after your purchase. To register your SWISSGEAR accessory, please go to: http://www.AvenuesUSA.com/registration LIMITED WARRANTY: This product is warranted to be free from manufacturing defects for a period of 1 year from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. This warranty is in lieu of all other warranties expressed or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state. If unit should prove defective within the warranty period, contact us with your proof of purchase/date at the following: SWISSGEAR Products, c/o AVENUES IN LEATHER 750 Hope Road, Tinton Falls, NJ 07724 or call toll free: 1-877-SWS-GEAR (797-4327) www.WengerNA.com [email protected] ©2007 Avenues In Leather, Inc. Avenues is an authorized licnesee of Wenger Licensing. Avenues/Wenger are not responsible for technical or editorial errors or omissions contained herein. The information contained herein is subject to change without notice. Only warranties for SWISSGEAR products are set forth in accompanying warranty statements. This GA-6290-15 SPYDER 5-BUTTON Wireless Laser Mobile Mouse is the latest in Laser mouse technology. Its high resolution is 1000 DPI that provides the smoothest and most accurate tracking possible. Please read this manual thoroughly and follow the instruction procedures to prevent any damage to the mouse and any harm to yourself. Functions: 1 4 3 2 REGISTRATION & WARRANTY TECHNICAL SPECIFICATIONS FEATURES OVERVIEW Remove the battery compartment cover. (1) Install batteries with the positive (+) & negative (-) in the correct direction indicated by the battery compartment label. (2) Replace battery compartment cover. (3) Turn on mouse. Note: There will not be a red LED on the bottom of this mouse. Laser mice do not emit a red LED light. (CAUTION: Do not point Laser Hole into your eyes or look directly into the Laser emitter. Keep away from young children.) Battery Installation: 1. 2. 3. 4. Manual Re-Connect Mouse to Receiver - Changing the Wireless Connection Channel: Note: Turn mouse on first. 1. 2. 3. 4. 5. 6. Connecting the Mouse to the Receiver: Plug in the USB Receiver to any available USB port or hub connected to your computer. (4) (Windows will now detect the mouse and install the required drivers automatically and the light will blink when in use.) YOUR MOUSE IS NOW READY TO BE USED! Synchronization: Windows should have installed the drivers, recognizing the mouse. If not, mouse may be in sleep mode. Click any button once to wake it up. If this does not work, Changing Wireless Connection Channel or a Manual Re-Connect Mouse to Receiver may be needed. Plug in USB Reciever.(4) While USB receiver is plugged in, press button on the top of the receiver (6) within 5 seconds after clicking the connect button on the mouse. Click mouse “CONNECT” button once on bottom of mouse. (5) Note: Click the receiver’s button FIRST, then click the mouse bottom button! Receiver LED will start blinking (7), when connection is established. Move the mouse around to test if successful. If the synchronization is not successful: a.Remove batteries and unplug receiver b.Wait 20 seconds and try steps 1 to 5 again. If mouse still won’t work, re-start computer and follow above instructions. Note: To conserve battery power, turn mouse off. When battery voltage level goes under the preset level, battery indicator LED on top of the mouse (8) will flash at least three times when moving or clicking the mouse. Mouse will continue to operate for a period, but batteries should be replaced immediately. FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in television reception, which can be determined by turning the equipment off and on. The user is encouraged to try and correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and the receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced technician for help. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equ…

Text truncated - open the document above for the full version.

PRIMAX Electronics LTD. No.669,Ruey Kuang Road,Neihu 114，Taipei,Taiwan.R.O.C Date: 26 April 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Shenzhen office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS SZ, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS SZ on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS SZ as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

PRIMAX Electronics LTD No.669,Ruey Kuang Road,Neihu 114，Taipei,Taiwan.R.O.C Date: 2007-4-27 Subject: Request for Confidentiality FCC ID: EMJM2AI01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Name: Keen Chiang Title: Engineer Company name: Dongguan Primax Electronics Ltd. Tel: +86-769-86633120 Fax: +86-769-86316141 E-Mail:[email protected]

Chris Harvey From: aven.zhou [[email protected]] Sent: Thursday, May 17, 2007 2:11 AM To: [email protected] Cc: Chris Harvey Subject: Re:RE: RE: AN07T6792 (PRIMAX ELECTRONICS LTD.) Page 1 of 3 5/17/2007 Dear Charvey, Please kindly find the reply below IN BLUE. Best regards! aven.zhou Compliance Certification Service(Shenzhen) Inc. Tel: 0755-28055000 ext. 601 E-mail: [email protected] MSN : [email protected] Dear Aven, "Helen Zhao" <[email protected]> 2007-05-17 12:57 收件人： "aven.zhou" <[email protected]>, "Chris Harvey" <charvey- [email protected]> 副本抄送： "Eric Wong \(E-mail\)" <[email protected]> 主旨： RE: RE: AN07T6792 (PRIMAX ELECTRONICS LTD.) "Helen Zhao" <[email protected]> 2007-05-17 01:07 收件人： "aven.zhou" <[email protected]> 副本抄送： "Eric Wong \(E-mail\)" <[email protected]> 主旨： RE: AN07T6792 (PRIMAX ELECTRONICS LTD.) As I told you, I am not the only reviewer in CCS TCB. Chris Harvey is the reviewer of this application, based on our system record, he sent out his comments on 5/9/2007 to [email protected] ; [email protected] . Please check your mailbox again. For your quick reference, here I am resending his comments to you: *********************************************************** Dear Eric Wong, The initial review of the above referenced TCB application has been performed. The following items need to be addressed before the review can be continued: 1. The Confidentiality Request letter requests that the Schematics, Block Diagram and Operational Description exhibits be kept confidential. Please note that you have also submitted exhibits titled PCB.pdf which is the component placement and PCB trace diagrams and BOM.pdf wich is the Chinese language Bill of materials. Although these exhibits are not required, they has been submitted and not currently covered by the Confidentiality Request letter. If you do not wish for these exhibits to become publicly available on the FCC抯 web site, please either request for CCS to remove them from the application or revise the Confidentiality Request letter to specifically include these exhibits. <Aven> : Please help to remove them from the application. 2. The Users Manual does not include the required statement from FCC 15.21 regarding the notice about modifications. Please submit an updated Users?Manual to include this required information. <Aven>: The attached is the update user manual. 3. The test report does not indicate which version of ANSI C63.4 has been used for testing. Please update the test report to indicate which year version of ANSI C63.4 has been used. <Aven>: The attached is update report. 4. The Users?Manual states that this device can use different channels. Please confirm if these different channels use the same 27.045 MHz center frequency or if they operate on different frequencies. <Aven>: Confirm by the tested sample that these different channels use the same 27.045 MHz center frequency The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Page 2 of 3 5/17/2007 Chris Harvey [email protected] ******************************************************** Please send your reply to Chris directly. Do not copy me. Thanks, Helen -----Original Message----- From: aven.zhou [mailto:[email protected]] Sent: Wednesday, May 16, 2007 2:14 AM To: Helen Zhao Subject: AN07T6792 (PRIMAX ELECTRONICS LTD.) Dear Helen, I submitted the materials for FCC Certification (assessment No:AN07T6792) on May 08, 2007, and now I don't get any reply . What is the reason and let us know. Thank you very much! Best regards! aven.zhou Compliance Certification Service(Shenzhen) Inc. Tel: 0755-28055000 ext. 601 E-mail: [email protected] MSN : [email protected] Page 3 of 3 5/17/2007

Compliance Certification Services (Shenzhen) Inc. Report No.: SZ070423B02-RP FCC ID: EMJM2AI01 Date of Issue: April 25, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 17 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Spyder Wireless Laser Mouse Model: MORFAIUL / GA-6290-15 Trade Name: Primax / Avenues Issued to PRIMAX ELECTRONICS LTD. NO.669, RUEY KUANG ROAD, NEIHU 114, TAIPEI, TAIWAN, R.O.C Issued by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No.: SZ070423B02-RP FCC ID: EMJM2AI01 Date of Issue: April 25, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT ...................................................................................................... 9 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 10 7.1 26 DB BANDWIDTH .......................................................................................................... 10 7.2 RADIATED EMISSIONS........................................................................................................... 12 7.3 POWERLINE CONDUCTED EMISSIONS.................................................................................... 16 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP....................................................................... 17 Compliance Certification Services (Shenzhen) Inc. Report No.: SZ070423B02-RP FCC ID: EMJM2AI01 Date of Issue: April 25, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: PRIMAX ELECTRONICS LTD. NO.669, RUEY KUANG ROAD, NEIHU 114, TAIPEI, TAIWAN, R.O.C Equipment Under Test: Spyder Wireless Laser Mouse Trade Name: Primax / Avenues Model: MORFAIUL / GA-6290-15 Date of Test: April 23-25, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc.. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved by: Tested By: Maya You Reviewed By: Clinton Kao / Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No.: SZ070423B02-RP FCC ID: EMJM2AI01 Date of Issue: April 25, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Spyder Wireless Laser Mouse Trade Name Primax / Avenues Model Number MORFAIUL / GA-6290-15 Model Difference All models are identical to each other except for market designation for marketing purpose. Power Supply TX: Powered by AAA batteries × 2 (Rating: 2 × 1.5Vdc) RX: Powered by the notebook Frequency Range 27.045 MHz Modulation Technique FSK Remark: This submittal(s) (test report) is intended for FCC ID: EMJM2AI01 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No.: SZ070423B02-RP FCC ID: EMJM2AI01 Date of Issue: April 25, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4:2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength meas…

Text truncated - open the document above for the full version.

APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST Below 30MHz Below 1GHz
