EMJM79001Bluetooth Mouse

Open Click Click Click Select Click Click Click Plug BT Dongle into USB port then click OK Click Click OK! Federal Communication Commissi on Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfu l interference in a residential installation. This equipment generates, uses and c an radiate radio frequ ency energy and, if not installed and used in accordance with the instructions, may cause harmful inte rference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the in terference by one of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operati on is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interferen ce received, including interference th at may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set fo rth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

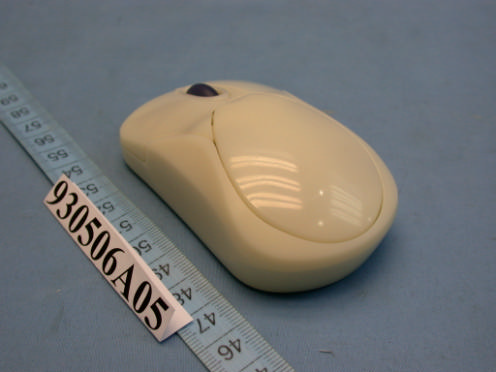

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: EMJM79001 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

6 7 . 2 10 4- R2 4- R2.5 39.7 1 9 . 7 S/N: YY MM xxxxxx Year ( 04=2004, 05=2005 - - -) Month ( 05= May, 10=October - - -) 000001 ~ Made in China 39.7 1 9 . 7 S/N: YYMMxxxxxx www.targus.com N2953 ON OFF Model No:MOBT90UO Item No: AMB01 FCC ID:EMJM79001 0560 Connect ! DC 3V 35mA Made in China 39.7 1 9 . 7 S/N: YYMMxxxxxx www.targus.com N2953 ON OFF Model No:MOBT90UO Item No: AMB01 FCC ID:EMJM79001 0560 Connect ! DC 3V 35mA

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: EMJM79001 Report No.: RF930506A05 Operational Description This device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Micro String antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4 GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the users manual.

FCC ID: EMJM79001 Report No.: RF930506A051Issued: June 16, 2004 FCC TEST REPORT REPORT NO.: RF930506A05 MODEL NO.: MOBT90UO, MOBT92UO, MOBT32UO RECEIVED: May 6, 2004 TESTED: May 26, 2004 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: EMJM79001 Report No.: RF930506A052Issued: June 16, 2004 TABLE OF CONTENTS 1CERTIFICATION .......................................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................................. 5 3GENERAL INFORMATION........................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT............................................................................. 6 3.2DESCRIPTION OF TEST MODES............................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST.......................................................... 8 4TEST PROCEDURES AND RESULTS ........................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................... 9 4.2NUMBER OF HOPPING FREQUENCY USED ............................................................ 9 4.2.1 LIMIT OF HOPPING FREQUENCY USED .................................................................. 9 4.2.2 TEST INSTRUMENTS.................................................................................................. 9 4.2.3 TEST PROCEDURES ................................................................................................ 10 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................... 10 4.2.5 TEST SETUP ............................................................................................................. 11 4.2.6 TEST RESULTS ......................................................................................................... 11 4.3DWELL TIME ON EACH CHANNEL .......................................................................... 14 4.3.1 LIMIT OF DWELL TIME USED................................................................................... 14 4.3.2 TEST INSTRUMENTS................................................................................................ 14 4.3.3 TEST PROCEDURES ................................................................................................ 15 4.3.4 DEVIATION FROM TEST STANDARD ...................................................................... 15 4.3.5 TEST SETUP ............................................................................................................. 15 4.3.6 TEST RESULTS ......................................................................................................... 16 4.4CHANNEL BANDWIDTH............................................................................................ 21 4.4.1 LIMITS OF CHANNEL BANDWIDTH ......................................................................... 21 4.4.2 TEST INSTRUMENTS................................................................................................ 21 4.4.3 TEST PROCEDURE................................................................................................... 22 4.4.4 DEVIATION FROM TEST STANDARD ...................................................................... 22 4.4.5 TEST SETUP ............................................................................................................. 22 4.4.6 EUT OPERATING CONDITION ................................................................................. 22 4.4.7 TEST RESULTS ......................................................................................................... 23 4.5HOPPING CHANNEL SEPARATION ......................................................................... 27 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION ......................................................... 27 4.5.2 TEST INSTRUMENTS................................................................................................ 27 FCC ID: EMJM79001 Report No.: RF930506A053Issued: June 16, 2004 4.5.3 TEST PROCEDURES ................................................................................................ 28 4.5.4 DEVIATION FROM TEST STANDARD ...................................................................... 28 4.5.5 TEST SETUP ............................................................................................................. 28 4.5.6 TEST RESULTS ......................................................................................................... 29 4.6MAXIMUM PEAK OUTPUT POWER –USING POWER METTER............................. 33 4.6.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.......................... 33 4.6.2 INSTRUMENTS.......................................................................................................... 33 4.6.3 TEST PROCEDURES ................................................................................................ 34 4.6.4 DEVIATION FROM TEST STANDARD ...................................................................... 34 4.6.5 TEST SETUP .................…

Text truncated - open the document above for the full version.

FCC ID: EMJM79001 Report No.: RF930506A0531Issued: June 16, 2004 Channel 39 FCC ID: EMJM79001 Report No.: RF930506A0532Issued: June 16, 2004 Channel 78 FCC ID: EMJM79001 Report No.: RF930506A0533Issued: June 16, 2004 4.6 MAXIMUM PEAK OUTPUT POWER –USING POWER METTER 4.6.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.6.2 INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SIGNAL GENERATOR / AgilentE8257CMY43320668Dec 31, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: EMJM79001 Report No.: RF930506A0534Issued: June 16, 2004 4.6.3 TEST PROCEDURES 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. The center frequency of the spectrum analyzer is set to the fundamental frequency and using 3 MHz RBW and 3 MHz VBW. 4. Measure the frequency difference of two frequencies that were attenuated 20dB from the reference level. Record the frequency difference as the emission bandwidth. 5. Repeat above procedures until all frequencies measured were complete. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: EMJM79001 Report No.: RF930506A0535Issued: June 16, 2004 4.6.5 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.6.6 EUT OPERATING CONDITION The software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel frequencies individually. EUTPOWER METER FCC ID: EMJM79001 Report No.: RF930506A0536Issued: June 16, 2004 4.6.7 TEST RESULTS Output Power to Antenna: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 02402-1.8530PASS 392441-1.5130PASS 782480-1.1330PASS FCC ID: EMJM79001 Report No.: RF930506A0537Issued: June 16, 2004 Channel 0 FCC ID: EMJM79001 Report No.: RF930506A0538Issued: June 16, 2004 Channel 39 FCC ID: EMJM79001 Report No.: RF930506A0539Issued: June 16, 2004 Channel 78 FCC ID: EMJM79001 Report No.: RF930506A0540Issued: June 16, 2004 4.7 RADIATED EMISSION MEASUREMENT 4.7.1 LIMITS OF RADIATED EMISSION MEASUREMENT Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. FCC ID: EMJM79001 Report No.: RF930506A0541Issued: June 16, 2004 4.7.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL Test Receiver ROHDE & SCHWARZ ESI7838496/016Feb. 09, 2005 Spectrum Analyzer ROHDE & SCHWARZ FSP40100041Dec. 15, 2004 BILOG Antenna SCHWARZBECK VULB91689168-155Feb. 03, 2005 HORN Antenna SCHWARZBECK BBHA 9120D9120D-404Feb. 03, 2005 HORN Antenna SCHWARZBECK BBHA 9170BBHA 9170242Feb. 23, 2005 Preamplifier Agilent 8447D2944A10631Jan. 15, 2005 Preamplifier Agilent 8449B3008A01960Jan. 22, 2005 RF signal cable HUBER+SUHNNER SUCOFLEX 104219272/4Mar. 04, 2005 RF signal cable HUBER+SUHNNER SUCOFLEX 104219275/4Mar. 04, 2005 Software ADT. ADT_Radiated_V5.1 4 NANA Antenna Tower inn-co GmbH MA 4000010303NA Antenna Tower Controller inn-co GmbH CO2000019303NA Turn Table ADT. TT100.TT93021704NA Turn Table Controller ADT. SC100.SC93021704NA NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The test was performed in HwaYa Chamber 3. 3. The horn antenna and HP preamplifier (model: 8449B) are used only for the measurement of emission frequency above 1GHz if tested. 4. The IC Site Registration No. is IC4924-4. FCC ID: EMJM79001 Report No.: RF930506A0542Issued: June 16, 2004 4.7.3 TEST PROCEDURES a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter 9x6x6 chamber area. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10 dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10 dB margin would be re- tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. NOTE: 1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120kHz for Peak detection (PK) and Quasi-peak detection (QP) at frequency below 1GHz. 2. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1 MHz for Peak detection at fre…

Text truncated - open the document above for the full version.

FCC ID: EMJM79001 Report No.: RF930506A0555Issued: June 16, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
