EMJM7AU02BLUETOOTH LASER MOUSE

VGP-BMS30 2-653-693-11(1) Bluetooth ® LASER Mouse VGP-BMS33 Operating Instructions Mode d’emploi Names of Parts Wheel button Right button Left button Power switch CONNECT button UsingtheBluetooth ® Utilitiessoftwareto enable communication 1 Turn your notebook computer on. 2 Set the power switch on the bottom of the mouse to ON 3 Activate the wireless function on your notebook computer. Specifications Communication method Bluetooth Standard Ver. 1.2 Position tracking principle Laser sensor Sensor resolution 800 counts per inch Wireless principle/frequency band RF 2.4 GHz Power requirements 3 V DC (two manganese IEC R6 [size AA] batteries) Transmission distance 32 ft. (10 m) max. line of sight* 1 Dimensions Approx. 2.8 × 1.5 × 4.6 in. (53.4 × 31.5 × 124.6 mm) (w × h × d) Mass Approx. 4.3 oz. (120 g) (including batteries) Supported models Sony VAIO computers with the Windows XP operating system. Operating temperature 41°F to 95°F (5°C to 35°C) 2-653-693-11(1) English © 2005 Sony Corporation Printed in Low batterylamp Fordetails,refertotheoperatinginstructionsandmanualsincluded with your notebook computer. 4 Double-click the icon in the notification area on the bottom right corner of your computer’s desktop. The Bluetooth Utilities software starts up, and the “Bluetooth Settings” screen displays. (tem peraturegradientlessthan18°F(10°C)/ hour) Operating humidity 20% to 80% (not condensed), provided that humidity is less than 65% at 95°F (35°C) (hygrometer reading of less than 84°F (29°C)) Storage temperature –4°F to 140°F (–20°C to 60°C) WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. Owner’s Record The model number and the serial number are located on the bottom of the mouse. Record the serial number in the space provided below. Refer to this number whenever you call your Sony dealer regarding this product. Model No. VGP‐BMS33 Serial No. For customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energ y and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to subpart B of Part 15 of the FCC Rules. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For questions regarding your product or for the Sony Service Center nearest you, call 1‐888‐476‐6972 in the United States or 1‐800‐961‐7669 in Canada. The number below is for FCC related matters only. Declaration of Conformity Trade Name: SONY Model No.: VGP‐BMS33 Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr., San Diego, CA 92127 U.S.A. Telephone No.: 858‐942‐2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: These products comply with FCC radiation exposure limits set forth for uncontrolled equipment and meet the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. These products have very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). For customers in Canada This Class B digital apparatus complies with Canadian ICES‐003. The term “IC:” before the radio certification number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. IC Exposure of Humans to RF Fields The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website: www.hc‐sc.gc.ca/rpb. • VAIO and are trademarks of Sony Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Sony Corporation is under license. Other trademarks and Trade names are those of their respective owners. • All other names of systems, products, and services are trademarks of their respective owners. In this manual, the ™ or ® marks are not specified. Inserting batteries intothe mouse 1 Set the power switch located on the bottom of the mouse to OFF. 2 Open the battery …

Text truncated - open the document above for the full version.

Date: 2006/9/22 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM7AU02 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: September 22, 2006 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

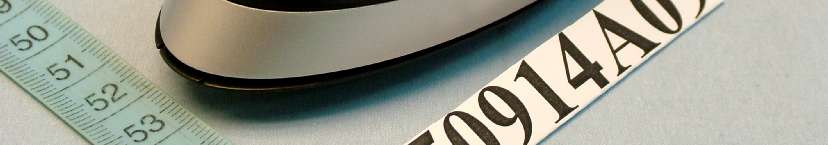

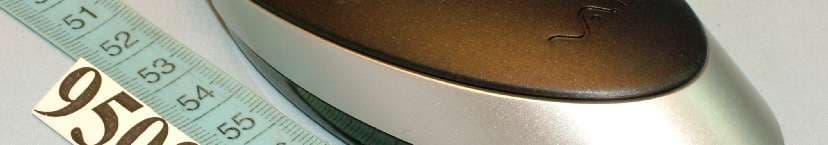

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: EMJM7AU02 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: EMJM7AU02 Report No.: RF950914A09 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA950914A091 RF EXPOSURE REPORT REPORT NO.: SA950914A09 MODEL NO.: VGP-BMS33 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950914A092 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950914A093 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950914A094 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power0.171.040 EIRP Power2.761.888 *Note: The antenna is Printed antenna with 2.59dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.888mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950914A091Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950914A09 MODEL NO.: VGP-BMS33 RECEIVED: Sep. 14, 2006 TESTED: Sep. 19 ~ 21, 2006 ISSUED: Sep. 25, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950914A092Report Format Version 2.0.5 TABLE OF CONTENTS 1.CERTIFICATION......................................................................................4 2.SUMMARY OF TEST RESULTS..............................................................5 2.1MEASUREMENT UNCERTAINTY...........................................................6 3.GENERAL INFORMATION......................................................................7 3.1GENERAL DESCRIPTION OF EUT.........................................................7 3.2DESCRIPTION OF TEST MODES...........................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST......................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........9 3.3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................10 3.3.4DESCRIPTION OF SUPPORT UNITS...................................................10 4.TEST TYPES AND RESULTS................................................................11 4.2RADIATED EMISSION MEASUREMENT..............................................11 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................11 4.2.2TEST INSTRUMENTS...........................................................................12 4.2.3TEST PROCEDURES............................................................................13 4.2.4DEVIATION FROM TEST STANDARD..................................................13 4.2.5TEST SETUP.........................................................................................14 4.2.6EUT OPERATING CONDITIONS...........................................................14 4.2.7TEST RESULTS.....................................................................................15 4.3NUMBER OF HOPPING FREQUENCY USED......................................19 4.3.1LIMIT OF HOPPING FREQUENCY USED............................................19 4.3.2TEST INSTRUMENTS...........................................................................19 4.3.3TEST PROCEDURES............................................................................19 4.3.4DEVIATION FROM TEST STANDARD..................................................20 4.3.5TEST SETUP.........................................................................................20 4.3.6TEST RESULTS.....................................................................................20 4.4DWELL TIME ON EACH CHANNEL......................................................22 4.4.1LIMIT OF DWELL TIME USED..............................................................22 4.4.2TEST INSTRUMENTS...........................................................................22 4.4.3TEST PROCEDURES............................................................................22 4.4.4DEVIATION FROM TEST STANDARD..................................................22 4.4.5TEST SETUP.........................................................................................23 4.4.6TEST RESULTS.....................................................................................23 4.5CHANNEL BANDWIDTH.......................................................................26 4.5.1LIMITS OF CHANNEL BANDWIDTH.....................................................26 4.5.2TEST INSTRUMENTS...........................................................................26 4.5.3TEST PROCEDURE..............................................................................26 4.5.4DEVIATION FROM TEST STANDARD..................................................27 4.5.5TEST SETUP.........................................................................................27 4.5.6EUT OPERATING CONDITION.............................................................27 4.5.7TEST RESULTS.....................................................................................28 4.6HOPPING CHANNEL SEPARATION.....................................................30 4.6.1LIMIT OF HOPPING CHANNEL SEPARATION.....................................30 4.6.2TEST INSTRUMENTS...........................................................................30 Report No.: RF950914A093Report Format Version 2.0.5 4.6.3TEST PROCEDURES............................................................................30 4.6.4DEVIATION FROM TEST STANDARD..................................................31 4.6.5TEST SETUP.........................................................................................31 4.6.6TEST RESULTS.....................................................................................32 4.7MAXIMUM PEAK OUTPUT POWER.....................................................34 4.7.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......34 4.7.2TEST INSTRUMENTS...........................................................................34 4.7.3TEST PROCEDURES............................................................................34 4.7.4DEVIATION FROM TEST STANDARD..................................................34 4.7.5TEST SETUP.........................................................................................35 4.7.6EUT OPERATING CONDITION..............................................…

Text truncated - open the document above for the full version.

Report No.: RF950914A0943Report Format Version 2.0.5 5.PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
