EMJM7B301Bluetooth Wireless Mouse

Date: July 31, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM7B301 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

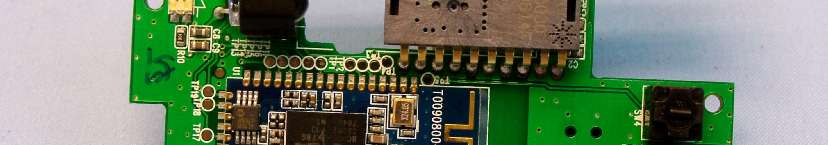

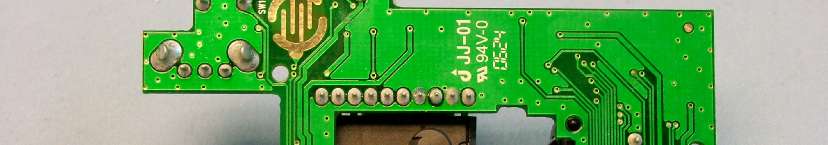

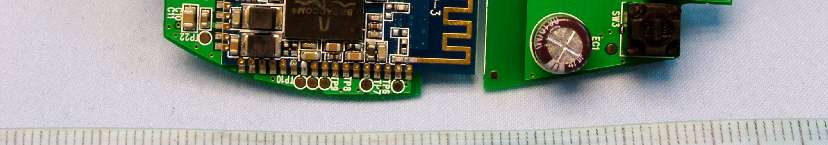

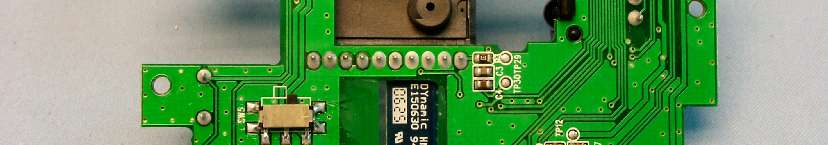

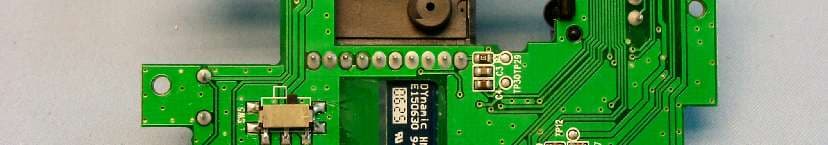

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: EMJM7B301 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3

FCC ID: EMJM7B301 Report No.: RF950712A05A Reference No.: 950712A11 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA950712A05A1 Reference No.: 950712A11 RF EXPOSURE REPORT REPORT NO.: SA950712A05A MODEL NO.: RF-BTMSE ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950712A05A2 Reference No.: 950712A11 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950712A05A3 Reference No.: 950712A11 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950712A05A4 Reference No.: 950712A11 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power0.691.172 EIRP Power0.691.172 *Note: The antenna is Printed antenna with 0dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.172mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950712A05A1Report Format Version 2.0.5 Reference No.: 950712A11 FCC TEST REPORT REPORT NO.: RF950712A05A MODEL NO.: RF-BTMSE RECEIVED: July 12, 2006 TESTED: July 18 ~ 25, 2006 ISSUED: Aug. 1, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 42 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. Report No.: RF950712A05A2Report Format Version 2.0.5 Reference No.: 950712A11 TABLE OF CONTENTS 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY.................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS................................9 3.4DESCRIPTION OF SUPPORT UNITS..........................................................9 4TEST PROCEDURES AND RESULTS........................................................10 4.1CONDUCTED EMISSION MEASUREMENT..............................................10 4.2RADIATED EMISSION MEASUREMENT...................................................10 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2TEST INSTRUMENTS.................................................................................11 4.2.3TEST PROCEDURES.................................................................................12 4.2.4DEVIATION FROM TEST STANDARD........................................................12 4.2.5TEST SETUP..............................................................................................13 4.2.6EUT OPERATING CONDITIONS................................................................13 4.2.7TEST RESULTS..........................................................................................14 4.3NUMBER OF HOPPING FREQUENCY USED...........................................18 4.3.1LIMIT OF HOPPING FREQUENCY USED..................................................18 4.3.2TEST INSTRUMENTS.................................................................................18 4.3.3TEST PROCEDURES.................................................................................18 4.3.4DEVIATION FROM TEST STANDARD........................................................19 4.3.5TEST SETUP..............................................................................................19 4.3.6TEST RESULTS..........................................................................................19 4.4DWELL TIME ON EACH CHANNEL............................................................21 4.4.1LIMIT OF DWELL TIME USED....................................................................21 4.4.2TEST INSTRUMENTS.................................................................................21 4.4.3TEST PROCEDURES.................................................................................21 4.4.4DEVIATION FROM TEST STANDARD........................................................22 4.4.5TEST SETUP..............................................................................................22 4.4.6TEST RESULTS..........................................................................................22 4.5CHANNEL BANDWIDTH.............................................................................25 4.5.1LIMITS OF CHANNEL BANDWIDTH..........................................................25 4.5.2TEST INSTRUMENTS.................................................................................25 4.5.3TEST PROCEDURE....................................................................................25 4.5.4DEVIATION FROM TEST STANDARD........................................................26 4.5.5TEST SETUP..............................................................................................26 4.5.6EUT OPERATING CONDITION...................................................................26 4.5.7TEST RESULTS..........................................................................................27 4.6HOPPING CHANNEL SEPARATION...........................................................29 Report No.: RF950712A05A3Report Format Version 2.0.5 Reference No.: 950712A11 4.6.1LIMIT OF HOPPING CHANNEL SEPARATION...........................................29 4.6.2TEST INSTRUMENTS.................................................................................29 4.6.3TEST PROCEDURES.................................................................................29 4.6.4DEVIATION FROM TEST STANDARD........................................................29 4.6.5TEST SETUP..............................................................................................29 4.6.6TEST RESULTS..........................................................................................30 4.7MAXIMUM PEAK OUTPUT POWER..........................................................32 4.7.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........32 4.7.2INSTRUMENTS..................................…

Text truncated - open the document above for the full version.

Report No.: RF950712A05A41Report Format Version 2.0.5 Reference No.: 950712A11 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
