Visit our website at: www.mogomouse.com Features and specifications are subject to change without notice. 2006 Newton Peripherals, LLC MG-100-01-0002-01 rev 2 Bluetooth Laptop Mouse Installation Guide Use it like your wireless desktop mouse Store It inside a PC card slot Charge it automatically Newton Peripherals MoGo Mouse BT Introduction Congratulations on your purchase of a MoGo Mouse BT . This user’s guide describes how to connect and use the MoGo Mouse BT to your Laptop. In addition to this user’s guide this package contains: • Newton Peripherals MoGo Mouse BT System Requirements To use the MoGo Mouse BT , your computer must meet the following requirements: Hardware • Type II PC card slot • USB Bluetooth adaptor or embedded Bluetooth Operating System • Bluetooth ® -enabled Windows ® 98, Me, 2000, or XP. • Bluetooth ® -enabled Macintosh ® running Mac ® OS 10.2.8 or later. Charging and Storing The MoGo Mouse BT is equipped with an internal rechargeable battery. It is recommended that before using, you insert the MoGo Mouse BT inside your type II PC card slot for charging. The MoGo Mouse BT automatically begins to charge when installed. The laptop must be turned on for charging to take place. You should allow up to 60 minutes for initial charging of MoGo Mouse BT . Charging status is indicated by either a red light for active charging or a green light for fully charged. GREEN = CHARGED RED = CHARGING Battery LED Status What to do if the “Found new Hardware Wizard” appears When inserting the MoGo Mouse BT in your computer’s PCMCIA slot for the first time, the window below may appear. Though no software is required for the MoGo Mouse BT to charge properly, Microsoft Windows will try to load a driver for the MoGo Mouse BT . To stop Microsoft Windows from displaying this window follow the steps below. Once completed no other action is required for setting up your laptop for charging. You may see a message appear warning you that the driver was not installed and your device my not work properly. You can ignore this as the MoGo Mouse BT does not need a driver to operate properly. Pairing your MoGo Mouse BT with your laptop Bluetooth devices require that you initially “pair” your MoGo Mouse BT with your laptop. Follow the steps below to prepare your MoGo Mouse BT for pairing. Once paired to your laptop the MoGo Mouse BT only needs to be turned on for operation with your laptop. 1. Turn on the MoGo Mouse BT by opening kickstand on side of unit with finger.You may notice a one time RED blink from Optical Sensor on the bottom of the mouse. 2. Press the “connect” button down until the status light starts flashing blue, every 2 seconds. Your MoGo Mouse BT is now ready to pair to your laptop. It will stay in this state for 3 minutes. 3. Initiate your laptop Bluetooth to complete pairing your mouse. In case you are requested to enter a Pass Code or PIN number, simply enter “0000”. MoGo Mouse BT does not require such a code to operate. Refer to the owner’s manual for specific instructions on pairing your laptop Bluetooth. Check the box to install automatically and click “Next”. Check the box at the bottom (Don’t Prompt me again to install the software) and click finish. Once connected the blue light on the MoGo Mouse BT will begin to blink slowly, every 3 seconds. 4. You are ready to MoGo! Pairing Your MoGo Mouse BT with another Laptop Your MoGo Mouse BT can only be paired with one laptop at a time. Pressing the connect button will break the current pairing and prepare the MoGo Mouse BT to be paired with another laptop. Using your MoGo Mouse BT Since the MoGo Mouse BT fits into the Type II PC card slot to store and charge, it needs a kickstand to prop up the back of the mouse to make it functional and ergonomic. To turn it on, open the kickstand from the side. Click the right or left button to activate the connection. Note: initially, you must pair the MoGo Mouse BT to the laptop before this can occur. Turning the MoGo Mouse BT off is simple. Collapse/close the kickstand and MoGo Mouse BT will automatically turn off. Leaving the MoGo Mouse BT untouched for ten minutes will cause the mouse to fall asleep. Wake it by simply pressing the right or left button. Note: The MoGo Mouse is designed so that leaving it in sleep mode reduces battery use to save battery power. If the laptop Bluetooth signal becomes unavailable to the mouse, this will also cause the mouse to fall asleep. If the indicator LED turns solid red, the battery is very low and needs to be recharged. Operating Hints For optimal performance and RF reception: • Avoid using the MoGo Mouse BT on a metal surface. Metals, such as iron, aluminum or copper, shield the Bluetooth transmission and may slow down the MoGo Mouse BT ’s response time or cause the MoGo Mouse BT to fail temporarily. •The MoGo Mouse BT will enter a suspend mode at the same time your computer does. To activate the MoGo Mouse BT , press any button on your MoGo Mouse BT . •If your computer has a metal case that contains aluminum or magnesium, use the MoGo Mouse BT to the side. The display panel may interfere with the Bluetooth signal if you use the MoGo Mouse BT directly in front of the computer. •Glass or mirrored surfaces can result in erratic behavior for all mice using optical technology. •To maximize battery life, use the MoGo Mouse BT on a white, or light colored surface. Dark surfaces cause the MoGo Mouse BT ’s light emitting diode (LED) light to glow brighter, which causes the battery to discharge more rapidly. Specifications Troubleshooting The MoGo Mouse BT is not working. •Make sure that the MoGo Mouse BT is charged. Install into type II PC card slot and wait for Green LED indicator. • Verify that Bluetooth is configured correctly on your computer 1) Click Start/Settings/Control Panel/System/Hardware/Device Manager. 2) Check under ‘Bluetooth Devices’ that a ‘Newton Peripherals MoGo Mouse BT ’is installed. I cannot connect to a paired device. • Paired Bluetooth devices…

Text truncated - open the document above for the full version.

Date: August 1, 2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM7B601 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Product Development Manager/ Electrical Engineer Phone: +1 604 431-5020 ext.1022 Fax: +1 (604) 431 5155 Email: [email protected]

Power of Attorney Date: 2005/8/4 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

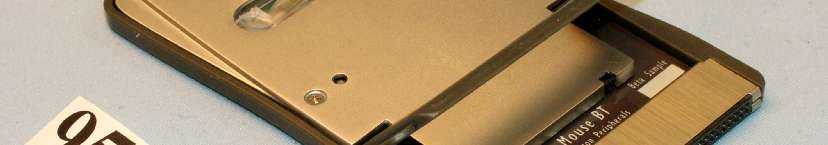

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: EMJM7B601 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: EMJM7B601 Report No.: RF950706A06 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Printed Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA950706A061 RF EXPOSURE REPORT REPORT NO.: SA950706A06 MODEL NO.: HSTNN-PM11 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950706A062 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950706A063 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950706A064 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.58 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power-1.170.764 EIRP Power-6.170.242 *Note: The antenna is Printed antenna with -5dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 0.764mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950706A061Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950706A06 MODEL NO.: HSTNN-PM11 RECEIVED: July 6, 2006 TESTED: July 18 ~ 25, 2006 ISSUED: Aug. 3, 2006 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. Report No.: RF950706A062Report Format Version 2.0.5 TABLE OF CONTENTS 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY.................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................8 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................10 4TEST PROCEDURES AND RESULTS.........................................................11 4.1CONDUCTED EMISSION MEASUREMENT...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................11 4.1.2TEST INSTRUMENTS.................................................................................11 4.1.3TEST PROCEDURE....................................................................................12 4.1.4DEVIATION FROM TEST STANDARD........................................................12 4.1.5TEST SETUP..............................................................................................12 4.1.6EUT OPERATING CONDITIONS................................................................12 4.1.7TEST RESULTS..........................................................................................13 4.2RADIATED EMISSION MEASUREMENT...................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................15 4.2.2TEST INSTRUMENTS.................................................................................16 4.2.3TEST PROCEDURES.................................................................................17 4.2.4DEVIATION FROM TEST STANDARD........................................................17 4.2.5TEST SETUP..............................................................................................18 4.2.6EUT OPERATING CONDITIONS................................................................18 4.2.7TEST RESULTS..........................................................................................19 4.3NUMBER OF HOPPING FREQUENCY USED...........................................24 4.3.1LIMIT OF HOPPING FREQUENCY USED..................................................24 4.3.2TEST INSTRUMENTS.................................................................................24 4.3.3TEST PROCEDURES.................................................................................24 4.3.4DEVIATION FROM TEST STANDARD........................................................25 4.3.5TEST SETUP..............................................................................................25 4.3.6TEST RESULTS..........................................................................................25 4.4DWELL TIME ON EACH CHANNEL............................................................27 4.4.1LIMIT OF DWELL TIME USED....................................................................27 4.4.2TEST INSTRUMENTS.................................................................................27 4.4.3TEST PROCEDURES.................................................................................27 4.4.4DEVIATION FROM TEST STANDARD........................................................28 4.4.5TEST SETUP..............................................................................................28 4.4.6TEST RESULTS..........................................................................................28 4.5CHANNEL BANDWIDTH.............................................................................31 4.5.1LIMITS OF CHANNEL BANDWIDTH..........................................................31 Report No.: RF950706A063Report Format Version 2.0.5 4.5.2TEST INSTRUMENTS.................................................................................31 4.5.3TEST PROCEDURE....................................................................................31 4.5.4DEVIATION FROM TEST STANDARD........................................................32 4.5.5TEST SETUP..............................................................................................32 4.5.6EUT OPERATING CONDITION...................................................................32 4.5.7TEST RESULTS..........................................................................................33 4.6HOPPING CHANNEL SEPARATION...........................................................35 4.6.1LIMIT OF HOPPING CHANNEL SEPARATION...........................................35 4.6.2TEST INSTRUMENTS.................................................................................35 4.6.…

Text truncated - open the document above for the full version.

Report No.: RF950706A0647Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (For Mode B) Report No.: RF950706A0648Report Format Version 2.0.5 RADIATED EMISSION TEST (For Mode A) Report No.: RF950706A0649Report Format Version 2.0.5 RADIATED EMISSION TEST (For Mode B)
