EMJM8B101Wireless Laser Mini Mouse

-1- HP Wireless Laser Mouse User’s Manual Model Name: MORFB1UO © Copyright 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Product Number PP034AA #ABA Printed in China -2- Health Warning There may be a risk of serious physical injuries from working at your computer workstation. Some studies have suggested that long periods of typing, improper workstation setup, incorrect work habits, stressful work conditions and relationships, or problems in your personal health may be linked to injuries. These injuries could include carpal tunnel syndrome, tendonitis, tenosynovitis, and other musculoskeletal disorders. The warning signs of these disorders can occur in the hands, wrists, arms, shoulders, neck, or back, and can include: ❒ Numbness, burning, or tingling ❒ Soreness, aching, or tenderness ❒ Pain, throbbing, or swelling ❒ Tightness or stiffness ❒ Weakness or coldness Symptoms may be felt during typing, while using a mouse, or at other times when no work with the hands is being performed, including during the night when these symptoms might awaken you. If you experience these symptoms, or any other persistent or recurring pain or discomfort that you think may be related to using a computer, you should promptly consult a qualified physician and, if available, your company’s health and safety department. The earlier a problem is properly diagnosed and treated, the less chance there is that it will progress to a disabling condition. HP created a “Safety & Comfort Guide” that describes proper workstation setup, posture, and health and work habits for computer users. In addition, it also contains product safety information applicable to all HP products. This guide can be downloaded from the internet at http://www.hp.com/ergo Product Registration Registration is quick, easy and offers: Email updates containing notifications about product enhancements, the most recent support alerts, and driver updates specific to the product(s) you own. For faster help, be sure to register your recently purchased product at http://www.microinv.com/hp/register.cfm -3- Contents Welcome.............................................................................................................................................. 4 Installation ............................................................................................................................................ 5 Configuration....................................................................................................................................... 8 Troubleshooting ................................................................................................................................... 9 Technical Support ............................................................................................................................... 9 -4- Welcome Congratulations on purchasing the HP Wireless Rechargeable Optical Mouse. This guide will provide you with the necessary steps for installing and maintaining your mouse. Package Contents HP Wireless Rechargeable Optical Mouse USB Receiver CD with Driver/Software 1 AA NiMH Rechargeable Batteries User’s Manual Warranty Card System Requirements • Available USB Port • CD-ROM Drive Compatible with Microsoft ® Windows ® 98SE/Me/2000/XP -5- Installation Battery Installation For your convenience, the mouse is pre-installed with 1 AA NiMH rechargeable batteries. To activate the batteries, remove the pull tab located on the bottom of the mouse. Software Installation 1 Insert the CD into your CD-ROM drive. The setup program will automatically launch. 2 If the setup program does not appear, click Start, then click Run. Type <drive letter>:\setup and click Ok. (For example, if the disk is in drive D, enter D:\Setup.) 3 Follow the onscreen instructions. CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE BATTERY MANUFACTURER’S INSTRUCTIONS. -6- Hardware Installation 1 Power on your system. 2 Connect the USB receiver to any available USB port or hub connected to your computer. -7- 2 Press and release the connect button (do not hold the button) on the receiver. The LED on the receiver will be continuously on. User Setup According to standard the mouse is immediately insatzbereit (receivers and mouse are synchronized). Universe you the mouse and receiver to synchronize must, proceed you as follows: ID mode If you are using more than one mouse within 6 feet of the receiver, you must set both mice into ID Mode. Follow the instructions below to set the mouse in ID mode. 1 Push the button located on the bottom of the mouse The LED on the receiver will turn off once your mouse is synchronized. Your mouse will now only work with that receiver. When the mouse is in use, the LED on the receiver will blink. -8- Configuration You can configure all the buttons of this mouse to perform selected functions. To customize your mouse settings: 1. Click Start. 2. Choose Settings, if present. 3. Choose Control Panel. 4. Choose Printers and Other Hardware, if present. 5. Click Mouse. When the software is installed, you will see the screen above when viewing your mouse settings. When your mouse reaches low battery status, you will see an onscreen indicator showing you that it is time to recharge your mouse. It is suggested that the mouse be placed on the cradle whenever not in use. -9- Troubleshooting • If you have Windows 95 or Windows NT, these operating systems do not support this device. • The Universal Serial Bus Controller and USB root hub may not be properly installed on your system. Contact you…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJM8B101 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: 2006/4/7 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

FCC ID: EMJM8B101 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

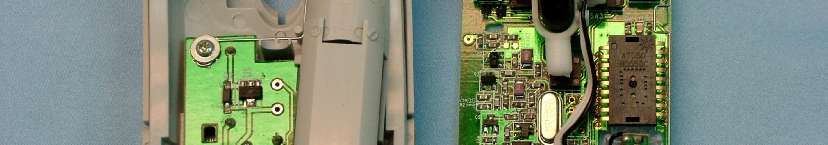

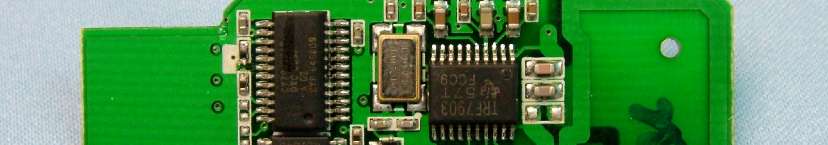

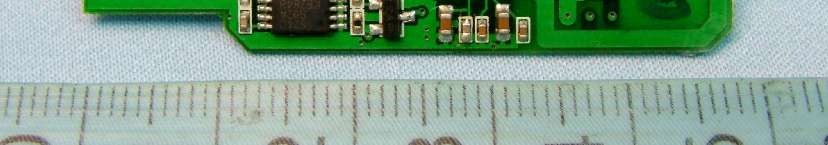

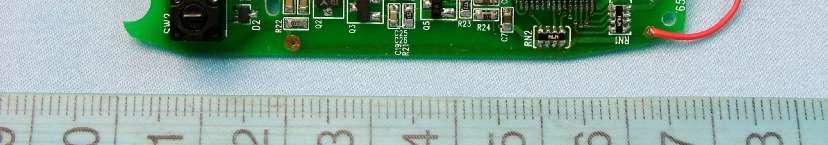

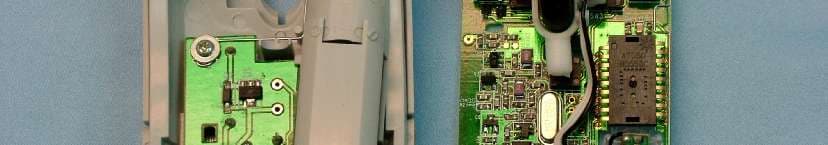

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: EMJM8B101 Report No.: RF950329A05 Operational Description The transmitter of the EUT (Wireless Laser Mini Mouse) is powered by 1.5V battery. The type of antenna is Loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF950329A051Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950329A05 MODEL NO.: MORFB1UO RECEIVED: Mar. 29, 2006 TESTED: Apr. 4, 2006 ISSUED: Apr. 10, 2006 APPLICANT:PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 17 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950329A052Report Format Version 2.0.5 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.2CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................15 6INFORMATION ON THE TESTING LABORATORIES..................................16 APPENDIX-A....................................................................................................A-1 Report No.: RF950329A053Report Format Version 2.0.5 1 CERTIFICATION PRODUCT: Wireless Laser Mini Mouse BRAND NAME: HP MODEL NO.: MORFB1UO APPLICANT: PRIMAX ELECTRONICS LTD. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Apr. 4, 2006 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 10, 2006 ( Annie Chang ) TECHNICAL ACCEPTANCE:, DATE:Apr. 10, 2006 Responsible for EMI ( Ken Liu ) APPROVED BY:, DATE:Apr. 10, 2006 ( Gary Chang / Supervisor ) Report No.: RF950329A054Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 1.5Vdc from battery 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –13.43dB at 45.55MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementUncertainty Radiated emissions3.86 dB Report No.: RF950329A055Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1GENERAL DESCRIPTION OF EUT PRODUCT Wireless Laser Mini Mouse MODEL NO. MORFB1UO FCC ID EMJM8B101 POWER SUPPLY 1.5Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045 MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a wireless mouse, which is a transmitter. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950329A056Report Format Version 2.0.5 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT ChannelFrequency (MHz) 127.045MHz 3.2 CONFIGURATION OF SYSTEM UNDER TEST Test Table (Powered from batteries) (EUT) Wireless Mouse Report No.: RF950329A057Report Format Version 2.0.5 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL Applicable to EUT configure mode PLCRE<1G Description -Note√N/A Where PLC: Power Line Conducted EmissionRE<1G RE: Radiated Emission below 1GHz Note: No need to concern of Conducted Emission due to the EUT is powered by battery. Radiated Emission Test (Below 1 GHz): Following channel(s) was (were) selected for the final test as listed below. OPERATING STATE Available Channel Tested Channel Modulation Type Operating11FSK Report No.: RF950329A058Report Format Version 2.0.5 3.3 GENERAL DESCRIPTION OF…
