EMJMMOBTEOULBluetooth Laser Mouse

Melon BT Laser Mouse User’s Guide Brand : Primax Model No :MOBTEOUL Rating: 5V DC 100mA Made in China 1 Introduction Package Contents ∑ AAA Battery x 2 pc ∑ User’s Guide x 1 System Requirements ∑ Pentium processor or equivalent ∑ At least one USB port (USB 2.0 or 1.1) ∑ Operating System: Windows ® XP with Service Pack 1 or higher, Windows ® Vista, Windows ® 7 2 Feature Melon BT is Bluetooth mouse in mobile size, ambidextrous for both right/left hand users. Melon BT is Equipped with Laser-based Soc Sensor from Avago that’s empowered by Bluetooth 2.1 Technology, along with basic mouse 3-button and wheel support vertical scrolling. It also provide a low battery indicator on top of the mouse to warning user for battery change. 3 Function introduction 1. Right Button 2. Left Button 3. Scroll Wheel and Middle button 4. Power LED. A. Power good : Orange ED on 3 sec-> off B. Low power : Orange LED blinking for 60 seconds 5. Battery Slot 6. Power On/Off 7. Bluetooth Pairing Button 8. Battery cover 4 Pairing Introduction The Bluetooth connection indication is defined as below: A: In pairing mode: blue LED starts blinking once every one second, lasting for 2 minutes. As long as Melon BT is successfully paired with the computer, blue LED will be turned off. Melon checks the battery status and enables the LED indication: A: battery status change in active mode B: mouse is waked up from sleeping mode or standby mode C: power is manually turned on and off by the sliding switch The indication sequence in every kind of situation should follow below priority: A: Power on/off >> Bluetooth connection >> power level 5 Regulatory Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: The product comply with the US/Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or reduce output power if it doesn't affect the transmission/receiving quality. IC Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: November 30, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJMMOBTEOUL Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: November 30, 2010 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

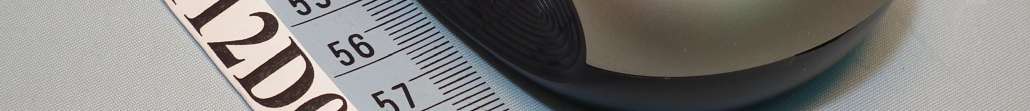

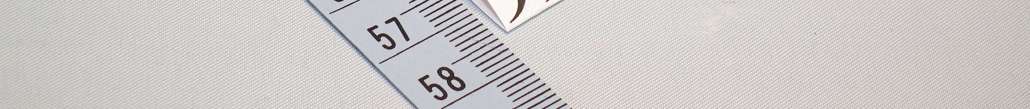

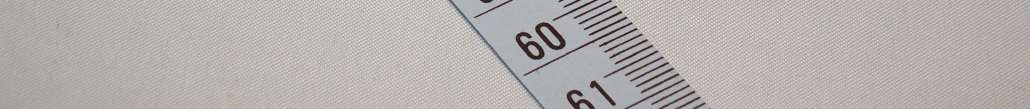

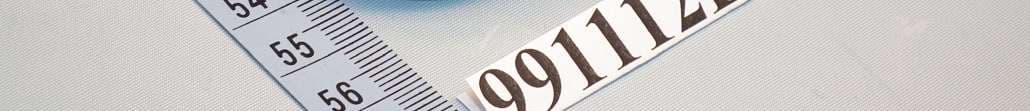

Page 1 CONSTRUCTION PHOTOS OF EUT

1 20-2EP Cheery.Qiao 2010/11/11 BOTTOMLABEL 6. 80#+霧膜 3 .FollowHalogen-Freerequirement : Br<900ppm, Cl<900ppm,Br+Cl< 1500 ppmifrequired 46.5mm 31.5mm 1:1 Motorola CXD contact: Chris Houghton [email protected]

LABEL LOCATION Label

Page 2 Page 3 Page 4

Report No: SA991112D04 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA991112D04 MODEL NO.: MOBTEOUL FCC ID: EMJMMOBTEOUL ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan Report No: SA991112D04 2 Report Format Version 3.0.1 Conclusion No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power -0.7 0.9 EIRP Power -0.2 1.0 *Note: The antenna is printed antenna with 0.52dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.0mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold ---END---

Report No.: RF991112D04 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF991112D04 MODEL NO.: MOBTEOUL FCC ID: EMJMMOBTEOUL RECEIVED: Aug. 5, 2010 TESTED: Aug. 5 ~ Nov. 12, 2010 ISSUED: Nov. 30, 2010 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 40 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991112D04 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................4 2. SUMMARY OF TEST RESULTS...............................................................5 2.1 MEASUREMENT UNCERTAINTY.............................................................6 3. GENERAL INFORMATION........................................................................7 3.1 GENERAL DESCRIPTION OF EUT..........................................................7 3.2 DESCRIPTION OF TEST MODES............................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............9 3.3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................10 3.3.4 DESCRIPTION OF SUPPORT UNITS.....................................................10 4. TEST TYPES AND RESULTS..................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT...........................................11 4.2 RADIATED EMISSION MEASUREMENT................................................11 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.............................11 4.2.2 TEST INSTRUMENTS.............................................................................12 4.2.3 TEST PROCEDURES.............................................................................13 4.2.4 DEVIATION FROM TEST STANDARD....................................................13 4.2.5 TEST SETUP...........................................................................................14 4.2.6 EUT OPERATING CONDITIONS.............................................................14 4.2.7 TEST RESULTS......................................................................................15 4.3 NUMBER OF HOPPING FREQUENCY USED........................................20 4.3.1 LIMIT OF HOPPING FREQUENCY USED..............................................20 4.3.2 TEST INSTRUMENTS.............................................................................20 4.3.3 TEST PROCEDURES.............................................................................20 4.3.4 DEVIATION FROM TEST STANDARD....................................................21 4.3.5 TEST SETUP...........................................................................................21 4.3.6 TEST RESULTS......................................................................................21 4.4 DWELL TIME ON EACH CHANNEL........................................................23 4.4.1 LIMIT OF DWELL TIME USED................................................................23 4.4.2 TEST INSTRUMENTS.............................................................................23 4.4.3 TEST PROCEDURES.............................................................................23 4.4.4 DEVIATION FROM TEST STANDARD....................................................23 4.4.5 TEST SETUP...........................................................................................24 4.4.6 TEST RESULTS......................................................................................24 4.5 CHANNEL BANDWIDTH.........................................................................26 4.5.1 LIMITS OF CHANNEL BANDWIDTH.......................................................26 4.5.2 TEST INSTRUMENTS.............................................................................26 4.5.3 TEST PROCEDURE................................................................................26 4.5.4 DEVIATION FROM TEST STANDARD....................................................27 4.5.5 TEST SETUP...........................................................................................27 4.5.6 EUT OPERATING CONDITION...............................................................27 4.5.7 TEST RESULTS......................................................................................28 Report No.: RF991112D04 3 Report Format Version 3.0.1 4.6 HOPPING CHANNEL SEPARATION.......................................................29 4.6.1 LIMIT OF HOPPING CHANNEL SEPARATION.......................................29 4.6.2 TEST INSTRUMENTS.............................................................................29 4.6.3 TEST PROCEDURES.............................................................................29 4.6.4 DEVIATION FROM TEST STANDARD....................................................29 4.6.5 TEST SETUP...........................................................................................29 4.6.6 TEST RESULTS......................................................................................30 4.7 MAXIMUM PEAK OUTPUT POWER.......................................................31 4.7.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........31 4.7.2 TEST INSTRUMENTS.............................................................................31 4.7.3 TEST PROCEDURES.............................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
