EMJMMORFG3ULWireless Laser Mouse

Wireless Keyboard and Mouse User Guide Your new computer has a 2.4 GHz Wireless Keyboard and Mouse Kit. It uses digital radio technology to ensure unhindered communication between the keyboard, the mouse and your computer without a cable connection. The transmission and reception of the keyboard and mouse are free from angle restrictions. Setup x The distance between the keyboard, mouse and receiver should not exceed 10 meters. x Do not place the receiver on metal surfaces. x Do not move Laser mouse on the following - Glass or any transparent materials Dark surfaces Mirrored or reflective surfaces Mouse pad with too many colors Rough surfaces Setting up the mouse Step 1: Remove USB receiver (for selected models) ● Open the battery compartment cover at the top of the mouse. Remove the USB receiver (1). Step 2: Insert the battery into the mouse The mouse requires two AAA batteries. ● Insert two AAA batteries (2) into the battery compartment. ● Replace the battery compartment cover. Step 3: Turn on the mouse ● Ensure the switch (3) at the bottom of the mouse is ON. Setting up the keyboard Insert the battery. ● Remove the battery compartment cover (4) at the bottom of the keyboard by pushing it in the direction of the arrow. ● Insert two AAA batteries. ● Replace the battery compartment cover (4). CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "Important Battery Information" for disposal instructions. Using the mouse and keyboard Mouse In addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3 rd button: Press on the wheel. ● For scrolling, e.g. in document or on Internet pages: Scroll the wheel forward or back. Keyboard ● The following key descriptions apply to the operating systems that support these functions (e.g. Windows 2000/XP/Vista/Windows 7/Windows 8). Windows Key Press to open the Start Menu Application Key Pressing the Application key is the same as clicking the right mouse key to open the current function menu -2- Previous Track Multimedia key to skip to the previous track in the active player Play/Pause Multimedia key to play or pause the track or video in the active player Stop Multimedia key to end the track or video in the active player Next Track Multimedia key to skip to the next track in the active player Mute Press this key to mute / unmute the audio Volume Down Press this key to decrease the volume Volume Up Press this key to increase the volume Sleep Press this key to switch to standby mode (depending on the settings in the BIOS setup or operating system; not available under Windows NT) Search Activate the default Internet/file search function Email Use this key to start the standard email program for your system Internet Use this key to launch the standard browser for your system. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any loss of motion or pain in your wrist when using the keyboard. INFORMATION FOR OPTICAL POINTING DEVICES ONLY: Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. FCC Caution: "Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment." IC Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable -3- PRODUCT DISPOSAL INFORMATION Dispose of this product in accordance with local and national disposal regulations. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the posi…

Text truncated - open the document above for the full version.

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: March 23, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJMMORFG3UL Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: March 23, 2012 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

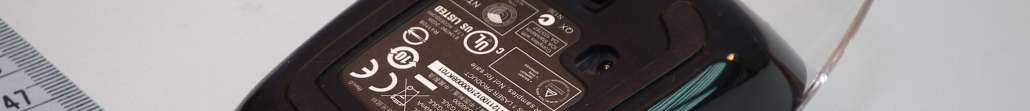

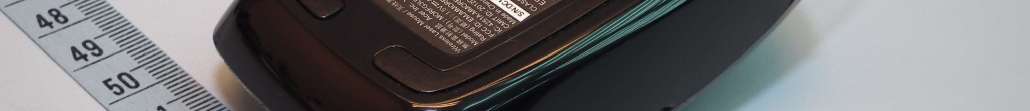

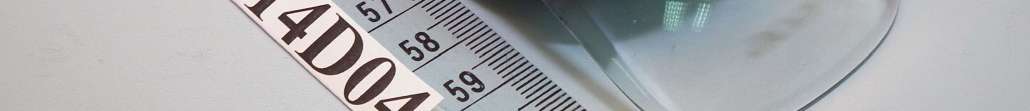

Page 1 CONSTRUCTION PHOTOS OF EUT

1234567 123457 A B C D E A B C D REV. DESCRIPTION ENG. APPROVAL 28-265G3A701 NOTE: 1. Printing: White words on black backgroud. 2. TOL: +0/-0.5mm 2 MS FCC LABEL 1/1 6. Requirement of PRIMAX Green Part: 1.Comply with PRIMAX QW-5Q002 "Green Substances Specifion." 2.Follow customei s specification as required., Product Chemical Ruby.Ai Ruby.Ai Cheery.Qiao 12-02-17 1 3.Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required. 3. The dimensions marked with "*" are important. 4. Glue T=0.025~0.03mm 5. Stickiness: 3.0kg/cm 80P合成紙+霧P 黑底白字 1:1 7. Product must be halogen free *32.4mm *36.6mm Rating (额定) : V 40mA.3 Model (型号) : MORFG3UL Made in China / 中国制造 / 中國製造 S/N: DC11211001YWWXXXXXK701 FCC ID: EMJMMORFG3UL IC: 4251A-MMORFG3UL Rev.0 CMIIT ID: 2012DJ0000 Complies with IDA Standards DA 103787 CCAI11LP0370T0 0000/SDPPI/2012 2254 XX 廠商UL代碼 被貼底蓋材質:ABS S/N: DC11211001 Y WW XXXXX K7 01 固定碼 YEAR(2010=0,2011=1,2012=2......) WEEK(01,02,03......) Series No. 16 CODE ( 0~9,A,B,C,D,E,F ) Engr.Ver Site Code 8.注: 30400757406X 與 91000022225X / 91000022810X 流水號要求一一對應,且同一周內流水號要求順流! NTC TYPE ACCEPTED No.ESD-xxxxxxxx Wireless Laser Mouse / 无线激光鼠标 無線雷射滑鼠 N136 CLASS 1 LASER PRODUCT ETA: 0000/2012/ WRLO Acer Inc.

LABEL LOCATION Label Location

Page 2 Page 3 Page 4 Page 5

FCC ID: EMJMMORFG3UL Report No.: RF120314D04 Operational Description The transmitter of the EUT (Wireless Laser Mouse) is powered by 3Vdc batteries. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF120314D04 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF120314D04 MODEL NO.: MORFG3UL FCC ID: EMJMMORFG3UL RECEIVED: Mar. 14, 2012 TESTED: Mar. 15, 2012 ISSUED: Mar. 23, 2012 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120314D04 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT..............................................10 4.2 RADIATED EMISSION MEASUREMENT...................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2 TEST INSTRUMENTS................................................................................11 4.2.3 TEST PROCEDURES.................................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.......................................................12 4.2.5 TEST SETUP..............................................................................................13 4.2.6 EUT OPERATING CONDITIONS................................................................13 4.2.7 TEST RESULTS..........................................................................................14 4.3 BAND EDGES MEASUREMENT................................................................14 4.3.1 LIMITS OF BAND EDGES MEASUREMENT.............................................19 4.3.2 TEST INSTRUMENTS................................................................................19 4.3.3 TEST PROCEDURE...................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD.......................................................19 4.3.5 EUT OPERATING CONDITION..................................................................19 4.3.6 TEST RESULTS..........................................................................................19 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................22 6. INFORMATION ON THE TESTING LABORATORIES................................23 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................24 Report No.: RF120314D04 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF120314D04 Original release Mar. 23, 2012 Report No.: RF120314D04 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Wireless Laser Mouse BRAND NAME: acer MODEL NO.: MORFG3UL APPLICANT: PRIMAX ELECTRONICS LTD. TESTED: Mar. 15, 2012 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Annie Chang / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF120314D04 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3.0Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is –10.1dB at 2390.00MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.78 dB Radiated emissions Above 1GHz 3.36 dB Report No.: RF120314D04 6 Report Format Version 4.0.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Laser Mouse MODEL NO. MORFG3UL FCC ID EMJMMORFG3…

Text truncated - open the document above for the full version.

Report No.: RF120314D04 1 Report Format Version 4.0.0 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
