EMJMMOWFFKULHP WiFi Mobile Mouse

Hewlett-Packard MOWFFKUL Wi-Fi Mouse Quick Start Guide 1. System requirement: a. Microsoft Windows 7 Certificate notebook b. Microsoft Windows 7 Certificate Wireless dongle running on Win7 notebook. (ex: NETGEAR WNDA3100v2) c. WiFi mouse with FW v02.01.03.000 above. 2. Software a. WNDA3100v2_1.2_230-10601-03_setup.exe (This is for WNDA3100v2 wireless card) b. Ozmo software PAN driver (WinDriver-1-5-46-0) c. Wi-Fi Pairing Utility (Wi-Fi Pair_2011-1-12) 3. Installation steps a. Install Wireless Card driver ( ex: NETGEAR WNDA3100v2) a.1 – Double-click on the WNDA3100v2_1.2_230-10601-03_setup.exe then click “Next” Hewlett-Packard MOWFFKUL a.2 – Select “I Agree” then Click “Next” a.3 – Select “Express” then click “Next” Hewlett-Packard MOWFFKUL a.4 – Click “Next” a.5 – Select “No. I do not....” Then click “Next” Hewlett-Packard MOWFFKUL a.6 – Click “Next” a.7 – Click “Close” Hewlett-Packard MOWFFKUL a.8 – Select “Public network” a.9 – WiFi radio is open and connected. b. Install Ozmo Software PAN b.1 – Double click on the InstallPAN.exe Hewlett-Packard MOWFFKUL b.2 – Click “Next” b.3 – Click “Next” b.4 – If this dialog show up, please click “Install” b.5 – If this dialog show up, please click “Install” Hewlett-Packard MOWFFKUL b.6 – Click “Finish” b.7 – Close this window c. Pairing with Wi-Fi mouse c.1 – Open the Wi-Fi Pairing Wizard by double click on the “WiFiPair.exe”. (note: if your system is Win7-64bit, please locate to the folder x64) Hewlett-Packard MOWFFKUL c.2 – Power on your Wi-Fi mouse and press the “Connect” button on the bottom of the mouse. Then click “Next” c.3 – Wait for the mouse be detected. Hewlett-Packard MOWFFKUL Hewlett-Packard MOWFFKUL c.4 – Select the mouse which you want to connect with. Then click “Next” c.5 – Pairing with mouse Hewlett-Packard MOWFFKUL c.6 – Pairing successfully c.7 – Found new “USB Input Device” and your Wi-Fi mouse is workable now. Wi-Fi Pair2011-1-12.rarWinDriver-1-5-46-1.zip Hewlett-Packard MOWFFKUL Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment, and the antenna of this device must be integral. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with US/Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Hewlett-Packard MOWFFKUL IC Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles) Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés …

Text truncated - open the document above for the full version.

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: February 16, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJMMOWFFKUL Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Date: February 16, 2011 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiality request regarding application for certification of FCC ID: EMJMMOWFFKUL Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until July 1, 2011 in order to ensure sensitive business information remains confidential until the actual marketing of the device. External Photos Test setup photos User’s Manual Internal Photos Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

No. 669, Ruey Kuang Road Neihu Taipei, Taiwan, R.O.C. Tel: 883-2-2798-9008 Fax: 886-2-8798-1565 Power of Attorney Date: February 16, 2011 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

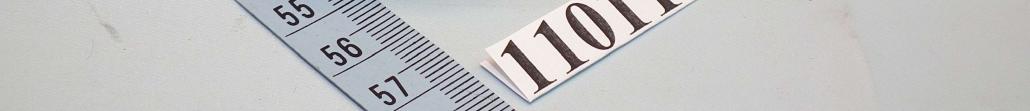

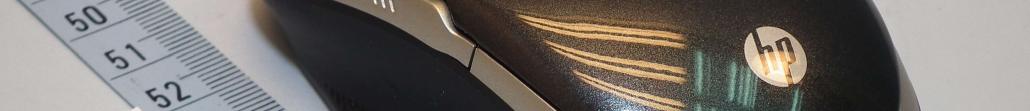

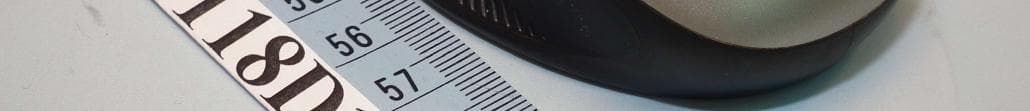

Page 1 CONSTRUCTION PHOTOS OF EUT

1234567 1234567 A B C D E A B C D E PRIMAX ELECTRONICS LTD. 致伸資訊電子有限公司 USED FINISH SCALE TITLE DWG NO . FILE NAMESHEET REV. SIZE A4 DR. CHKD. APPD. UNIT mm 1 1 1 DO NOT SCALE DRAWING THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PRIMAX ELECTRONICS LTD. AND SHALL NOT BE REPRODUCED COPIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF PRIMAX ELECTRONICS LTD. DIMENSIONS 0.00 TO 30.00mm +0.10mm 30.01 TO 80.00mm +0.13mm 80.01 TO 150.00mm +0.15mm 150.01 +0.20mm TOLERANCE MATERIAL REV. DESCRIPTION ENG. APPROVAL UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS ANGULAR TOLERANCE:+1.0 2. TOL:-0.2/0mm. 3.THE DIMENSIONS MARKED WITH''*'' ARE IMPORTANT. 4.GLUE : T=0.022~0.025mm. 2 5.STICKINESS: 3.0kg/cm. 6. NOTE: 20-AFK01H101 Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002 '' Green Product Chemical Substances Specification'' 2. Follow customer's specification as required. 80P合成紙+霧膜 BOTTOM LABEL 7. 304007825000 304007825000 Susan.Lee 2010/12/17 Ruby.Ai Ruby.Ai 3.Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required. P代表Primax 固定碼 YEAR(2010=0,2011=1....) WEEK(01,02,.....) 流水碼(0001~ZZZZ, 其中A,E,I,O,U不能使用),31進制 S/N: CN P Y WW XXXX 流水碼具體如下: 0001,0002,...0009,000B,000C,000D,000F,...000Z 0010,0011,.....0019,001B,001C,001D,001F...001Z 0020...009Z,00B0,00B1...00BB..00ZY,00ZZ,... 1000,1001,...1009,100B...100Z,1010,1011...9999, 999B,999C,....999Y,999Z,99B0,99B1...99ZZ...9ZZZ, B000......ZZZZ Month(January,February YEAR2010,2011... MMMM YYYY - - Manufacfured: 1.印刷: 黑底, 字體顏色:877C,字體為Futura Bk(安規和中文除外), 304007513100,30400751525X,30400751625X,30400751725X SN需一致 30400751310X與30400751300X,30400751301X,..... 3040075130XX這系列,S/N不能重復 1:1 廠商的UL代碼 *35.5 * 5 3 . 2 不固定碼 HP Product Number(產品號) : XA965AA Model No(型號) : MORFEZUL Rating(額定電壓/電流) : 3V 40mA CLASS 1 LASER PRODUCT FCC ID : EMJMMORFEZUL IC : 4251A-MMORFEZUL Product of China(中國製造) S/N : CNPYWWXXXX Manufactured : MMMMYYYY Site: P XX HP Wireless Laser Comfort Mouse HP 舒適型無線鐳射滑鼠 CCXXxxYYyyyZzW R33001 N279 당해 무선설비는 운용 중 전파혼선 가능성이 있음 HPK-MOWFFKUL Hewlett Packard Company 3000 Hanover Street, Palo Alto, CA 94304, U.S.A. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50,dated June 24,2007 Complies with IDA Standards DBXXXXXX TA-2010/XXXX XXXXX/POSTEL/2010 XXXX HP Product Number (產品型號) : LH571AA Model No.(型號) : MOWFFKUL Rating(額定電壓/電流) : 3V 100mA CLASS 1 LASER PRODUCT FCC ID : EMJMMOWFFKUL IC : 4251A-MMOWFFKUL CMIIT ID : XXYZZZZZ SCT : XXXXXXXXX-XXX ETA-XXX/2010/WRLO S/N : CNPYWWXXXX Manufactured : MMMMYYYY Site: P HP WiFi Mobile Mouse Hp高速無線直連行動滑鼠 XXXXXXXXXX OffOn *43.5 * 6 8 Hewlett Packard Company 3000 Hanover Street, Polo Alto, CA94304, U.S.A XX N N E C O T C

LABEL LOCATION Label

Page 2 Page 3 Page 4

Report No: SA110118D14 1 Report Format Version 4.0.0 RF EXPOSURE REPORT REPORT NO.: SA110118D14 MODEL NO.: MOWFFKUL FCC ID: EMJMMOWFFKUL ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : PRIMAX ELECTRONICS LTD. ADDRESS : No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan Report No: SA110118D14 2 Report Format Version 4.0.0 Conclusion No Evaluation Required if power is below this threshold: 2.4GHz F(GHz) mW Low 2412 High 2462 24.62 5.15GHz F(GHz) mW Low 5180 High 5240 11.52 5.7GHz F(GHz) mW Low 5745 High 5805 10.39 Maximum measured transmitter power: 2.4GHz Pout (dBm) Pout (mW) Conducted Power 7.7 5.9 EIRP Power 8.3 6.8 *Note: The antenna is printed antenna with 0.55dBi gain Threshold for no SAR evaluation is 24.62mW Transmitter power is 6.8mW 5.15GHz Pout (dBm) Pout (mW) Conducted Power 5.7 3.7 EIRP Power 7.0 5.0 *Note: The antenna is printed antenna with 1.30dBi gain Threshold for no SAR evaluation is 11.52mW Transmitter power is 5.0mW 5.7GHz Pout (dBm) Pout (mW) Conducted Power 4.2 2.6 EIRP Power 6.7 4.7 *Note: The antenna is printed antenna with 2.48dBi gain Threshold for no SAR evaluation is 10.39mW Transmitter power is 4.7mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold ---END---

Report No.: RF110118D14 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110118D14 MODEL NO.: MOWFFKUL FCC ID: EMJMMOWFFKUL RECEIVED: Jan. 13, 2011 TESTED: Jan. 13 ~ 28, 2011 ISSUED: Feb. 16, 2011 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110118D14 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.................................................................................5 1. CERTIFICATION..............................................................................................6 2. SUMMARY OF TEST RESULTS......................................................................7 2.1 MEASUREMENT UNCERTAINTY...................................................................7 3. GENERAL INFORMATION..............................................................................8 3.1 GENERAL DESCRIPTION OF EUT.................................................................8 3.2 DESCRIPTION OF TEST MODES.................................................................10 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST............................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS................................15 3.4 DESCRIPTION OF SUPPORT UNITS...........................................................15 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND).....................................16 4.1 CONDUCTED EMISSION MEASUREMENT.................................................16 4.2 RADIATED EMISSION MEASUREMENT......................................................16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT....................................16 4.2.2 TEST INSTRUMENTS...................................................................................17 4.2.3 TEST PROCEDURES....................................................................................18 4.2.4 DEVIATION FROM TEST STANDARD..........................................................18 4.2.5 TEST SETUP.................................................................................................19 4.2.6 EUT OPERATING CONDITIONS...................................................................19 4.2.7 TEST RESULTS.............................................................................................20 4.3 6dB BANDWIDTH MEASUREMENT.............................................................27 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...........................................27 4.3.2 TEST INSTRUMENTS...................................................................................27 4.3.3 TEST PROCEDURE......................................................................................27 4.3.4 DEVIATION FROM TEST STANDARD..........................................................27 4.3.5 TEST SETUP.................................................................................................28 4.3.6 EUT OPERATING CONDITIONS...................................................................28 4.3.7 TEST RESULTS.............................................................................................29 4.4 MAXIMUM OUTPUT POWER........................................................................31 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT.........................31 4.4.2 INSTRUMENTS.............................................................................................31 4.4.3 TEST PROCEDURES....................................................................................31 4.4.4 DEVIATION FROM TEST STANDARD..........................................................32 4.4.5 TEST SETUP.................................................................................................32 4.4.6 EUT OPERATING CONDITIONS...................................................................32 4.4.7 TEST RESULTS.............................................................................................33 Report No.: RF110118D14 3 Report Format Version 4.0.0 4.5 POWER SPECTRAL DENSITY MEASUREMENT.........................................34 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................34 4.5.2 TEST INSTRUMENTS...................................................................................34 4.5.3 TEST PROCEDURE......................................................................................34 4.5.4 DEVIATION FROM TEST STANDARD..........................................................35 4.5.5 TEST SETUP.................................................................................................35 4.5.6 EUT OPERATING CONDITION.....................................................................35 4.5.7 TEST RESULTS.............................................................................................36 4.6 BAND EDGES MEASUREMENT...................................................................38 4.6.1 LIMITS OF BAND EDGES MEASUREMENT................................................38 4.6.2 TEST INSTRUMENTS...................................................................................38 4.6.3 TEST PROCEDURE......................................................................................39 4.6.4 DEVIATION FROM TEST STANDARD..........................................................39 4.6.5 EUT OPERATING CONDITION...........…

Text truncated - open the document above for the full version.

Report No.: RF110118D14-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110118D14-1 MODEL NO.: MOWFFKUL FCC ID: EMJMMOWFFKUL RECEIVED: Jan. 13, 2011 TESTED: Jan. 13 ~ 28, 2011 ISSUED: Feb. 16, 2011 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 42 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110118D14-1 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.................................................................................4 1. CERTIFICATION............................................................................................5 2. SUMMARY OF TEST RESULTS....................................................................6 2.1 MEASUREMENT UNCERTAINTY..................................................................6 3. GENERAL INFORMATION.............................................................................7 3.1 GENERAL DESCRIPTION OF EUT...............................................................7 3.2 DESCRIPTION OF TEST MODES.................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST............................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...............10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..............................12 3.4 DESCRIPTION OF SUPPORT UNITS.........................................................12 4. TEST TYPES AND RESULTS......................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT...............................................13 4.2 RADIATED EMISSION MEASUREMENT....................................................13 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..................................13 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS13 4.2.3 TEST INSTRUMENTS.................................................................................14 4.2.4 TEST PROCEDURES..................................................................................15 4.2.5 DEVIATION FROM TEST STANDARD........................................................15 4.2.6 TEST SETUP...............................................................................................16 4.2.7 EUT OPERATING CONDITION...................................................................16 4.2.8 TEST RESULTS...........................................................................................17 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT.................21 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT21 4.3.2 TEST INSTRUMENTS.................................................................................21 4.3.3 TEST PROCEDURE....................................................................................22 4.3.4 DEVIATION FROM TEST STANDARD........................................................22 4.3.5 TEST SETUP...............................................................................................22 4.3.6 EUT OPERATING CONDITIONS.................................................................22 4.3.7 TEST RESULTS...........................................................................................23 4.4 PEAK POWER EXCURSION MEASUREMENT..........................................24 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT........................24 4.4.2 TEST INSTRUMENTS.................................................................................24 4.4.3 TEST PROCEDURE....................................................................................24 4.4.4 DEVIATION FROM TEST STANDARD........................................................25 4.4.5 TEST SETUP...............................................................................................25 4.4.6 EUT OPERATING CONDITIONS.................................................................25 4.4.7 TEST RESULTS...........................................................................................26 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT............................28 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT..........28 4.5.2 TEST INSTRUMENTS.................................................................................28 4.5.3 TEST PROCEDURES..................................................................................28 4.5.4 DEVIATION FROM TEST STANDARD........................................................29 4.5.5 TEST SETUP...............................................................................................29 Report No.: RF110118D14-1 3 Report Format Version 4.0.0 4.5.6 EUT OPERATING CONDITIONS.................................................................29 4.5.7 TEST RESULTS...........................................................................................30 4.6 FREQUENCY STABILITY............................................................................31 4.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT.............................31 4.6.2 TEST INSTRUMENTS.................................................................................31 4.6.3 TEST PROCEDURE....................................................................................31 4.6.4 DEVIATION FROM TEST STANDARD........................................................32 4.6.5 TEST SETUP...............................................................................................32 4.6.6 EUT OP…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
