EMJRO07UOWireless Mouse

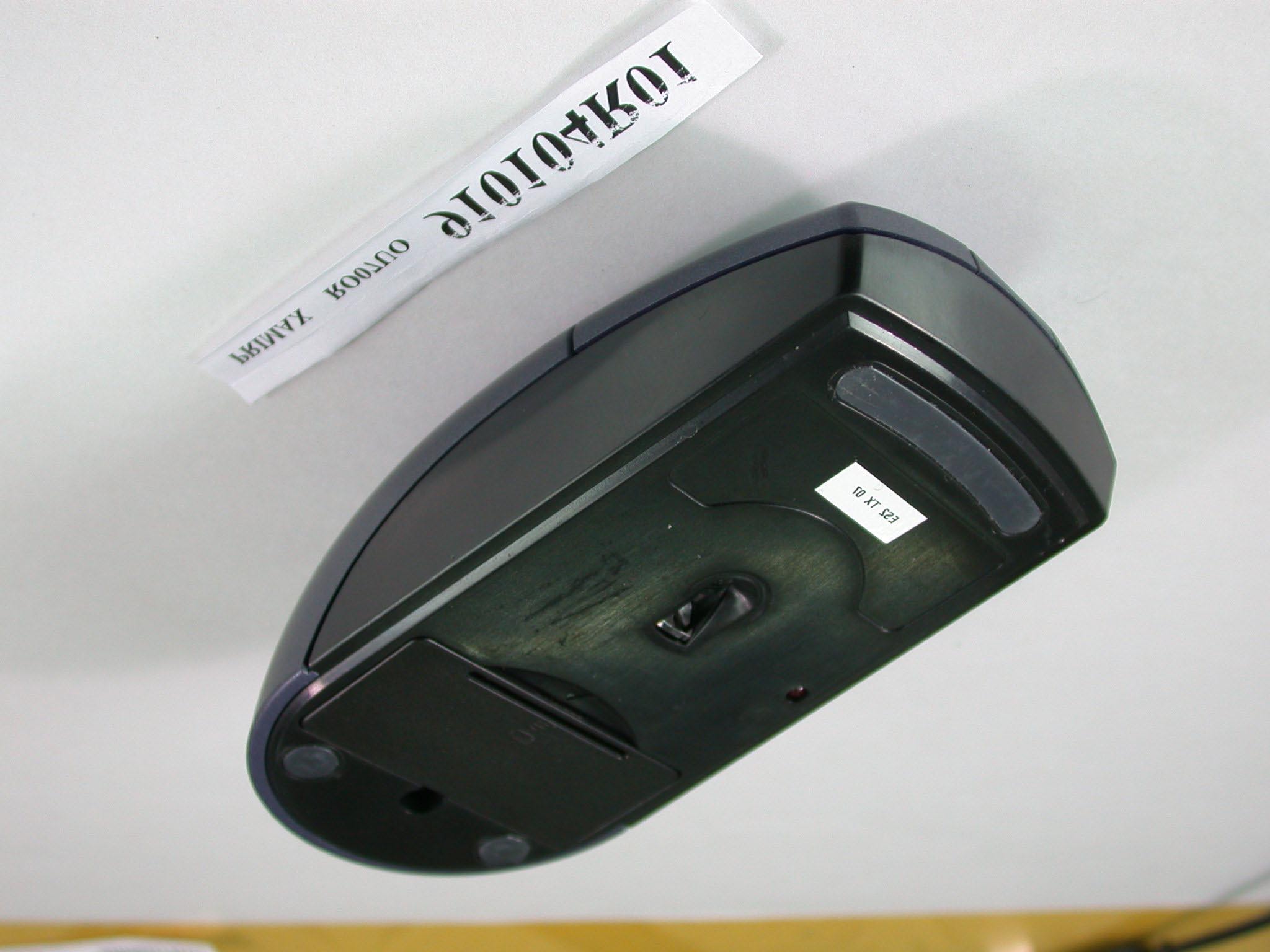

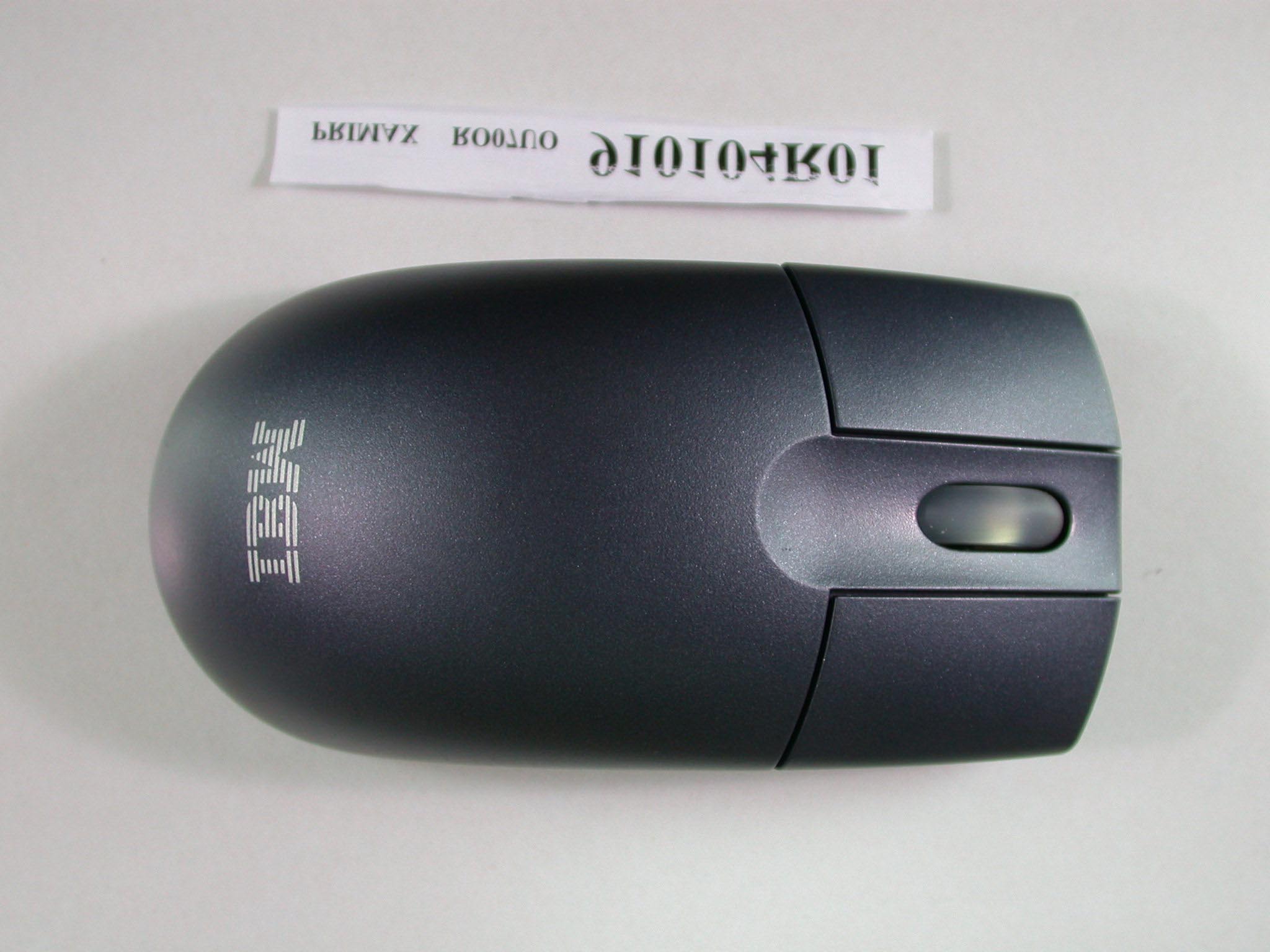

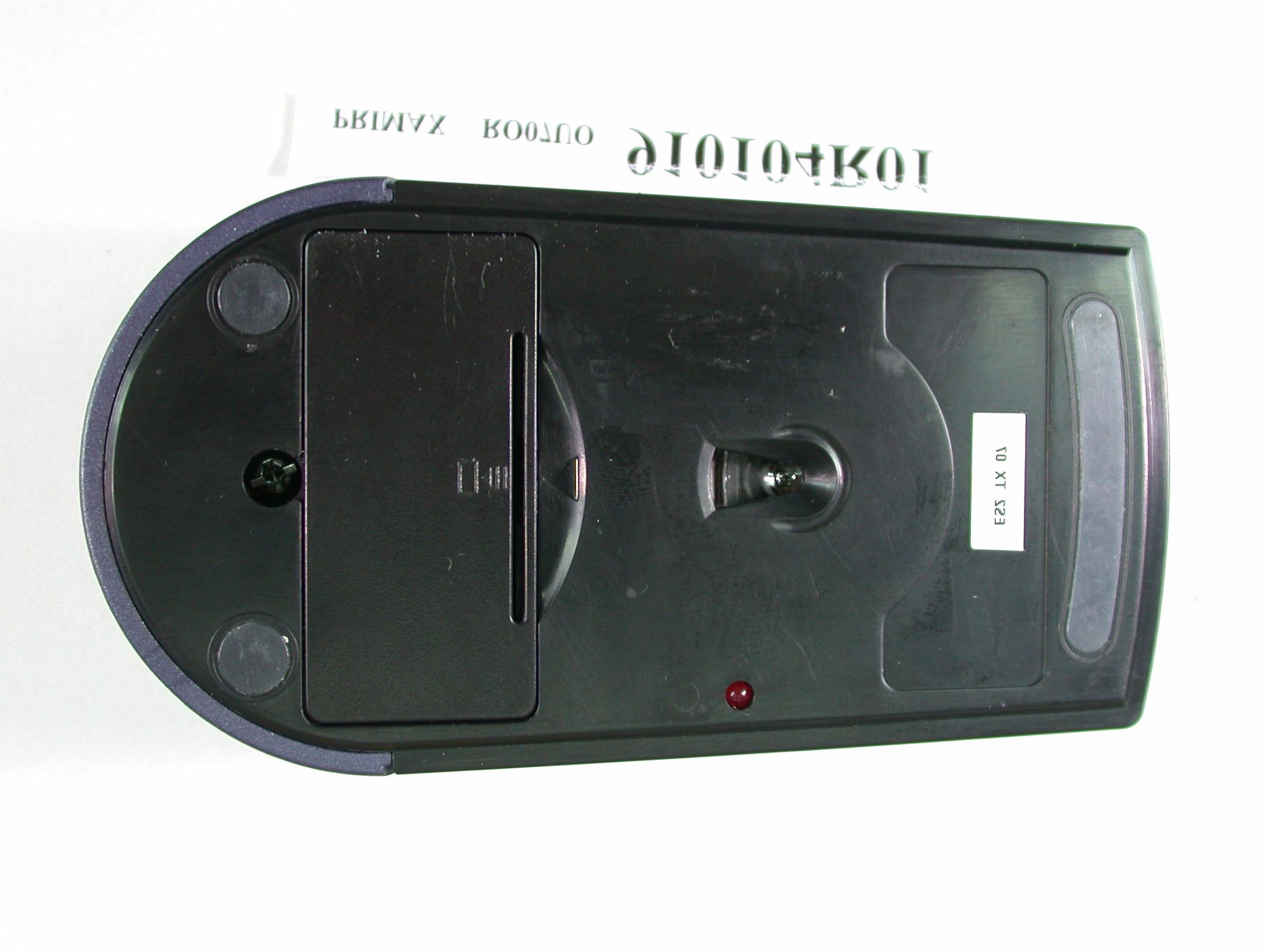

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

Page 5 Page 6 Page 7

FCC ID: EMJRO07UO ADT No.910104R01 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Printed Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: EMJRO07UO Report No.: RF910104R01 1 Issued: Jan. 11, 2002 FCC TEST REPORT REPORT NO.: RF910104R01 MODEL NO.: RO07UO RECEIVED: January 4, 2002 TESTED: January 8, 2002 APPLICANT:PRIMAX ELECTRONICS LTD. ADDRESS: 6F, No. 159, Kang Ning Street Hsi Chih Twon, Taipei Hsien, Taiwan, R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: EMJRO07UO Report No.: RF910104R01 2 Issued: Jan. 11, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT ................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 TEST SETUP.................................................................................................10 4.2.5 EUT OPERATING CONDITION.....................................................................10 4.2.6 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES ..................................14 FCC ID: EMJRO07UO Report No.: RF910104R01 3 Issued: Jan. 11, 2002 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : PRIMAX MODEL NO : RO07UO APPLICANT : PRIMAX ELECTRONICS LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Jan. 8, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: EMJRO07UO Report No.: RF910104R01 4 Issued: Jan. 11, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.107Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –-9.80dBuV at 120.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: EMJRO07UO Report No.: RF910104R01 5 Issued: Jan. 11, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO.RO07UO POWER SUPPLY3VDC from battery MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz BANDWIDTH OF EACH CHANNEL 10KHz NUMBER OF CHANNEL1 ANTENNA TYPELoop antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: EMJRO07UO Report No.: RF910104R01 6 Issued: Jan. 11, 2002 3.2 DESCRIPTION OF TEST MODES One channel was provided in this EUT. ChannelFrequencyChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NO.PRODUCTBRANDMODEL NO.SERIAL NO.FCC ID 1PERSONAL COMPUTER HPBrio BA410SG12902766FCC DoC APPROVED 219" COLOR MONITOR HPD2842AKR93473168BEJCB910 3PRINTERHP2225C+3123S97230DSI6XU2225 4MODEMACEEX1414980020510IFAXDM1414 5PS/2 KEYBOARDFORWARDFDA-104GA FDKB8110111F4ZDA-104G NO.SIGNAL CABLE DESCRIPTION OF THE ABOVE SUPPORT UNITS 1NA 21.8 m braid shielded wire, terminated with VGA connector via metallic frame, w/o core. 31.2m braid shielded wire, terminated with DB25 and Centronics connector via metallic frame, w/o core. 41.2 m braid shielded wire, terminated with DB25 and DB9 connector via metallic frame, w/o core. 51.5 m foil shielded wire, terminated with PS/2 connector via metallic frame, w/o core. NOTE: All power cords of the above support units are non shielded (1.8m). FCC ID: EMJRO07UO Report No.: RF910104R01 7 Issued: Jan. 1…

Text truncated - open the document above for the full version.

FCC ID: EMJRO07UO Report No.: RF910104R01 13 Issued: Jan. 11, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
