EMJTA1601PEN TABLET

ContentsIntroduction ................................... 2Safety Precautions ....................... 31 Unpacking Your Bamboo .......... 8 Check Package Contents .................... 8 Part names and functions .................... 9 Connecting to the PC ........................ 10 2 Installing tablet drivers ............ 113 How to Use your Bamboo ...... 13 Using the pen .................................... 13 The active area .................................. 15 Basic pen operations ......................... 16 Using ExpressKeys and the Touch Ring ..... 23 4 Customizing tablet and pen functions ... 25 Opening the control panel ................. 25 Customizing functions ....................... 26 Opening the online manual ................ 28 5 Caring for your tablet .............. 29 Care ................................................... 29 Replacing the pen nib ........................ 30 6 Support ................................... 31 Contents wacom_APModel_Eng_new.indd 2-Sec1:1wacom_APModel_Eng_new.indd 2-Sec1:1 07.1.26 4:53:48 PM07.1.26 4:53:48 PM IntroductionThank you for purchasing Bamboo. This pen tablet allows you to write and draw on a compu-ter screen much as you would on a piece of paper. The Bamboo’s pressure-sensitivity also allows you to vary line width and color depth making it an effective tool for handwriting and drawing. Be sure to read through this manual carefully to familiarize yourself with the Bamboo’s functions. Further information on customizing this pen tablet can be found on the driver CD. Trademarks• Wacom, the Wacom logo and Bamboo are trademarks or registered trademarks of Wacom Company, Limited. • Windows is a registered trademark of Microsoft Corporation in the United States and other countries. • Macintosh is a registered trademark of Apple Computer in the United States. • Other product names are trademarks or registered trademarks of their respective companies. Note• The copyright of the tablet drivers belongs to Wacom Company, Limited. • Copying the tablet driver software and this manual either wholly or in part without prior permission is prohibited. • The specifi cations of the tablet driver software and the tablet as well as the content of this manual are subject to change without prior notice. • Operations and the screens that appear may differ with the operating system and PC setup. Safety PrecautionsThis manual uses the following symbols to ensure that Bamboo (“this product” below) is used correctly. Be sure to read and observe the Safety Precautions.[Symbol description] WARNING This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor injury or property damage. [Meaning of Symbols] Indicates a safety alert. Indicates a prohibition. Indicates a mandatory action. Introduction Safety Precautions wacom_APModel_Eng_new.indd Sec1:2-Sec1:3wacom_APModel_Eng_new.indd Sec1:2-Sec1:3 07.1.29 0:32:52 PM07.1.29 0:32:52 PM CAUTION Do not place heavy objects on top of this product. Do not step or place heavy objects on this product as this could damage it. Avoid high or low-temperature locations for storage. Do not store this product in a location where the temperature drops below 5°C or goes above 40°C and in locations subject to excessive temperature fl uctuations. Failure to heed this cau- tion could result in damage to the product and its components. Do not disassembleDo not disassemble or modify this product as this could expose you to heat, fi re, electric shock and injury. Disassem- bling the product will also void your warranty. Do not use alcohol for cleaning. Never use alcohol, thinner, benzine or other mineral solvents as they could discolor or cause deterioration to the product.Do not expose to waterDo not place glasses or vases filled with water or other liquids near this product. Exposure to water or liquid could damage the product. WARNING Do not use this product in a control system that requires a high degree of safety and reliability. In such a system, this product could negatively affect other electronic devices and could malfunction due to the effect of these devices.Turn the power off in areas where use of electronic devices is prohibited. Onboard an aircraft or in any other location where use of electronic devices is prohibited, this product, if left on, could negatively affect other electronic devices. Unplug the USB connector from this product and turn the power off. Do not use this product in a location frequented by small children. Make sure that a child does not put the pen or pen tip in his/her mouth. The pen tip or side switch cover could be de-tached and be accidentally swallowed. CAUTION Do not place this product on an unstable surface. Placing this product on an unstable or tilted surface or in a location exposed to excessive vibrations could cause it to fall off resulting in injury. Safety Precautions Safety Precautions thinner benzine w a c o m _ A P M o d e l _ E n g _ n e w . i n d d 4 - 5 wacom_APModel_Eng_new.indd 4-5 0 7 . 1 . 2 4 6 : 3 2 : 1 0 P M 07.1.24 6:32:10 PM Take the following precautions to maintain the health of your eyes. Use this product in a well-lit room and make sure you are seated at an adequate distance from your PC monitor. Take regular breaks during prolonged work periods. Limitation of Liability Wacom shall in no event be liable for damages resulting from fi res or earthquakes, those caused by third parties and those arising from user misuse, abuse or neglect. Wacom shall in no event be liable for incidental damages – including but not limited to loss of business income, interruption of business activities, corruption or loss of data – that arise out of the use or failure to use this product. Wacom shall in no event be liable for damages resulting from uses not documented in this manual. Wacom shall in no event be liable for damages fr…

Text truncated - open the document above for the full version.

Date: January 25, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: EMJTA1601 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

Power of Attorney Date: January 25, 2007 To whom it may concern: We, the undersigned PRIMAX ELECTRONICS LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- C.T. Huang Compliance Dept. / Director Phone: 886-2-2798-9008 ext.1710 Fax: 886-2-8797-1565 Email: [email protected]

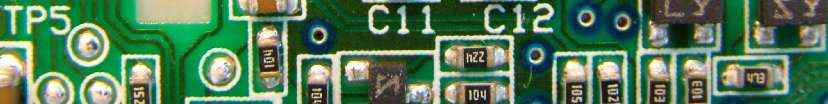

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

BARCODE LABEL 1234567 1234567 A B C D E A B C D E PRIMAX ELECTRONICS LTD. 致伸資訊電子有限公司 USED FINISH SCALE TITLE DWG NO . FILE NAMESHEET REV. SIZE A4 DR. CHKD. APPD. UNIT mm 1 1 1 DO NOT SCALE DRAWING THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PRIMAX ELECTRONICS LTD. AND SHALL NOT BE REPRODUCED COPIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF PRIMAX ELECTRONICS LTD. DIMENSIONS 0.00 TO 30.00mm +0.10mm 30.01 TO 80.00mm +0.13mm 80.01 TO 150.00mm +0.15mm 150.01 +0.20mm TOLERANCE MATERIAL REV. DESCRIPTION ENG. APPROVAL UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS ANGULAR TOLERANCE:+1.0 1.PRINT: WHITE WORDS ON BLACK BACKGROUND. 2. TOL:+/-0.5mm. 3.THE DIMENSIONS MARKED WITH''*'' ARE IMPORTANT. 4.GLUE : T=0.022~0.025mm. 2 5.STICKINESS: 3.0kg/cm. 6. NOTE: 304005068010 20-A1601W302 Heather Lee 2007/01/25 Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002 '' Green Product Chemical Substances Specification'' 2. Follow customer's specification as required. 80P合成紙+霧膜 Ruby Ai Connie huang 304005068010 *100.3mm . * 4 5 5 m m 6 K P 0 00001 Year (6=2006) Month(Jan=A,Feb=B.....NOV=K,Dec=L) Pramix Product segmentation(divison=0,pre production=p,engineer sample=s) 00001~99999 43mm 1 3 m m 注:廠商打印條碼時,需用里光C帶

FCC ID: EMJTA1601 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

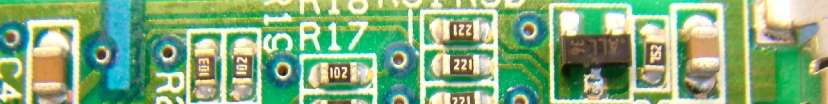

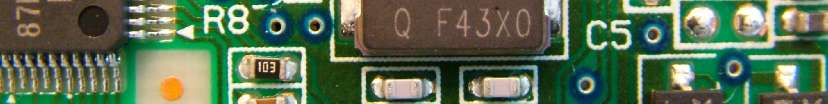

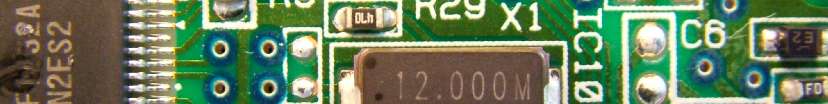

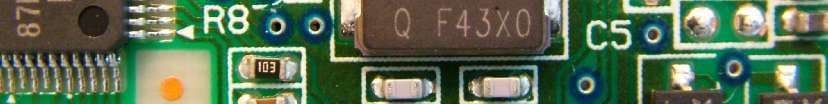

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: EMJTA1601 Report No.: RF960104A02 Operational Description The transmitter of the EUT (PEN TABLET) is powered by 5.0Vdc from equipment. The type of antenna is Integral antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference. The EUT is operates in 750KHz +/- 10 %. For more detailed instruction, please have a look at the user's manual.

Report No.: RF960104A02 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960104A02 MODEL NO.: MTE-450 RECEIVED: Jan. 4, 2007 TESTED: Jan. 11 ~ 12, 2007 ISSUED: Jan. 15, 2007 APPLICANT: PRIMAX ELECTRONICS LTD. ADDRESS: No. 669, Ruey Kuang Road, Neihu, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960104A02 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION...............................................................................................3 2 SUMMARY OF TEST RESULTS......................................................................4 2.1 MEASUREMENT UNCERTAINTY....................................................................4 3 GENERAL INFORMATION...............................................................................5 3.1 GENERAL DESCRIPTION OF EUT.................................................................5 3.1 DESCRIPTION OF TEST MODES...................................................................5 3.1.1 CONFIGURATION OF SYSTEM UNDER TEST..............................................5 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:..................6 3.2 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.3 DESCRIPTION OF SUPPORT UNITS.............................................................7 4 TEST PROCEDURE AND RESULT.................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT...................................................8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................8 4.1.2 TEST INSTRUMENTS......................................................................................8 4.1.3 TEST PROCEDURES.......................................................................................9 4.1.4 DEVIATION FROM TEST STANDARD............................................................9 4.1.5 TEST SETUP..................................................................................................10 4.1.6 EUT OPERATING CONDITIONS...................................................................10 4.1.7 TEST RESULTS..............................................................................................11 4.2 RADIATED EMISSION MEASUREMENT......................................................13 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................13 4.2.2 TEST INSTRUMENT......................................................................................14 4.2.3 TEST PROCEDURE.......................................................................................15 4.2.4 TEST SETUP..................................................................................................16 4.2.5 EUT OPERATING CONDITION......................................................................16 4.2.6 TEST RESULT................................................................................................17 5 INFORMATION ON THE TESTING LABORATORIES...................................20 APPENDIX-A............................................................................................................A-1 Report No.: RF960104A02 3 Report Format Version 2.0.5 1 CERTIFICATION PRODUCT: PEN TABLET BRAND NAME: N/A MODEL NO: MTE-450 APPLICANT: PRIMAX ELECTRONICS LTD. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Jan. 11 ~ 12, 2007 STANDARDS: FCC Part 15, Subpart C (Section 15.209), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 15, 2007 ( Annie Chang ) TECHNICAL ACCEPTANCE : , DATE: Jan. 15, 2007 Responsible for RF ( Jamison Chan ) APPROVED BY : , DATE: Jan. 15, 2007 ( Ken Liu / Deputy Manager ) Report No.: RF960104A02 4 Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPE RESULT REMARK 15.207 Conducted Emission Test PASS Minimum passing margin is –14.26dB at 0.186MHz 15.209 Radiated Emission Test PASS Minimum passing margin is –7.10dB at 865.87MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Uncertainty Conducted emissions 2.44 dB Radiated emissions 3.55 dB Report No.: RF960104A02 5 Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT PEN TABLET MODEL NO. MTE-450 FCC ID EMJTA1601 POWER SUPPLY 5.0Vdc from host equipment CARRIER FREQUENCY OF EACH CHANNEL 750KHz +/- 10 % NUMBER OF CHANNEL 1 ANTENNA TYPE Integral antenna DATA CABLE Shielded USB cable (1.0m) I/O PORTS USB port ASSOCIATED DEVICES N/A NOTE: 1. The EUT is the ideal tool to enhance your presentations and documents. A pen (Model: EP-150E) will be sold together with the EUT. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. 3.1 DES…
