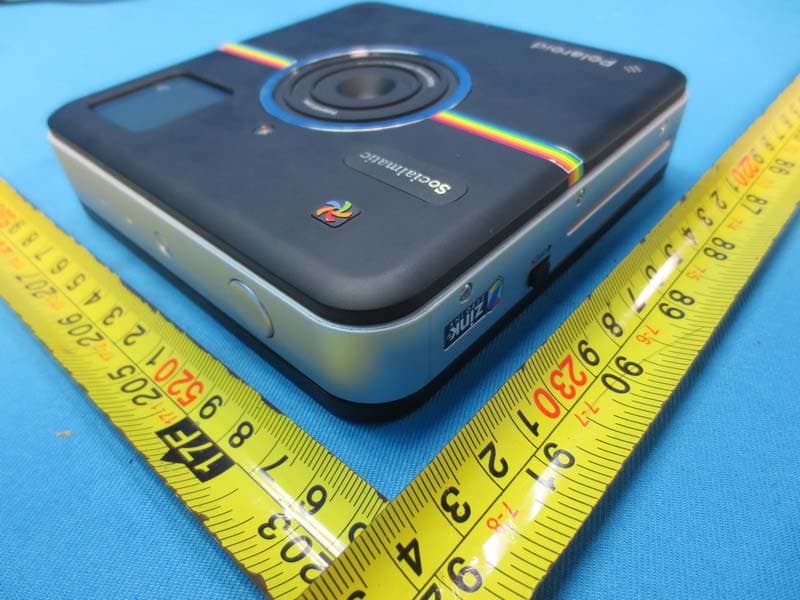

EMJTPOLSM01Polaroid Socialmatic

致用户： Dear users: 感谢您选购和使用本公司Android Camera产品！ Thank you for your purchase and use of the Android Camera products of our company! 为了使您正确使用和维护此设备，操作前敬请仔细阅读本使用说明书， 并妥善保管，以备查询。 In order to make you correct use and maintenance of the device, please read the instruction manual carefully before operation, and safekeeping, in case of query. 产品设计和规格如有变更，恕不另行通知。此包括主要的产品规格、软 体、软体驱动程式和使用手册。本使用手册仅为使用本产品的标准参考手册。 您实际购买相机所附赠的产品和配件可能与本使用手册所述的不同。零售商 通常会指定不同的产品配件，以配合不同市场的需求、客户族群及区域偏好。 产品会因零售商而异，特别像是充电器、记忆卡、传输线、皮套和语言支援 等配件。通常零售商会指定专属的产品色彩、外观设计和内部记忆体容量。 请洽询当地零售商，以取得正确的产品和附赠配件等信息。 本手册中的插图仅供说明之用，可能和您的相机有所不同。 制造商对于本使用手册中的任何错误或矛盾之处不担负任何责任。 Products of our company is committed to continuously improve products, some of the structure and the individual parameter changes will not prior notice. This includes the specifications, software, software drivers and user manual. This manual is only the standard reference manual. Your products and accessories may be different with mentioned in this manual. Our retail agencies will usually specify different products accessories, to meet the needs of the different markets, customer groups and regional preferences. Products will be varied from retailers, particularly like a charger, memory card, transmission line, holster, and language support. Retailers usually specify the exclusive product color, appearance design and internal memory capacity. Please inquire the local retailers, in order to obtain the right product and with accessories such as information. The illustrations of this manual is only for show, may is different from your camera. Manufacturer does not assume any error or discrepancy in this manual. 本说明书中标有“注意：”的语句，涉及到操作安全，敬请注意！ In the manual marked "note" statement, involves the safe operation, please attention! 本公司致力于产品的不断完善，产品的某些局部结构和个别参数更改时恕不 另行通知，如有疑问，请与本公司联系！ Products of our company is committed to continuously improve products, some of the structure and the individual parameter changes will not prior notice, if there are any questions, please contact with us! 1 SUMMARIZE....................................................................................................... 2 1.1 PURPOSE.......................................................................................................... 2 1.2 MODEL NUMBER........................................................................................... 2 1.3ENVIRONMENTTAL CONDITIONS.............................................................. 2 1.4TECHNICALCHARACTERISTICS................................................................. 3 2 TECHNICAL PARAMETERS............................................................................ 4 2.1 HARDWARE SPECIFICATIONS.................................................................... 4 3 FUNCTION SPECIFICATION............................................................................ 2 3.1 OUTLOOK DESCRIPTION............................................................................. 2 3.2 POWER BUTTON USAGE........................................................................... 6 3.3TOUCH-SCREEN NAVIGATION.................................................................... 6 3.4 U-DISK........................................................................................................... 6 3.5 USING MICRO-SD CARD........................................................................... 6 3.6 GETTING STARTED....................................................................................... 7 3.7 DESKTOP.......................................................................................................... 8 3.8 SCREEN LOCK................................................................................................ 9 3.9 PRE-LOADED APPLICATIONS..................................................................... 9 3.10 STATUS ANNOTIFICATION AREA......................................................... 10 3.11APPLICATION MANAGEMENT................................................................ 10 3.12 CLOCK.......................................................................................................... 11 3.13 BROWSER.................................................................................................... 12 3.14 CALENDAR.................................................................................................. 13 3.15 CAMERA...................................................................................................... 13 3.16 PHOTO TAKING BUTTON......................................................................... 14 3.17 CALCULATOR............................................................................................. 15 3.18 MYRECORDER............................................................................................ 15 3.19 EMAIL........................................................................................................... 15 3.20 FILE BROWSER........................................................................................... 17 3.21 GALLERY..................................................................................................... 19 3.22 SCREEN CAPTURE..................................................................................... 20 3.23 WI-FI.............................................................................................................. 21 3.24 GPS................................................................................................................ 21 3.25 SETTING....................................................................................................... 21 3.26 PRINT PHOTO.............................................................................................. 23 3.27 RESET................................................................................. 24 FREQUENTLY ASKED QUESTIONS................................................................ 25 1 BATTERY MANAGEMEN.....................................................…

Text truncated - open the document above for the full version.

Author Rules. the cri Part 15 Equi p Mode Bran d Applic Addre Stand Repo r The te was(w accred techni sampl rized under . The produ iteria limits 5, Subpart pment P l Name P d Name P cant P ess N dard(s) F A rt(s) B est data, da were) obtain dited by the ical standar e and item( CER r Declaratio uct listed in Class B o f B, establish Polaroid So POLSM01 Polaroid Primax Elec No. 669, Ru CC Part 1 5 ANSI C63.4- BTL-FCCE-1 ata evaluatio ned utilizin e Authority rd(s). The te (s) tested. RTIFI on of Confor follows wa f conducted hed by the F ocialmatic ctronics Ltd ey Kuang R 5, Subpart -2009 1-1409C142 on, and equ g the test of TAF ac c est data co Au B1, No. 37 Nei-Hu Dis TE FA ICAT rmity accor s (were) tes d and radia FCC, USA. d. Road, Neih B: 2013 2 uipment co procedur e cording to th ntained in t Andy C uthorized S BTL IN 7, Lane 365 strict, Taipei EL:+886-2-2 AX:+886-2-2 E OF rding to 47 sted in the ated emissio hu 114, Taip nfiguration es, test ins he ISO-170 the referenc Chiu Signatory NC. , Yang-Gua i City 114, T 2657-3299 2657-3331 COM CFR, Part BTL EMC ons of the T pei, Taiwan contained i struments, 025 quality ced test rep ang St., Taiwan. MPLIA 2 and Part Laboratory Technical S n. R.O.C. in our test r test sites assessme n port relate o ANCE 15 of the F to comply Standards F report(s) ab that has b nt standard only to the E E FCC with FCC bove been and EUT

Project No.: 1409C142 Page 2 of 14 Project No.: 1409C142 Page 3 of 14 Project No.: 1409C142 Page 4 of 14 Project No.: 1409C142 Page 5 of 14 Project No.: 1409C142 Page 13 of 14 Project No.: 1409C142 Page 14 of 14

15.00mm 40.00mm E134780 I.T.E Label location

Project No.: 1409C142 Page 6 of 14 Project No.: 1409C142 Page 7 of 14 Project No.: 1409C142 Page 8 of 14 Project No.: 1409C142 Page 9 of 14 Project No.: 1409C142 Page 10 of 14 Project No.: 1409C142 Page 11 of 14 Project No.: 1409C142 Page 12 of 14

Report No.: BTL-FCC-SAR-1409C142 Page 1 of 63 FCC SAR Test Report FCC ID: EMJTPOLSM01 Project No. : 1409C142 Equipment : Polaroid Socialmatic Model Name : POLSM01 Applicant : Primax Electronics Ltd. Address : No. 669, Ruey Kuang Road, Neihu 114, Taipei, Taiwan. R.O.C. Date of Receipt : Sep. 17, 2014 Date of Test : Oct. 07, 2014~ Oct. 13, 2014 Issued Date : Oct. 14, 2014 Tested by : BTL Inc. Testing Engineer : ( Super Jiang) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCC-SAR-1409C142 Page 2 of 63 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML), or National Institute of Standards and Technology (NIST) . BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL -self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCC-SAR-1409C142 Page 3 of 63 Table of Contents Page 1 . GENERAL SUMMARY 6 2 . RF EMISSIONS MEASUREMENT 7 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 THE MAXIMUM SAR 1G VALUES 10 3.3 LABORATORY ENVIRONMENT 10 3.4 MAIN TEST INSTRUMENTS 11 4 . SAR MEASUREMENTS SYSTEM CONFIGURATION 12 4.1 SAR MEASUREMENT SET-UP 12 4.2 DASY5 E-FIELD PROBE SYSTEM 13 5 . TISSUE-EQUIVALENT LIQUID 20 5.1 TISSUE-EQUIVALENT LIQUID INGREDIENTS 20 5.2 TISSUE-EQUIVALENT LIQUID PROPERTIES 20 6 . SYSTEM CHECK 21 6.1 DESCRIPTION OF SYSTEM CHECK 21 6.2 DESCRIPTION OF SYSTEM CHECK 22 7 . OPERATIONAL CONDITIONS DURING TEST 23 7.1 GENERAL DESCRIPTION OF TEST PROCEDURES 23 7.2 TEST POSITION 23 7.2.2 SAR TEST REDUCTION AND EXCLUSION GUIDANCE 23 8 . TEST RESULT 26 8.1 CONDUCTED POWER RESULTS 26 8.2 SAR TEST RESULTS 28 8.2.1 WIFI 28 8.3 SIMULTANEOUS TRANSMISSION CONDITIONS 28 APPENDIX 29 1. TEST LAYOUT 29 2. SYSTEM CHECK RESULTS 30 3. GRAPH RESULTS 31 Report No.: BTL-FCC-SAR-1409C142 Page 4 of 63 Table of Contents Page 4. PROBE CALIBRATION CERTIFICATE 37 5. D2450V2 DIPOLE CALIBRATION CERTIFICATE 48 6. DAE4 CALIBRATION CERTIFICATE 56 7. EUT TESTING POSITION AND ANTENNA LOCATION 61 Report No.: BTL-FCC-SAR-1409C142 Page 5 of 63 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCC-SAR-1409C142 Original Issue. Oct. 14, 2014 Report No.: BTL-FCC-SAR-1409C142 Page 6 of 63 1. GENERAL SUMMARY Equipment Polaroid Socialmatic Model Name POLSM01 Brand Name Polaroid Model Difference N/A Manufacturer Primax Electronics Ltd. Address No. 669, Ruey Kuang Road, Neihu 114, Taipei, Taiwan. R.O.C. Factory Dongguan Primax Electronic & Telecommunication Products Ltd. Address Liu Wu District, Shek Kit Town, Dongguan City, Guang Dong Province, P.R. China Standard(s) FCC 47CFR §2.1093 Radio frequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1999 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1999) KDB 941225 D07 UMPC Mini Tablet Devices v01:SAR Evaluation Procedures for UMPC Mini-Tablet Devices KDB 248227 D01 v01r02 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. KDB 865664 D01 SAR measurement 100 MHz to 6GHz v01r03: SAR Measurement Requirements for 100MHz to 6GHz The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCC-SAR-1409C142) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCC-SAR-1409C142 Page 7 of 63 2. RF EMISSIONS MEASUREMENT 2.1 TEST FACILITY The test facilities used to collect the test data in this report is SAR room at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 2.2 MEASUREMENT UNCERTAINTY Uncertainty Conponent Uncertainty Value Probability Distribution Divisor C i (1g) Standard Uncertainty ±1% V i or V eff Measurement System Probe Calibration (k=1) 5.9 Normal 1 1 5.9 ∞ Axial Isotropy 4.7 Rectangular 3 5.0 1.9 ∞ Hemispherical Isotropy 9.6 Rectangular 3 5.0 3.9 ∞ Boundary Effect 1.0 Rectangular 3 1 0.6 ∞ Linearity 4.7 Rectangular 3 1 2.7 ∞ System Detection Limit 1.0 Rectangular 3 1 0.6 ∞ Readout Electronics 0.3 Normal 1 1 0.3 ∞ Response Time 0.8 Rectangular 3 1 0.5 ∞ Integration Time 2.6 Rectangular 3 1 1.5 ∞ RF Ambient Conditions-Noise 3.0 Rectangular 3 1 1.7 ∞ RF Ambient Reflections 3.0 Rectangular 3 1 1.7 ∞ Probe Positioner Mechanical Tolerance 0.4 Rec…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1409C142 Page 1 of 128 FCC Radio Test Report FCC ID: EMJTPOLSM01 This report concerns (check one): Original Grant Class II Change Project No. : 1409C142 Equipment : Polaroid Socialmatic Model Name : POLSM01 Applicant : Primax Electronics Ltd. Address : No. 669, Ruey Kuang Road, Neihu 114, Taipei, Taiwan. R.O.C. Date of Receipt : Sep. 19, 2014 Date of Test : Sep. 19, 2014~Oct. 06, 2014 Issued Date : Oct. 07, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-2-1409C142 Page 2 of 128 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. Thi s report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s )/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-2-1409C142 Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-2-1409C142 Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 101 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 103 ATTACHMENT H - POWER SPECTRAL DENSITY 120 Report No.: BTL-FCCP-2-1409C142 Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-2-1409C142 Original Issue. Oct. 07, 2014 Report No.: BTL-FCCP-2-1409C142 Page 6 of 128 1. CERTIFICATION Equipment : Polaroid Socialmatic Brand Name : Polaroid Model Name : POLSM01 Applicant : Primax Electronics Ltd. Manufacturer : Primax Electronics Ltd. Address : No. 669, Ruey Kuang Road, Neihu 114, Taipei, Taiwan. R.O.C. Factory : Dongguan Primax Electronic & Telecommunication Products Ltd. Address : Liu Wu District, Shek Kit Town, Dongguan City, Guang Dong Province, P.R. China Date of Test : Sep. 19, 2014~Oct. 06, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-2-1409C142) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-2-1409C142 Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section Test Item Judgment Re…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1409C142 Page 66 of 128 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 67 of 128 Orthogonal Axis : X Test Mode : TX G MODE 2462MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 68 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 69 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 70 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 71 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2412MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 72 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 73 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 74 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 75 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2437MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 76 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 77 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 78 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 79 of 128 Orthogonal Axis : X Test Mode : TX N-20M MODE 2462MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 80 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 81 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 82 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 83 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 84 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 85 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 86 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 87 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 88 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 89 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-2-1409C142 Page 90 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 91 of 128 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-2-1409C142 Page 92 of 128 ATTACHMENT E - BANDWIDTH Report No.: BTL-FCCP-2-1409C142 Page 93 of 128 Test Mode : TX B Mode_CH01/06/11 6dB Bandwidth99% Occupied BWMin. Limit (MHz)(MHz)(kHz) 24129.6813.68500Complies 24379.6012.56 500Complies 24629.1212.32 500Complies Test Result Frequency (MHz) TX CH01 Report No.: BTL-FCCP-2-1409C142 Page 94 of 128 TX CH06 TX CH11 Report No.: BTL-FCCP-2-1409C142 Page 95 of 128 Test Mode: TX G Mode_CH01/06/11 6dB Bandwidth99% Occupied BWMin. Limit (MHz)(MHz)(kHz) 241216.6016.52500Complies 243716.4016.44 500Complies 246216.6016.48 500Complies Frequency (MHz) Test Result TX CH01 Report No.: BTL-FCCP-2-1409C142 Page 96 of 128 TX CH06 TX CH11 Report No.: BTL-FCCP-2-1409C142 Page 97 of 128 Test Mode : TX N-20MHz Mode_CH01/06/11 6dB Bandwidth99% Occupied BWMin. Limit (MHz)(MHz)(kHz) 241217.8017.68500Complies 243717.8017.68 500Complies 246217.8317.68 500Complies Frequency (MHz) Test Result TX CH01 Report No.: BTL-FCCP-2-1409C142 Page 98 of 128 TX CH06 TX CH11 Report No.: BTL-FCCP-2-1409C142 Page 99 of 128 Test Mode : TX N-40MHz Mode_CH03/06/09 6dB Bandwidth99% Occupied BWMin. Limit (MHz)(MHz)(kHz) 242235.8435.84500Complies 243736.4836.08 500Complies 245235.2835.92 500Complies Frequency (MHz) Test Result TX CH03 Report No.: BTL-FCCP-2-1409C142 Page 100 of 128 TX CH06 TX CH09 Report No.: BTL-FCCP-2-1409C142 Page 101 of 128 ATTACHMENT F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-1409C142 Page 102 of 128 Test Mode :TX B Mode_CH01/06/11 241223.370.2230.001.00Complies 243719.670.0930.001.00Complies 246219.070.0830.001.00Complies Max. Limit (W) Frequency (MHz) Conducted Power (dBm) Conducted Power (W) Max. Limit (dBm) Result Test Mode :TX G Mode_CH01/06/11 241218.260.0730.001.00Complies 243723.500.2230.001.00Complies 246218.200.0730.001.00Complies Conducted Power (dBm) Conducted Power (W) Max. Limit (dBm) Max. Limit (W) Result Frequency (MHz) Test Mode :TX N20 Mode_CH01/06/11 241216.730.0530.001.00Complies 243721.110.1330.001.00Complies 246217.620.0630.001.00Complies Conducted Power (W) Max. Limit (dBm) Max. Limit (W) Result Frequency (MHz) Conducted Power (dBm) Test Mode :TX N40 Mode_CH03/06/09 242215.820.0430.001.00Complies 243719.300.0930.001.00Complies 245216.840.0530.001.00Complies Frequency (MHz) Conducted Power (dBm) Conducted Power (W) Max. Limit (dBm) Max. Limit (W) Result Report No.: BTL-FCCP-2-1409C142 Page 103 of 128 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION Report No.: BTL-FCCP-2-1409C142 Page 104 of 128 Test Mode : TX B Mode Report No.: BTL-FCCP-2-1409C142 Page 105 of 128 TX B mode CH01 TX B mode CH11 Report No.: BTL-FCCP-2-1409C142 Page 106 of 128 TX B mode CH01 (10 Harmonic of the frequency) TX B mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-2-1409C142 Page 107 of 128 TX B mode CH11 (10 Harmonic of the frequency) Report No.: BTL-FCCP-2-1409C142 Page 108 of 128 Test Mode : TX G Mode Report No.: BTL-FCCP-2-1409C142 Page 109 of 128 TX G mode CH01 TX G mode CH11 Report No.: BTL-FCCP-2-1409C142 Page 110 of 128 TX G mode CH01 (10 Harmonic of the frequency) TX G mode CH06 (10 Harmonic of the f…

Text truncated - open the document above for the full version.

Report No.: BTL-FCC-SAR-1409C142 Page 61 of 63 7. EUT Testing Position and Antenna Location Test Position 1 Test Position 2 Report No.: BTL-FCC-SAR-1409C142 Page 62 of 63 Test Position 3 Test Position6

Report No.: BTL-FCCP-1-1409C142 Page 31 of 110 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1409C142 Page 32 of 110 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1409C142 Page 33 of 110 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1409C142 Page 34 of 110 Radiated Measurement Photos Above 1000MHz
