EMJTRFQS2QS2 CAR SPEAKERPHONE

Indicator Volume down Power/Send/End button Microphone Volume up Visor clip Charger connector QUICK SETUP GUIDE QS2 Car Speakerphone RF-QS2 Congratulations on your purchase of the RF-QS2 Bluetooth carkit. This carkit enables comfortable, hands-free communication with a Bluetooth-compatible phone. Package contents • RF-QS2 carkit • Car charger adapter • USB charging cable • Quick Setup Guide Features Charging the battery Before using your carkit, you must charge it for about two hours. When the battery is fully charged, it provides up to 11 hours of talk time and up to 1,400 hours of standby time. 1 USB charging: use the USB cable to plug your QS2 speakerphone into a computer or other USB power port. 2 Car charging: use the car charger adapter and USB charging cable to charge your QS2 speakerphone in your car. Turning the carkit on Press and hold the Power/Send/End for about 2 seconds. RF-QS2 beeps and the yellow-green indicator light starts blinking. (First time use requires pressing it for 4 seconds.) Turning the carkit off Press and hold the Power/Send/End for about 4 seconds, RF-QS2 beeps and the red indicator light is displayed briefly. Pairing the carkit 1 Make sure that the compatible phone is turned on and within 33 ft. (10 m) of the carkit. 2 Turn on the QS2 and make sure it’s fully charged. Press and hold the Power/Send/End button for about four seconds. The yellow-green indicator flashes rapidly. Release the button. The carkit is now in pairing mode. 3 Activate the Bluetooth connection from the phone. See your phone’s documentation for more information. 4 Set the phone to start searching for Bluetooth devices. 5 Select RF-QS2 from the list. 6 Enter the PIN 0000 to connect (or “pair”) the carkit to the phone. The carkit beeps once, and the indicator blinks yellow-green to indicate the Bluetooth connection is active. To... Do this... Make a call Press Power/Send/End. Redial Double-press Power/Send/End. Answer a call Press Power/Send/End. End a call Press Power/Send/End. Refuse a call Double-press Power/Send/End. Change the speaker Press the volume up button (+) to increase volume volume or press the volume down (-) button to decrease. Mute or unmute a call Press and hold the Volume down (-) button until a tone is heard. Switch a call between Press and hold Power/Send/End for the phone and the carkit two seconds. Voice dialing When no call is in progress, quickly press and release Power/Send/End. When you hear a tone, speak the number or voice tag for the number you want to call. (The phone must have a voice dial feature and have recorded voice tags.) Making a call Turning the indicator on or off • Press the power and volume up buttons at the same time for about four seconds. The indicator turns on. Press the power and volume down buttons at the same time for about four seconds. The indicator turns off. You can enable or disable the indicator when the carkit is connected with your phone. Disconnecting the carkit from the phone To disconnect the carkit from the phone, do one of the following: • Turn off the carkit. • Disconnect the RF-QS2 in the phone’s menu. • Move the carkit more than 33 ft. (10 m) away from the phone. Note: You do not need to delete the pairing to disconnect the carkit. When you reconnect a paired carkit, you will not be asked for its PIN again. If you want to pair your car kit with new phones, you don’t need to erase all paired device information. There can be up to 8 different paired devices information stored. To erase paired devices from your car kit: • When the carkit turned off, press and hold the Power/Send/End and volume up (+) buttons simultaneously for more than six seconds. A tone plays, and the indicator flashes red and yellow-green. The carkit then enters the pairing state automatically. Resetting the car kit • If the carkit doesn’t respond, press and hold the power button, then insert the charger into the QS2, then insert the other end into a wall outlet. Then, the carkit will turn off and reset immediately after the charger is connected. To connect the carkit with two phones at the same time: Option 1: 1 Turn the carkit on and put it into pairing mode. 2 Make a connection with the first phone. 3 Turn the carkit off, then back on again and put it into pairing mode.. 4 Make a connection with the second phone. 5 Turn the carkit off, then back on. The carkit will be connected to both phones automatically. Option 2: 1 Turn the carkit on and put it into pairing mode. 2 Make a connection with the first phone. 3 Turn the carkit off, then back on again and put it into pairing mode.. 4 Make a connection with the second phone. 5 Initiate a connection from the first phone. The carkit will be connected to both phones. Option 3: 1 Turn the carkit on and put it into pairing mode. 2 Try to find the carkit with both phones at the same time. 3 Initiate a connection with the first phone, then initiate a connection with the second phone. Both phones will be connected to the carkit. ENGLISH 10-0724 FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: EMJTRFQS2 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Canada IC-RSS210 statement IC: 4251A-CRFQS2 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. One-year limited warranty Visit www.rocketfishproducts.com for details. Contact Rocketfish: For customer service please call 1-800-620-2790. www.rocketfishproducts.com © 2010 BBY Solutions, Inc., All Rights Reserved. Distributed by B…

Text truncated - open the document above for the full version.

Primax Electronics Ltd 669 Ruey Kuang Road, Neihu } 14, Taipei, Taiwan Tel.: 88628797-17 I 0 Fax.: 88628797-1565 Date 20 I 0-8-I I Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: FCC ID: EMJTRFQS2 T o Whom It May Concern: (Primax Electronics Ltd.), certifies that neither the applicant nor any party to this application, as defined in 47 CFR eh. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 530 I of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). T his authorization is valid until further written no tice from (primax Electronics Ltd.) (The leue r o f Agency and letter of Anestation may be combined as one) Sincerely, C~r ) Hand signed signature (not electroni Company: Primax Electronics Ltd. Address: No. 669, Ruey Kuang Road, Nei u 114 Taipei, Taiwan. R.O.C.

Primax Electronics Ltd 669 Ruey Kuang Road, Neihu 114, Taipei, Taiwan Tel.: 88628797-1710 '. Fax.: 8862 87 97-1565 Confidentiality Letter Date: 2010-8 -31 ___ Subject Confidentiality Request for FCC 10: EMJTRFQS2 and Ie: 42S1A-CRFQS2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-IOO, Section 10, the applicant requests that a part ofthe subject FCCI1C a pplication be held confidentia l. Type of Confidentiality Requested E:xbibit Short T erm Permanent Block Diagrams Short Term Permanent Internal Photos Operation DescriptionfTheorv of Operation Short Term Permanent o S ho rt Term Permane nt Tune-Up Procedure o ShortTorm I ~Permanent Schematics User's Manual I LJ Short Tenn I L J Permanent ::--:o--,Primax Electronics Ltd._ ha s spent s ubs tantial effort in developing this product and it is o ne of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the d esign w ill result in flllancial hardship. Permanent Confideutiality: The applicant requests th e exhibits listed above as permanently confidential be permanently w ithheld from public revi ew due to materials that contain trade secrets and proprietary inrormation not customarily re leased to the public. Short-Term Confidenti")ity: The applicant requests th e e xhibits selected above as short term confidential be withheld fr o m public view to r a period of (specify number of days no t to exceed 180) _ days from the date of th e Grant of Equipme nt AUlhoriu Uion and prio r t o marke ting. This is to avoid pre mature release of sens itive information prior to marketi ng or release of the product to the public. Applicant is a lso aware that they are responsible to notify TUV Rheinland in the event information regarding the product o r the product is made available to the public. TUV Rheinla nd wi ll tben release the: documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: CTHuang (Print name)

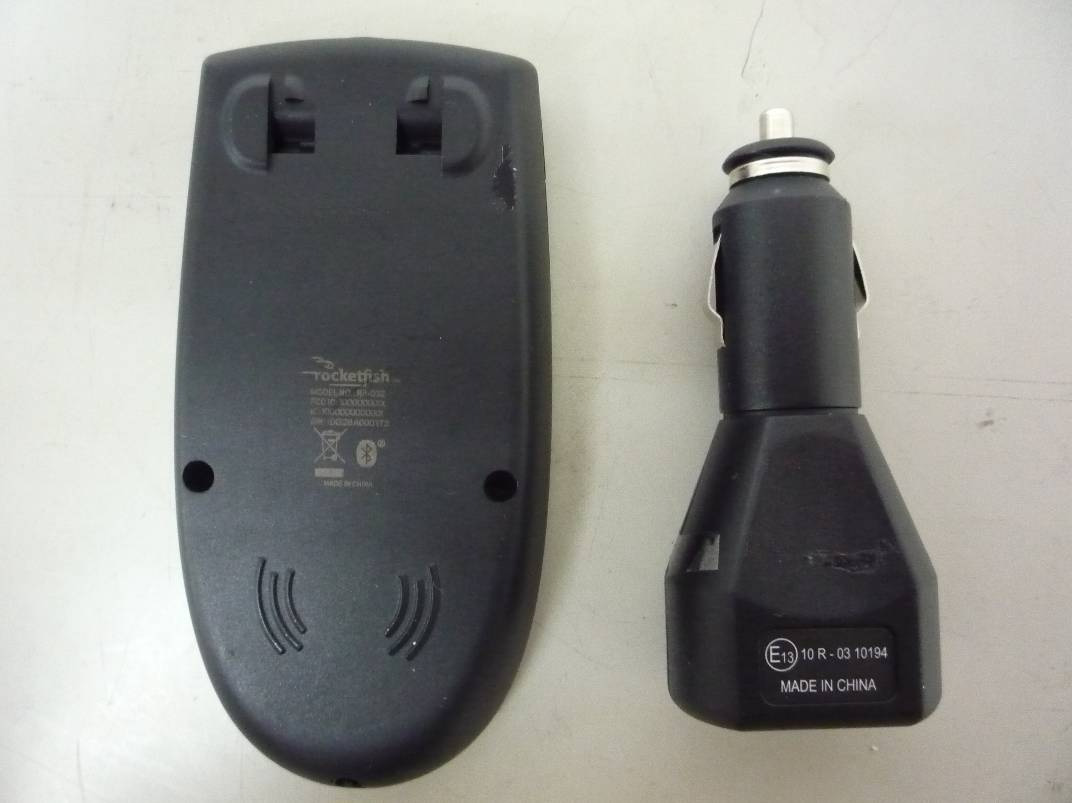

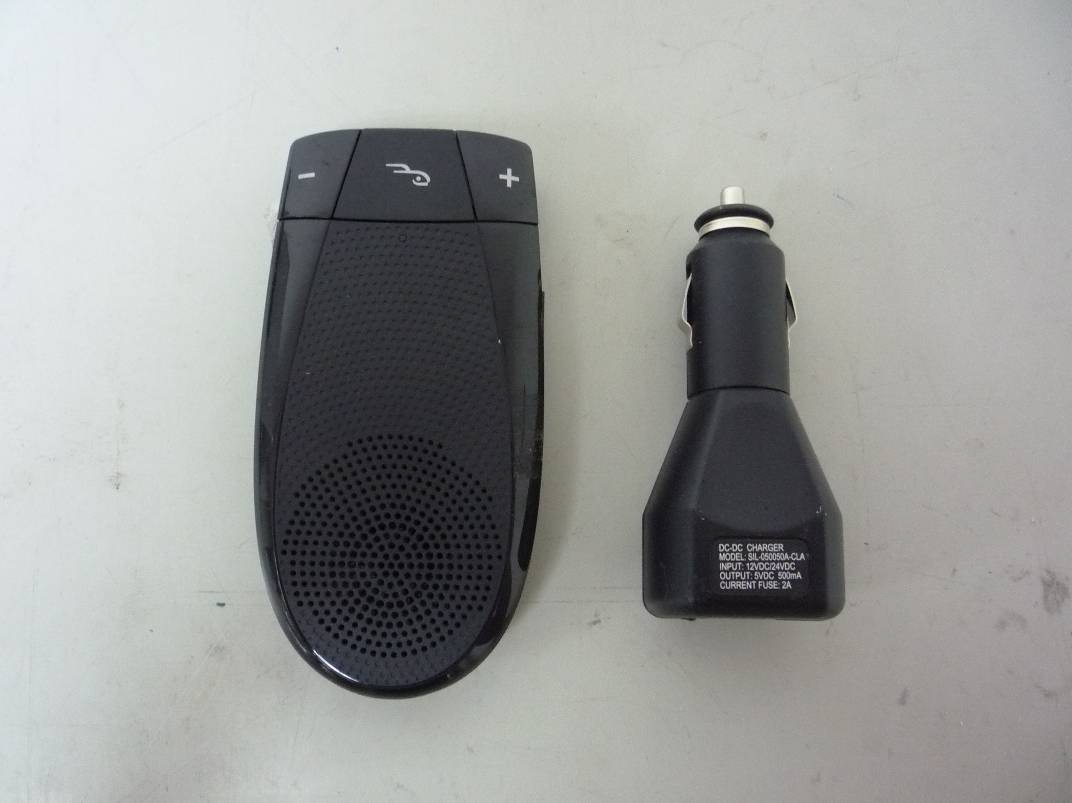

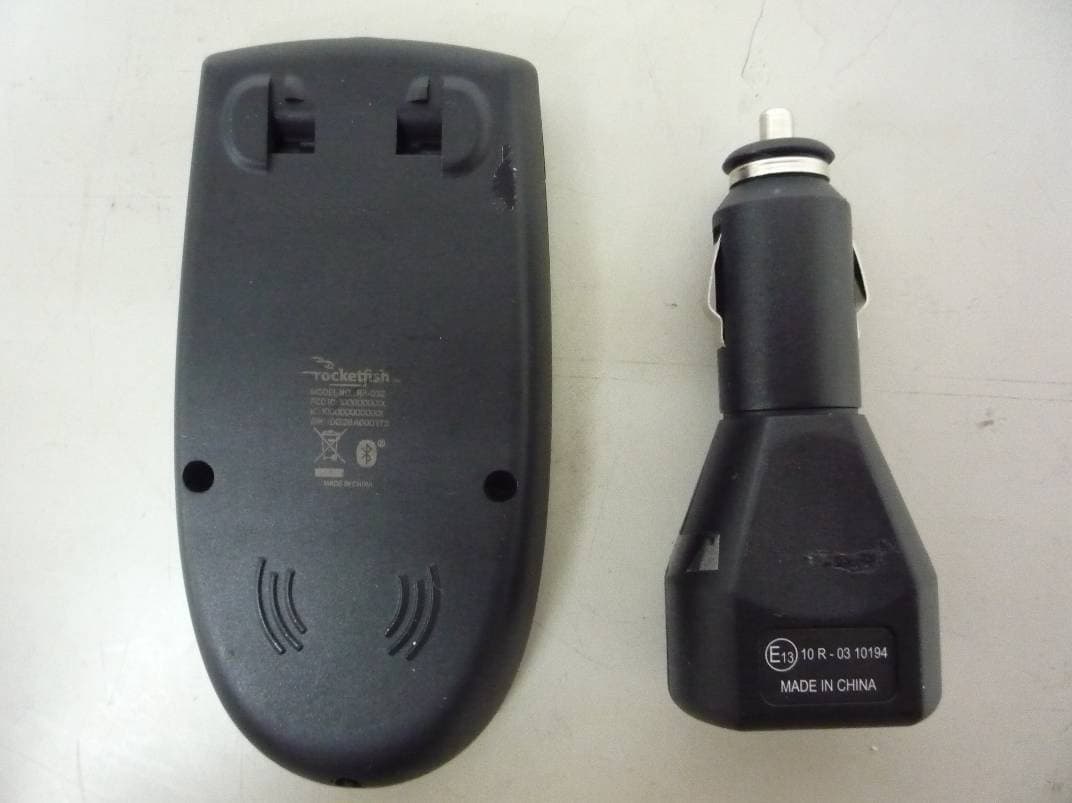

Page 1 of 2 Type Designation: RF-QS2 Report Number: 17017395 001 Fig. 1: Front view Fig. 2: Rear view Page 2 of 2 Type Designation: RF-QS2 Report Number: 17017395 001 Fig. 3: Side view

RF-QS2 Hongmin Hu Haoyu Lee TYPE LABEL 0.5 東聚電子電訊制品有限公司 Quanyu Chang 206/08/24 此料無需承認 NOTE: 1. SN FORMAT: YYMDDASSSSSS YY is a code for manufacturing year (10=2010) M is a code for manufacturing mouth (Jan=A, Feb=B, May=C,......Del=L) DD is a code for manufacturing day of the mouth (01,02,03,......31) A is code for factory(Dongguan=A) SSSSSS (6 digits) is a serial number ( 000001~999999) 1:1 3080000XXXXX 3080000XXXXXV0.5.PDF 2. Product must be Halogen Free Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002“Green Product Chemical Substances Specification“. 2. Follow customer's specification as required. 3. Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required 1 1 7 m m 58 mm 14.1 mm 1 8 . 3 m m 1:1 MODEL NO.: RF-QS2 FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA 4 2 . 0 0 m m 6 4 m m 21.5mm 21.5mm MODEL NO.: RF-QS2 FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA 4 0 . 3 m m 32.2 mm 1 0 . 9 m m This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA RF-QS2-T Hongmin Hu Haoyu Lee TYPE LABEL 0.1 東聚電子電訊制品有限公司 Quanyu Chang 2010/08/26 此料無需承認 NOTE: 1. SN FORMAT: YYMDDASSSSSS YY is a code for manufacturing year (10=2010) M is a code for manufacturing mouth (Jan=A, Feb=B, May=C,......Del=L) DD is a code for manufacturing day of the mouth (01,02,03,......31) A is code for factory(Dongguan=A) SSSSSS (6 digits) is a serial number ( 000001~999999) 1:1 3080000XXXXX 3080000XXXXXV0.1.PDF 2. Product must be Halogen Free Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002“Green Product Chemical Substances Specification“. 2. Follow customer's specification as required. 3. Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required 1 1 7 m m 58 mm 14.1 mm 1 8 . 3 m m 1:1 MODEL NO.: RF-QS2-T FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA 4 2 . 0 0 m m 6 4 m m 21.5mm 21.5mm MODEL NO.: RF-QS2-T FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA 4 0 . 3 m m 32.2 mm 1 0 . 9 m m This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA RF-QS2-UK Hongmin Hu Haoyu Lee TYPE LABEL 0.1 東聚電子電訊制品有限公司 Quanyu Chang 2010/08/26 此料無需承認 NOTE: 1. SN FORMAT: YYMDDASSSSSS YY is a code for manufacturing year (10=2010) M is a code for manufacturing mouth (Jan=A, Feb=B, May=C,......Del=L) DD is a code for manufacturing day of the mouth (01,02,03,......31) A is code for factory(Dongguan=A) SSSSSS (6 digits) is a serial number ( 000001~999999) 1:1 3080000XXXXX 3080000XXXXXV0.1.PDF 2. Product must be Halogen Free Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002“Green Product Chemical Substances Specification“. 2. Follow customer's specification as required. 3. Follow Halogen- Free requirement : Br<900 ppm, Cl<900 ppm, Br+Cl< 1500 ppm if required 1 1 7 m m 58 mm 14.1 mm 1 8 . 3 m m 1:1 MODEL NO.: RF-QS2-UK FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA 4 2 . 0 0 m m 6 4 m m 21.5mm 21.5mm MODEL NO.: RF-QS2-UK FCC ID: EMJTRFQS2 IC: 4251A-CRFQS2 S/N: YYMDDASSSSSS MADE IN CHINA 4 0 . 3 m m 32.2 mm 1 0 . 9 m m This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions: (1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation Manufactured for Rocketfish Products 7601 Penn Ave S. Richfield, MN 55423 USA

Page 1 of 2 Type Designation: RF-QS2 Report Number: 17017395 001 Fig. 1 Fig. 2 Page 2 of 2 Type Designation: RF-QS2 Report Number: 17017395 001 Fig. 3 Fig. 4

Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 2 von 43 Page 2 of 43 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.1.10 RADIATED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 3 von 43 Page 3 of 43 Contents 1. GENERAL REMARKS......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS.......................................................................................... 4 2. TEST SITES...................................................................................................................... 4 2.1 TEST FACILITIES............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3. GENERAL PRODUCT INFORMATION.................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES.................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS....................................................... 9 3.5 SUBMITTED DOCUMENTS.................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE.......................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................... 11 4.5 TEST SETUP DIAGRAM.................................................................................................... 11 5. TEST RESULTS............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES.................................................................. 13 5.1.1 Antenna Requirement ................................................................................................................13 5.1.2 Peak Output Power ....................................................................................................................14 5.1.3 20dB Bandwidth .........................................................................................................................15 5.1.4 99% Bandwidth ..........................................................................................................................19 5.1.5 Conducted spurious emissions measured in 100kHz Bandwidth ..............................................23 5.1.6 Spurious Emission .....................................................................................................................26 5.1.7 Frequency Separation................................................................................................................27 5.1.8 Number of hopping frequency....................................................................................................30 5.1.9 Time of Occupancy ....................................................................................................................32 5.1.10 Radiated emissions ...............................................................................................................38 6. SAFETY HUMAN EXPOSURE............................................................................................. 39 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE................................................................... 39 6.1.1 Electromagnetic Fields ...............................................................................................................39 7. PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 40 8. LIST OF TABLES............................................................................................................. 43 Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 4 von 43 Page 4 of 43 9. LIST OF PHOTOGRAPHS.................................................................................................. 43 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result of Radiated Emissions 2. Test…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 40 von 43 Page 40 of 43 7. Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Emissions Photograph 2: Set-up for Transmitter test Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 41 von 43 Page 41 of 43 Photograph 3: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 4: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17017395 001 Seite 42 von 43 Page 42 of 43 Photograph 5: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 6: Set-up for Spurious Emissions (18GHz-26GHz)
