EOA-CPEDCPED

                                                                                                                                                       

CPED User Manual Statements This device complies with part 15 of theFCC rules andwith RSS-210. Operation is subjectto the following two conditions: (1)This device may not cause harmful interference, and (2) this device mustaccept any interference received, includinginterference that may cause undesiredoperation of the device. Note: The manufacturer is not responsiblefor any radio or TV interference causedby unauthorized modifications to thisequipment. Such modificationscouldvoid the user’s authority to operate the equipment.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 11 th April2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCCID: EOA-CPED To whom it may concern Pursuant to sections 0.457 and 0.459 and CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Schematics Block Diagrams Factory Tune-up Procedure Bills of Materials Operational Description for Bluetooth module The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors Yours Sincerely Charlie Blackham Director

CPED Module integration CPEDFCC ID: EOA-CPED and IC: 6903ACPED The Bluetooth radio in the CPED is provided by a Panasonic PAN1315 bluetooth module. This module has its own ID numbers - FCC ID: T7V1315 and IC: 216Q- 1315. The module has been integrated with a higher gain antenna in a product designed to be used as a portable device. The antenna port measurements for the module contained in Eurofins report G0M21008-3623-P-15are valid for the module installed in the CPED and additional Spurious Emissions measurements have been made and maximum antenna gain requirements considered. The original ID numbers for the module (FCC ID: T7V1315 and IC: 216Q-1315) should be ignored as they are not relevant to the CPED which will be certified in its own right.

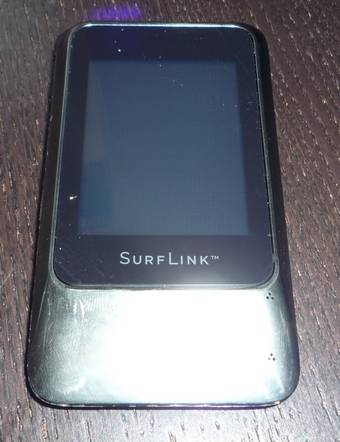

CPED external photographs

CPED external photographs

CPED internal photographs Bluetooth module (with copper tape modification) Area under can shown below900 MHz radio circuitry

CPED RF exposure consideration Antenna separation 900 MHz AntennaPCB traceBluetooth AntennaPCB trace FCC Requirements Unlicensed transmitterthat transmits simultaneously with another transmitter, the maximum output power, P Ref = ½ * 60/f(GHz). Maximum permittedvalues ofP Ref are therefore: 900 MHz radio, P Ref = ½ * 60 / 0.921 = 32.57mW = 32.57/ 0.2125 (allowing for duty cycle 1 ) = 153.3mW Bluetoothradio,P Ref = ½ * 60 / 2.48 = 12.1 mW 1 The duty cycle of the 900 MHz radio is 6.8ms / 32ms = 0.2125 CPED RF exposure consideration Where antenna separation is > 5cm, as in the CPED, each transmitter may transmit at 2*P Ref 2 Radio Transmitter Maximum permitted transmit power to be 2* P Ref (mW) Maximum actual transmitted power (mW) Device exempt from routine evaluation 900 MHz306.631.6 3 Yes Bluetooth24.210.5 4 Industry Canada Requirements RSS 210 section 2.5.1 specifies maximum permitted transmit powers for the 2 radios as: 200mW for 900 MHz radio 20mW for the Bluetooth radio. RSS 210 section 3.1.2 states that “Compliance of devices with multiple transmitters capable of simultaneous transmission shall be assessed using internationally recognized methods proven to provide a conservative estimate of the SAR value.” Referencing the accepted FCC method above, the maximum permitted power is half the stated value when two transmitters operate simultaneously, but this can be doubled back up when the antennas are > 5cm from each other. The maximum permitted TX power for each transmitter shall therefore be the value stated in section 2.5.2. Radio Transmitter Maximum transmit power as per section 2.5.2 (mW) Maximum transmitted power (mW) Device exempt from routine evaluation 900 MHz200.031.6 Yes Bluetooth20.011.0 2 FCC KDB 648474D01 V01r05 3 14.98 dBm conducted power – report “SC_TR_053_A” 4 10.2 dBm conducted power – report “G0M21008-3623-P-15-FCC15.247-PAN1315_Complete”

EUROFINS PRODUCT SERVICE GMBH Testing Cert #1983.01 TEST- REPORT Compliance Test Report FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 FCC ID: T7V1315 IC ID: 216Q-1315 Bluetooth module ENW89818C2JF PAN1315 T EST REPORT NUMBER: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, 15526 Reichenwalde, Phone +49-33631-888 0 Germany Fax +49-33631-888 660 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany TABLE OF CONTENTS 1 General Information 4 1.1 Notes 4 1.2 Testing laboratory 5 1.3 Details of approval holder 6 1.4 Application details 6 1.5 Test item 6 1.6 Test standards 7 1.7 Acronyms and abbreviations 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 2.4 Sample emission level calculation 10 2.5 Test results 11 3 Informational Transmitter parameters 12 3.1 Transmitter Modes for conformance testing 12 3.2 Occupied Bandwidth 13 4 Transmitter parameters 15 4.1 20dB Bandwidth 15 4.2 Frequency hopping channel number 17 4.3 Frequency hopping channel spacing 19 4.4 Time of occupancy (Dwell time) 21 4.5 Maximum peak conducted output power 23 4.6 Maximum e.i.r.p. output power 25 4.7 Transmitter band-edge compliance 27 4.8 Transmitter conducted spurious emissions 29 4.9 Transmitter radiated spurious emissions 31 5 Receiver parameters 34 5.1 Receiver spurious emissions 34 6 Power Line parameters 36 6.1 AC power line conducted emissions 36 Seite 2 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Annex A Photos 37 Annex B Transmitter occupied bandwidth 40 Annex C Transmitter 20dB bandwidth 46 Annex D Hopping channels 55 Annex E Hopping channel separation 59 Annex F Time of occupancy 60 Annex G AC Powerline Conducted Emissions 61 Annex H Transmitter conducted spurious emissions 63 Annex I Band edge compliance 81 Annex J Transmitter radiated spurious emissions 93 Annex K Receiver radiated spurious emissions 131 Seite 3 von 132 Seite 4 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Testing laboratory EUROFINS PRODUCT SERVICE GMBH Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 DAR ACCREDITED TESTING LABORATORY DAR-R EGISTRATION NUMBER: DAT-P-268/08 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 Test location, where different: Name : ./. Street : ./. Town : ./. Country : ./. Telephone : ./. Fax : ./. Seite 5 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Details of approval holder Name : Panasonic Electronic Devices Europe GmbH Street : Zeppelinstr. 28 Town : 21337 Lueneburg Country : Germany Telephone : +49 4131 899 304 Fax : +49 4131 899 210 Contact : Herr Heino Kaehler Telephone : +49 4131 899 304 1.4 Application details Date of receipt of application : 24.08.2010 Date of receipt of test item : 24.08.2010 Date of test : 31.08 – 02.09.2010 1.5 Test item Description of test item : Bluetooth module Type identification : ENW89818C2JF Brand Name : PAN1315 Serial number : None Hardware version : 01 Software version : 01 Equipment type : Radio module Technical data Frequency range : 2400 - 2483.5MHz Tested frequencies : F 1 2402MHz Tested frequencies : F 2 2441MHz Tested frequencies : F 3 2480MHz Antenna type : integrated Antenna models used : 1.) 2450AT43B100, Johanson Technology, Chip antenna 2.) LDA212G3110K-282, muRata, Chip antenna 3.) 7488930245, Würth Elektronik, Chip antenna Number of antennas per module : 1 Antenna gain : 1.) 1.3dBi 2.) 0.9dBi 3.) 0.5dBi Power supply : 3.3VDC Seite 6 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Duty cycle : 46% Operating mode : semi duplex Spreading technique : FHSS Modulations : GFSK, PI/4-DQPSK, 8-PSK Device classification : Mobile Device (Human Body distance > 20 cm) Additional information : The radio module itself without antenna is designated ENW89818C2JF (PAN1315). The antenna module with mounted antenna is designated ENW89818A2JF (PAN1325). Three different antenna models are provided for testing. The antenna model which provides the highest output power (2450AT43B100) is selected for compliance testing. Manufacturer: (if applicable) Name : Panasonic Electronic Devices Slovakia s.r.o. Street : Tovarenska 13 Town : 06401 Stara Lubovna Country : Slovakia 1.6 Test standards Technical standard : FCC PART 15 SUBPART C IC RSS 210 ISSUE 7 1.7 Acronyms and abbreviations EUT : Equipment under Test TX : Transmission RX : Reception RBW : Measurement Resolution Bandwidth Pol : Measurement Polarization e.i.r.p. : Equivalent isotropic radiated power FHSS : Frequency hopping spread spectrum DSSS : Direct Sequence Spread Spectrum OFDM : Orthogonal frequency division multiplexing CCK : Complementary code keying GFSK : Gaussian frequency shift keying DQPSK : Differential quadrature phase shift keying PSK : Phase shift keying T nom : Nominal Temperature T min : Minimum Temperature T max : Maximum Temperature V nom : Nominal Supply Voltage V min : Minimum Supply Voltage V max : Maximum Supply Voltage VDC : DC voltage N/A : Not applicable IC : Industry Canada Seite 7 von 132 Test Report No.: G0M21008-3623-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests per…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com RFTest Report: Starkey Laboratories CPED FCC ID:EOA-CPED IC:6903A-CPED SC_TR_053_A Prepared for:Starkey Laboratories SC_TR_053_APage 2 of 27 Contents 1Revision History4 2Purpose4 3Reference Documents4 4Test Information5 4.1Client5 4.2Test personnel5 4.3Test sample5 5Product Description6 6Test Configuration7 6.1Test sample and Operating mode7 6.2Support equipment7 6.3Test equipment7 6.4Equipment set-up8 6.5Supported Antennas8 7Summary of tests performed9 7.1902-928 MHz Radio9 7.2Bluetooth Radio9 8Occupied Bandwidth test: 902-928 MHz Radio10 8.1Measurement method10 8.2Test results10 9Maximum Peak Conducted Power: 902-928 MHz Radio12 9.1Measurement method12 9.2Test results12 10Maximum Power Spectral Density: 902-928 MHz Radio14 10.1Measurement method14 10.2Test results14 11Maximum Unwanted Emissions Levels: 902-928 MHz Radio16 11.1Measurement method16 11.2Test results17 12Maximum Emissions Restricted Band: 902-928 MHz Radio18 12.1Measurement method – conducted measurements18 12.2Test results19 13Maximum Emissions Restricted Band Bluetooth Radio21 13.1Measurement method – conducted measurements21 13.2Test results - GFSK22 13.3Test results – 8-DPSK25 SC_TR_053_APage 3 of 27 Figures Figure 1: CPED block diagram showing radios and interfaces............................................6 Figure 2: Test Configuration.........................................................................................8 Figure 3: Occupied Bandwidth plots: 902-928 MHz Radio...............................................11 Figure 4: Channel Power plots: 902-928 MHz Radio......................................................13 Figure 5: Spectral Density plots: 902-928 MHz Radio....................................................15 Figure 6: Out of band emissions plots: 902-928 MHz Radio............................................17 Figure 7: Restricted band emissions plots: 902-928 MHz Radio.......................................20 Figure 8: Restricted band emissions plots – Bluetooth GFSK mode.................................. 24 Figure 9: Restricted band emissions plots – Bluetooth 8-DPSK mode...............................27 Tables Table 1: CPED Test frequencies....................................................................................6 Table 2: Equipment under test.....................................................................................7 Table 3: Support Equipment.........................................................................................7 Table 4: Test Equipment..............................................................................................7 Table 5: EUT Antenna configurations.............................................................................8 Table 6a: Summary of test results; 900 MHz radio..........................................................9 Table 6b: Summary of test results; 2400 MHz radio........................................................9 Table 7: Occupied Bandwidth: 902-928 MHz Radio........................................................10 Table 8: Channel Power: 902-928MHz Radio...............................................................12 Table 9: Spectral Density results: 902-928 MHz Radio...................................................14 Table 10: Out of band emissions limits: 902-928 MHz Radio...........................................16 Table 11: Out of band emissions: 902-928 MHz Radio...................................................17 Table 12: Out of band emissions limits: 902-928 MHz Radio...........................................18 Table 13: Restricted Band emissions results: 902-928 MHz Radio................................... 19 Table 12: Out of band emissions limits: Bluetooth Radio................................................21 Table 15: Restricted Band emissions results; Bluetooth GFSK mode................................22 Table 16: Restricted Band emissions- band edge; Bluetooth GFSK mode.........................22 Table 17: Restricted Band emissions results; Bluetooth 8-DPSK mode.............................25 Table 18: Restricted Band emissions- band edge; Bluetooth 8-DPSK mode......................25 SC_TR_053_APage 4 of 27 1RevisionHistory RevisionOriginatorDateComment DraftC Blackham21 Mar 2012Issued as draft for information AC Blackham10 Apr 2012Updated and issued 2Purpose This report details testing performedon CPEDagainst FCC and Industry Canada requirements. 3Reference Documents [1]Title 47 CFR15 Federal Communications Commission Title 47 Code of Federal Regulations Part 15 [2]ANSI C63.10-2009 IEEE American National Standard for Testing Unlicensed Wireless Devices Committee 63 standard 63-10 10 th September 2009. [3] 558074 D01 DTS Meas Guidance v01 Federal Communications CommissionOffice of Engineering and TechnologyLaboratory DivisionGuidance for Performing Compliance Measurements on Digital Transmission Systems (DTS)Operating Under §15.247 [4]RSS-GEN Issue 3 Industry Canada: General Requirements and Information for the Certification of Radio Apparatus(December 2010) [5]RSS-210 Issue 8 Industry Canada: Licence-exempt Radio Apparatus(All Frequency Bands): Category I Equipment(December 2010) [6]ICES-003 Issue 4 Industry Canada Spectrum Management and Telecommunications Policy; Interference-Causing Equipment Standard; Digital Apparatus (February2004) SC_TR_053_APage 5 of 27 4Test Information 4.1Client Starkey Laboratories Inc 6600 Washington Ave. SO Eden Prairie MN55344 USA 4.2Testpersonnel Testingwas performed by Charlie Blackham of Sulis Consultants Ltd. 4.3Test sample The results herein only refer to sample detailed in section 6. SC_TR_053_APage 6 of 27 5Product Description The equipment contains 2 transmitters: “900 MHz band” which is configured in North American variant to operate in the 902-928 MHz band as per 15.247. This mode…

Text truncated - open the document above for the full version.

EMC TEST REPORT No. 12R120 FR Issue#1: 3 rd April 2012 Tel. +44 (0) 23 8027 1111 Fax. +44 (0) 23 8027 1144 e mail. [email protected] www.hursley-emc.co.uk Hursley EMC Services Ltd. Unit 16, Brickfield Lane Chandlers Ford Hampshire. UK. SO53 4DP 1871 UKAS Accredited EU Notified Body FCC & VCCI Registered BSMI Lab ID: SL2-IN-E-3008 FCC & IC Report for the Starkey Laboratories Inc CPED Project Engineer: R. P. St John James Approval Signatory Approved signatories: S. M. Connolly  J. A. Jones  The above named are authorised Hursley EMC Services engineers. EMC TEST REPORT 12R120 FR FCC & IC Certification Report Issue#1: 3 rd April 2012 Page 2 of 26 Contents 1.0 DECLARATION .................................................................................................................................................3 1.1 FCC PART 15 STATEMENT.................................................................................................................................3 1.2 MODIFICATION...................................................................................................................................................3 1.3 EUT MANUFACTURER.......................................................................................................................................3 1.4 CUSTOMER INFORMATION.................................................................................................................................3 2.0 EUT DESCRIPTION ..........................................................................................................................................4 2.1 IDENTITY...........................................................................................................................................................4 2.2 PRODUCT OPERATION........................................................................................................................................4 2.3 SUPPORT EQUIPMENT........................................................................................................................................5 2.4 EXERCISER PROGRAM........................................................................................................................................5 3.0 MEASUREMENT PROCEDURE AND INSTRUMENTATION ..................................................................6 3.1 EMI SITE ADDRESS & TEST DATE.....................................................................................................................6 3.2 GENERAL OPERATING CONDITIONS...................................................................................................................6 3.3 ENVIRONMENTAL AMBIENT...............................................................................................................................6 3.4 RADIATED EMISSIONS........................................................................................................................................7 3.5 CONDUCTED EMISSIONS....................................................................................................................................8 4.0 TEST DATA ........................................................................................................................................................9 4.1 RADIATED EMISSIONS (PART 15.109/ICES-003 DIGITAL EQUIPMENT) .............................................................9 4.2 POWER LINE CONDUCTED EMISSIONS – LAPTOP (15.107 & ICES-003)...........................................................11 4.3 RADIATED EMISSIONS (PART 15.247(D) & RSS 210).......................................................................................12 4.4 POWER LINE CONDUCTED EMISSIONS – AC ADAPTER (15.207 & RSS GEN) ..................................................14 5.0 FCC DETAILS .................................................................................................................................................25 6.0 INDUSTRY CANADA DETAILS....................................................................................................................26 EMC TEST REPORT 12R120 FR FCC & IC Certification Report Issue#1: 3 rd April 2012 Page 3 of 26 1.0 DECLARATION 1.1 FCC Part 15 Statement The Equipment Under Test (EUT), as described and reported within this document, complies with the parts 15.107, 15.109, 15.205, 15.209 and 15.247(d) of the CFR 47:2012 FCC rules in accordance with ANSI C63.4:2003 as well as Industry Canada ICES-003 and IC RSS-210 A8.5. The EUT operates in the frequency bands 902-928MHz and 2400 to 2483.5 MHz and complies with the FCC Part 15 radiated emission requirements. This report covers the EUT under Part 15B and ICES-003 as a PC peripheral and only the cabinet radiated emission requirements of IC RSS-210 A8.5 and FCC 15.247(d) for Part 15C, other sections of Part 15C and RSS-210 are covered in other documents. 1.2 Modification To meet the spurious emission requirements the Bluetooth module enclosure was grounded with copper tape. 1.3 EUT Manufacturer Trade name: Starkey Laboratories Inc Company name: Starkey Laboratories Inc Company address: 6600 Washington Ave. SO Eden Prairie MN55344 USA Manufacturing address: As above. Company representative: Mr Kenneth Meyer Tel: (001) 952‐947‐4734 1.4 Customer Information Company representative: Mr Charlie Blackham Telephone Number : +44 (0)7946 624317 Company name: Sulis Consultants Company address: Mead House Longwater Road Eversley RG27 ONW, UK EMC TEST REPORT 12R120 FR FCC & IC Certification Report Issue#1: 3 rd April 2012 Page 4 of 26 2.0 EUT DESCRIPTION 2.1 Identity EUT: CPED (Cell Phone Entertainment Device) Model: CPED Serial numbers: N051200034 and N051200104 Sample build: Production 2.2 Product Operation The CPED (Cell Phone Entertainment Device) contains 2 transmitters: “900 MHz band” which is configured in North American variant to operate in the 902-928 MHz band as per 15.247 on channels ranging from …

Text truncated - open the document above for the full version.

CPED test report summary TestClause Test report demonstrating compliance for radio service 900 MHz radioBluetooth Radio Occupied bandwidth FCC 15.247(a)(1) SC_TR_053_AG0M21008-3623-P-15 IC RSS-210 A8.1 Frequency hopping channel number FCC 15.247(a)(1)(ii) N/AG0M21008-3623-P-15 IC RSS-210 A8.1 Frequency hopping channel spacing FCC 15.247(a)(1) N/AG0M21008-3623-P-15 IC RSS-210 A8.1 Time of occupancy (dwell time) FCC 15.247(a)(1)(ii) N/AG0M21008-3623-P-15 IC RSS-210 A8.1 Maximum peak conducted output power FCC 15.247(b) SC_TR_053_AG0M21008-3623-P-15 IC RSS-210 A8.4 Max antenna gain FCC 15.247(b)(4)SC_TR_053_ASC_TR_053_A Band-edge compliance FCC 15.247(d) SC_TR_053_A G0M21008-3623-P-15 SC_TR_053_A 12R120 FR IC RSS-210 A8.5 Conducted Spurious Emissions FCC 15.247(d) SC_TR_053_ASC_TR_053_A IC RSS-210 A8.5 Radiated Spurious Emissions FCC 15.247(d) 12R120 FR12R120 FR IC RSS-210 A8.5 AC conducted emissions 15.20712R120 FR12R120 FR Computer Peripheral TestClauseReport AC conducted Emissions FCC 15.107(a) 12R120 FR ICES-003Class B Radiated Emissions FCC 15.10912R120 FR

EMC TEST REPORT PHOTO LOG No. 12R120B Issue#1: 3 rd April 2012 Tel. +44 (0) 23 8027 1111 Fax. +44 (0) 23 8027 1144 e mail. [email protected] www.hursley-emc.co.uk Hursley EMC Services Ltd. Unit 16, Brickfield Lane Chandlers Ford Hampshire. UK. SO53 4DP 1871 UKAS Accredited EU Notified Body FCC & VCCI Registered BSMI Lab ID: SL2-IN-E-3008 Photo Log for the Starkey Laboratories Inc CPED EMC TEST REPORT PHOTO LOG 12R120B FCC Part 15C Certification Report Issue#1: 3 rd April 2012 Page 2 of 5 1.0 PHOTO LOG Emissions: Radiated emissions with Laptop EMC TEST REPORT PHOTO LOG 12R120B FCC Part 15C Certification Report Issue#1: 3 rd April 2012 Page 3 of 5 Photo Log (continued) Radiated emissions standalone EMC TEST REPORT PHOTO LOG 12R120B FCC Part 15C Certification Report Issue#1: 3 rd April 2012 Page 4 of 5 Photo Log (continued) Emissions: Conducted Emissions -Laptop EMC TEST REPORT PHOTO LOG 12R120B FCC Part 15C Certification Report Issue#1: 3 rd April 2012 Page 5 of 5 Photo Log (continued) Emissions: Conducted Emissions –AC Adapter
