EOA-ZSERIES-HAHearing Aid

TEST REPORT Report Number: 101628693MIN-001 Project Number: G101628693 Testing performed on the Zseries ITE / A3 ITE / Start ITE FCC ID: EOA-ZSERIES-HA Industry Canada ID: 6903A-ZSERIESHA to 47 CFR Part 15. 249:2013 RSS- 210, Issue 8, 2010 RSS-Gen, Issue 3, 2010 47 CFR, Part 15:2013, §15.107 and §15.109, Class / ICES-003, Issue 5:2012 For Starkey Laboratories, Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA Starkey Laboratories, Inc. 6700 Washington Avenue South Eden Prairie, MN 55344, USA Prepared by: Date: May 7, 2014 Richard Blonigen Reviewed by: Date: May 7, 2014 Uri Spector This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report No: 101628693MIN-001 FCC ID: EOA-ZSERIES-HA IC ID:6903A-ZSERIESHA Page 2 of 35 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION .......................................................................................................... 3 1.1 Product Description; Test Facility ...................................................................................... 4 1.3 Environmental conditions .................................................................................................. 5 1.4 Measurement uncertainty .................................................................................................. 6 1.5 Field Strength Calculation ................................................................................................. 6 2.0 TEST SUMMARY .......................................................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS ........................................................................................ 8 3.1 Field strength of fundamental and Bandedge Compliance ............................................... 8 3.2 Field strength of harmonics and spurious emissions ...................................................... 10 3.3 Bandwidth of Emissions .................................................................................................. 18 3.4 Transmitter power line conducted emissions .................................................................. 25 3.5 Receiver/digital device radiated emissions ..................................................................... 26 3.6 Digital device conducted emissions ................................................................................ 34 4.0 TEST EQUIPMENT..................................................................................................................... 35 EMC Report No: 101628693MIN-001 FCC ID: EOA-ZSERIES-HA IC ID:6903A-ZSERIESHA Page 3 of 35 1.0 GENERAL DESCRIPTION Model: ZSeries ITE Type of EUT: Hearing Aid, Istanbul ITE Serial Number: 2911320533 FCC ID: EOA-ZSERIES-HA Industry Canada ID: 6903A-ZSERIESHA Related Submittal(s) Grants: None Company: Starkey Laboratories, Inc. Customer: Mr. Ken Meyer Address: 6700 Washington Avenue South Eden Prairie, MN 55344, USA Phone: (952) 947-4734 Fax: (952) 828-6972 Email: [email protected] Test Standards: 47 CFR, Part 15:2013, §15.249 RSS–210, Issue 8, 2010 RSS-Gen, Issue 3, 2010 47 CFR, Part 15:2013, §15.107 and §15.109, Class B ICES-003, Issue 5:2012 Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: May 5, 2014 Test Work Started: May 5, 2014 Test Work Completed: May 7, 2014 Test Sample Conditions: Damaged Poor (Usable) Good EMC Report No: 101628693MIN-001 FCC ID: EOA-ZSERIES-HA IC ID:6903A-ZSERIESHA Page 4 of 35 1.1 Product Description; Test Facility Product Description: Hearing Aid Transceiver Band of Operation 902-928 MHz Operating Frequencies 902.58-926.85 MHz Number of Channels 81 (channels 353 to 433) Modulation: FSK Emission Designator: 313KFXD Antenna(s) Info: Integral Antenna Installation: User Professional Factory Transmitter Power Configuration: Internal battery External power source 120VAC 230VAC 400VAC 1.4 VDC Other: Amp. 50Hz 60Hz Special Test Arrangement: N/A Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 EMC Report No: 101628693MIN-001 FCC ID: EOA-ZSERIES-HA IC ID:6903A-ZSERIESHA Page 5 of 35 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous modulated mode - Continuous un-modulated - Continuous receiving mode - Operating modes of the EUT: No. Description 1 The device was pre-programmed to operate continuously at low, middle, and upper frequency channels, one channel being transmitted at a given time. Cables: No. Type Length Designation Note None Support equipment/Services: No. Item Description 1 R&S SMR20 Signal Generator, used to activate Hearing Aid in receiving mode 1.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa Notes: Per Client information the Devices ZSeries ITE; A3 ITE; and Start ITE are identical. The model ZSeries ITE was tested only E…

Text truncated - open the document above for the full version.

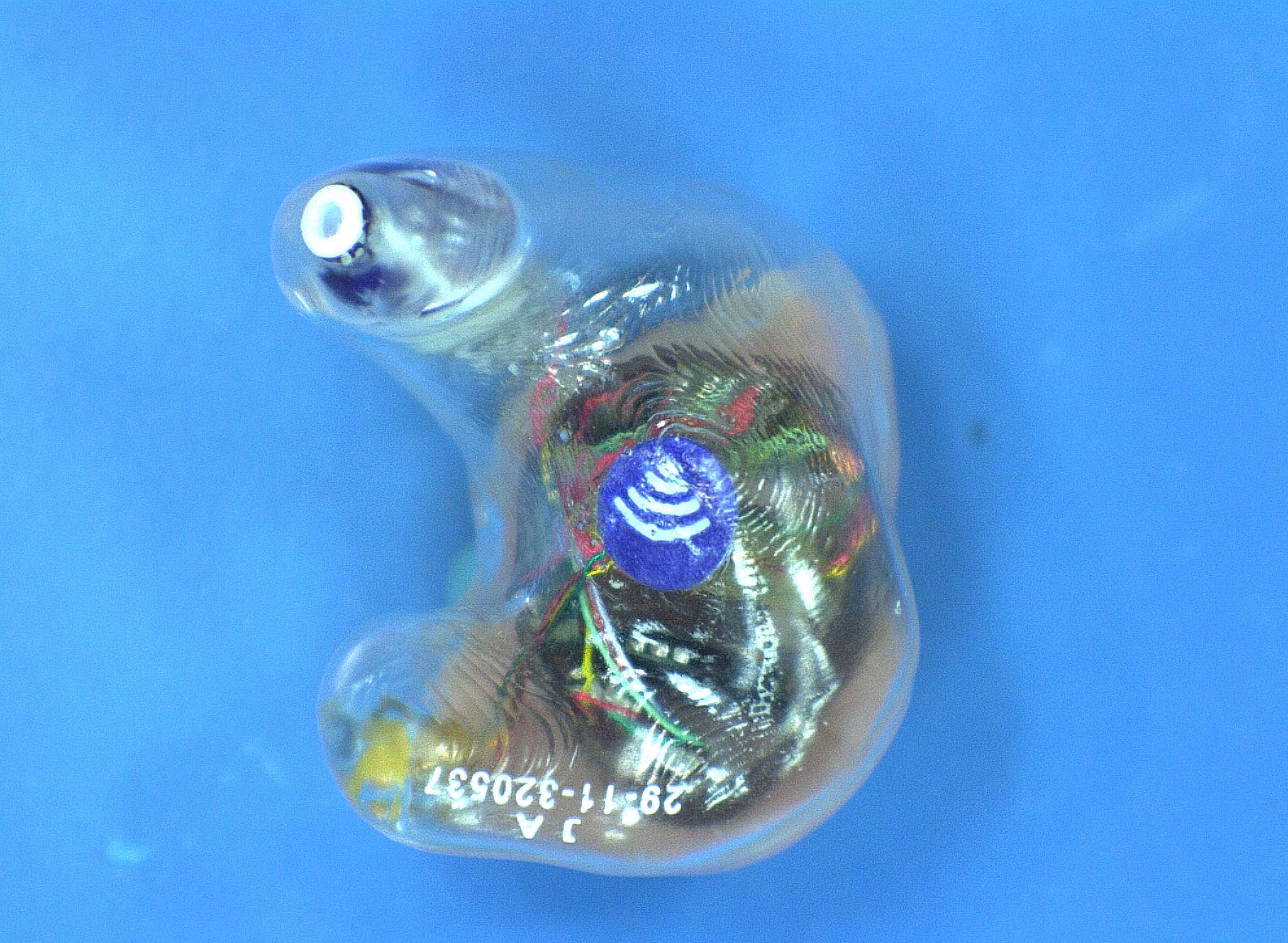

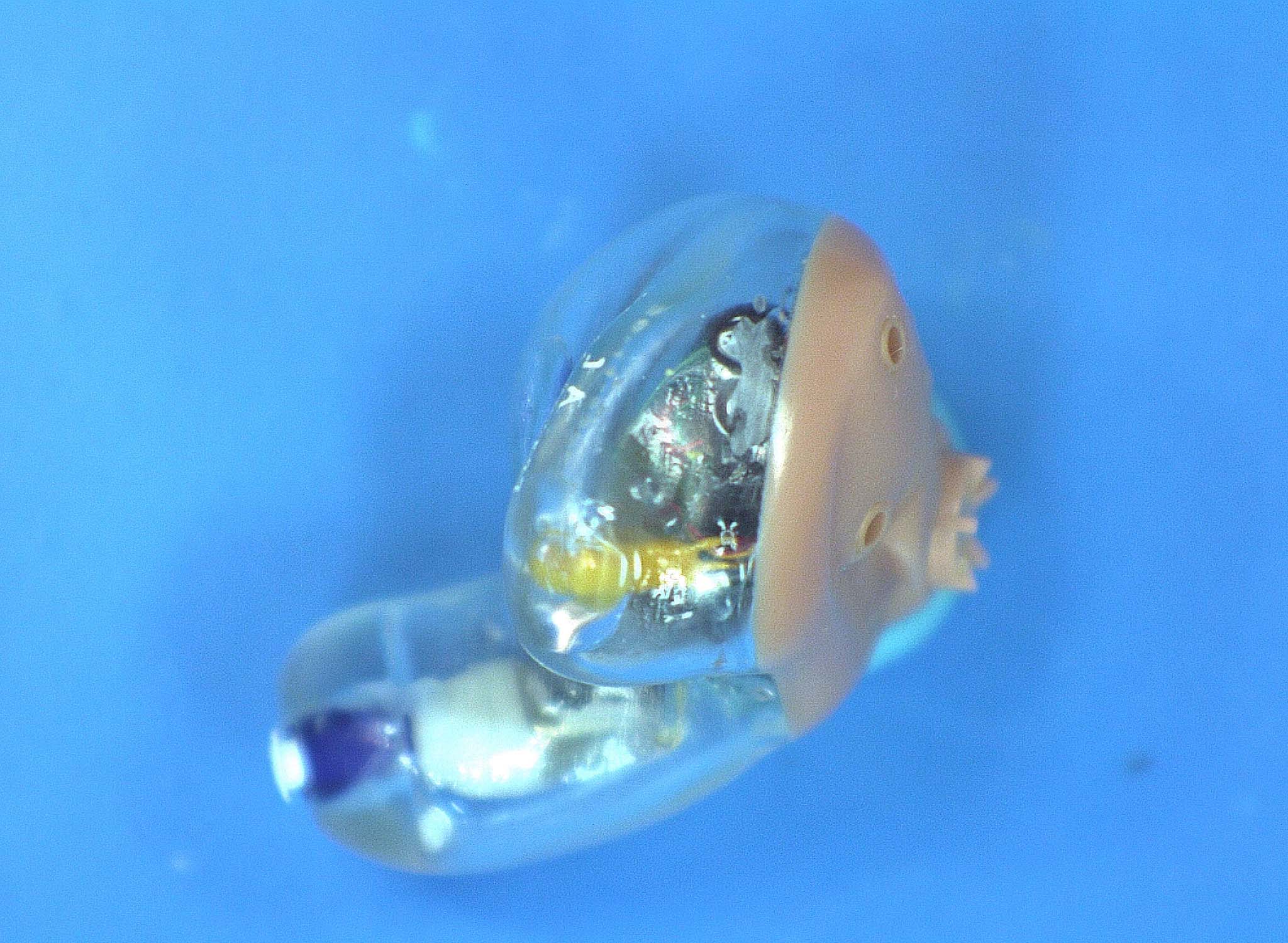

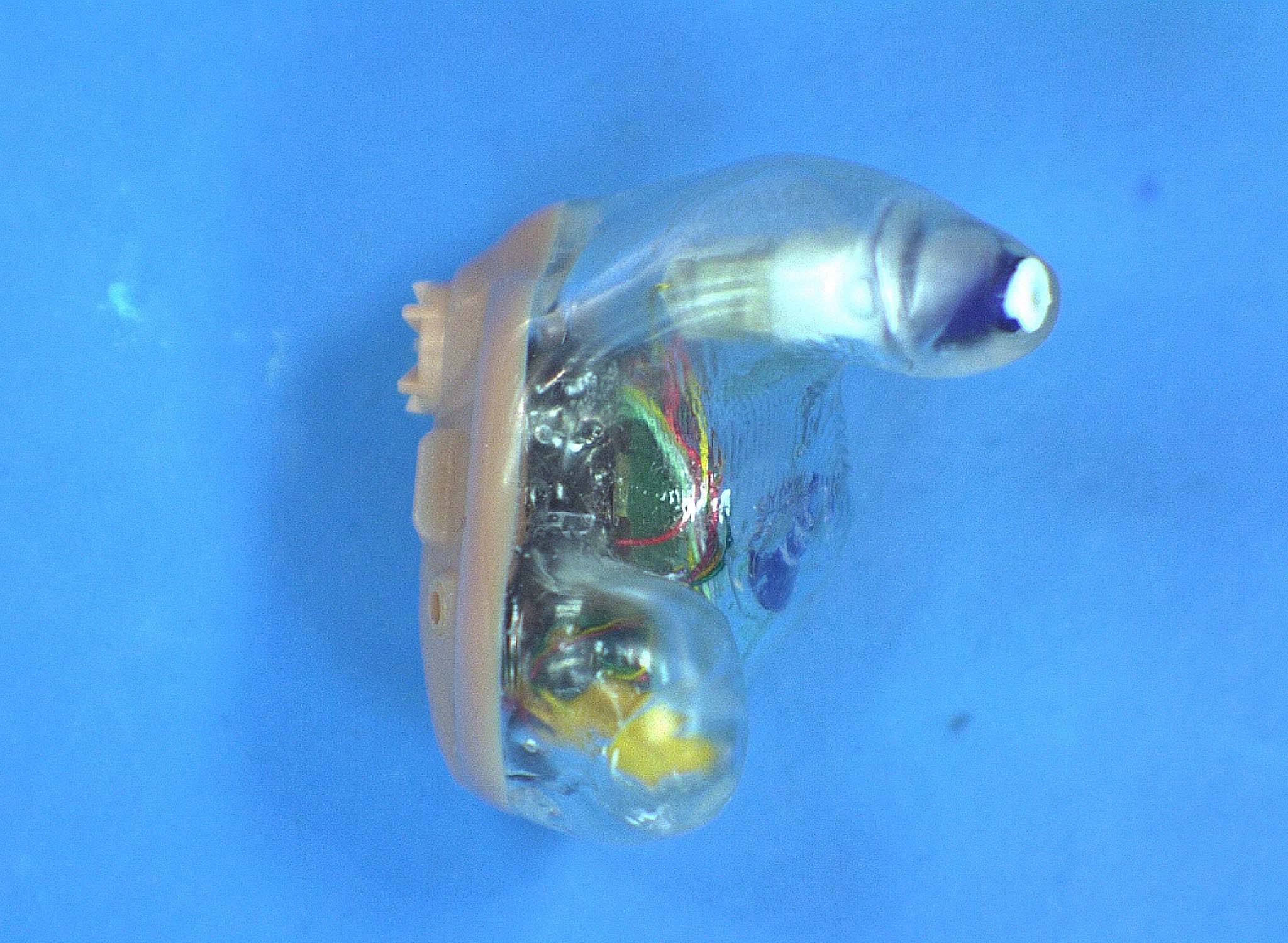

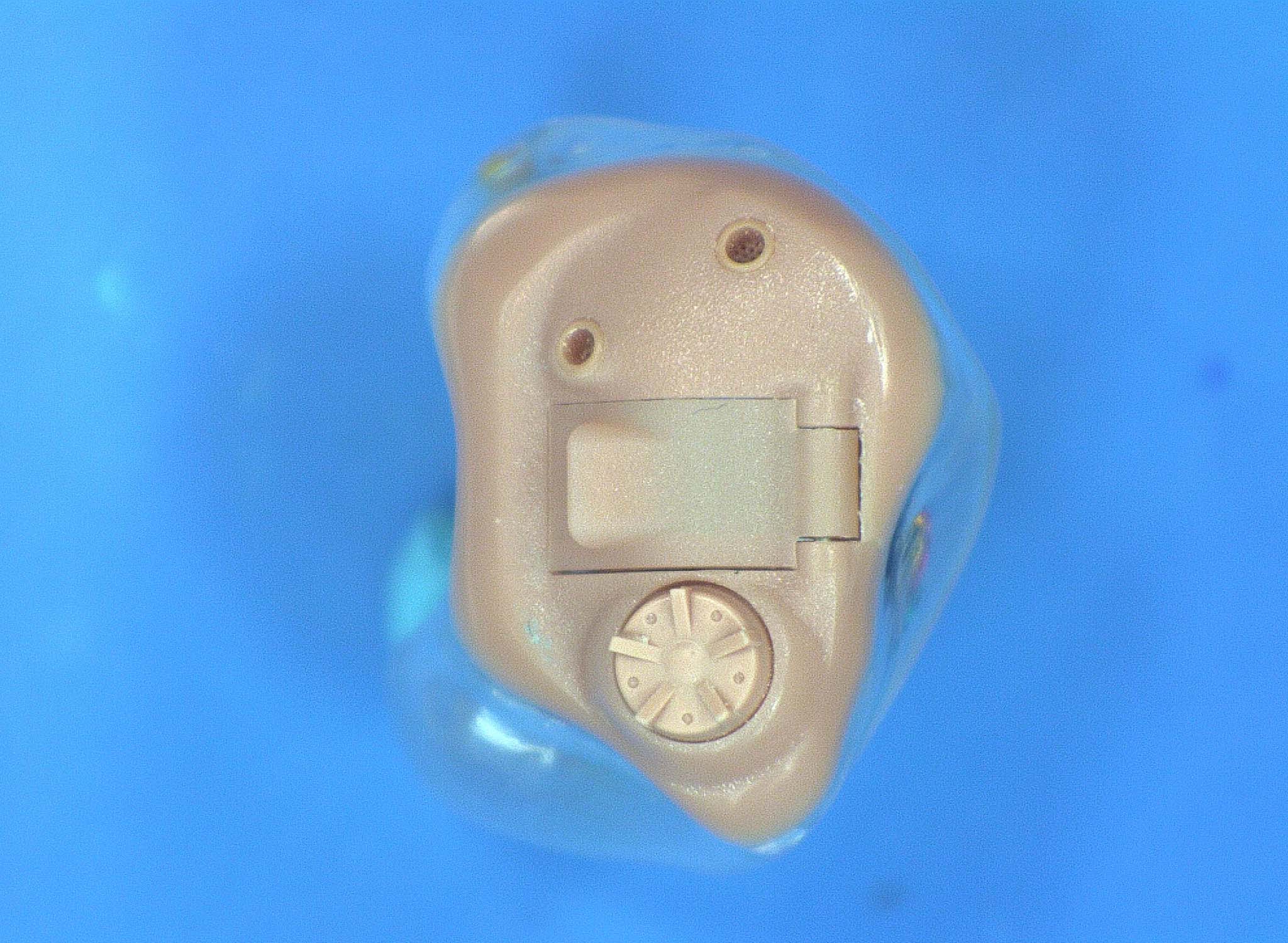

Test Setup Photos
