i Paragon-III (700MHz) Data Base Station (With Amplifier Technologies 70W PA) User Manual Version 1.00a Preliminary – For Internal Use Only The entire contents of this manual are copyright 2005 by DATARADIO Inc. Copyright DATARADIO Inc. April 2005 Part no.: 120 20191-100a 120 40515-100aHiPR900 User Manual ii 1.PRODUCT OVERVIEW ...................................................................................................................................1 1.1 INTENDED AUDIENCE........................................................................................................................................1 1.2 GENERAL DESCRIPTION.....................................................................................................................................1 1.2.1Features ...................................................................................................................................................2 1.2.2Configuration...........................................................................................................................................2 1.3 FACTORY TECHNICAL SUPPORT........................................................................................................................3 1.4 PRODUCT WARRANTY.......................................................................................................................................4 1.5 REPLACEMENT PARTS.......................................................................................................................................4 1.5.1Factory Repair.........................................................................................................................................4 1.6 PACKAGING.......................................................................................................................................................4 2.INSTALLATION................................................................................................................................................5 2.1 OVERVIEW........................................................................................................................................................5 2.2 LOCATION.........................................................................................................................................................5 2.3 FRONT VIEW.....................................................................................................................................................5 REAR VIEWS..............................................................................................................................................................7 2.5 ELECTRICAL......................................................................................................................................................8 2.5.1Paragon-III Assembly Power ..................................................................................................................8 2.6 POWER AMPLIFIER............................................................................................................................................9 2.7 ANTENNA........................................................................................................................................................10 2.7.1Overview ................................................................................................................................................10 2.7.2Cabling and Connection ........................................................................................................................10 2.8 COMPLETING THE PHYSICAL INSTALLATION....................................................................................................10 2.9 CHECKING OUT NORMAL OPERATION.............................................................................................................10 3.OPERATING DESCRIPTION .......................................................................................................................11 3.1 RADIO ASSEMBLY...........................................................................................................................................11 Diversity SDR Rx module ...................................................................................................................................11 3.1.25W Transmitter module .........................................................................................................................12 3.1.370W Power Amplifier............................................................................................................................12 3.1.4BSC module ...........................................................................................................................................13 3.1.5Speaker panel ........................................................................................................................................13 3.1.6Power Supply Modules ..........................................................................................................................14 3.1.7Radio Backplane Assembly....................................................................................................................16 3.2ONLINE & OFFLINE DIAGNOSTICS...................................................................................................................16 4.OPERATION & CONFIGURATION ............................................................................................................17 4.1 BROWSER-BASED SETUP AND STATUS............................................................................................................17 4.2 DEFAULT IP SETTINGS....................................................................................................................................17 4.2.1Ethernet Interface 1 (DATA)....................................…

Text truncated - open the document above for the full version.

DATE : March 18,2005 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_EOTBDP3-AMP ___________ Product Name:__70W Power Amplifier AMP ____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • File E5-BDP3_AMP_B_SRA7070A.pdf (Schematics, Block diagram, Circuit description, Active Parts list – Technical Manual supplied by Amplifier Technologies) • File E10-BDP3_AMP_A2_rev1.doc (F1D digital modulation source description) • Tuning procedure.pdf The aforementioned documents are provided in 3 files under exhibit 12, Operating Description and Tuning Procedure. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 18 th Day of March 20 05 By: Norman D Pearl Norman Pearl Signature Printed Title: Vice-President Engineering On behalf of : Dataradio Inc Telephone: 514-737-0020x242

SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 Assessment of Compliance for Measurement of Field Strength of Spurious Radiation and Conducted Spurious Emissions at Antenna Terminal in accordance with the FCC Rules & Regulations Parts 2.1051, 2.1053, 90.543 and 27.53 700 MHz band base station power amplifier Amplifier Technologies Dataradio. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] February 2005 APREL Project No.: DATB-BDP3-5112 SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 E E n n g g i i n n e e e e r r i i n n g g R R e e p p o o r r t t Subject: Measurement of Field Strength of Spurious Radiation & Conducted Spurious Emissions in accordance with the FCC Rules & Regulations Parts 2.1051/3, 90.543 and 27.53 FCC ID: EOTBDP3-AMP Equipment: 700 MHz band base station 80W power amplifier Model: BDP3-87S-170802A-AMP option Client: Dataradio Suite 200, 5500 Royalmount Ave. Town of Mount Royal, Quebec CANADA, H4P 1H7 Project #: DATB-BDP3-5112 Prepared By: APREL Laboratories, Regulatory Compliance Division 51 Spectrum Way Nepean, Ontario K2R 1E6 © February 2005 Page 3 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 FCC ID: EOTBDP3-AMP Applicant: Dataradio Equipment: 700 MHz band base station power amplifier Model: BDP3-87S-170802A-AMP option Standard: FCC Rules and Regulations Part 2.1053, 90.543(c) and 27.53(d) (3) ENGINEERING SUMMARY This report contains the results the measurements of the Field Strength of Spurious Radiation and Conducted Spurious Emissions at the Antenna Terminal, performed on a Dataradio 700 MHz band base station, power amplifier model BDP3-87S-170802A-AMP option, in accordance with the FCC Rules and Regulations Parts 2.1051, 2.1053, 90.543 and 27.53. The measurements for the field strength of spurious radiation were carried out using substitution method as radiated. The conducted spurious emission at the antenna terminal was measured directly. The product was evaluated for spurious radiation when it was set at the highest power. Test configuration: BDP3-87S-170802A-AMP option was tested as a stand-alone unit. This report presents test data for frequency band 767.025-772.975 MHz & 762.025-763.925 MHz The results presented in this report relate only to the sample tested. Summary of the Results Test Description Page No. Test Set-up Figure No. Results Summary Conducted Spurious Emissions at Antenna Terminal FCC Parts: 2.1051, 90.543(c) and 27.53(d)(3) 7 1 Passed Field Strength of Spurious Radiation FCC Parts: 2.1053, 90.543 (c) and 27.53(d)(3) 16 2a Passed © February 2005 Page 4 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 INTRODUCTION General This report describes the results of the measurements of Field Strength of Spurious Radiation and Conducted Spurious Emissions at the Antenna Terminal, conducted on the Device Under Investigation (DUI) a Dataradio 700 MHz band base station, 80 W power amplifier model BDP3- 87S-170802A-AMP option, in accordance with the FCC Rules and Regulations Parts 2.1051, 2.1053, 90.543 and 27.53. Test Facility The tests were performed for Dataradio by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is 90416. APREL’S Industry Canada Approval number for the OATS is IC2068. APREL is accredited by Standard Council of Canada under ISO 17025. Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1053, 2.1051, 90.543(c) and 27.53(d)(3). Personnel: The equipment was tested by Roman Kuleba, EMC Engineer, methodology developed and the report was written by Jayanta (Jay) K. Sarkar, Technical Director, Standards and Certification. Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. Temperature: 24°C ± 2, Relative Humidity: 30 - 50 % , Air Pressure: 101 kPa ± 3. © February 2005 Page 5 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 FCC SUBMISSION INFORMATION FCC ID: EOTBDP3-AMP Equipment type: 700 MHz band base station 80W power amplifier Model: BDP3-87S-170802A-AMP option For: Certification Applicant: Dataradio Suite 200, 5500 Royalmount Ave. Town of Mount Royal, Quebec CANADA, H4P 1H7 Manufacturer: Dataradio Suite 200, 5500 Royalmount Ave. Town of Mount Royal, Quebec CANADA, H4P 1H7 Evaluated by: APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 © February 2005 Page 6 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 MANUFACTURER’S DATA FCC ID: EOTBDP3-AMP Equipment Type: 700 MHz band base station power ampli…

Text truncated - open the document above for the full version.

BDP3-AMP –Dataradio Engineering Report – Annex A – Part A0 General (reference section) A0 Page 1 of 2 156-90000-711 Dataradio© FCC submission ANNEX A TEST DATA Section Rule Part Number: 2.1033 (c)(14) ANNEX A0- Test reports section. General All applicable test data according to: -Part 2: 2.1046, 2.1047, 2.1049, 2.1051, 2.1053 and 2.1057 -Part 90, Subpart R: 90.521 to 90.555 -Part 27, Subpart C: 25.50 to 27.54 are provided in this section of the Engineering Report, as shown detailed below: part- pages Data Contents FCC parts Laboratory A0-2 General. Not applicable requirements: • Data efficiency • Frequency Stability • Occupied bandwidth Emissions in the band 1559-1610MHz 2.1033 (c)(14) 90.535(a)(c) 2.1055(a),(d), 90.539,27.54 2.1049, 90.543(d),27.53(d)(4) (90.543(e),27.54(e)) A1-1 Transmitter Rated Power Output and PA gain 2.1046, 90.541, 27.50(a)(2) R&D Dataradio Inc A2-1 F1D Digital Modulation characteristics 2.1047, 90.535 R&D Dataradio Inc A3- 11 Emission Limitations (ACCP) 90.543(a),(b),27.53(d) R&D Dataradio Inc A4 –29 Spurious Radiation and Spurious Emissons at Antenna Terminals 2.1051,90.543(c),(e), 27.53(d)(3),(e) Aprel Laboratories 44 Total number of report pages The following reports have been generated for FCC Certification of the Dataradio 762-773 MHz 70W /12.5dB Power Amplifier, part number BDP3- 87S-RBPPPSM. Unless otherwise noted, all of the measurements were conducted following the procedures set forth in the TIA/EIA-603 rev B standards. Set-up and equipment identification Unit under tests (UUT): 70W / 12.5 dB Power Amplifier BDP3-AMP power amplifier assembly 4W input RF generator : Exciter module adjusted to 4W power level: T881-10-0020 s/n: 13012187 FCC ID EOTBDP3-T881 Dataradio modulation source for the Generator above: prototype P3 , banner ID 200+DATARADIO Paragon-III G3[02] v1.00(Build:1) (CodeBase:SWINT_040520) +(Steve 200 P:1), DSP built DSP_1737Beta_RC4 Open Area Test Site (OATS): FCC certified Open Area Test Site at the Aprel Laboratories located at 51 Spectrum Way Nepean Ontario, Canada BDP3-AMP –Dataradio Engineering Report – Annex A – Part A0 General (reference section) A0 Page 2 of 2 156-90000-711 Dataradio© FCC submission Emissions in the band 1559-1610MHz (90.543(e),27.54(e)) The unit does not present any spurious products above the noise floor of the instrument in the mentioned band while set for frequencies in bands 762-764MHz or 767-773MHz. The noise floor of the instrument (Agilent 8563EC) was found to be – 90dBW/MHz also equated to –120dBm/Hz, this is 30dB better than required specification. Not applicable standards: Modulation and Spectrum Usage Efficiency (90.535 (a)(c)), Occupied Bandwidth and Frequency Stability UUT is a 12.5 dB power amplifier, it does not perform the frequency generation or modulation processes. Nevertheless this requirement are applicable for the RF input signal which was part of the set-up, therefore a related explanation follows. The RF input generator generated digital modulation as per 90.535 (a). The generator is set-up for a channel size of 50 kHz as per 90.531(c) with a spectrum efficiency of 128kbps/50kHz . This equates to 128*3kbps/50*3kHz=384kbps/150kHz as required by 90.535(c) The part 90.531(d)(2) states that two or three contiguous wideband (50 kHz) channels may be used in combination as 100 kHz or 150 kHz channels. Rates of 256kbps/100kHz and 384kbps/150 kHz respectively can be achieved running 3 units having appropriately programmed generators. The amplifier UUT is a single carrier amplifier, the power combining must be a distinct circuit block of the system.

BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A1 Gain and Transmitted power ANNEX A1 A1 Page 1 of 1 156-90000-711 Dataradio© FCC submission NAME OF TEST: Transmitter Rated Power Output RULE PART NUMBER: 2.1046 (a), 90.541 UNIT UNDER TEST Prototype unit TEST RESULTS: 35 to 70W, Meets minimum standard, see data below TEST CONDITIONS: Standard Test Conditions, 25 C. 60 min warm-up time for UUT TEST EQUIPMENT: Digital Voltmeter, Fluke 77 series II multimeter x2 DC Power Supply , Tait Model T809-10 13.8Vdc/30Adc Attenuators Bird models 150-A-FFN-03 and 150-A-MFN-30 Fluke current probe 1mV/A Wattmeter Coaxial Dynamics model 81050 PERFORMED BY: DATE: 02/14/05 Constantin Pintilei TEST SET-UP: TEST RESULTS (on the test frequency 770.025MHz (ch 120)): input conditions/output (RF input) DC Voltage at UUT (VDC) DC Current into UUT (ADC) DC Power into UUT (W) Gain (dB) RF Power Output (W) RF in 0 13.82 0.1 1.38 NA 0 RF in 4.0W/RF out 70W 13.35 18.1 241.63 12.43 70 RF in 4.0W/RF out 35W 13.59 10.5 142.69 9.42 35 UUT is a single carrier power amplifier. Digital Voltmeter Wattmeter 500W probe ATTENUATOR 30dB 5W/ 50 ohm load POWER SUPPLY 70W PA Unit Under Test (UUT) Exciter T881-10 FCC ID:EOTBDP3-T881 POWER SUPPLY for exciter T881-10 Clamp Ampermeter

BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A5 Compliance with ACCP requirements A3 Page 1 of 11 156-90000-711 Dataradio© FCC submission ANNEX A3 : Emission Limitations (ACCP) NAME OF TEST: Adjacent Channel Coupled Power for digital modulation of the Dataradio AMP 70W PA. RULE PART NUMBER: 90.543(a) and (b), 27.53(d)(1)(2) MINIMUM STANDARD: Wideband 150kHz base transmitter ACCP requirements: Offset from Center Measurement Maximum ACCP frequency (kHz) Bandwidth (kHz) Relative (dBc) 100.... 50 -40 200... 50 -50 300... 50 -55 400... 50 -60 600 to 1000..... 30 (swept) -65 1000 to receive band 30 (swept) -77 in the receive band 30 (swept) -100 UNIT UNDER TEST Pre-production AMP 70W PA module in 700 MHz band TEST RESULTS: Meets minimum standard (see test data on the following pages) TEST CONDITIONS: 90.543(b) was the standard procedure followed through the test. The instruments have Channel Power over BW measurement built-in software. Input signal from T881 4W transmitter modulated by P3 base station controller modem at 128000 bps 16FSK. Standard Test Conditions, 25 0 C. TEST EQUIPMENT: Notch filter, characteristic supplied Attenuator, BIRD Models: 150-A-MFN-30, and 150-SA-FFN-10 all 150 Watt attenuation 30dB, 10dB Attenuator Pasternak model PE7015-6, 5W 6dB Splitter Mini Circuits model ZFSC-2-4 DC power source for UUT model TaitT809-10 13.8V/30A Spectrum Analyzer, Model Agilent E4401B Communication analyzer IFR COM 120B - power meter function with IF filter set to 300kHz BW. HP Benchlink -software for plot captures. PERFORMED BY: DATE: 03/02/05 Constantin Pintilei TEST SET-UP: ATTENUATOR 30dB/150W or 10dB/150W +NOTCH ATTENUATOR 6dB SPECTRUM ANALYZER POWER SUPPLY 70W PA UNIT UNDER TEST BSC P3 and Exciter T881-10 FCC ID:EOTBDP3-T881 POWER SUPPLY for exciter T881-10 2-way Splitter reference power meter with 300kHz IF BW BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A5 Compliance with ACCP requirements A3 Page 2 of 11 156-90000-711 Dataradio© FCC submission NAME OF TEST: Adjacent Channel Coupled Power (Continued) Dataradio AET 50W PA. Input RF signal is a 4W 16-level digital FM modulated carrier. The transmit “test data” pattern command produces a 8,388,607 bit pseudo- random pattern. This pattern is generated by the DSP using the polynomial X23+X5+1 form and a 23-bit shift register. Initial value of the register is 1 (1 hex). The 8,388,607 bit sequence is repeated thereafter as long is necessary to complete the test duration, the initial sequence lasts about 66 seconds at 128 kbps. This pattern is applied to the DSP modulator for mapping to 16-FSK and pulse shaping with SRRC a=0.4. The reference deviation set on 1KHz tone was 8.0kHz, the scaling factor is further applied on data. Explanations for the 50kHz wideband base station transmitter As per 90.531(c) there are two band segments that are designated for use with wideband emissions. Each of these wideband segments is divided into 120 channels having a channel size of 50 kHz. Further down in the part 90.531(d)(2) is stated that two or three contiguous wideband (50 kHz) channels may be used in combination as 100 kHz or 150 kHz channels, respectively. Meantime, the specifications for ACCP directly address only the 150kHz base transmitter ACCP requirements with no explicit reference to 50kHz or 100kHz base transmitter ACCP requirements. For the test purposes the specifications available were interpreted such that the 150 kHz transmitter specifications were considered as applicable to 3 contiguous 50kHz channels which of which has each its own 50 kHz transmitter. Subsequently the rule was applied for the 50kHz transmitter when transmitting on any of the 3-combined channels. Adjacent channel coupled power has also been measured is each of the 50kHz channels immediately adjacent to the non-aggregated 50k in use. BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A5 Compliance with ACCP requirements A3 Page 3 of 11 156-90000-711 Dataradio© FCC submission Test results 70W (nominal power, 90.534(a)): Reference power in the main channel, (90.534(b)(1)) Settings:150kHz Channel Bandwidth Test channel, 768.5MHz power read 8.7 dBm Total RF power is 70WÙ 48.5 dBm, during the test due to the detector in sample mode this can yield a different value. In the set-up there are a 3dB splitter and two attenuation pads of 30+6dB, 40dB is added to the reading of the display to get the absolute value. Power Level at frequency offsets <600kHz (90.534(b)(2)) Settings: 50kHz Channel bandwidth RBW=300Hz, Video BW=3kHz, Span=0.85MHz , Sweep = Detector mode: sample Display resolution (401 display buckets)= 2125Hz , Reference level +10dBm, 50kHz channel noise=-64.5dBm/50kHz UUT in center channel of the 150kHz 3-contiguous 50 kHz channels. Test Channel Frequency 768.500 MHz frequency Offset -400 -300 -200 -100 0 100 200 300 400 Channel Power read (dBm) -64.6 -65.1 -64.5 -63.1 8.7 -62.4 -63.1 -63.5 -64.0 Absolute channel power (dBm) (read value +40 dB attenuator) -24.6 -25.1 -24.5 -23.1 48.7 -22.4 -23.1 -23.5 -24.0 ACCP (difference) -73.3 -73.8 -73.2 -71.8 NA -71.1 -71.8 -72.2 -72.7 BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A5 Compliance with ACCP requirements A3 Page 4 of 11 156-90000-711 Dataradio© FCC submission UUT in left channel (-50kHz) of the 150kHz 3-contiguous 50 kHz channels . Test Channel -50kHz, frequency 768.450 MHz frequency Offset to the center channel -400 -300 -200 -100 0 100 200 300 400 frequency Offset to the unit channel -350 -250 -150 -50 +50 +150 +250 +350 +450 Channel Power read (dBm) -64.3 -64.4 -65.5 -33.6 8.7 -64.9 -66.5 -64.8 -66.0 Absolute channel power (dBm) (read value +40 dB attenuator) -24.3 -24.7 -25.5 6.4 48.7 -24.9 -26.5 -24.8 -26.0 ACCP (difference) -73.0 -73.4 -74.2 -42.3 NA -73.6 -75.2 -73.5 -74.7 BDP3-AMP – Dataradio 70W 700MHz PA Engineering Report – Annex A – Part A5 Compliance with ACCP requirements A3 Page 5 of 11 156-90000-711 Datarad…

Text truncated - open the document above for the full version.

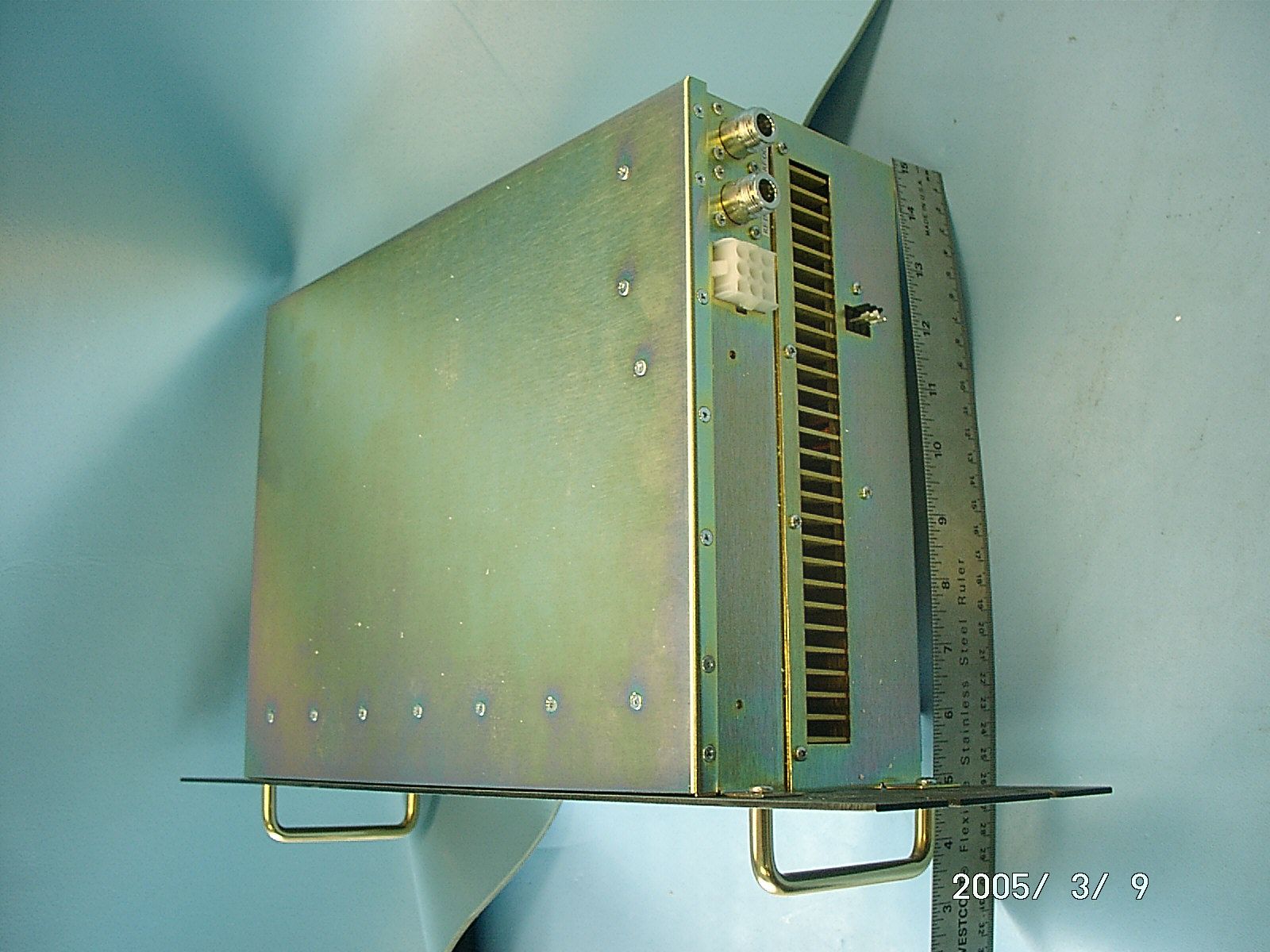

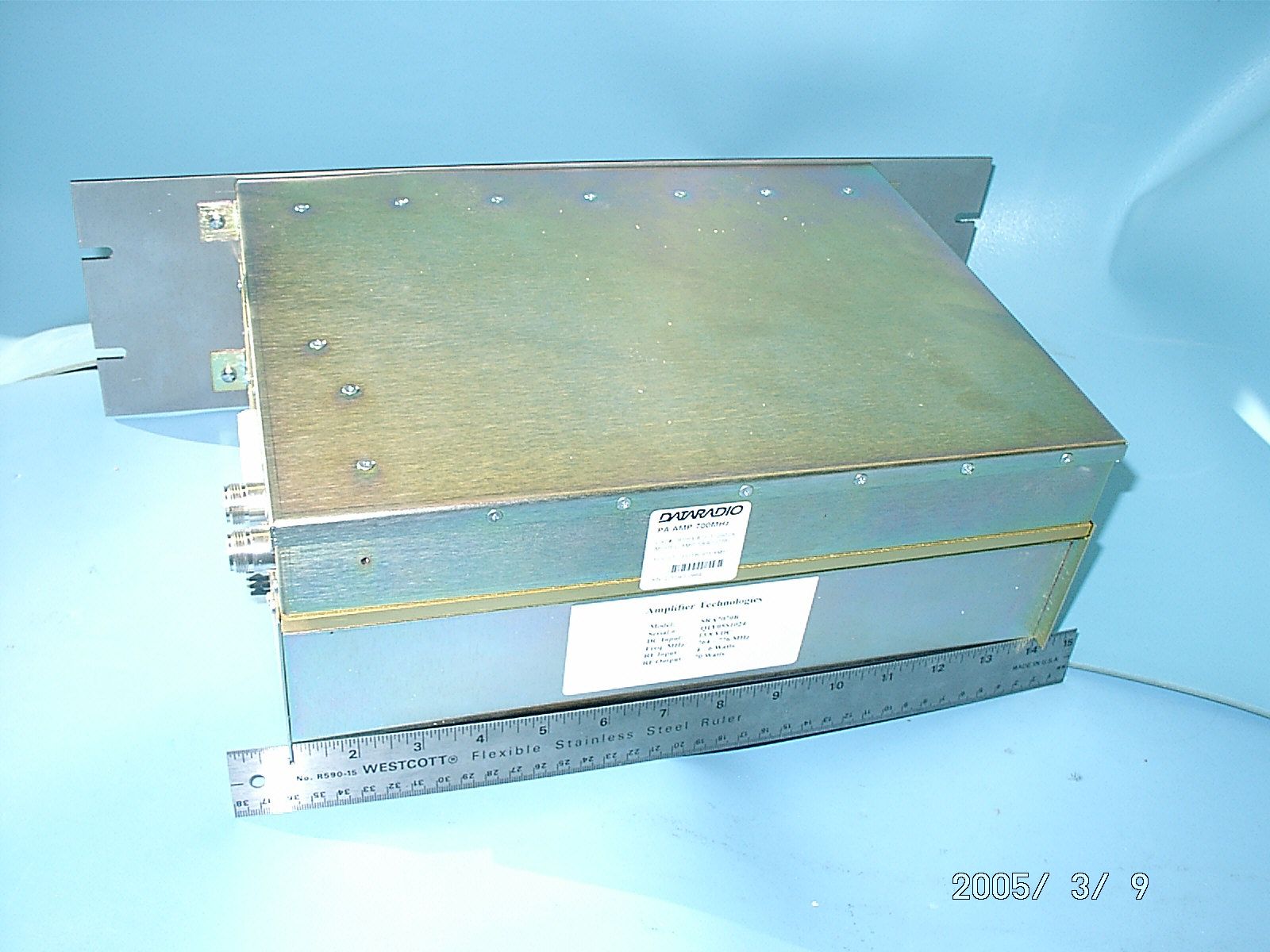

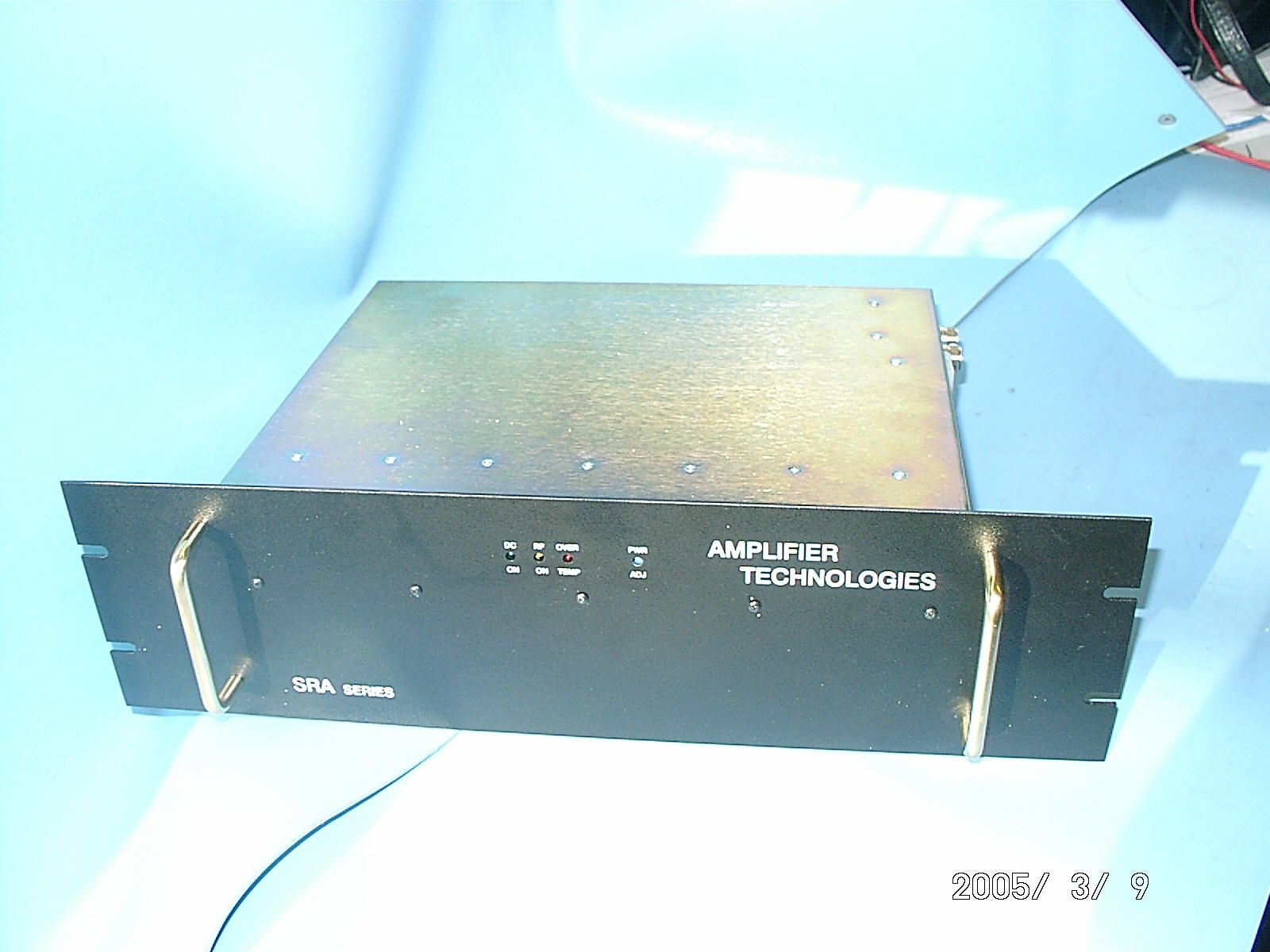

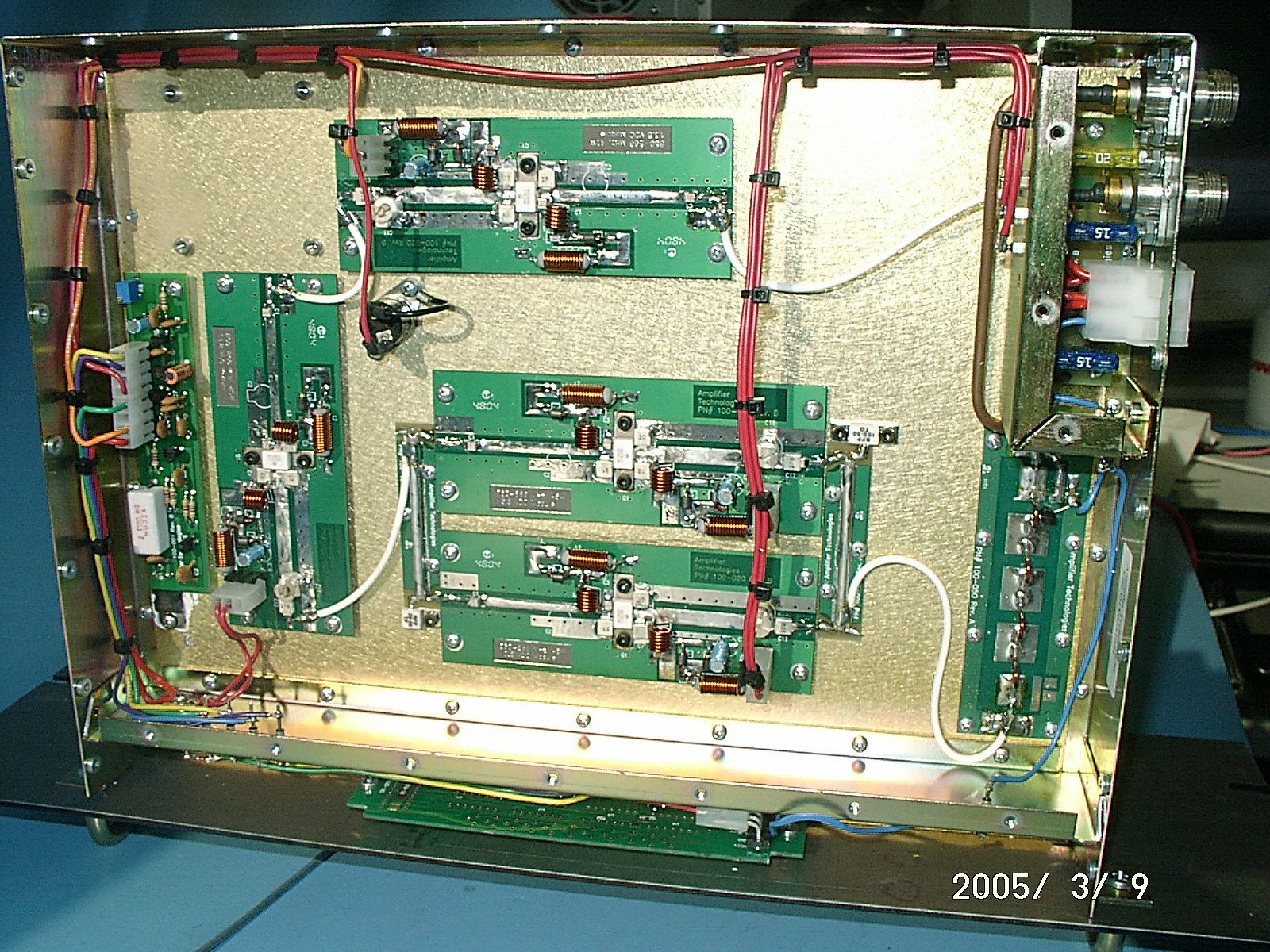

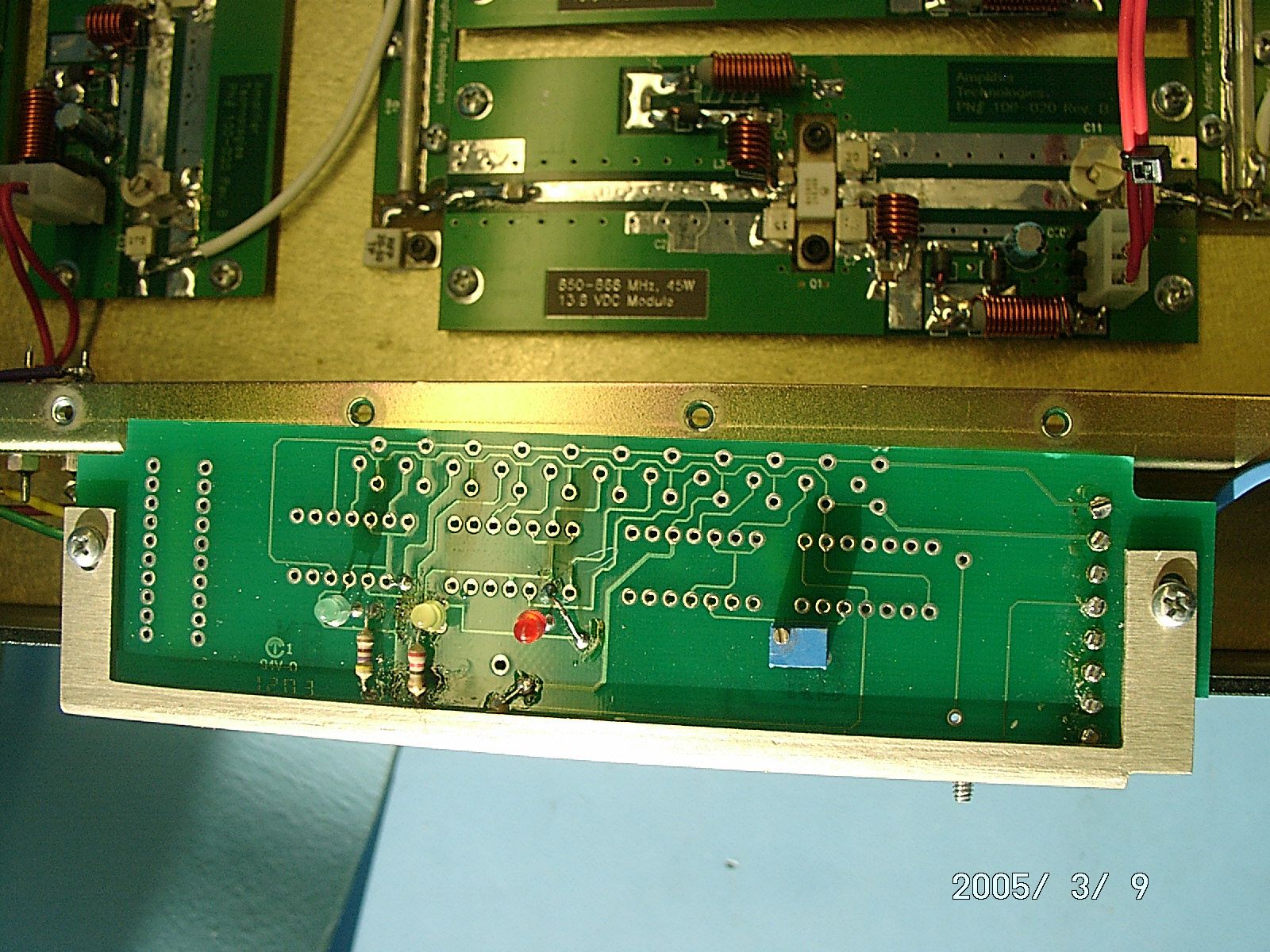

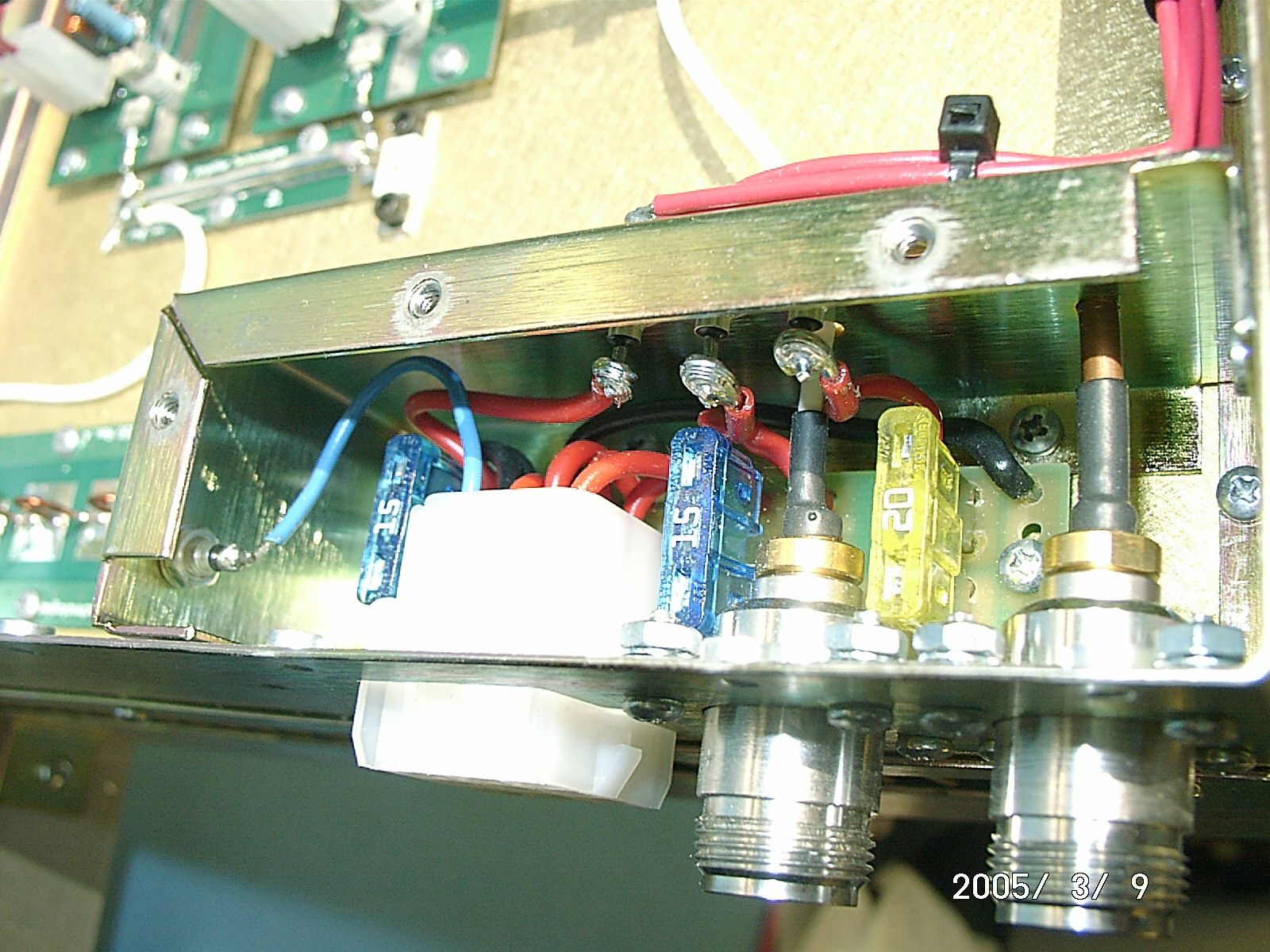

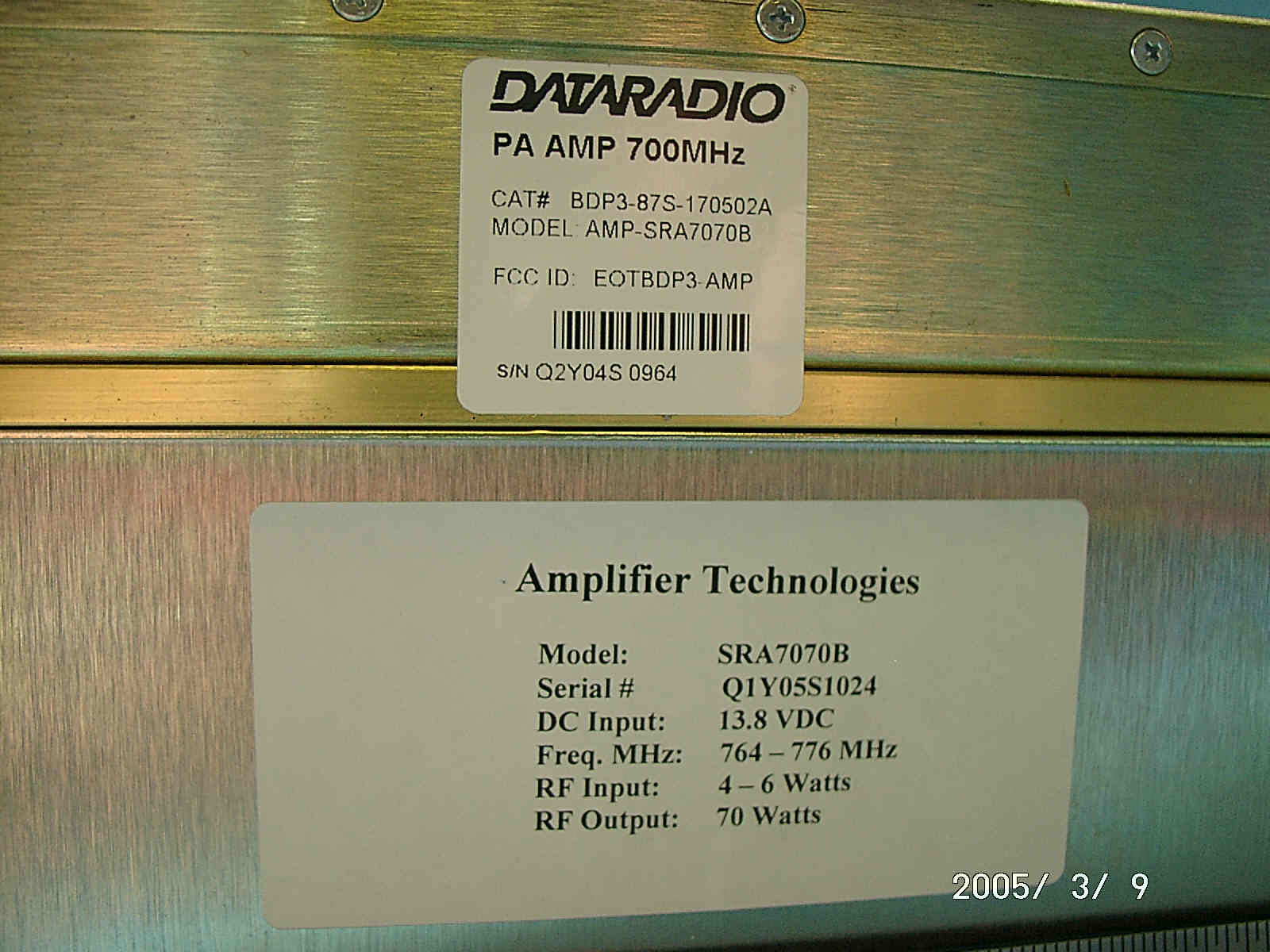

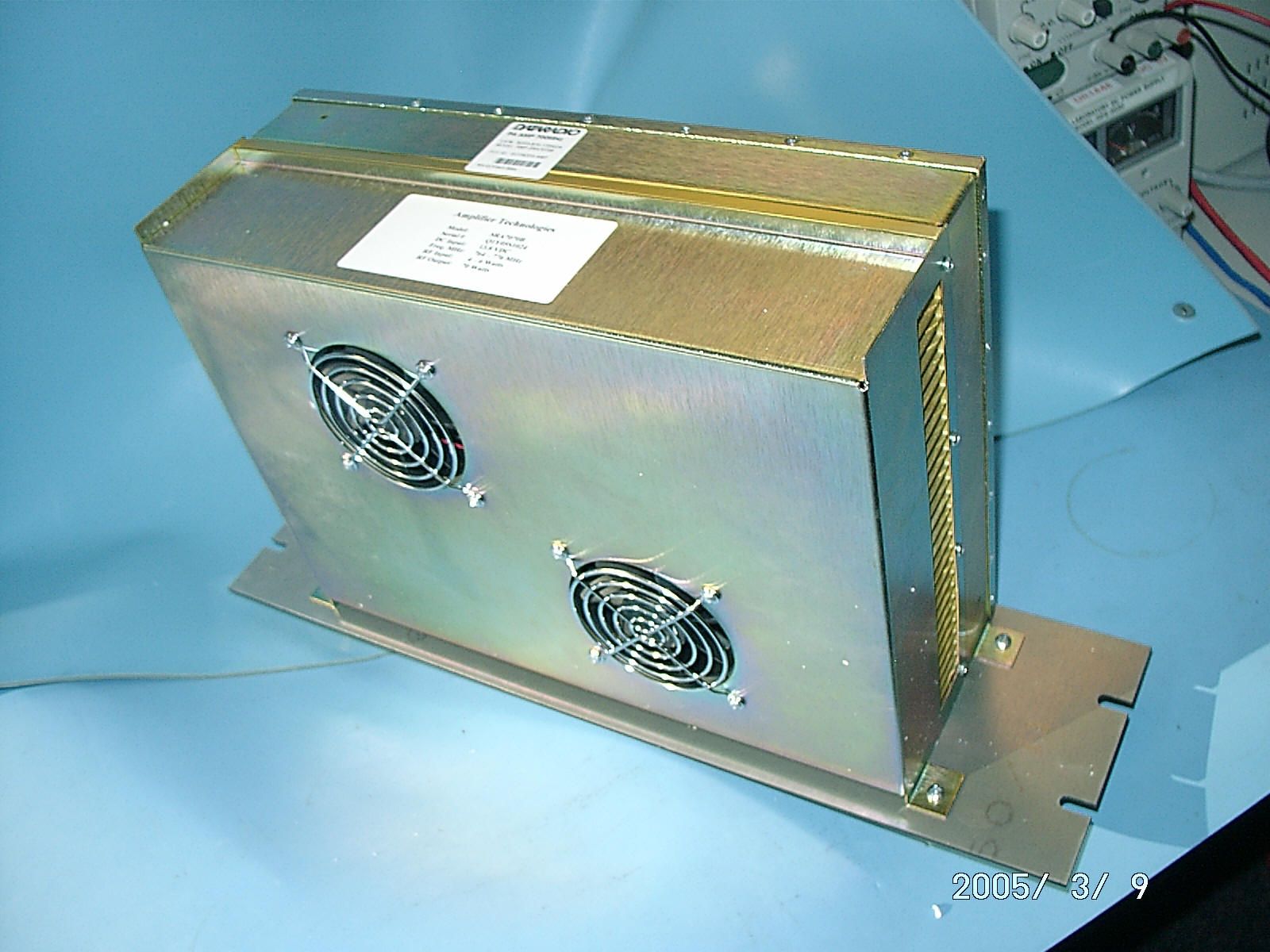

© February 2005 Page 26 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 A A P P P P E E N N D D I I X X B B P P H H O O T T O O G G R R A A P P H H S S © February 2005 Page 27 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 DataRadio EOTBDP3-AMP Amplifier (system configuration tested for radiated spurious emissions) © February 2005 Page 28 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 DataRadio EOTBDP3-AMP Amplifier (system configuration tested for radiated spurious emissions) © February 2005 Page 29 APREL Project No: DATB-BDP3-5112 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories SAR & HAC Instruments for Wireless • Consulting • Research • Standards • Compliance • Training Since 1981 DataRadio EOTBDP3-AMP Amplifier tested for Spurious Emissions from Transmitter Frequency Range: 30 MHz – 18 GHz
