EROCENRFGWEXPWECrestron CEN-RFGW-EX infiNET EX Gateway

Crestron CEN-RFGW-EX infiNET EX™ Gateway Operations & Installation Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Federal Communications Commission (FCC) Compliance Statement Operation is subject to the following two conditions: Industry Canada (IC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. This device may not cause interferecne, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help All brand names, product names and trademarks are the property of their respective owners. ©2010 Crestron Electronics, Inc. Crestron CEN-RFGW-EX infiNET EX™ Gateway Contents infiNET EX™ Gateway: CEN-RFGW-EX 1 Introduction...............................................................................................................................1 Features and Functions................................................................................................2 Specifications..............................................................................................................3 Physical Description....................................................................................................5 Setup..........................................................................................................................................9 Network Wiring...........................................................................................................9 Identity Code.............................................................................................................10 Installation.................................................................................................................11 Hardware Hookup.....................................................................................................12 Programming Software............................................................................................................14 Earliest Version Software Requirements for the PC.................................................14 Programming with Crestron SystemBuilder..............................................................14 Programming with SIMPL Windows........................................................................14 Example Program......................................................................................................17 Uploading and Upgrading........................................................................................................18 Establishing Communication.....................................................................................18 Programs and Firmware............................................................................................20 Program Checks........................................................................................................20 Operation.................................................................................................................................22 Problem Solving......................................................................................................................24 Troubleshooting.........................................................................................................24 Check Network Wiring..............................................................................................26 Reference Documents................................................................................................28 Further Inquiries........................................................................................................28 Future Updates..........................................................................................................28 Appendix A: The RF Spectrum..............................................................................................29 Appendix B: Optimum RF Reception Guidelines..................................................................30 Minimize Interference...............................................................................................30 Gateway Placement..........................…

Text truncated - open the document above for the full version.

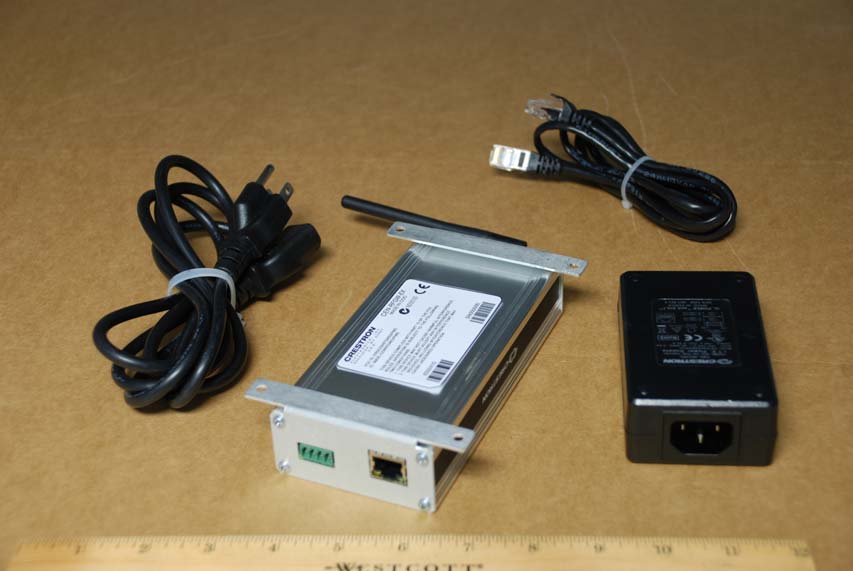

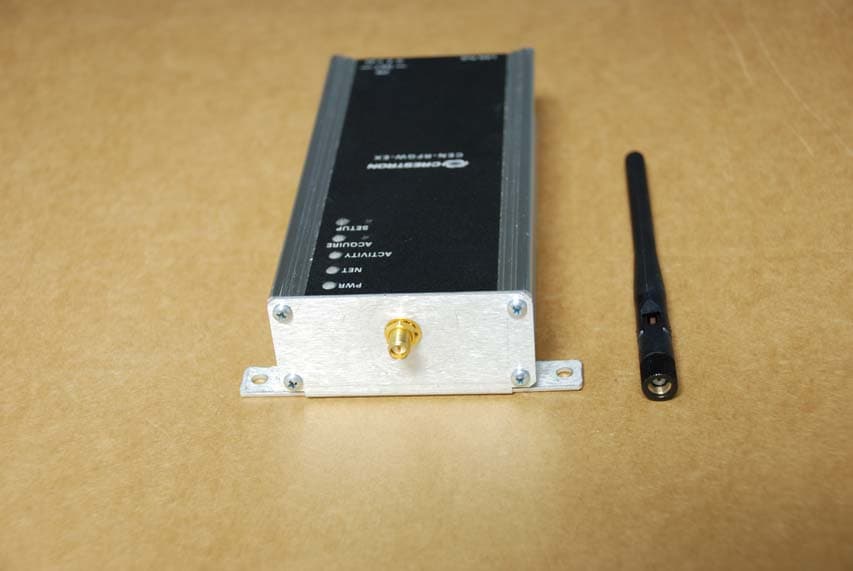

FCC ID: EROCENRFGWEXPWE External Photos Page 1 of 2 External Photos FCC ID: EROCENRFGWEXPWE External Photos Page 2 of 2 External Photos

FCC ID: EROCENRFGWEXPWE ID Label Location Page 1 of 1 ID Label Location

REVISIONS NAME REV DESCRIPTION DATE APPROVED DF A ORIGINAL ISSUE PER EWO1448 5-19-08 22 LINK DRIVE, ROCKLEIGH, N.J. 07647 (201) 750-7004 FAX (201) 767-5772 NAME DATE DRAWN BY CHECKED FINISHED GDS DESIGNED BY SIZE PRINT NUMBER REV LABEL, BARCODE APX 3.00”L X 2.00”H D 271230 UNLESS OTHERWISE SPECIFIED:ALL DIMENSIONS ARE IN INCHESTOLERANCES ARE:FRACTIONS 1/64 ANGLES ½ DECIMALS .XX .01 .XXX .005 ±± ° ±± THIS DRAWING IS THE EXCLUSIVE PROPERTY OF CRESTRON ELECTRONICS, INC. DISCLOSURE OR REPRODUCTION IN WHOLE OR IN PART, WITHOUT PRIOR WRITTEN PERMISSION, IS PROHIBITED EXCEPT FOR THE MANUFACTURE OF ARTICLES FOR CRESTRON. USED ON SORT NAME 1:! APPROVED WF 10-3-08 DEBURR & BREAK ALL SHARP EDGES DF 5-19-08 DF 5-19-08 6502410 CEN-RFGW-EX SCALE: 271230-C.CDR FILE: SHEET 1 OF 1 A ALL PARTS & PROCESSES MUST BE COMPLIANT RoHS DF B ECN7543 1-7-09 WF JH D ECNXXX 8/19/10 NOTES:1. MATERIAL: UL/CSA APPROVED GLOSS COATEDSILVER POLYESTER, .002” THK WITH PERMANENTACRYLIC ADHESIVE.2. PRINT: TEXT AND GRAPHICS - BLACK.3. USE COMPUTER FILE 23883-C.FMT FOR THEACTUAL PRODUCTION OF THE LABEL.4. SEE DWG 22121 FOR C-TICK NUMBER TOREPLACE N00000.5. MADE IN COO: TO BE CHANGED TO COUNTRYOF ORIGIN PRODUCT IS MADE IN.(EX.: USA, CANADA, ETC.) 6502410 SN000000 CEN-RFGW-EX MADE IN COO THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATION IS SUBJECT TO THE FOLLOWINGTWO CONDITIONS:1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION. REGULATORY MODEL: CENRFGWEX2 JS C ECN7682 1-21-09 3.00" 2.00" R.125 FCC ID: EROCENRFGWEXPWEIC: 5683C-CENRFGWEX2

FCC ID: EROCENRFGWEXPWE Internal Photo Page 1 of 3 Internal Photos FCC ID: EROCENRFGWEXPWE Internal Photo Page 2 of 3 Internal Photos FCC ID: EROCENRFGWEXPWE Internal Photo Page 3 of 3 Internal Photos

FCC ID: EROCENRFGWEXPWE Page 1 of 1 Maximum Permissive Exposure Performance Criterion: The human RF exposure limit is 1 mW/cm 2 . Evaluation Results: Complies Details: The maximum permissible exposure (MPE) is predicted by using Equation (3) of Section 2 of FCC OET Bulletin 65, Edition 97-01: S = PG/4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) P = 100.69 mW, G = 1.585 (2 dBi), R = 20 cm S = 0.0318 mW/cm 2 = 0.318 W/m 2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm 2 Maximum allowable antenna gain: 16.98 dBi Margin of Compliance at 20 cm = 14.98 dB

FCC ID: EROCENRFGWEXPWE Page 1 of 30 Test Report FCC Part 15, Subpart C, Section 15.247 Report Number: CENRFGWEXPWE-2-FCC Model: CENRFGWEXPWE-2 FCC ID: EROCENRFGWEXPWE Date: July 22, 2010 (Revised August 12, 2010) Prepared by: Grace Lin Date: July 22, 2010 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: July 22, 2010 Wayne Owens, Director of Program Management FCC ID: EROCENRFGWEXPWE Page 2 of 30 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 P RODUCT DESCRIPTION................................................................................................... 3 1.2 TEST METHODOLOGY...................................................................................................... 3 1.3 TEST FACILITY................................................................................................................. 3 1.4 TEST EQUIPMENT............................................................................................................. 4 1.5 E VALUATION SUMMARY.................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 J USTIFICATION................................................................................................................. 5 2.2 BLOCK DIAGRAM............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION.............................................. 5 2.4 C ABLES............................................................................................................................ 6 2.5 S PECIAL ACCESSORIES..................................................................................................... 6 2.6 SUPPORT EQUIPMENT....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS........................................................................................... 6 3. EVALUATION .....................................................................................................................7 3.1 ANTENNA REQUIREMENTS............................................................................................... 7 3.2 6 DB BANDWIDTH........................................................................................................... 8 3.3 POWER OUTPUT............................................................................................................. 11 3.4 BAND EDGE................................................................................................................... 14 3.5 CONDUCTED SPURIOUS EMISSIONS................................................................................ 16 3.6 POWER SPECTRAL DENSITY........................................................................................... 20 3.7 R ADIATED SPURIOUS EMISSIONS................................................................................... 23 3.8 TRANSMITTER AC POWER LINE CONDUCTED EMISSIONS.............................................. 25 3.9 RECEIVER RADIATED EMISSIONS................................................................................... 27 3.10 RECEIVER AC POWER LINE CONDUCTED EMISSIONS.................................................... 29 FCC ID: EROCENRFGWEXPWE Page 3 of 30 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron infiNET EX™ Wireless Gateway, trade name: CEN-RFGW-EX, model: CENRFGWEXPWE-2. There is two package options: CEN-RFGW-EX and CEN-RFGW-EX-PWE. CEN-RFGW-EX-PWE contains a CEN- RFGW-EX and a PoE injector. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROCENRFGWEXPWE Page 4 of 30 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 22, 2009 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Jan. 28, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Jan. 27, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Feb. 9, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz May 10, 2010* R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Feb. 23, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 * Visual inspection 1.5 Evaluation Summary Rule Section FCC IC Description/Parameters Results §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.207 §7.2.2 of RSS-Gen Transmitter AC Power Line Conducted Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies §15.107 §7.2.2 of RSS-Gen Receiver AC Power Line Conducted Emissions Complies Note: The channe…

Text truncated - open the document above for the full version.

FCC ID: EROCENRFGWEXPWE Page 1 of 30 Test Report FCC Part 15, Subpart C, Section 15.247 Report Number: CENRFGWEX2-FCC Model: CENRFGWEX2 FCC ID: EROCENRFGWEXPWE Date: July 22, 2010 (Revised August 19, 2010) Prepared by: Grace Lin Date: July 22, 2010 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: July 22, 2010 Wayne Owens, Director of Program Management FCC ID: EROCENRFGWEXPWE Page 2 of 30 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 P RODUCT DESCRIPTION................................................................................................... 3 1.2 TEST METHODOLOGY...................................................................................................... 3 1.3 TEST FACILITY................................................................................................................. 3 1.4 TEST EQUIPMENT............................................................................................................. 4 1.5 E VALUATION SUMMARY.................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 J USTIFICATION................................................................................................................. 5 2.2 BLOCK DIAGRAM............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION.............................................. 5 2.4 C ABLES............................................................................................................................ 6 2.5 S PECIAL ACCESSORIES..................................................................................................... 6 2.6 SUPPORT EQUIPMENT....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS........................................................................................... 6 3. EVALUATION .....................................................................................................................7 3.1 ANTENNA REQUIREMENTS............................................................................................... 7 3.2 6 DB BANDWIDTH........................................................................................................... 8 3.3 POWER OUTPUT............................................................................................................. 11 3.4 BAND EDGE................................................................................................................... 14 3.5 CONDUCTED SPURIOUS EMISSIONS................................................................................ 16 3.6 POWER SPECTRAL DENSITY........................................................................................... 20 3.7 R ADIATED SPURIOUS EMISSIONS................................................................................... 23 3.8 TRANSMITTER AC POWER LINE CONDUCTED EMISSIONS.............................................. 25 3.9 RECEIVER RADIATED EMISSIONS................................................................................... 27 3.10 RECEIVER AC POWER LINE CONDUCTED EMISSIONS.................................................... 29 FCC ID: EROCENRFGWEXPWE Page 3 of 30 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron infiNET EX™ Wireless Gateway, trade name: CEN-RFGW-EX, model: CENRFGWEX2. There is two package options: CEN- RFGW-EX and CEN-RFGW-EX-PWE. CEN-RFGW-EX-PWE contains a CEN-RFGW- EX and a PoE injector. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROCENRFGWEXPWE Page 4 of 30 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 22, 2009 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Jan. 28, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Jan. 27, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Feb. 9, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz May 10, 2010* R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Feb. 23, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 * Visual inspection 1.5 Evaluation Summary Rule Section FCC IC Description/Parameters Results §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.207 §7.2.2 of RSS-Gen Transmitter AC Power Line Conducted Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies §15.107 §7.2.2 of RSS-Gen Receiver AC Power Line Conducted Emissions Complies Note: The channels selected…

Text truncated - open the document above for the full version.

FCC ID: EROCENRFGWEXPWE Test Setup Photos Page 1 of 4 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view, Cresnet port Worst-case conducted emission, Side View, Cresnet port FCC ID: EROCENRFGWEXPWE Test Setup Photos Page 2 of 4 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view, LAN PoE port Worst-case conducted emission, Side View, LAN PoE Port FCC ID: EROCENRFGWEXPWE Test Setup Photos Page 3 of 4 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view, Cresnet port Worst-case radiated emission, rear view, Cresnet port FCC ID: EROCENRFGWEXPWE Test Setup Photos Page 4 of 4 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view, LAN PoE port Worst-case radiated emission, rear view, Cresnet port
