Crestron CWD1014 Two-Way RF Transceiver Module Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2007 Crestron Electronics, Inc. Crestron CWD1014 Two-Way RF Transceiver Module Operations Guide - DOC. 6658 Contents • i Contents Two-Way RF Transceiver Module: CWD1014...................................................1 Introduction................................................................................................................................................1 Functions and Features............................................................................................................1 Specifications............................................................................................................................2 Physical Description.................................................................................................................2 Industry Compliance................................................................................................................4 Setup............................................................................................................................................................7 Hardware Hookup.....................................................................................................................7 End Product Labeling...............................................................................................................8 Documentation..........................................................................................................................8 Crestron CWD1014 Two-Way RF Transceiver Module Operations Guide - DOC. 6658 Two-Way RF Transceiver Module: CWD1014 • 1 • Two-way RF transceiver − 2.4 GHz frequency band, IEEE 802.15.4 specification − Range from 3 feet to 100 ft. − Operates on one of sixteen available channels to establish optimal signal quality Two-Way RF Transceiver Module: CWD1014 Introduction Functions and Features The CWD1014 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices. The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices. The module receives RF signals from one or more Crestron devices and can transmit these signals over the air or over a cable run for further processing (depending on the application). Functional Summary The transceiver uses a 100 milliwatt signal that can travel up to approximately 100 feet indoors. The range is dependent on the construction of the building, obstructions, and RF interference from other devices. The location of the module and the orientation of its antenna are also important factors in determining RF performance. Two-Way RF Transceiver Module Crestron CWD1014 2 • Two-Way RF Transceiver Module: CWD1014 Operations Guide - DOC. 6658 Specifications The table below is a summary of specifications for the CWD1014. Specifications of the CWD1014 SPECIFICATION DETAILS Power Requirements 0.75 Watts (3.3VDC @ 0.250A) Operating Frequency 2400 MHz to 2483.6 MHz (802.15.4 compliant) Operating Ranges¹ Minimum Distance Maximum Distance Indoors (without repeater device) 3 ft 100 ft Available Channels 16 (numbered 11 through 26 per 802.15.4) RF Output Power 100 mW Serial Communications SPI, TTL Level Antenna Connector SMA Non-Standard Female Connector with ¼-36 UNS2B Screw Dimensions Width: 1.50 in (3.81 cm) Height: 2.50 in (6.35 cm) Depth: 0.36 in (0.91 cm) 1. The location of the module and the orientation of the antenna are important factors in the RF performance. With the unit located outside of any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the building in which it is used. The construction of the building, obstructions, and RF interference from other devices are factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within 3-5 feet of each other. Physical Description The module, shown below, consists of various components attached to a printed circuit board. A SMA non-standard female antenna port is located at edge of the circuit board for attaching a dipole antenna while 24 solder points line the perimeter of the printed circuit board for the application-specific installation. Physical View of CWD1014 Crestron CWD1014 Two-Way RF Transceiver Module Operations Guide - DOC. 6658 Two-Way RF Transceiver Module: CWD1014 • 3 CWD1014 Detail Views 1.00 in (2.54 cm) 0.35 in (0.89 cm) 1.54 in (3.91 cm) Ports The module contains 24 solder points and one antenna port. Refer to the diagrams and descriptions that follow. Power/I-O Twenty-four solder points provide power to the module as well as serial communications between the module and wired devices. Refer to the following table for pin assignments of the module interface connector. Power/I-O Pinout Signals Pin # Signal Pin # Signal Pin # Signal 1 GND 9 Output Amplifier Enable 17 IRQ (active low) 2 Receive Enable (active low) 10 RX/TX Enable 18 Reserved (No Connection) 3 Transmit Enable (active low) 11 Attention (active low) 19 Reserved (No Connection) 4 Reserved 12 Reserved (No Connection) 20 Reserved (No Connection) 5 Reserved 13 SPI CLK 21 GND 6 Reserved 14 SPI MOSI 22 GND 7 Reserved 15 SPI MISO 23 VCC 3.3V 8 Reset (active low) 16 SPI_CE (active low) 24 GND Two-Way RF Transceiver Module Crestron CWD1014 4 • Two-Way RF Transceiver Module: CWD1014 Operations Guide - DOC. 6658 Antenna This SMA non-standard male antenna port is located at edge of the circuit board for attaching the included dipole antenna. A…

Text truncated - open the document above for the full version.

REVISIONS NAMEREVDESCRIPTIONDATEAPPROVED DFA ORIGINALISSUEPEREWO1335 9-27-07 22LINKDRIVE,ROCKLEIGH,N.J.07647 (201)750-7004FAX(201)767-5772 NAMEDATE DRAWNBY CHECKED FINISHEDGDS DESIGNEDBY SIZE PRINTNUMBER REV LABEL CUSTOM,FCCID A270594 UNLESSOTHERWISESPECIFIED: ALLDIMENSIONSAREININCHES TOLERANCESARE: FRACTIONS1/64ANGLES½ DECIMALS.XX.01.XXX.005 ±±° ±± THISDRAWINGISTHEEXCLUSIVEPROPERTYOFCRESTRONELECTRONICS,INC.DISCLOSUREORREPRODUCTIONINWHOLE ORINPART,WITHOUTPRIORWRITTENPERMISSION,ISPROHIBITEDEXCEPTFORTHEMANUFACTUREOFARTICLESFORCRESTRON. USEDON SORTNAME 1:1 APPROVED DEBURR&BREAKALLSHARPEDGES DF9-27-07 DF9-27-07 6501289 CEN-HPRFGW SCALE: 270594-A.CDR FILE:SHEET1OF1 A ALLPARTS&PROCESSESMUSTBE COMPLIANTRoHS NOTES: 1.MATERIAL:WHITEPOLYESTER,.002”THKWITH PERMANENTADHESIVEBACKING. 2.PRINT:TEXTANDGRAPHICS-BLACK. 3.USEARTWORK23294,INONEOFIT’S ORIGINAL,AVAILABLEFORMATS(THE270594 DRAWINGISAREPRESENTATIONOFTHE ARTWORK,SEETHEACTUALARTWORKDRAWING FORTHECORRECTINFORMATION) 4.TOLERANCE+/-.010EXCEPTWHERENOTED OTHERWISE. FCCID:EROCWD1014 IC:5683A-CWD1014 SEEMANUAL 0.600 R.030

Integrated Antenna Solutions  Product Specification FE010315-G Mica 2.4 GHz SMD Antenna Product Specification 1 Features Designed for 2.4 GHz applications [Bluetooth™, WiFi™ (802.11b/g), Zigbee™, WiMedia™ etc.] Intended for SMD mounting Supplied in tape on reel 2 Description The Mica antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e. your device acts as an active part of the antenna and thus demand careful consideration concerning its placement. 3 Application Mobile phones PDAs Headsets Laptops Medical equipment Automotive • • • • • • • • • Integrated Antenna Solutions 2 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna Contents 1 Features  2 Description  3 Application  4 Model name 3 5 General data 3 6 Electrical characteristics 3 7 Electrical performance 3 7-2 3D-Radiation 4 7-3 Radiation patterns 4 8 Antenna Dimensions 5 9 Antenna Footprint 5 10 Electrical interface 6 10-1 Transmission line and matching 6 10-2 Test board dimensions 6 10-3 Test board matching 7 11 Soldering 7 11-1 Recommended soldering conditions 7 11-2 Leadfree soldering 7 12 Reliability 8 12-1 Temperature and Humidity 8 12-2 Mechanical 8 12-3 Miscellaneous 8 12-4 Judgement standard 9 13 Hazardous Material Regulation Conformance 9 14 Application example 9 15 Packaging 1 0 15-1 Shelf storage recommendation 1 0 15-2 Tape characteristics 1 0 15-3 Reel dimension 1  15-4 Box dimension 1  15-5 Bag properties 1  15-6 Reel label information 1  Integrated Antenna Solutions 3 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 4 Model name 3030A5645 - 01 Antenna Family -SMD Technology -PCB Drawing No. 5 General data Product NameMica 2.4 GHz Article No.3030A5645-01 Frequency2.4-2.5 GHz PolarizationLinear Operating temperature-40 to + 85 degC Impedance50 Ohm Weight0.4 gram Antenna typeSMD 6 Electrical characteristics Characteristics Conditions* MinTypMax Peak Gain0.8 dBi1.2 dBi1.9 dBi Frequency 2.4-2.5 GHz, Measured in 3D chamber ( near field) Efficiency70%75%79% VSWR1.0:11.5:11.9:1 Frequency 2.4-2.5 GHz, Measured in Network Analyzer *Note all data provided in this table are based on the gigaNOVA™ reference board 7 Electrical performance 2.4 2.45 2.5 GHz VSWR 1:1 3:1 * HP9770 Network Analyzer 2:1 Integrated Antenna Solutions 4 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 7-2 3D-Radiation -27.34 --22.33 -17.31 -12.3 -20 -10 0 10 -30 -20 -10 0 -20 -15 -10 -5 0 5 X Y Z 10 20 -7.28 -2.27 2.74 10 15 20 25 20 dBi 7-3 Radiation patterns XY- PlaneXZ- PlaneYZ- Plane Total Polarization Vertical Polarization Horizontal Polarization Integrated Antenna Solutions 5 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 8 Antenna Dimensions LWHGFS1, S2IJKLMN LengthWidthHeightGroundFeedSolderFeedFeed 20.5 ±0.23.6 ±0.13.3±0.21.2±0.11.2±0.11.2±0.13.2±0.10.55±0.251.0±0.15.5±0.17.7±0.10.2±0.1 Dimensions in millimeters. 9 Antenna Foot print S S2 I K L G F M O P Copper area Soldering pads Tr ansparent area GFS1S2IKLMOP GroundFeedSolderSolder 1.2±0.11.2±0.11.2±0.11.2±0.13.2±0.11.0±0.15.5±0.17.7±0.10.5±0.10.5±0.1 Dimensions in millimeters. Integrated Antenna Solutions 6 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 10 Electrical interface 10-1 Transmission line and matching The matching network has to be individually designed using one, two or three components. t, w = Unique dimensioning according to your PCB * C = Inductor and capacitor values according to your specific device* * Antenova provides this service upon request 10-2 Test board dimensions The testboard is designed for evaluation purposes for Mica 2.4 GHz SMD antenna. The board has the same size as a typical PCMCIA card and is fitted with an SMA connector. Integrated Antenna Solutions 7 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 10-3 Test board matching Series resistor 0 Ohm The testboard is matched with above specified component. Note! The component value(s) will vary depending on size of PCB, surrounding components etc. 11 Soldering 11-1 Recommended soldering conditions 11-2 Leadfree soldering The antenna has been tested and approved for leadfree soldering. The reflow curve and solder paste used is listed below. Solder paste: KOKI S3X58-M405 Integrated Antenna Solutions 8 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 12 Reliability 12-1 Temperature and Humidity ItemStandardLowHighDuration Operating temperature EN/IEC 60068-2-2, Test Bd: Dry heat -30 degC+90 degC- Temperature cycling EN/IEC 60068-2-14, Test Na: Change of temperature -40 degC+90 degC500 cycles /10 min Storage life Humidity EN/IEC 60068-2-1, Test Ca: Damp heat +60 degC / 90% RH500 h Storage life Low temperature EN/IEC 60068-2-1, Test Ad: Cold -55 degC - 500 h Storage life High temperature EN/IEC 60068-2-2, Test Bb: Dry heat -+125 degC500 h 12-2 Mechanical ItemStandardLowHighDuration Bending IEC 60068-2-21, Test Ue1: Bending Bending 1 mm at a rate of 1 mm/s with support at end of PCB 1mm depth on reference board Shear IEC 60068-2-21, Test Ue3: Shear Force of 5 N applied to the side of the antenna. Drop test Dummy weight: 150g Height: 170cm One drop at each side, total drops: 6 Vibration EN/IEC 60068-2-6, Test Fc (sinusoidal) Acceleration spectral density:10-1000Hz Acceleration: 20m/s2 Number of axes: 3 mutually perpendicular 5 cycles per axis 12-3 Miscellaneous ItemStandardLowHighDuration Solderability EN/IEC 60068-2-58, Test Td Visual inspection of soldering pads. Estimation of how many % of the pads that are well tin plated. Integrated Antenna Solutions 9 Product Specification FE010315-G Mica 2.4 GHz SMD Antenna 12-4 Judgement standard The judgement of the above tests should be made as follows: Visual inspection - Normal apperance with no obvious cracking, peeling-off. Electrical inspection - The DUT satisfies the VSWR specification throughout the 2.4-2.5 GHz band. 13 Hazardous Material Regulation Conformance Cadmium and cadmium compound. Organic brominated compound (PBB, PBDE) Polychlorinated bipheny…

Text truncated - open the document above for the full version.

FCC A U T H O R I Z A T I O N Date: 12/10/2007 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Sudharsan Sam Yogasuntharam Phone: 201-750 7004 x11350 Electrical Engineer Fax: 201-767 5772 Applicant: Crestron Electronics, Inc. E-Mail: [email protected] ______________________________________________________________________________________ Dear Ladies and/or Gentlemen: I appoint Teresa White, Brian Petted and Kenneth Boston of LS Research, LLC, to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. By checking “Yes”, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C 853(a); or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. ___X___Yes _______No By: Sudharsan Sam Yogasuntharam Title: Electrical Engineer Crestron Electronics, Inc. Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com April 23, 2008 To: Stan Lyles Federal Communications Commission Ref: Crestron Electronics, Inc. FCC ID #: EROCWD1014 Corresp. Ref. #: 35275 Form 731 Conf. #: EA808993 ------------------------------------------------------------------------------------------------------------- Dear Mr. Lyles: This letter is to inform you that LS Research, LLC (agent for Crestron Electronics Inc.) has conferred with Crestron Electronics, and a decision has been made not to pursue a split- modular approval. On behalf of Crestron Electronics, we wish to obtain a modular approval for this unit. Thank you. Sincerely, Teresa A. White Quality Manager LS Research, LLC (Agent for Crestron) [email protected] 262.421.4991 W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com

FCC CONFIDENTIALITY Date: 12/10/2007 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Sudharsan Sam Yogasuntharam Phone: 201-750 7004 x11350 Electrical Engineer Fax: 201-767 5771 Applicant: Crestron Electronics, Inc. E-Mail: [email protected] ______________________________________________________________________________________ Subject: Request for Non disclosure for FCC ID: EROCWD1014 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Crestron Electronics, Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # EROCWD1014 a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Crestron Electronics, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, By: Sudharsan Sam Yogasuntharam Title: Electrical Engineer Crestron Electronics, Inc. Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com

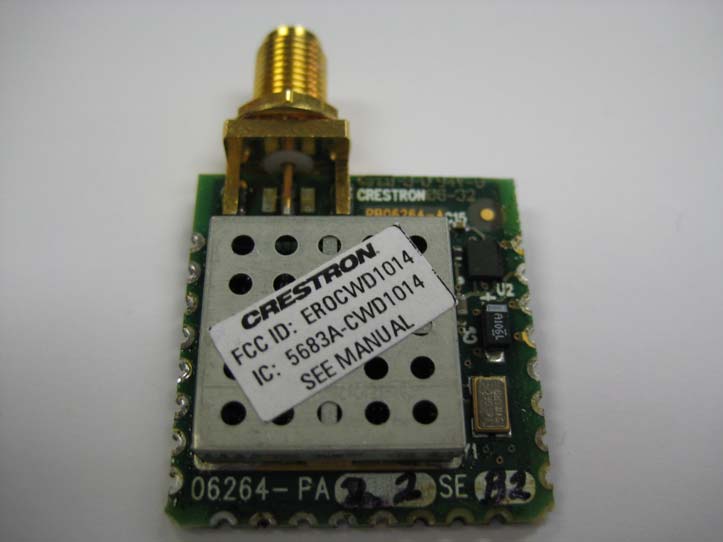

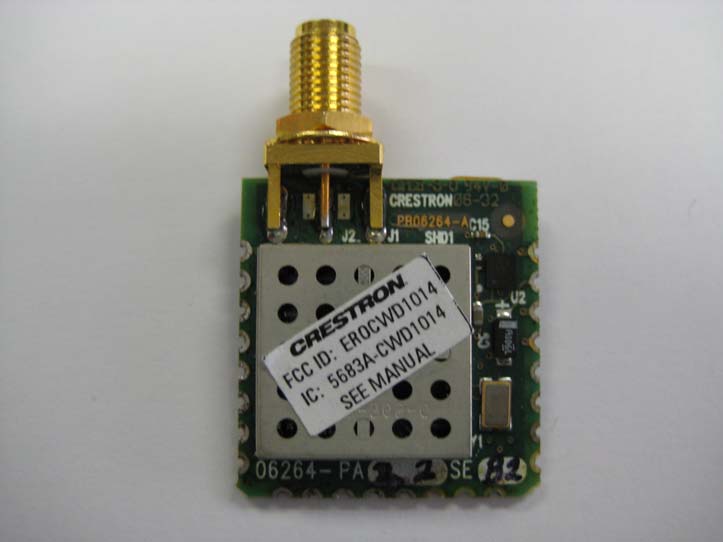

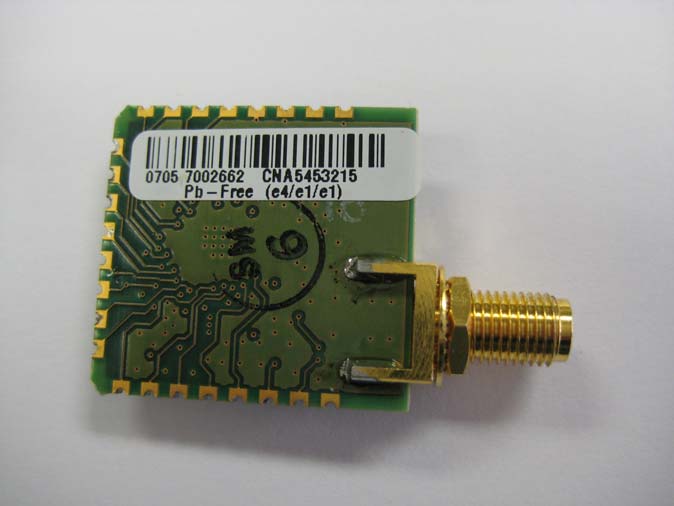

EXTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 1 of 5 EXTERNAL PHOTOS Page 1 of 5 View of Module, with Antenna Connected View of Module, with Antenna not connected EXTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 2 of 5 EXTERNAL PHOTOS Page 2 of 5 View #1 of Pin on Antenna View #2 of Pin on Antenna EXTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 3 of 5 EXTERNAL PHOTOS Page 3 of 5 View #1 of Pin on Antenna Connection View #2 of Pin on Antenna Connection EXTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 4 of 5 EXTERNAL PHOTOS Page 4 of 5 View #1 of Module, Shielded, Showing FCC ID Label View #2 of Module, Shielded, Showing FCC ID Label EXTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 5 of 5 EXTERNAL PHOTOS Page 5 of 5 View #1 of Backside of RF Section View #2 of Backside of RF Section

INTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 1 of 2 INTERNAL PHOTOS Page 1 of 2 View #1 of RF Section, Shield Removed View #2 of RF Section, Shield Removed INTERNAL PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with RP-SMA MODEL NUMBER(S): CWD1014 FCC ID #: EROCWD1014 IC #: 5683A-CWD1014 PHOTO # 2 of 2 INTERNAL PHOTOS Page 2 of 2 View #3 of RF Section, Shield Removed View #4 of RF Section, Shield Removed

TEST SETUP PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with MHF FCC ID#: EROCWD1015 Model # CWD1015 And 2-Way RF Module with RP-SMA FCC ID#: EROCWD1014 Model # CWD1014 Page 1 of 2 TEST SETUP PHOTOS Vertical Orientation Dipole Antenna (Straight) Dipole Antenna (90°) Ceramic Chip Antenna Horizontal Orientation Dipole Antenna (Straight) Dipole Antenna (90°) Ceramic Chip Antenna Side Orientation Dipole Antenna (Straight) Dipole Antenna (90°) Ceramic Chip Antenna TEST SETUP PHOTOS COMPANY NAME: Crestron Electronics, Inc. PRODUCT NAME: 2-Way RF Module with MHF FCC ID#: EROCWD1015 Model # CWD1015 And 2-Way RF Module with RP-SMA FCC ID#: EROCWD1014 Model # CWD1014 Page 2 of 2 TEST SETUP PHOTOS Test Setup Photo(s) – Conducted Emissions Test
