EROCWD6660Two-Way RF Transceiver Module

Crestron CWD6660 Two-Way RF Transceiver Module Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more if the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Industry Canada (IC) Compliance Statement Operation is subject ot the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. All brand names, product names and trademarks are the property of their respective owners. ©2010 Crestron Electronics, Inc. Crestron CWD6660 Two-Way RF Transceiver Module Operations Guide - DOC. 7028A Contents • i Contents Two-Way RF Transceiver Module: CWD6660 ..............................................1 Functions and Features .............................................................................................................. 1 Specifications............................................................................................................................. 2 Physical Description .................................................................................................................. 2 Setup .......................................................................................................................................... 4 Labeling ..................................................................................................................................... 4 Documentation........................................................................................................................... 4 Crestron CWD6660 Two-Way RF Transceiver Module Operations Guide - DOC. 7028A Two-Way RF Transceiver Module: CWD6660 • 1 • 2.4 GHz frequency band, IEEE 802.15.4 specification • Range from 3 feet to 550 ft. • Operates on one of sixteen available channels to establish optimal signal quality Two-Way RF Transceiver Module: CWD6660 Functions and Features The CWD6660 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices. The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices. The module receives RF signals from one or more Crestron devices and can transmit these signals over the air for further processing (depending on the application). Functional Summary Two-Way RF Transceiver Module Crestron CWD6660 2 • Two-Way RF Transceiver Module: CWD6660 Operations Guide - DOC. 7028A Specifications The table below is a summary of specifications for the CWD6660. Specifications of the CWD6660 SPECIFICATION DETAILS Power Requirements 1.6 Watts (5VDC @ 0.32A) Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant) Operating Ranges¹ Minimum Distance Maximum Distance Indoors (without repeater device) 3 ft 550 ft Available Channels 16 (numbered 11 through 26 per 802.15.4) RF Output Power 163 mW Dimensions Width: 2.00 in (5.08 cm) Height: 1.90 in (4.83 cm) Depth: 0.74 in (1.88 cm) Antenna Gain: 2.0±0.5 dBi max. Type: Sleeve Dipole Antenna Frequency: 2.4GHz to 2.5 GHz Connector Type: SMA Plug Reverse Polarity Connector with ¼-36 UNS2B Screw 1. The location and orientation of the module are important factors in the RF performance. With the unit located outside of any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the building in which it is used. The construction of the building, obstructions, and RF interference from other devices are factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within 3-5 feet of each other. Physical Description The module, shown below, consists of various components attached to a printed circuit board. A SMA reverse polarity female antenna port is located at edge of the circuit board for attaching a dipole antenna while a 16-pin header is for the application-specific installation. Physical View of CWD6660 Crestro…

Text truncated - open the document above for the full version.

________________________________________________________________________ FCCID: EROCWD6660 Antenna Specifications Page 1 of 4 IC: 5683C-CWD6660 Antenna Specifications ________________________________________________________________________ FCCID: EROCWD6660 Antenna Specifications Page 2 of 4 IC: 5683C-CWD6660 ACE-2400NF Sleeve Dipole Antenna: ________________________________________________________________________ FCCID: EROCWD6660 Antenna Specifications Page 3 of 4 IC: 5683C-CWD6660 Z&Y Excellence Dipole Antenna: ________________________________________________________________________ FCCID: EROCWD6660 Antenna Specifications Page 4 of 4 IC: 5683C-CWD6660 Z&Y Excellence Dipole Antenna:

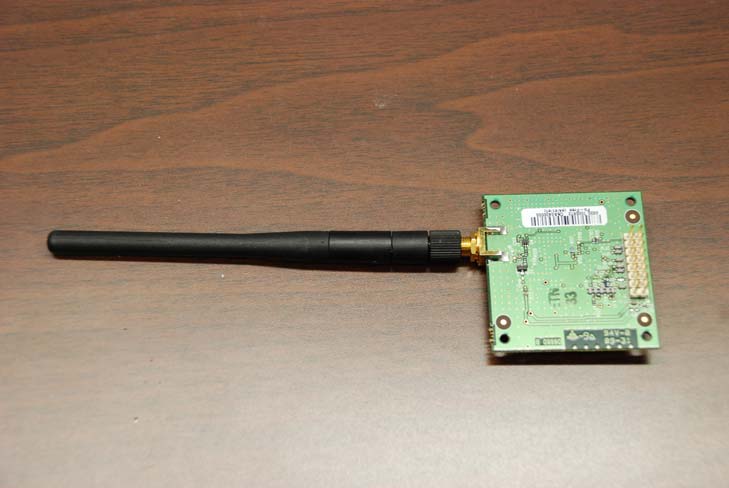

FCC ID: EROCWD6660 IC: 5683C-CWD6660 External Photos Page 1 of 2 External Photos FCC ID: EROCWD6660 IC: 5683C-CWD6660 External Photos Page 2 of 2 External Photos

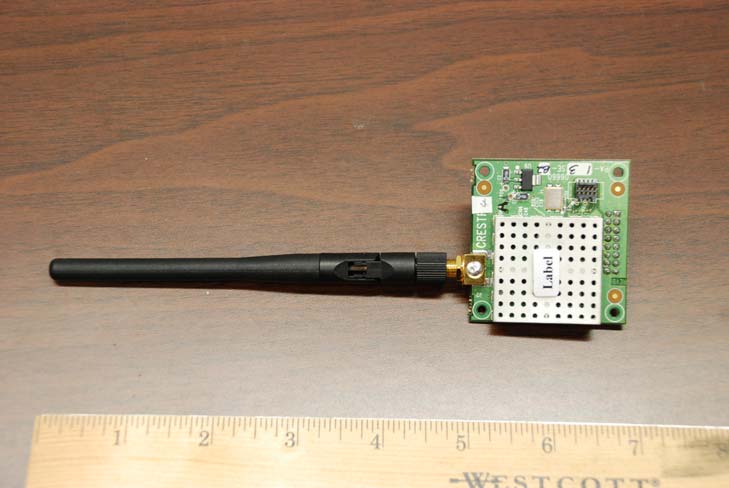

FCC ID: EROCWD6660 IC: 5683C-CWD6660 ID Label Location Page 1 of 1 ID Label Location

REV NAME BR A DESCRIPTION ORIGINAL ISSUE PER EWO1511 DATE 03-26-10 APPROVED REVISIONS SIZE PRINT NUMBER REV A 272658_ SCALE: 1:1 SHEET: 1 OF 1 FILE: 271785-_ 6504278MC3 FINISHED GOODS SORT NAME USED ON UNLESS OTHERWISE SPECIFIED: ALL DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS ±1/64 ANGLES ±1/2° DECIMALS .XX±.010 .XXX±.005 NAME DATE DESIGN BY BR DRAWN BY BR 03-26-10 03-26-10 CHECKED APPROVED THIS DRAWING IS THE EXCLUSIVE PROPERTY OF CRESTRON ELECTRONICS, INC. DISCLOSURE OR REPRODUCTION IN WHOLE OR PART, WITHOUT PRIOR WRITTEN PERMISSION, IS PROHIBITED EXCEPT FOR THE MANUFACTURE OF ARTICLES FOR CRESTRON. LABEL, FCC ID DEBURR & BREAK ALL SHARP EDGES ALL PARTS & PROCESSES MUST BE RoHS COMPLIANT (201) 750-7004 22 LINK DRIVE, ROCKLEIGH, N.J. 07647 FAX (201) 767-5772 NOTES: 1. MATERIAL: UL/CSA APPROVED MATTE FINISHED WHITE POLYESTER, .002” THK WITH PERMANENT ACRYLIC ADHESIVE. 2. PRINT: TEXT AND GRAPHICS - BLACK. 3. USE ARTWORK 25173-A.FMT, IN ONE OF IT’S ORIGINAL, AVAILABLE FORMATS FOR ACTUAL PRODUCTION OF THIS ARTWORK. FCC ID: EROCWD6660 MODEL: CWD6660 IC:5683C-CWD6660 SEE MANUAL 1.00 0.50 R0.06 PRELIMINARY

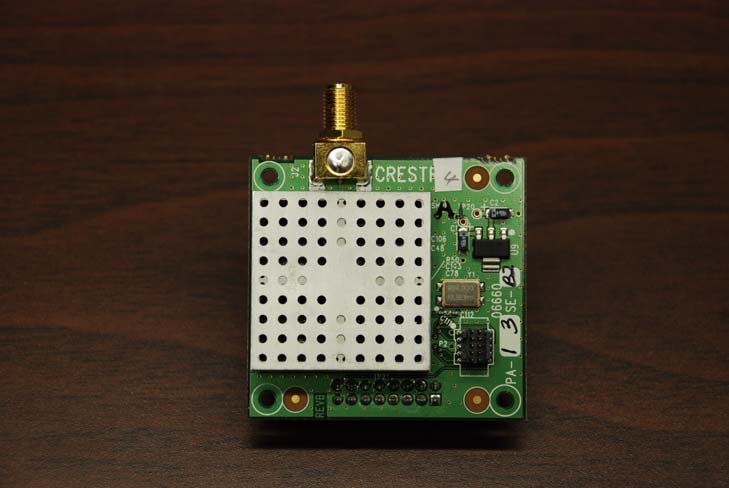

FCC ID: EROCWD6660 IC: 5683C-CWD6660 Internal Photo Page 1 of 1 Internal Photo

FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 1 of 1 Maximum Permissive Exposure Performance Criterion: The human RF exposure limit is 1 mW/cm 2 . Evaluation Results: Complies Details: The maximum permissible exposure (MPE) is predicted by using Equation (3) of Section 2 of FCC OET Bulletin 65, Edition 97-01: S = PG/4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) P = 163.305 mW, G = 1.585 (2 dBi), R = 20 cm S = 0.0515 mW/cm 2 = 0.515 W/m 2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm 2 Maximum allowable antenna gain: 14.9 dBi Margin of Compliance at 20 cm = 12.9 dB

FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 1 of 32 Test Report FCC Part 15, Subpart C, Section 15.247 Industry Canada RSS-210, Issue 7 Report Number: CWD6660-Cert Model: CWD6660 FCC ID: EROCWD6660 IC: 5683C-CWD6660 Date: April 2, 2010 Prepared by: Grace Lin Date: Apr. 2, 2010 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: Apr. 2, 2010 Wayne Owens, Director of Program Management FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 2 of 32 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 P RODUCT DESCRIPTION................................................................................................... 3 1.2 TEST METHODOLOGY...................................................................................................... 3 1.3 TEST FACILITY................................................................................................................. 3 1.4 TEST EQUIPMENT............................................................................................................. 4 1.5 E VALUATION SUMMARY.................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 J USTIFICATION................................................................................................................. 5 2.2 BLOCK DIAGRAM............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION.............................................. 5 2.4 C ABLES............................................................................................................................ 5 2.5 S PECIAL ACCESSORIES..................................................................................................... 6 2.6 SUPPORT EQUIPMENT....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS........................................................................................... 6 3. EVALUATION .....................................................................................................................7 3.1 ANTENNA REQUIREMENTS............................................................................................... 7 3.2 6 DB BANDWIDTH........................................................................................................... 8 3.3 99% BANDWIDTH.......................................................................................................... 11 3.4 POWER OUTPUT............................................................................................................. 13 3.5 BAND EDGE................................................................................................................... 16 3.6 CONDUCTED SPURIOUS EMISSIONS................................................................................ 18 3.7 P OWER SPECTRAL DENSITY........................................................................................... 22 3.8 RADIATED SPURIOUS EMISSIONS................................................................................... 25 3.9 RECEIVER RADIATED EMISSIONS................................................................................... 28 3.10 RECEIVER AC POWER LINE CONDUCTED EMISSIONS.................................................... 31 FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 3 of 32 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron 2.4GHz two-way RF transceiver module, model: CWD6660. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 4 of 32 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 22, 2009 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Jan. 28, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Jan. 27, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Feb. 9, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz Apr. 3, 2009 R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Feb. 23, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 1.5 Evaluation Summary Rule Section FCC IC Description/Parameters Results §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies N/A §4.6.1 of RSS-Gen 99% Occupied Bandwidth (for reporting purpose) §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies §15.107 §7.2.2 of RSS-Gen Receiver AC Power Line Conducted Emissions Complies Note: The channels selected for test were 11, 18, and 26. FCC ID: EROCWD6660 IC: 5683C-CWD6660 Page 5 of 32 2. …

Text truncated - open the document above for the full version.

FCC ID: EROCWD6660 IC: 5683C-CWD6660 Test Setup Photos Page 1 of 3 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view FCC ID: EROCWD6660 IC: 5683C-CWD6660 Test Setup Photos Page 2 of 3 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, side view FCC ID: EROCWD6660 IC: 5683C-CWD6660 Test Setup Photos Page 3 of 3 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view Worst-case radiated emission, rear view
