EROCWD6781Two-Way RF Transceiver Module

Crestron CWD6781 Two-Way RF Transceiver Module Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more if the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Industry Canada (IC) Compliance Statement Operation is subject ot the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. All brand names, product names and trademarks are the property of their respective owners. ©2010 Crestron Electronics, Inc. Crestron CWD6781 Two-Way RF Transceiver Module Operations Guide - DOC. 7039A Contents • i Contents Two-Way RF Transceiver Module: CWD6781 ..............................................1 Functions and Features .............................................................................................................. 1 Specifications............................................................................................................................. 2 Physical Description .................................................................................................................. 2 Setup .......................................................................................................................................... 4 Labeling ..................................................................................................................................... 4 Documentation........................................................................................................................... 4 Crestron CWD6781 Two-Way RF Transceiver Module Operations Guide - DOC. 7039A Two-Way RF Transceiver Module: CWD6781 • 1 • 2.4 GHz frequency band, IEEE 802.15.4 specification • Range from 3 feet to 100 ft. • Operates on one of sixteen available channels to establish optimal signal quality Two-Way RF Transceiver Module: CWD6781 Functions and Features The CWD6781 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices. The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices. The module receives RF signals from one or more Crestron devices and can transmit these signals over the air for further processing (depending on the application). Functional Summary Two-Way RF Transceiver Module Crestron CWD6781 2 • Two-Way RF Transceiver Module: CWD6781 Operations Guide - DOC. 7039A Specifications The table below is a summary of specifications for the CWD6790. Specifications of the CWD6781 SPECIFICATION DETAILS Power Requirements 0. 825 Watts (5VDC @ 0.165A) Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant) Operating Ranges¹ Minimum Distance Maximum Distance Indoors (without repeater device) 3 ft 100 ft Available Channels 16 (numbered 11 through 26 per 802.15.4) Antenna Chip Dimensions Width: 1.88 in (0.477 cm) Height: 0.82 in (0.208 cm) Depth: 0.100 in (0.254 cm) 1. The location and orientation of the module are important factors in the RF performance. With the unit located outside of any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the building in which it is used. The construction of the building, obstructions, and RF interference from other devices are factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within 3-5 feet of each other. Physical Description The module, shown below, consists of various components attached to a printed circuit board. Physical View of CWD6781 Crestron CWD6781 Two-Way RF Transceiver Module Operations Guide - DOC. 7039A Two-Way RF Transceiver Module: CWD6781 • 3 CWD6790 Detail Views Power/I-O An edge connector provides power to the module as well as serial communications between the module and wired devices. Refer to the following table for pin assignments of the module interface connector. …

Text truncated - open the document above for the full version.

2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 1 of 3 General Specifications Part Number2450AT18A100Input Power500mW max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain0.5 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain-0.5 dBi typ. (XZ-V)Reel Quanity3,000 Return Loss9.5 dB min. No. Function Terminal Configuration 1Feeding Point 2NC Mechanical Dimensions Inmm L±± W±± T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm Line width should be designed to provide 50Ω impedance matching characteristics. a) Without Matching Circuits b) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 0.0080.1263.200.20 1.30 0.0200.012 0.063 0.051 1.60 +.004/-.008 0.0080.20 0.500.30 +0.1/-0.2 1 2 L W a T * 2.6 4.2 1.6 1.90.4 2.7nH 1.0pF 3.9nH 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board: Return Loss a) Without Matching Circuitsb) With Matching Circuits Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Ground 13.5mm 6.5mm 39.5mm6.5mm Matching Circuit No Ground 50Ω Feed Line Antenna 19mm 2.45 GHz AntennaP/N 2450AT18A100 Detail Specification: 09/03/03 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal

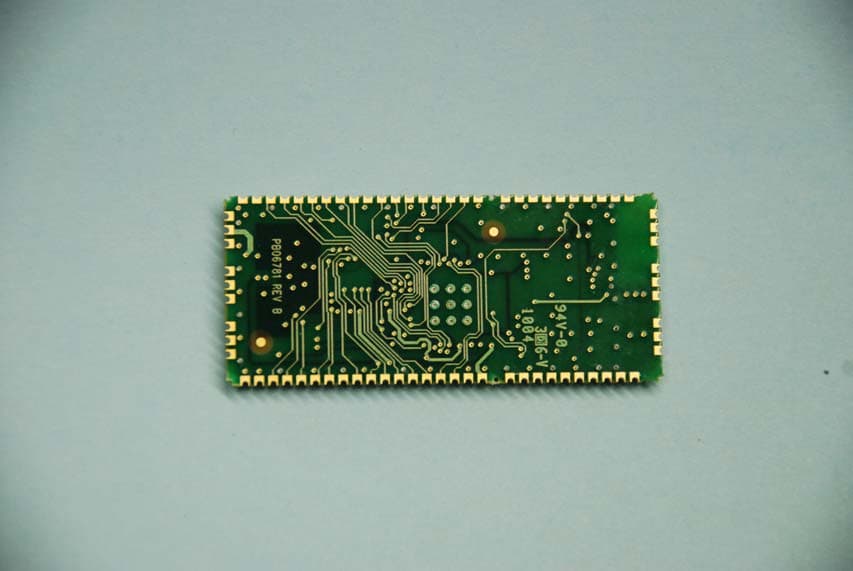

FCC ID: EROCWD6781 IC: 5683C-CWD6781 External Photos Page 1 of 1 External Photos

REVISIONS NAME REV DESCRIPTION DATE APPROVED JS A ORIGINAL ISSUE PER EWOXXXX 22 LINK DRIVE, ROCKLEIGH, N.J. 07647 (201) 750-7004 FAX (201) 767-5772 NAME DATE DRAWN BY CHECKED FINISHED GDS DESIGNED BY SIZE PRINT NUMBER REV LABEL, CUSTOM, FCC ID, CWD 6781 POLYESTER, APPX: .60 X .30 X .002 A CWD6781 SAMPLE UNLESS OTHERWISE SPECIFIED:ALL DIMENSIONS ARE IN INCHESTOLERANCES ARE:FRACTIONS 1/64 ANGLES ½ DECIMALS .XX .01 .XXX .005 ±± ° ±± THIS DRAWING IS THE EXCLUSIVE PROPERTY OF CRESTRON ELECTRONICS, INC. DISCLOSURE OR REPRODUCTION IN WHOLE OR IN PART, WITHOUT PRIOR WRITTEN PERMISSION, IS PROHIBITED EXCEPT FOR THE MANUFACTURE OF ARTICLES FOR CRESTRON. USED ON SORT NAME 1:1 APPROVED DEBURR & BREAK ALL SHARP EDGES SCALE: FILE: SHEET 1 OF 1 A ALL PARTS & PROCESSES MUST BE COMPLIANT RoHS NOTES:1. MATERIAL: WHITE POLYESTER, .002 THK WITHPERMANENT ADHESIVE BACKING.2. PRINT: TEXT AND GRAPHICS - BLACK.3. USE ARTWORK XXXXX, IN ONE OF IT SORIGINAL, AVAILABLE FORMATS (THE XXXXXDRAWING IS A REPRESENTATION OF THEARTWORK, SEE THE ACTUAL ARTWORK DRAWINGFOR THE CORRECT INFORMATION)4. TOLERANCE +/- .010 EXCEPT WHERE NOTEDOTHERWISE. IC:5683C-CWD6781 FCC ID: EROCWD6781 MODEL: CWD6781 0.300 0.600 R.030

FCC ID: EROCWD6781 IC: 5683C-CWD6781 ID Label Location Page 1 of 1 ID Label Location

FCC ID: EROCWD6781 IC: 5683C-CWD6781 Internal Photo Page 1 of 1 Internal Photo

FCC ID: EROCWD6781 IC: 5683C-CWD6781 Page 1 of 1 Maximum Permissive Exposure Performance Criterion: The human RF exposure limit is 1 mW/cm 2 . Evaluation Results: Complies Details: The maximum permissible exposure (MPE) is predicted by using Equation (3) of Section 2 of FCC OET Bulletin 65, Edition 97-01: S = PG/4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) P = 152.41 mW, G = 1.122 (0.5 dBi), R = 20 cm S = 0.034 mW/cm 2 = 0.34 W/m 2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm 2 Maximum allowable antenna gain: 15.18 dBi Margin of Compliance at 20 cm = 14.68 dB

FCC ID: EROCWD6781 IC: 5683C-CWD6781 Page 1 of 31 Test Report FCC Part 15, Subpart C, Section 15.247 Industry Canada RSS-210, Issue 7 Report Number: CWD6781-Cert Model: CWD6781 FCC ID: EROCWD6781 IC: 5683C-CWD6781 Date: April 14, 2010 Prepared by: Grace Lin Date: April 14, 2010 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: April 14, 2010 Wayne Owens, Director of Program Management FCC ID: EROCWD6781 IC: 5683C-CWD6781 Page 2 of 31 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 P RODUCT DESCRIPTION................................................................................................... 3 1.2 TEST METHODOLOGY...................................................................................................... 3 1.3 TEST FACILITY................................................................................................................. 3 1.4 TEST EQUIPMENT............................................................................................................. 4 1.5 E VALUATION SUMMARY.................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 J USTIFICATION................................................................................................................. 5 2.2 BLOCK DIAGRAM............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION.............................................. 5 2.4 C ABLES............................................................................................................................ 5 2.5 S PECIAL ACCESSORIES..................................................................................................... 6 2.6 SUPPORT EQUIPMENT....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS........................................................................................... 6 3. EVALUATION .....................................................................................................................7 3.1 ANTENNA REQUIREMENTS............................................................................................... 7 3.2 6 DB BANDWIDTH........................................................................................................... 8 3.3 99% BANDWIDTH.......................................................................................................... 11 3.4 POWER OUTPUT............................................................................................................. 13 3.5 BAND EDGE................................................................................................................... 16 3.6 CONDUCTED SPURIOUS EMISSIONS................................................................................ 18 3.7 P OWER SPECTRAL DENSITY........................................................................................... 22 3.8 RADIATED SPURIOUS EMISSIONS................................................................................... 25 3.9 RECEIVER RADIATED EMISSIONS................................................................................... 27 3.10 RECEIVER AC POWER LINE CONDUCTED EMISSIONS.................................................... 30 FCC ID: EROCWD6781 IC: 5683C-CWD6781 Page 3 of 31 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron 2.4GHz two-way RF transceiver module, model: CWD6781. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROCWD6781 IC: 5683C-CWD6781 Page 4 of 31 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 22, 2009 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Jan. 28, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Jan. 27, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Feb. 9, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz Apr. 12, 2010* R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Feb. 23, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 *Mechanical inspection 1.5 Evaluation Summary Rule Section FCC IC Description/Parameters Results §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies N/A §4.6.1 of RSS-Gen 99% Occupied Bandwidth (for reporting purpose) §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies §15.107 §7.2.2 of RSS-Gen Receiver AC Power Line Conducted Emissions Complies Note: The channels selected for test were 11, 18, and 26. FCC ID: EROCWD6781 IC: …

Text truncated - open the document above for the full version.

FCC ID: EROCWD6781 IC: 5683C-CWD6781 Test Setup Photos Page 1 of 2 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view Worst-case conducted emission, side view FCC ID: EROCWD6781 IC: 5683C-CWD6781 Test Setup Photos Page 2 of 2 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view Worst-case radiated emission, rear view
