EROCWD68942-Way RF Transceiver Module

Crestron CWD6894 Two-Way RF Transceiver Module Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more if the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help Industry Canada (IC) Compliance Statement Operation is subject of the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. All brand names, product names and trademarks are the property of their respective owners. ©2011 Crestron Electronics, Inc. Crestron CWD6894 Two-Way RF Transceiver Module Operations Guide - DOC. 7180A Contents  i Contents Two-Way RF Transceiver Module: CWD6922 .............................................. 1 Functions and Features .............................................................................................................. 1 Specifications ............................................................................................................................. 2 Physical Description .................................................................................................................. 2 Setup .......................................................................................................................................... 5 Labeling ..................................................................................................................................... 5 Documentation ........................................................................................................................... 6 Crestron CWD6894 Two-Way RF Transceiver Module Operations Guide - DOC. 7180A Two-Way RF Transceiver Module: CWD6894  1  2.4 GHz frequency band, IEEE 802.15.4 specification  Range from 3 feet to 550 ft.  Operates on one of sixteen available channels to establish optimal signal quality Two-Way RF Transceiver Module: CWD6894 Functions and Features The CWD6894 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to communicate with other devices. The module operates according to the IEEE 802.15.4 specification and can be configured to minimize the possibility of interference with other devices. The module receives RF signals from one or more Crestron devices and can transmit these signals over the air for further processing (depending on the application). Functional Summary Two-Way RF Transceiver Module Crestron CWD6894 2  Two-Way RF Transceiver Module: CWD6894 Operations Guide - DOC. 7180A Specifications The table below is a summary of specifications for the CWD6894. Specifications of the CWD6894-1 & -2 SPECIFICATION DETAILS Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant) Operating Ranges* Minimum Distance Maximum Distance Outdoors (without repeater device) 3 ft 550 ft Available Channels 16 (numbered 11 through 26 per 802.15.4) Power Requirements 0.66 Watts (3.3VDC @ 0.20A) Dimensions (CWD6894-1) Width: 1.000 in (2.54 cm) Height: 1.075 in (2.73 cm) Depth: 0.313 in (0.8 cm) Dimensions (CWD6894-2) Width: 1.000 in (2.54 cm) Height: 1.075 in (2.73 cm) Depth: 0.217 in (0.55 cm) Antenna (CWD6894-1) Gain: 2.0±0.5 dBi max. Type: Sleeve Dipole Antenna Frequency: 2.4GHz to 2.5 GHz Connector Type: SMA Plug Reverse Polarity Connector with ¼-36 UNS2B Screw Antenna (CWD6894-2) Max. Gain: 1.8 dBi Average Gain: -1.9 dBi Type: Intended for SMD Mounting Frequency: 2.4GHz to 2.5 GHz * The location and orientation of the module are important factors in the RF performance. With the unit located outside of any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the building in which it is used. The construction of the building, obstructions, and RF interference from other devices are factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies should not be installed within 3-5 feet of each other. Physical Description The module, shown after this paragraph, consists of various compon…

Text truncated - open the document above for the full version.

Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com Transmitter Modular Approval Attestation March 28, 2011 Subject: FCC ID: EROCWD6894, IC: 5683C-CWD6894 To Whom It May Concern: The following attestation addresses the requirements to support modular approval as required by the FCC and IC. Rule Sections Description FCC Part 15 IC RSS-Gen §15.212 (a) §7.1.1 (a) This module is a single modular transmitter consists of a completely self- contained RF transmitter device that is typically incorporated into another product, host, or device. §15.212 (a)(1)(i) §7.1.1 (b) The module has integral RF shielding to isolate it from surrounding equipment and the large environment in general. §15.212 (a)(1)(ii) §7.1.1 (c) All inputs are processed as data by the radio control element. The outside user has no direct control of transmit modulation. §15.212 (a)(1)(iii) §7.1.1 (d) The radio front end contains a linear regulator to regulate device operation over voltage variations and to limit the output power under high voltage conditions. §15.212 (a)(1)(iv) §7.1.1(e) This module is validated with a dipole antenna and two SMD antennas. The reverse polarity SMA antenna connector of the dipole antenna and the soldering pads of the SMD antennas are unique in the sense of complying with FCC §15.203, §15.204(b), and §15.204(c). §15.212 (a)(1)(v) §7.1.1 The module was tested in a stand-alone configuration. It complies with the AC line conducted requirements found in FCC §15.207 and IC RSS-Gen Table 2 requirements. §15.212 (a)(1)(vi) §5.2 An ID label is affixed to each unit at the time of manufacture. Information is also clearly presented in the user guide about labeling requirements for the final assembly. §15.212 (a)(1)(vii) §7.1.1 This module is compliant with FCC §15.247 and IC RSS-Gen/RSS-210 rules. Installation and other requirements are presented in the user guide to allow the unit to be correctly installed. §15.212 (a)(1)(viii) §5.5 This module is compliant with the RF exposure requirements of FCC Parts §15.247, §15.1091, §15.1093, and IC RSS-Gen §5.5. Please feel free to contact us with any additional questions or information. Best Regards Crestron Electronics Inc. Grace Lin Sr. Compliance Engineer Email: [email protected] , Telephone: 201-750-7004 extension 11464

Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com March 25, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: EROCWD6894 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to permanently withhold the following attachments as confidential document from public disclosure. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Crestron Electronics Inc. Grace Lin Sr. Compliance Engineer Email: [email protected] Telephone: 201-750-7004 extension 11464

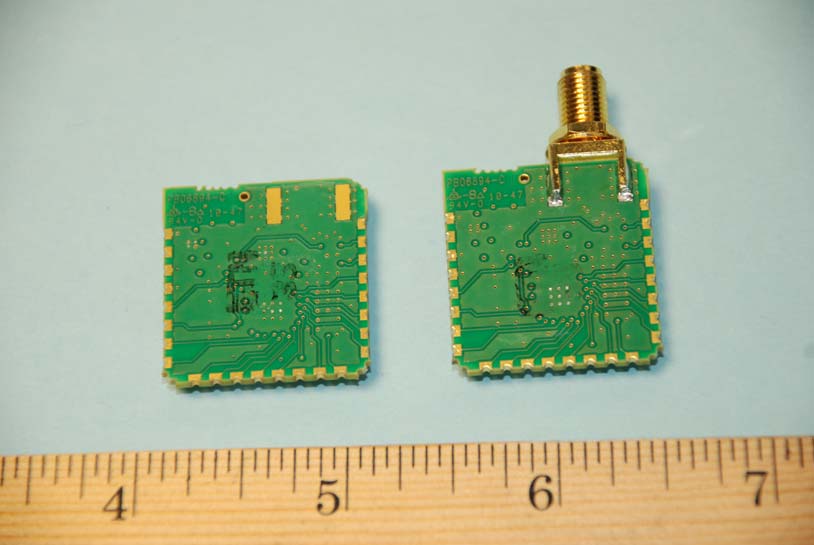

FCC ID: EROCWD6894 IC: 5683C-CWD6894 External Photos Page 1 of 2 External Photos FCC ID: EROCWD6894 IC: 5683C-CWD6894 External Photos Page 2 of 2 External Photos

FCC ID: EROCWD6894 IC: 5683C-CWD6894 ID Label Location Page 1 of 1 ID Label Location

REVISIONS NAME REV DESCRIPTION DATE APPROVED JH A ORIGINAL ISSUE PER EWO1613 9/29/10 22 LINK DRIVE, ROCKLEIGH, N.J. 07647 (201) 750-7004 FAX (201) 767-5772 NAME DATE DRAWN BY CHECKED FINISHED GDS DESIGNED BY SIZE PRINT NUMBER REV LABEL, CUSTOM, FCC ID, CWD 6894 POLYESTER, APPX: .60 X .30 X .002 A 273004 UNLESS OTHERWISE SPECIFIED: A L L D I M E N S I O N S A R E I N I N C H E S TOLERANCES ARE: F R A C T I O N S 1 / 6 4 A N G L E S ½ DECIMALS .XX .01 .XXX .005 ±± ° ±± THIS DRAWING IS THE EXCLUSIVE PROPERTY OF CRESTRON ELECTRONICS, INC. DISCLOSURE OR REPRODUCTION IN WHOLE OR IN PART, WITHOUT PRIOR WRITTEN PERMISSION, IS PROHIBITED EXCEPT FOR THE MANUFACTURE OF ARTICLES FOR CRESTRON. USED ON SORT NAME 1:1 APPROVED DEBURR & BREAK ALL SHARP EDGES JH 9/29/10 JH 9/29/10 6504580 TPMC-9X SCALE: 273004-A.CDR FILE: SHEET 1 OF 1 A A L L P A R T S & P R O C E S S E S M U S T B E RoHS COMPLIANT NOTES:1. MATERIAL: WHITE POLYESTER, .002” THK WITH PERMANENT ADHESIVE BACKING.2. PRINT: TEXT AND GRAPHICS - BLACK.3. USE ARTWORK 25497-A, IN ONE OF IT’S ORIGINAL, AVAILABLE FORMATS (THE 273004 DRAWING IS A REPRESENTATION OF THE ARTWORK, SEE THE ACTUAL ARTWORK DRAWING FOR THE CORRECT INFORMATION)4. TOLERANCE +/- .010 EXCEPT WHERE NOTED OTHERWISE. IC:5683C-CWD6894 FCC ID: EROCWD6894 MODEL: CWD6894 0.300 0.600 R.030

FCC ID: EROCWD6894 IC: 5683C-CWD6894 Internal Photo Page 1 of 1 Internal Photos

FCC ID: EROCWD6894 IC: 5683C-CWD6894 Page 1 of 1 Maximum Permissive Exposure Performance Criterion: The human RF exposure limit is 1 mW/cm 2 . Evaluation Results: Complies Details: The maximum permissible exposure (MPE) is predicted by using Equation (3) of Section 2 of FCC OET Bulletin 65, Edition 97-01: S = PG/4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) P = 170.22 mW, G = 1.585 (2 dBi), R = 20 cm S = 0.0537 mW/cm 2 = 0.537 W/m 2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm 2 Maximum allowable antenna gain: 14.7 dBi Margin of Compliance at 20 cm = 12.7 dB

FCC ID: EROCWD6894 IC: 5683C-CWD6894 Page 1 of 35 Test Report FCC Part 15, Subpart C, Section 15.247 Industry Canada RSS-210, Issue 7 Report Number: CWD6894-Cert Model: CWD6894 FCC ID: EROCWD6894 IC: 5683C-CWD6894 Date: March 28, 2011 Prepared by: Grace Lin Date: Mar. 28 , 2011 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: Mar. 28 , 2011 Wayne Owens, Director of Program Management FCC ID: EROCWD6894 IC: 5683C-CWD6894 Page 2 of 35 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 PRODUCT DESCRIPTION ................................................................................................... 3 1.2 TEST METHODOLOGY ...................................................................................................... 3 1.3 TEST FACILITY ................................................................................................................. 3 1.4 TEST EQUIPMENT ............................................................................................................. 4 1.5 EVALUATION SUMMARY .................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 JUSTIFICATION ................................................................................................................. 5 2.2 BLOCK DIAGRAM ............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION ............................................... 5 2.4 CABLES ............................................................................................................................ 5 2.5 SPECIAL ACCESSORIES ..................................................................................................... 6 2.6 SUPPORT EQUIPMENT ....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS ........................................................................................... 6 3. EVALUATION ..................................................................................................................... 7 3.1 ANTENNA REQUIREMENTS ............................................................................................... 7 3.2 6 DB BANDWIDTH ............................................................................................................ 8 3.3 99% BANDWIDTH .......................................................................................................... 11 3.4 POWER OUTPUT ............................................................................................................. 13 3.5 BAND EDGE ................................................................................................................... 16 3.6 CONDUCTED SPURIOUS EMISSIONS ................................................................................ 18 3.7 POWER SPECTRAL DENSITY ........................................................................................... 22 3.8 RADIATED SPURIOUS EMISSIONS ................................................................................... 25 3.9 RECEIVER RADIATED EMISSIONS ................................................................................... 30 3.10 RECEIVER AC POWER LINE CONDUCTED EMISSIONS .................................................... 34 FCC ID: EROCWD6894 IC: 5683C-CWD6894 Page 3 of 35 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron 2.4GHz two-way RF transceiver module, model: CWD6894. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROCWD6894 IC: 5683C-CWD6894 Page 4 of 35 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 10, 2010 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Dec. 8, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00092366 1 GHz – 18 GHz Oct. 19, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Dec. 2, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz Dec. 3, 2010 R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Dec. 6, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 * Visual inspection 1.5 Evaluation Summary Rule Section Description/Parameters Results FCC IC §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies N/A §4.6.1 of RSS-Gen 99% Occupied Bandwidth (for reporting purpose) §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies §15.107 §7.2.2 of RSS-Gen Receiver AC Power Line Conducted Emissions Complies Note: The channels selected for test were 11, 18, and 26. FCC ID: ERO…

Text truncated - open the document above for the full version.

FCC ID: EROCWD6894 IC: 5683C-CWD6894 Test Setup Photos Page 1 of 2 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view Worst-case conducted emission, Side View FCC ID: EROCWD6894 IC: 5683C-CWD6894 Test Setup Photos Page 2 of 2 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view Worst-case radiated emission, rear view
