EROLX3Handheld Remote

Crestron MLX-3 infiNET EX™ LCD Handheld Remote Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Federal Communications Commission (FCC) Compliance Statement Operation is subject to the following two conditions: Industry Canada (IC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help As of the date of manufacture, the MLX-3 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. All brand names, product names and trademarks are the property of their respective owners. ©2010 Crestron Electronics, Inc. Crestron MLX-3 infiNET EX™ LCD Handheld Remote Contents infiNET EX™ LCD Handheld Remote: MLX-3 1 Introduction...............................................................................................................................1 Features and Functions................................................................................................2 Specifications..............................................................................................................2 Physical Description....................................................................................................3 Setup..........................................................................................................................................5 Battery Installation......................................................................................................5 Identity Code...............................................................................................................5 Configuring the MLX-3..............................................................................................5 Factory Reset Procedure............................................................................................11 Programming Software............................................................................................................12 Earliest Version Software Requirements for the PC.................................................12 Programming with Crestron SystemBuilder..............................................................12 Programming with SIMPL Windows........................................................................12 Programming with VisionTools Pro-e.......................................................................15 Example Program......................................................................................................15 Uploading and Upgrading........................................................................................................16 Loading Projects........................................................................................................16 Projects and Firmware...............................................................................................17 Program Checks........................................................................................................17 Operation.................................................................................................................................18 Problem Solving......................................................................................................................19 Troubleshooting.........................................................................................................19 Check Network Wiring..............................................................................................19 Reference Documents................................................................................................20 Further Inquiries........................................................................................................20 Future Updates..........................................................................................................20 Appendix: Firmware Upgrades..............................................................................…

Text truncated - open the document above for the full version.

1 quickstart guide PLX3 PLX3 Prodigy ® Handheld Remote QUICKSTART DOC. 7132 (2027729) 10.10 www.crestron.com/prodigy 888.273.7876201.767.3400 ©2010 Specifications subject to change without notice. All brand names, product names, and trademarks are the property of their respective owners. The Prodigy ® PLX3 is a versatile yet cost effective home theater remote control. This state of the art handheld two-way controller includes a 2” active matrix display capable of displaying stunning graphics and dynamic text with true feedback. The ergonomic layout of pushbuttons provides intuitive, tactile control for hands and fingers of all sizes. Its compact size and design offer easy one handed operation, while its 802.15.4 wireless technology affords reliable communications over everything from home theater to whole house automation as part of a complete Prodigy system. Introduction 1 Install the Batteries 3 Configure the Touchpanel 4 The following diagram illustrates a PLX3 in a system with other Prodigy devices. Application 2 Install the four (4) AA alkaline batteries as shown in the diagram located inside the battery compartment. NOTE: Do not use rechargeable batteries. The setup screen is the starting point for configuring the PLX3. When power is applied for the first time, the screen shown below appears. NOTE: During regular operation of the remote, to activate the setup functions, press MEDIA, LIGHTS, GUIDE, and MENU in sequence twice within a five second period. Touch the screen to display the PLX3 setup screen, as shown in the illustration below. The setup screen enables basic configuration procedures prior to regular operation of the remote. USB Port Location NOTE: The USB port for loading projects and upgrading firmware, is located behind the battery compart- ment cover on the rear of the unit. For Regulatory Compliance information, refer to the latest version of Doc. 7133. 2 quickstart guide PLX3 PLX3 QUICKSTART DOC. 7132 (2027729) 10.10 Prodigy ® Handheld Remote www.crestron.com/prodigy 888.273.7876201.767.3400 ©2010 Specifications subject to change without notice. All brand names, product names, and trademarks are the property of their respective owners. Use the Prodigy Composer software (available for download from www.crestron.com/prodigycomposer) to configure your Prodigy system. A Prodigy Network Setup Wizard is included with Prodigy Composer. Before a PLX3 can be used, it must first be acquired by a PMC2 that is connected to a Prodigy system. To acquire the PLX3, perform the following when prompted by the Prodigy Network Setup Wizard. 1. Put the PMC2 in Acquire mode by pressing its ACQUIRE button (or follow the prompts in the Network Setup Wizard to do this automatically). 2. Put the PLX3 in Acquire mode by doing the following: a. On the main setup screen shown on page 1, turn the Nav Wheel to highlight RF Setup and press the select button to go to the “RF Setup” screen, shown in illustration below. b. Turn the Nav Wheel to highlight Acquire Gateway and press the select button. c. The “Confirm Acquire” screen, shown in illustration below, will be displayed. Turn the Nav Wheel to highlight YES, Acquire New Gateway and press the select button to begin the process. d. The “RF Gateway Acquisition In Progress” screen, shown in illustration below, will be displayed. 5 Acquire the PLX3 7 The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. Problem Solving Further Inquiries If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. Future Updates As Crestron improves functions, adds new features and extends the capabilities of the PLX3, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column. Troubleshooting 6 Load the Project Use the Prodigy Composer software (available for download from www.crestron.com/prodigycomposer) to configure your Prodigy system. Refer to the help file for instructions on loading the project. 3. When the acquire is complete, the “RF Setup” screen will show the gateway’s EUID, the channel number and RF ID, as shown in illustration below. Take the PMC2 out of the Acquire mode by pressing its ACQUIRE button (or follow the prompts in the Network Setup Wizard to do this automatically). “RF Setup” Screen“Confirm Acquire” Screen “RF Gateway Acquisition In Progress” Screen “RF Setup” Screen (After Acquire) 1 2 4 3 3 4 1 2 TROUBLEPOSSIBLE CAUSE(S) CORRECTIVE ACTION PLX3 does not function. Battery is discharged.Replace the batteries. PLX3 is off or in standby mode or has no power. Verify the PLX3 has power and is on. PLX3 shows unexpected or intermittent feedback and/or does not control any devices. PLX3 is out of range or has poor access to PMC2. Move back within range of the PMC2 or other Prodigy wireless network devices. PLX3 RF ID does not match ID in the program. Change the RF ID or rerun the Network Setup Wizard. For Regulatory Compliance information, refer to the latest version of Doc. 7133.

As of the date of manufacture, the PLX3 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. DOC. 7133 (2027730) 09.10 Specifications subject to change without notice. PLX3 Crestron Electronics, Inc. 15 Volvo Drive, Rockleigh, NJ 07647 Tel: 888.CRESTRON Fax: 201.767.7576 www.crestron.com Regulatory Compliance Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help Industry Canada (IC) Compliance Statement Operation is subject to the following conditions: 1.This device may not cause interference, and 2.This device must accept any interference, including interference that may cause undesired operation of the device. Return and Warranty Policies Merchandise Returns / Repair Service CRESTRON Limited Warranty 1.No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address. CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered. Trademark Information All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista/7 and WindowsNT/2000 are trademarks of Microsoft Corporation. 2.Products may be returned for credit, exchange or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA. 3.Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser. This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced or removed. This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party. CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty. Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties tha…

Text truncated - open the document above for the full version.

Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com November 4, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: EROLX3 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to permanently withhold the following attachments as confidential document from public disclosure. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Crestron Electronics Inc. Grace Lin Sr. Compliance Engineer Email: [email protected] Telephone: 201-750-7004 extension 11464

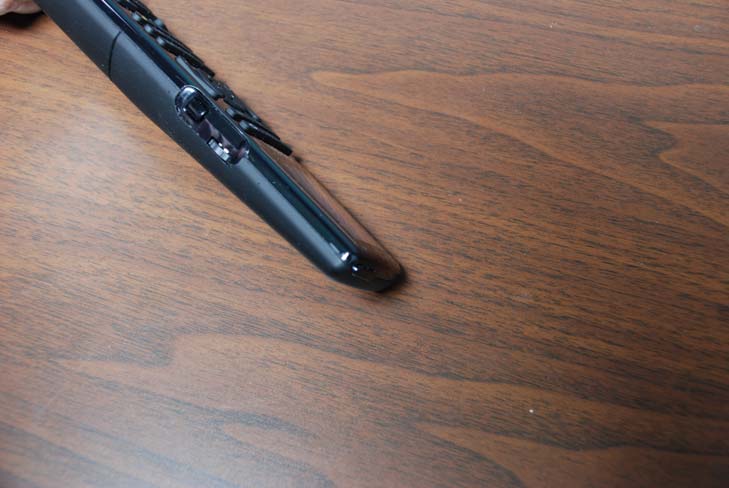

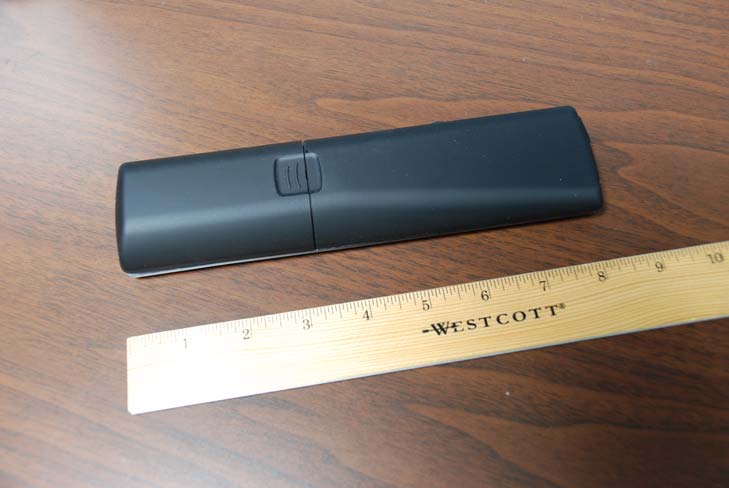

FCC ID: EROLX3 IC: 5683C-LX3 External Photos Page 1 of 2 External Photos FCC ID: EROLX3 IC: 5683C-LX3 External Photos Page 2 of 2 External Photos

FCC ID: EROLX3 IC: 5683C-LX3 ID Label Location Page 1 of 1 ID Label Location

NOTES: 1. MATERIAL: UL/CSA APPROVED MATTE FINISHED SILVER POLYESTER, .002” THK WITH PERMANENT ACRYLIC ADHESIVE. 2. PRINT: TEXT AND GRAPHICS - BLACK. 3. USE COMPUTER FILE 25xxx-A.FMT FOR THE ACTUAL PRODUCTION OF THE LABEL. 4. SEE DWG 22121 FOR C-TICK NUMBER TO REPLACE N00000. 5. MADE IN COO: TO BE CHANGED TO COUNTRY OF ORIGIN PRODUCT IS MANUFACTURED IN (EX. USA, CANADA, ETC.) DAP 10/18/10 272xxx 272xxx-A A PLX36504020 10/18/10 DAP LABEL, BARCODE, 6504020, SORT NAME, SER NO., CE, CTICK, FCC INFO, APX: 2.00”, .50”H 10/18/10 A DAP ORIGINAL ISSUE PER EWO 1645 .500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 3.250

NOTES: 1. MATERIAL: UL/CSA APPROVED MATTE FINISHED SILVER POLYESTER, .002” THK WITH PERMANENT ACRYLIC ADHESIVE. 2. PRINT: TEXT AND GRAPHICS - BLACK. 3. USE COMPUTER FILE 25xxx-A.FMT FOR THE ACTUAL PRODUCTION OF THE LABEL. 4. SEE DWG 22121 FOR C-TICK NUMBER TO REPLACE N00000. 5. MADE IN COO: TO BE CHANGED TO COUNTRY OF ORIGIN PRODUCT IS MANUFACTURED IN (EX. USA, CANADA, ETC.) DAP 10/18/10 272xxx 272xxx-A A MLX-36504049 10/18/10 DAP LABEL, BARCODE, 6504020, SORT NAME, SER NO., CE, CTICK, FCC INFO, APX: 2.00”, .50”H FCC ID: EROLX3 IC: 5683C-LX3 10/18/10 MLX-3 6504049 A DAP ORIGINAL ISSUE PER EWO 1645 .500

NOTES: 1. MATERIAL: UL/CSA APPROVED MATTE FINISHED SILVER POLYESTER, .002” THK WITH PERMANENT ACRYLIC ADHESIVE. 2. PRINT: TEXT AND GRAPHICS - BLACK. 3. USE COMPUTER FILE 25xxx-A.FMT FOR THE ACTUAL PRODUCTION OF THE LABEL. 4. SEE DWG 22121 FOR C-TICK NUMBER TO REPLACE N00000. 5. MADE IN COO: TO BE CHANGED TO COUNTRY OF ORIGIN PRODUCT IS MANUFACTURED IN (EX. USA, CANADA, ETC.) DAP 10/18/10 272xxx 272xxx-A A PLX36504020 10/18/10 DAP LABEL, BARCODE, 6504020, SORT NAME, SER NO., CE, CTICK, FCC INFO, APX: 2.00”, .50”H FCC ID: EROLX3 IC: 5683C-LX3 10/18/10 PLX3 6504020 A DAP ORIGINAL ISSUE PER EWO 1645 .500

FCC ID: EROLX3 IC: 5683C-LX3 Internal Photo Page 1 of 3 Internal Photos FCC ID: EROLX3 IC: 5683C-LX3 Internal Photo Page 2 of 3 Internal Photos FCC ID: EROLX3 IC: 5683C-LX3 Internal Photo Page 3 of 3 Internal Photos

FCC ID: EROLX3 IC: 5683C-LX3 Page 1 of 29 Test Report FCC Part 15, Subpart C, Section 15.247 Industry Canada RSS-210, Issue 7 Report Number: LX3-Cert Models: MLX-3, PLX3 FCC ID: EROLX3 IC: 5683C-LX3 Date: November 2, 2010 Prepared by: Grace Lin Date: Nov. 2, 2010 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: Nov. 2, 2010 Wayne Owens, Director of Program Management FCC ID: EROLX3 IC: 5683C-LX3 Page 2 of 29 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 P RODUCT DESCRIPTION................................................................................................... 3 1.2 TEST METHODOLOGY...................................................................................................... 3 1.3 TEST FACILITY................................................................................................................. 3 1.4 TEST EQUIPMENT............................................................................................................. 4 1.5 E VALUATION SUMMARY.................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 J USTIFICATION................................................................................................................. 5 2.2 BLOCK DIAGRAM............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION.............................................. 5 2.4 C ABLES............................................................................................................................ 6 2.5 S PECIAL ACCESSORIES..................................................................................................... 6 2.6 SUPPORT EQUIPMENT....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS........................................................................................... 6 3. EVALUATION .....................................................................................................................7 3.1 ANTENNA REQUIREMENTS............................................................................................... 7 3.2 6 DB BANDWIDTH........................................................................................................... 8 3.3 99% BANDWIDTH.......................................................................................................... 11 3.4 POWER OUTPUT............................................................................................................. 14 3.5 BAND EDGE................................................................................................................... 17 3.6 CONDUCTED SPURIOUS EMISSIONS................................................................................ 19 3.7 P OWER SPECTRAL DENSITY........................................................................................... 23 3.8 RADIATED SPURIOUS EMISSIONS................................................................................... 26 3.9 RECEIVER RADIATED EMISSIONS................................................................................... 28 FCC ID: EROLX3 IC: 5683C-LX3 Page 3 of 29 1. General Description 1.1 Product Description The equipment under test (EUT) is a battery operated handheld remote, models: MLX-3 (with R78) and PLX3 (without R78). 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4: 2003 2) FCC Procedure, “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005 3) Industry Canada RSS-Gen Issue 2 4) Industry Canada RSS-210 Issue 7 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. Prescan was performed on both the MLX-3 and the PLX3. The worst-case data was reported/recorded. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROLX3 IC: 5683C-LX3 Page 4 of 29 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 22, 2009 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Jan. 28, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Jan. 27, 2010 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Feb. 9, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz May 10, 2010* R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Feb. 23, 2010 Solar Electronics LISN 9252-50-R-24-N 068546 10 kHz – 50 MHz Feb. 3, 2010 * Visual inspection 1.5 Evaluation Summary Rule Section FCC IC Description/Parameters Results §15.203 N/A Antenna Requirement Complies §15.247(a)(2) §A8.2(a) of RSS-210 6 dB Bandwidth, 500 kHz Complies N/A §4.6.1 of RSS-Gen 99% Occupied Bandwidth (for reporting purpose) §15.247(b)(3) §A8.4(4) of RSS-210 Power Output, conducted, 1 Watt (30dBm) Complies §15.247(d) §2.1, §A8.5 of RSS- 210 Band Edge Complies §15.247(d) §A8.5 of RSS-210 Conducted Spurious Emissions, 20 dBc Complies §15.247(e) §A8.2(b) of RSS-210 Power Spectral Density (PSD), 8 dBm in any 3 kHz band. Complies §15.205, §15.209, §15.247(d) §2.2, §2.7, §A8.5 of RSS-210 Radiated Spurious Emissions Complies §15.101(b) §6 of RSS-Gen Receiver Radiated Emission Complies Note: The channels selected for test were 11, 18, and 26. FCC ID: EROLX3 IC: 5683C-LX3 Page 5 of 29 2. System Test Configuration 2.1 Justification EUT was powered through a DC power supplies…

Text truncated - open the document above for the full version.

FCC ID: EROLX3 IC: 5683C-LX3 Test Setup Photos Page 1 of 1 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view Worst-case radiated emission, rear view
