EROMP-FS-RX2Dual Channel Wireless Microphone Receiver with Frequency Hopping Transmitter

Crestron MP-FS-RX1/RX2 FreeSpeech™ Single/Dual-Channel Wireless Mic Receiver Operations & Installation Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance Federal Communications Commission (FCC) Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Industry Canada (IC) Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION:Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help As of the date of manufacture, the MP-FS-RX1 and MP-FS-RX2 have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. Crestron, the Crestron logo, Crestron Toolbox, and FreeSpeech are trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. ©2011 Crestron Electronics, Inc. Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver Contents Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 1 Introduction...............................................................................................................................1 Features and Functions................................................................................................1 Specifications..............................................................................................................2 Physical Description....................................................................................................4 Setup..........................................................................................................................................8 Installation...................................................................................................................8 Hardware Hookup.......................................................................................................8 Uploading and Upgrading..........................................................................................................9 Establishing Communication.......................................................................................9 Firmware.....................................................................................................................9 Operation................................................................................................................................. 10 Basic Procedures.......................................................................................................10 Receiver Controls - Default Settings.........................................................................11 Problem Solving......................................................................................................................12 Troubleshooting.........................................................................................................12 Further Inquiries........................................................................................................12 Future Updates..........................................................................................................12 Return and Warranty Policies..................................................................................................13 Merchandise Returns / Repair Service......................................................................13 CRESTRON Limited Warranty.................................................................................13 Operations & Installation Guide – DOC. 7164A Contents • i Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Introduction Crestron ® FreeSpeech systems provide a very simple and affordable solution for adding speech reinforcement as part of a complete classroom media presentation system. The MP-FS-RX1 is a single-channel receiver, capable of supporting one wireless microphone (MP-FSMIC*). The MP-FS-RX2 is a dual-channel receiver capable of supporting two wireless microphones. Built-in amplification provides everything needed to drive a set of speakers (sold separately), and even allows for the co…

Text truncated - open the document above for the full version.

Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 Tel: 800.237.2041/ 201.767.3400 Fax: 201.767.7576 www.crestron.com May 26, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: EROMP-FS-RX2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to permanently withhold the following attachments as confidential document from public disclosure. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Crestron Electronics Inc. Grace Lin Sr. Compliance Engineer Email: [email protected] Telephone: 201-750-7004 extension 11464

FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 ID Label and Location Page 1 of 1 ID Label and Location

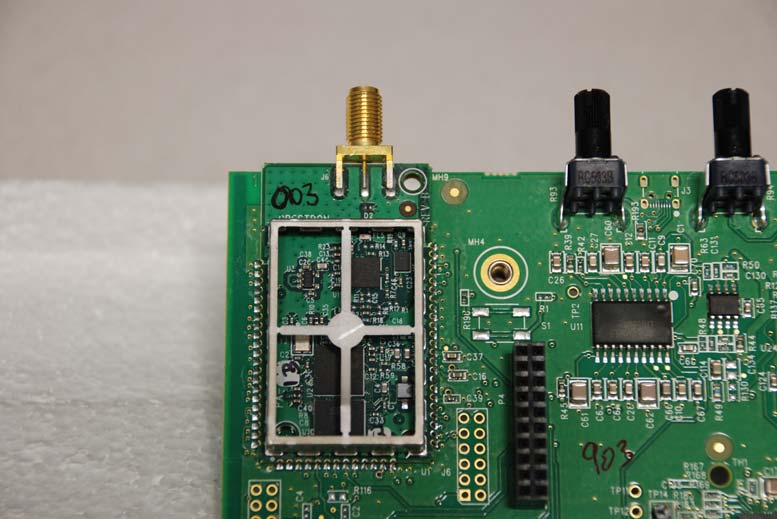

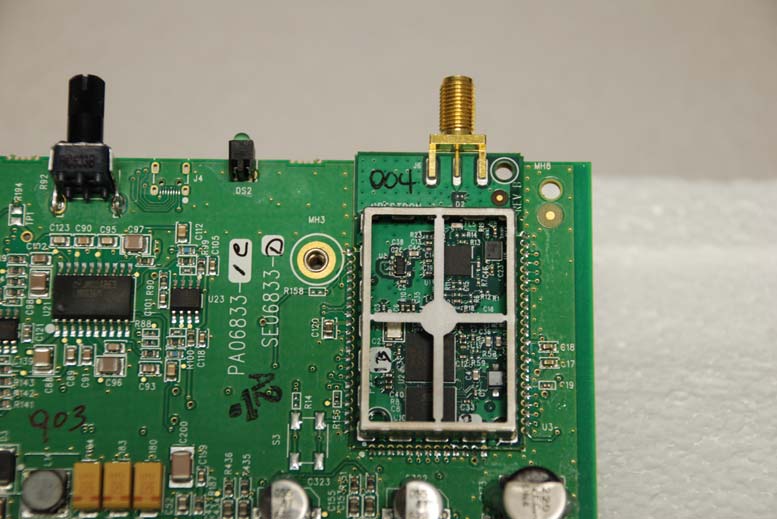

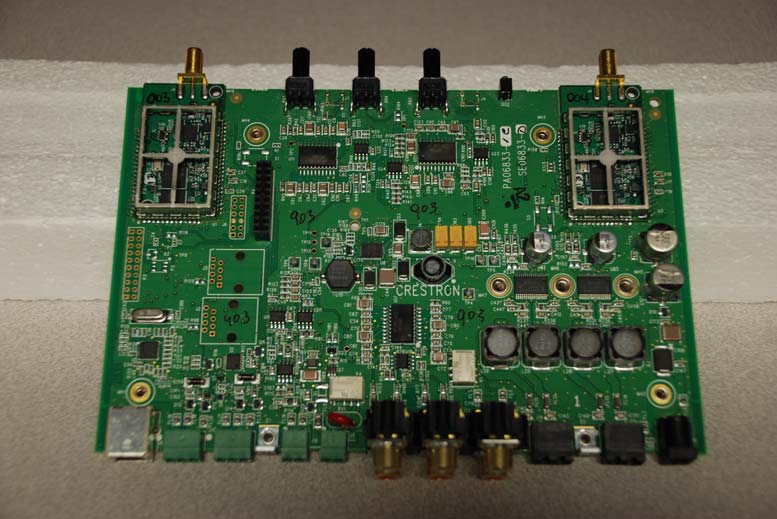

FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Internal Photo Page 1 of 3 Internal Photos FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Internal Photo Page 2 of 3 Internal Photos FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Internal Photo Page 3 of 3 Internal Photos

FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Page 1 of 1 Maximum Permissive Exposure Performance Criterion: The human RF exposure limit is 1 mW/cm 2 . Evaluation Results: Complies Details: The maximum permissible exposure (MPE) is predicted by using Equation (3) of Section 2 of FCC OET Bulletin 65, Edition 97-01: S = PG/4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) P = 5.1761 mW, G = 3.1623 (5 dBi), R = 20 cm S = 0.0033 mW/cm 2 = 0.033 W/m 2 MPE limit for uncontrolled exposure at prediction frequency: 1 mW/cm 2 Maximum allowable antenna gain: 29.9 dBi Margin of Compliance at 20 cm = 24.9 dB Minimal antenna-to-user separation distance: P = 5.1761 mW, G = 3.1623 (5 dBi), S = 1 mW/cm 2 R = 1.1413 cm

FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Page 1 of 32 Test Report FCC Part 15, Subpart C, Section 15.247 Industry Canada RSS-210, Issue 8 Report Number: MP-FS-RX2-Cert Model: MP-FS-RX2 FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Date: May 25, 2011 (Revised June 8, 2011) Prepared by: Grace Lin Date: May 25, 2011 Grace Lin, Sr. Compliance Engineer Reviewed by: Wayne Owens Date: May 25, 2011 Wayne Owens, Director of Program Management FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Page 2 of 32 Table of Contents 1. GENERAL DESCRIPTION ................................................................................................ 3 1.1 PRODUCT DESCRIPTION ................................................................................................... 3 1.2 TEST METHODOLOGY ...................................................................................................... 3 1.3 TEST FACILITY ................................................................................................................. 3 1.4 TEST EQUIPMENT ............................................................................................................. 4 1.5 EVALUATION SUMMARY .................................................................................................. 4 2. SYSTEM TEST CONFIGURATION ................................................................................. 5 2.1 JUSTIFICATION ................................................................................................................. 5 2.2 BLOCK DIAGRAM ............................................................................................................. 5 2.3 EUT EXERCISE SOFTWARE AND MODE(S) OF OPERATION ............................................... 5 2.4 CABLES ............................................................................................................................ 5 2.5 SPECIAL ACCESSORIES ..................................................................................................... 6 2.6 SUPPORT EQUIPMENT ....................................................................................................... 6 2.7 EQUIPMENT MODIFICATIONS ........................................................................................... 6 3. EVALUATION ..................................................................................................................... 7 3.1 ANTENNA REQUIREMENTS ............................................................................................... 7 3.2 CARRIER FREQUENCY SEPARATION ................................................................................. 8 3.3 NUMBER OF HOPPING FREQUENCIES ................................................................................ 9 3.4 TIME OF OCCUPANCY (DWELL TIME) ............................................................................ 10 3.5 20 DB BANDWIDTH ........................................................................................................ 11 3.6 99% BANDWIDTH .......................................................................................................... 13 3.7 PEAK OUTPUT POWER .................................................................................................... 15 3.8 BAND EDGE ................................................................................................................... 18 3.9 SPURIOUS CONDUCTED EMISSIONS ................................................................................ 20 3.10 SPURIOUS RADIATED EMISSIONS ................................................................................... 24 3.11 TRANSMITTER AC POWER LINE CONDUCTED EMISSIONS .............................................. 27 3.12 RECEIVER RADIATED EMISSIONS ................................................................................... 29 3.13 RECEIVER AC POWER LINE CONDUCTED EMISSIONS .................................................... 31 FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Page 3 of 32 1. General Description 1.1 Product Description The equipment under test (EUT) is a Crestron FreeSpeech™ Dual-Channel Wireless Mic Receiver, model: MP-FS-RX2. 1.2 Test Methodology Measurements were performed according to the following procedures and standards: 1) ANSI C63.4-2003 2) ANSI C63.10-2009 3) Industry Canada RSS-Gen Issue 3 4) Industry Canada RSS-210 Issue 8 5) Industry Canada ICES-003 Issue 4 All measurements were performed in a 3-meter semi-anechoic chamber and the control room. 1.3 Test Facility The 3-meter semi-anechoic chamber used to collect conducted and radiated emission data is located at 22 Link Drive, Rockleigh, New Jersey. This test facility has been placed on file with the FCC, Registration Number: 412871, and Industry Canada, Site Number: 5683C-1. FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Page 4 of 32 1.4 Test Equipment Description Model Serial No. Frequency Range Calibration Date R&S EMI Receiver ESU40 100076 20 Hz – 40 GHz Dec. 10, 2010 Teseq Bilog Antenna CBL 6112D 25231 30 MHz – 2 GHz Dec. 8, 2010 ETS-Lindgren Double Ridge Horn Antenna 3117 00047560 1 GHz – 18 GHz Feb. 4, 2011 R&S Preamplifier TS-PR18 100044 30 MHz – 18 GHz Dec. 2, 2010 ETS-Lindgren Standard Gain Horn Antenna 3160-09 00078911 18 GHz – 26.5 GHz Dec. 3, 2010 R&S Preamplifier TS-PR26 100030 18 GHz – 26.5 GHz Dec. 6, 2010 Solar Electronics LISN 9252-50-R-24-N 068545 10 kHz – 50 MHz Feb. 15, 2011 1.5 Evaluation Summary Rule Section Description/Parameters Results FCC IC §15.203 N/A Antenna Requirement Complies §15.247(a)(1) §A8.1(a) of RSS-210 Carrier Frequency Separation, 25kHz or 20 dB BW Complies §15.247(a)(1)(iii) §A8.1(d) of RSS-210 Number of Hopping Frequencies Complies §15.247(a)(1)(iii) §A8.1(d) of RSS-210 Time of Occupancy (Dwell Time) Complies §15.247(a)(1)(iii) §A8.1(a) of RSS-210 20 dB Bandwidth Complies N/A §4.6.1 of RSS-Gen 99% Occupied Bandwidth (for reporting purpose) §15.247(b)(1) §A8.4(2) of RSS-210 Peak Output Power, conducted, 1 Watt (30dBm) Complies §15.247(c) §2.1, §A8.…

Text truncated - open the document above for the full version.

FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Test Setup Photos Page 1 of 2 Test Setup Photos Conducted Emission Configuration Photographs Worst-case conducted emission, front view Worst-case conducted emission, Side View FCC ID: EROMP-FS-RX2 IC: 5683C-MPFSRX2 Test Setup Photos Page 2 of 2 Test Setup Photos Radiated Emission Configuration Photographs Worst-case radiated emission, front view Worst-case radiated emission, rear view
