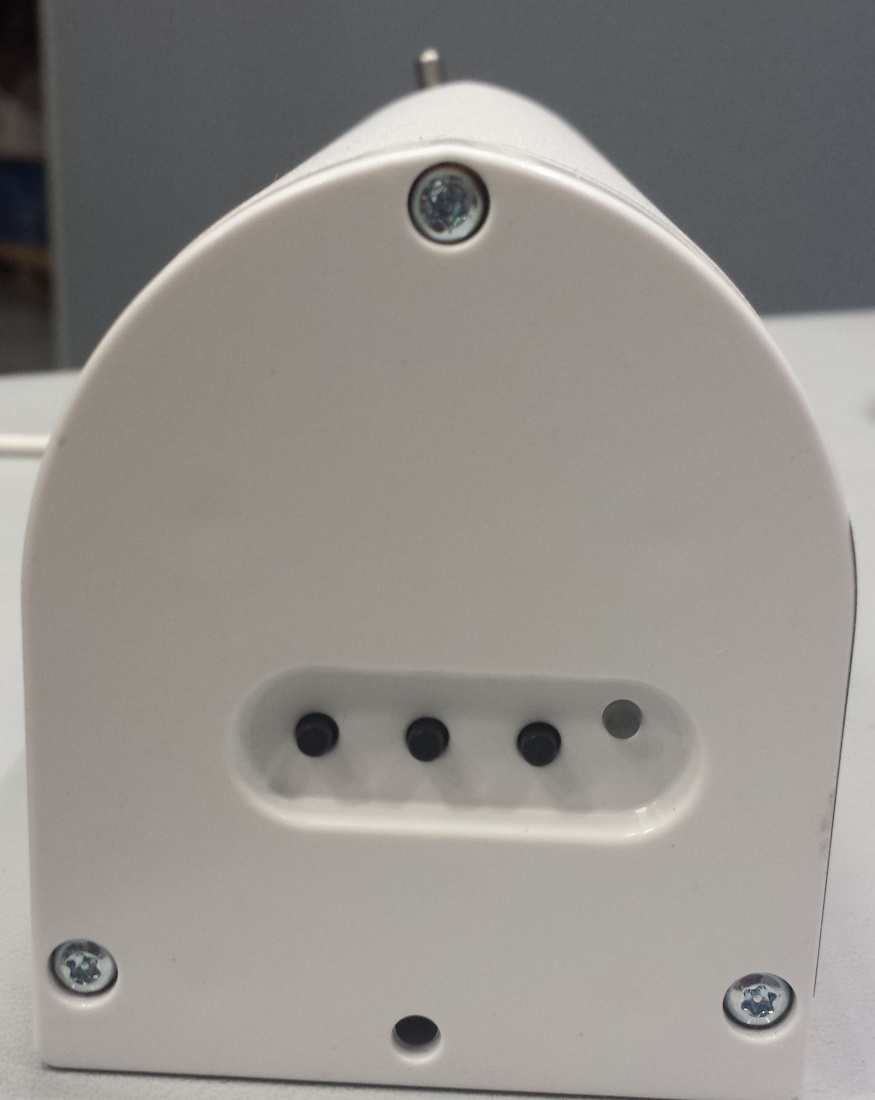

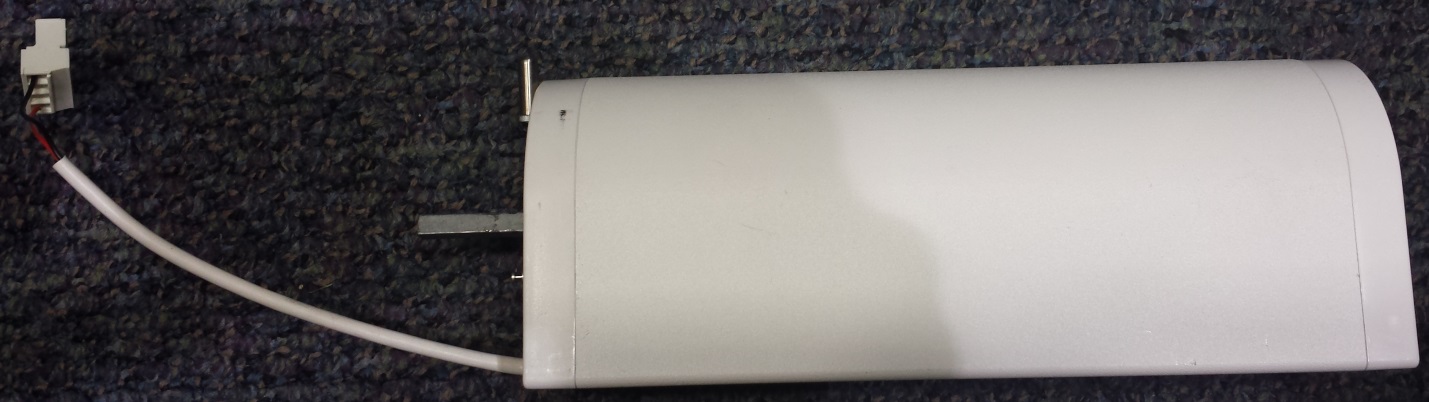

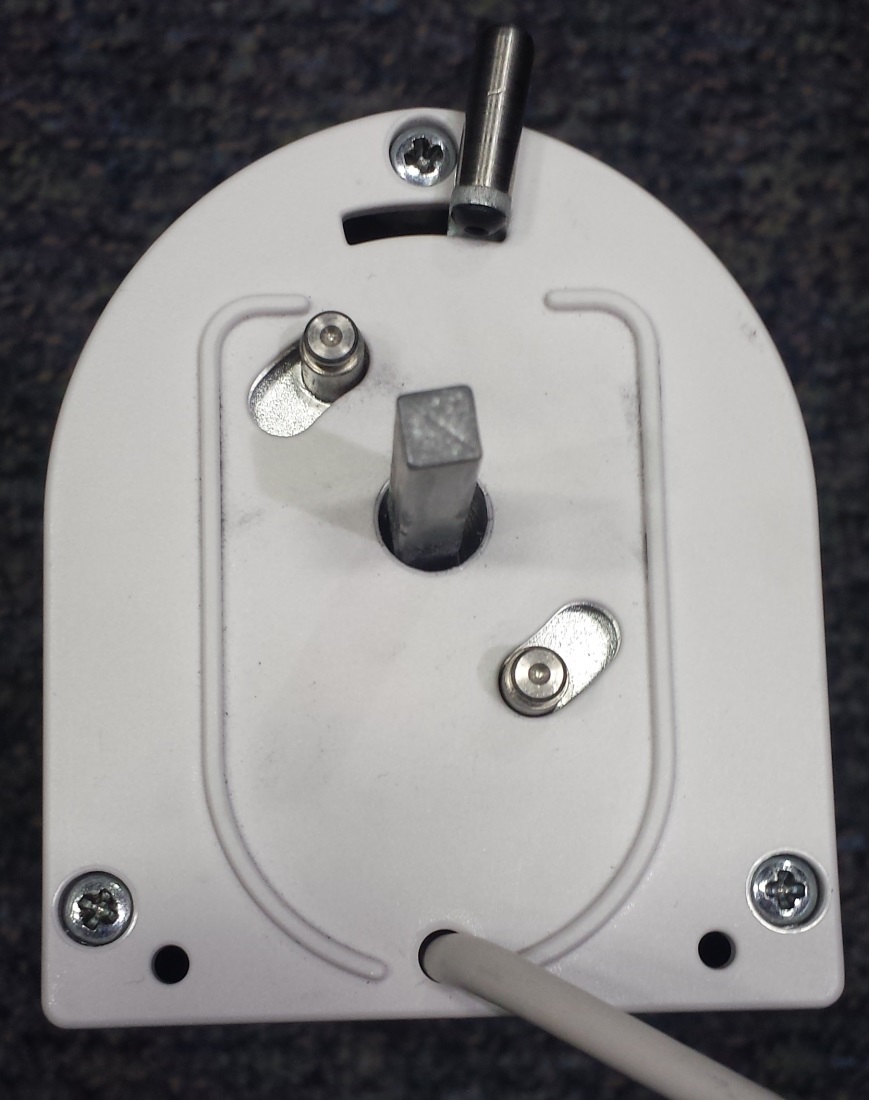

CSM-QMTDC-DRP-3-CN/CSM-QMTDC-DRP-3-EX Digital QMT ® Drapery Track Motor Programming Guide Test the Motor Direction Press the open or close button to move the drapery fabric. If the drapery fabric begins to move in the other direction, the motor direction must be reversed. To reverse the motor direction, press and hold the congure button for 10 seconds. The red LED lights for 3 seconds. The drapery motor then immediately enters the Find Limit sequence. NOTE: Reversing the direction of the motor erases all limits that have been previously set. Follow the procedure in "Set up the Drapery Limits" to reassign limits. After either the open or close limit is set, the motor automatically enters Limit Setup mode for the opposite limit. Controls and Indicators The Crestron CSM-QMTDC-DRP-3 motors have open, congure, and close push buttons that are used to program the drapery. The motors have a multicolor LED that provides conrmation, operating mode, and error state feedback. Crestron CSM-QMTDC-DRP-3 Motor Multicolor LED and Push Button Orientation Test the Drapery Before the drapery is operated, the motor must be tested to ensure that the motor direction is correct and that the drapery travels correctly while being opened and closed. NOTE: Before using the CSM-QMTDC-DRP-3 motor, ensure the device is using the latest rmware. Check for the latest rmware for the CSM-QMTDC-DRP-3 motor at www.crestron.com/rmware. Firmware is loaded onto the device using Crestron Toolbox ™ . Find Location Find Location mode is an automatic reference detection procedure that the drapery executes after power outage or power cycle. During power outages the drapery can be manually opened or closed by the user, which leaves the drapery motor unaware of the fabric location. Also, during initial power-up the drapery motor does not know the location of the fabric. To solve this problem, the drapery motor automatically enters Find Location mode after power is restored and a command is given to go to a specic location such as full open or full close, or any set position. When in Find Location mode, the drapery motor will run the drapery fabric to its full close hard limit, and then it will go to the location that has been requested. The LED blinks purple while in Find Location mode. Speed Setup The speed that the drapery fabric travels can be learned in Speed Setup mode. 1. Press and hold the open and congure push buttons for 4 seconds. The LED will turn blue. 2. Pull the fabric at the desired approximate speed for 2 seconds. 3. The blue LED turns off to indicate that the speed has been stored. 4. Operate the shade to ensure the desired speed setting has been achieved. This procedure may be repeated until the drapery runs at the desired speed. NOTE: The drapery motor exits Speed Setup mode if it does not receive any input for 30 seconds. Touch Sensitivity Setup The drapery motor will open or close with a pull of the drapery fabric. To set up the sensitivity for how much force it takes to activate the drapery, use the following procedure: 1. Press and hold the close and congure push buttons for 4 seconds. The LED will turn purple. 2. Pull the fabric at the approximate force that the motor should react to. 3. The purple LED turns off to indicate that the touch sensitivity has been stored. 4. Pull the fabric with the same force applied in step 2 to open and close the drapery, and it should begin to open and close accordingly. This procedure may be repeated until the drapery reacts to the desired sensitivity. NOTE: The drapery motor exits Touch Sensitivity Setup mode if it does not receive any input for 30 seconds. Joining an inNET EX Network (inNET EX Interfaces Only) The device connects to the Crestron network via the inNET EX ® communications protocol. Use the procedures outlined below to join or leave an inNET EX network and to verify communications between the device and the control system. Joining an inNET EX Network Before an inNET EX device can be used in a shading system, it must rst join an inNET EX network. To join an inNET EX network, the device must be acquired by an inNET EX gateway. NOTE: A device can be acquired by only one gateway. 1. Put the inNET EX gateway into Acquire mode from the unit itself or from Crestron Toolbox. Refer to the gateway’s manual at www.crestron.com/manuals for details. NOTE: In an environment where multiple gateways are installed, only one gateway should be in the Acquire mode at any time. 2. Put the device into Acquire mode by doing the following: a. Tap the congure button three times, and then press and hold it down (tap-tap-tap-press+hold) until the white LED on the device blinks once (this can take up to 10 seconds). b. Release the button to start the acquire process. The LED blinks slowly to show that the device is actively scanning the inNET EX network. • The white LED turns on for 5 seconds to show that the device has been successfully acquired by the infiNET EX network. • The white LED blinks fast to indicate that the device was not successfully acquired by the infiNET EX network. Tap a button to acknowledge the failure. The LEDs time out automatically. Ensure the gateway is in Acquire mode and within range before attempting the acquire process again. Leaving an inNET EX Network To leave an inNET EX network, put the device into Acquire mode, as described in “Joining an inNET EX Network” above, when no gateway is in Acquire mode. Verifying inNET EX Communications Status To check the communications status of the device, tap the congure button three times, and then press and hold it down (tap-tap-tap-press+hold) for up to 2 seconds. The LED blinks to indicate the communications status. Description The Crestron ® digital QMT ® CSM-QMTDC-DRP-3 motors are programmed locally using the buttons on the motor or through a control system. The information in this guide serves as a detailed programming overview of the Crestron CSM-QMTDC-DRP-3 drapery motors. NOTE: The proce…
