EROUC-P8PERSONAL COMMUNICATION DEVICE

Crestron Electronics Inc
PERSONAL COMMUNICATION DEVICE - FCC ID EROUC-P8 - Crestron Electronics Inc
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Dec 20, 2020
Application Purpose
Original Equipment
Date of Application
Dec 20, 2020
Equipment Note
PERSONAL COMMUNICATION DEVICE
Frequency Range
5745.00000000 - 5825.00000000
Company
Crestron Electronics Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Start UC-P8-T-C-(HS)-(I) 1 In the Box The Crestron® UC-P8-T-C-(HS)-(I) is a video phone and 8 inches LCD touch screen Phone for MS Teams. This Quick Start Guide covers the following models: • UC-P8-T-C-HS: 8in Teams Video Phone with handset • UC-P8-T-C-HS-I: 8in Teams Video Phone with handset (International) • UC-P8-T-C: 8in Teams Video Phone without handset • UC-P8-T-C-I: 8in Teams Video Phone without handset (International) 1 1 1 UC-P8-T-C-(HS)-(I) Teams Video Phone Handset (with UC-P8-T-C-HS & UC-P8-T-C-HS-I only) Phone Cord (with UC-P8-T-C-HS & UC-P8-T-C-HS-I only) Regulatory Model: M202029002 This Quick Start Guide covers the following SKUs: Quick Start UC-P8-T-C-(HS)-(I) 2 Overview The following diagram illustrates the UC-P8-T-C-HS & UC-P8-T-C-HS-I components. Teams Headset Hands-free Mute Volume + Volume - RJ9 port for handset RJ45 port for WAN port (with LEDs) RJ45 port for LAN (with LEDs) Handset Speaker Camera Camera Shutter 8” Capacitive Touch Screen Kingston Lock USB port Type-C LED indicator Quick Start UC-P8-T-C-(HS)-(I) 3 Overview The following diagram illustrates the UC-P8-T-C & UC-P8-T-I components. Teams Headset Hands-free Mute Volume + Volume - RJ9 port for handset (not provided) RJ45 port for WAN port (with LEDs) RJ45 port for LAN (with LEDs) Speaker Camera 8” Capacitive Touch Screen Kingston Lock Camera Shutter USB port Type-C LED indicator Quick Start UC-P8-T-C-(HS)-(I) 4 Connect Make connections for UC-P8-T-C-HS-(I) as shown below. LAN LAN Power Phone Cord (optional) PoE switch Power outlet Quick Start UC-P8-T-C-(HS)-(I) 5 Connect Make connections for UC-P8-T-C-(I) as shown below. LAN LAN Power (optional) PoE switch Power outlet Quick Start UC-P8-T-C-(HS)-(I) 6 Configure and UseVisit the Product Page Refer to the UC-P8-T Product Manual (Doc. 7844) at www.crestron.com/manuals for instructions on configuring and using the UC-P8-T-C-(HS)-(I). Scan the QR code to visit the product page. www.crestron.com/model/6511032 Quick Start UC-P8-T-C-(HS)-(I) 7 Additional Information Original Instructions The U.S. English version of this document is the original instructions. All other languages are a translation of the original instructions. Crestron product development software is licensed to Crestron dealers and Crestron Ser- vice Providers (CSPs) under a limited nonexclusive, nontransferable Software Develop- ment Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. The product warranty can be found at www.crestron.com/warranty. The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents. Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, and Crestron Mercury are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT is either a trademark or registered trademark of the HDBaseT Alliance in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other coun- tries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. ©2020 Crestron Electronics, Inc. Doc ID 8574B (2054930) 23/10/2020 Quick Start UC-P8-T-(HS)-(I) 1 In the Box The Crestron® UC-P8-T-(HS)-(I) is an audio phone and 8 inches LCD touch screen Phone for MS Teams. This Quick Start Guide covers the following models: • UC-P8-T-HS: 8in Teams Phone with handset • UC-P8-T-HS-I: 8in Teams Phone with handset (International) • UC-P8-T: 8in Teams Phone without handset • UC-P8-T-I: 8in Teams Phone without handset (International) UC-P8-T-(HS)-(I) Teams Phone Handset (with UC-P8-T-HS & UC-P8-T-HS-I only) Phone Cord (with UC-P8-T-HS & UC-P8-T-HS-I only) 1 1 1 This Quick Start Guide covers the following SKUs: Regulatory Model: M202029002 Quick Start UC-P8-T-(HS)-(I) 2 Overview The following diagram illustrates the UC-P8-T-HS & UC-P8-T-HS-I components. Teams Headset Hands-free Mute Volume + Volume - RJ9 port for handset RJ45 port for WAN port (with LEDs) RJ45 port for LAN (with LEDs) Handset Speaker LED indicator 8” Capacitive Touch Screen Kingston Lock USB port Type-C Quick Start UC-P8-T-(HS)-(I) 3 Overview The following diagram illustrates the UC-P8-T & UC-P8-T-I components. Teams Headset Hands-free Mute Volume + Volume - RJ9 port for handset (not provided) RJ45 port for WAN port (with LEDs) RJ45 port for LAN (with LEDs) 8” Capacitive Touch Screen Kingston Lock USB port Type-C Speaker LED indicator Quick Start UC-P8-T-(HS)-(I) 4 Connect Make connections for UC-P8-T-HS-(I) as shown below. LAN LAN Power Phone Cord (optional) PoE switch Power outlet Quick Start UC-P8-T-(HS)-(I) 5 Connect Make connections for UC-P8-T-(I) as shown below. LAN LAN Power (optional) PoE switch Power outlet Quick Start UC-P8-T-(HS)-(I) 6 Configure and UseVisit the Product Page Refer to the UC-P8-T Product Manual (Doc. 7844) at www.crestron.com/manuals for instructions on configuring and using the UC-P8-T-(HS)-(I). Scan the QR code to visit the product page. www.crestron.com/model/6511032 Quick Start UC-P8-T-(HS)-(I) 7 Additional Information Original Instructions The U.S. English version of this document is the original instructions. All other languages are a translation of the original instructions. Crestron product development software is licensed to Crestron dealers and Crestron Ser- vice Providers (CSPs) under a limited nonexclusive, nontransferable Software Develop- ment …

Text truncated - open the document above for the full version.

Cover Letter(s)

CRESTRON ELECTRONICS, INC. 15 Volvo Drive, Rockleigh, New Jersey, United States 07647 Tel: 201-750-7004-12539 Fax: 201-767-5771 Email: [email protected] Product Similarity Declaration Date: 2020-11-27 Dear Sir/Madam, We, CRESTRON ELECTRONICS, INC., hereby declare that we have a product named as PERSONAL COMMUNICATION DEVICE,(model:M202029002, FCC ID: EROUC-P8) , the model have eight SKU Code, the SKU(UC-P8-T-C-HS and UC-P8-T-HS)was tested by BACL, Meanwhile, for our marketing purpose, we would like to list SKU code(UC-P8-T-C-HS, UC-P8-T-C-HS-I, UC-P8-T-C, UC-P8-T-C-I, UC-P8-T-HS, UC-P8-T-HS-I, UC-P8-T, UC-P8-T-I) on reports, all the SKU Code are identical in schematics& trade name, they only have different as below described. No other changes are made on them. Model SKU Code Description M202029002 UC-P8-T-C-HS 8in Teams Video Phone with Handset and Camera UC-P8-T-C-HS-I 8in Teams Video Phone with Handset and Camera (International) UC-P8-T-C 8in Teams Video Phone with Camera, No handset UC-P8-T-C-I 8in Teams Video Phone with Camera, No handset (International) UC-P8-T-HS 8in Teams Phone with Handset, No Camera UC-P8-T-HS-I 8in Teams Phone with Handset, No Camera (International) UC-P8-T 8in Teams Phone No Handset, No Camera UC-P8-T-I 8in Teams Phone No Handset, No Camera (international) Note:"International" is for world, without "International" is for US, with Sales Purpose We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: William Wack Sr. Compliance Engineer

Cover Letter(s)

Crestron Electronics Inc 15 Volvo Drive, Rockleigh, New Jersey, United States 07647 Tel: 201-750-7004-12539 Fax: 201-767-5771 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2020-11-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Crestron Electronics Inc, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: William Wack Sr. Compliance Engineer

Cover Letter(s)

Crestron Electronics Inc 15 Volvo Drive, Rockleigh, New Jersey, United States 07647 Tel: 201-750-7004-12539 Fax: 201-767-5771 Email: [email protected] FCC Confidential Authorization Date: 2020-11-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: EROUC-P8 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Crestron Electronics Inc hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: William Wack Sr. Compliance Engineer

External Photos

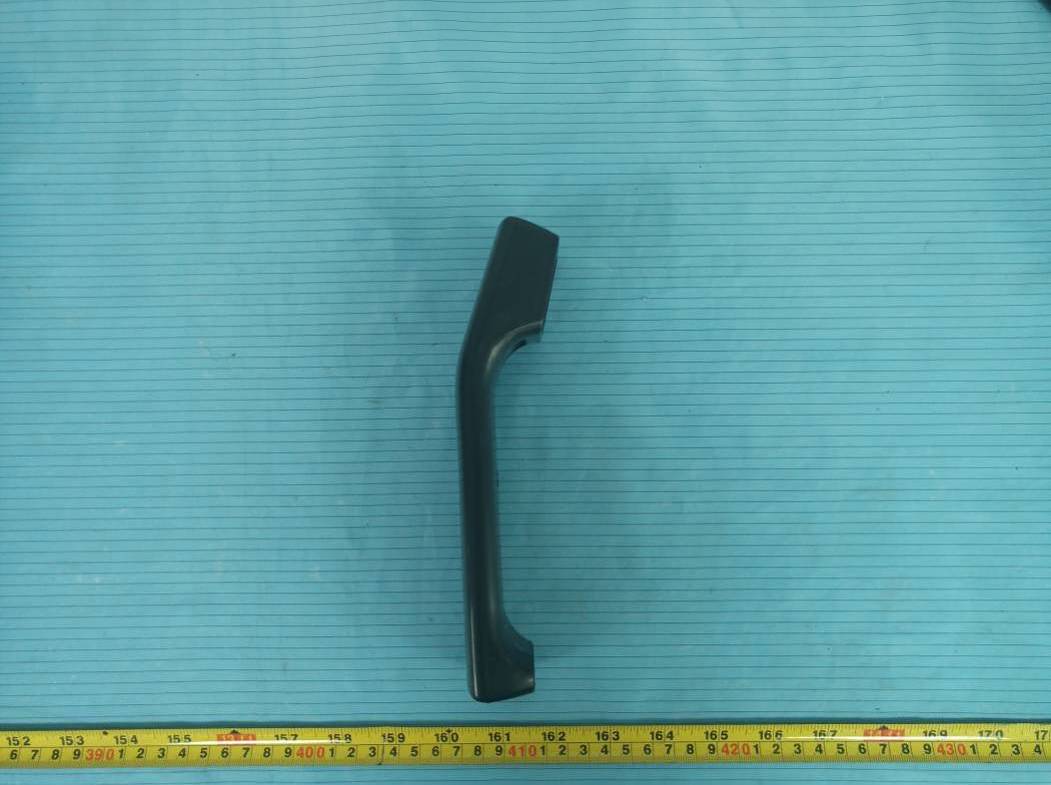

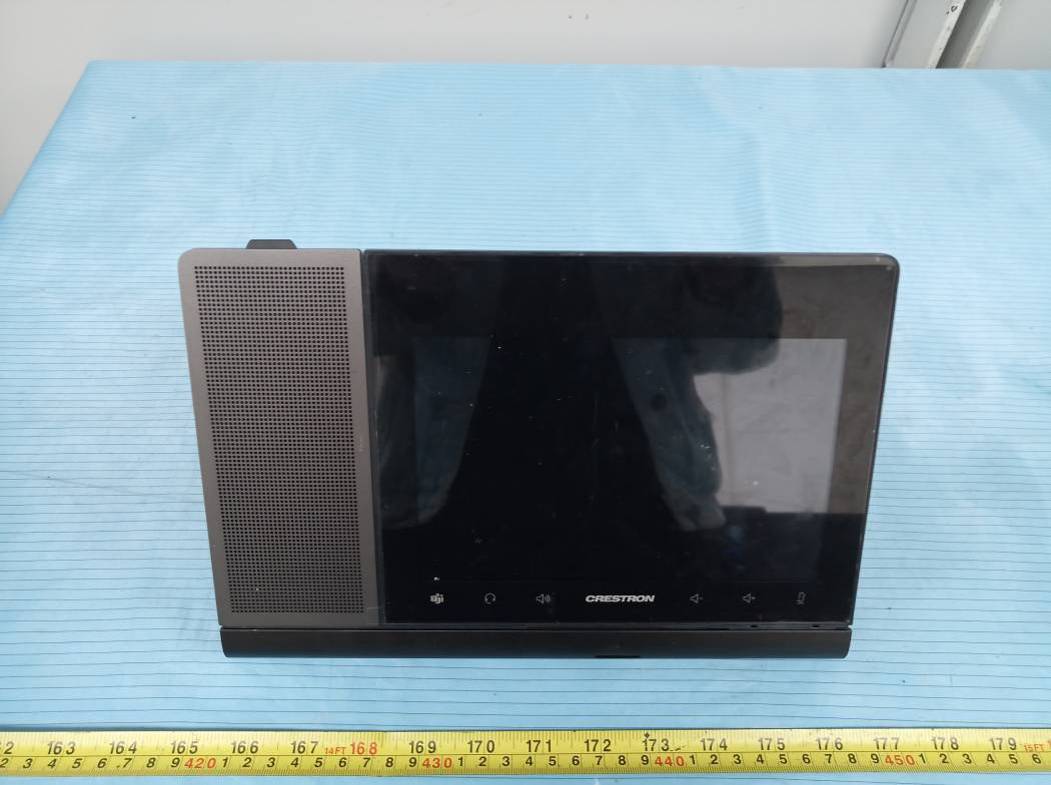

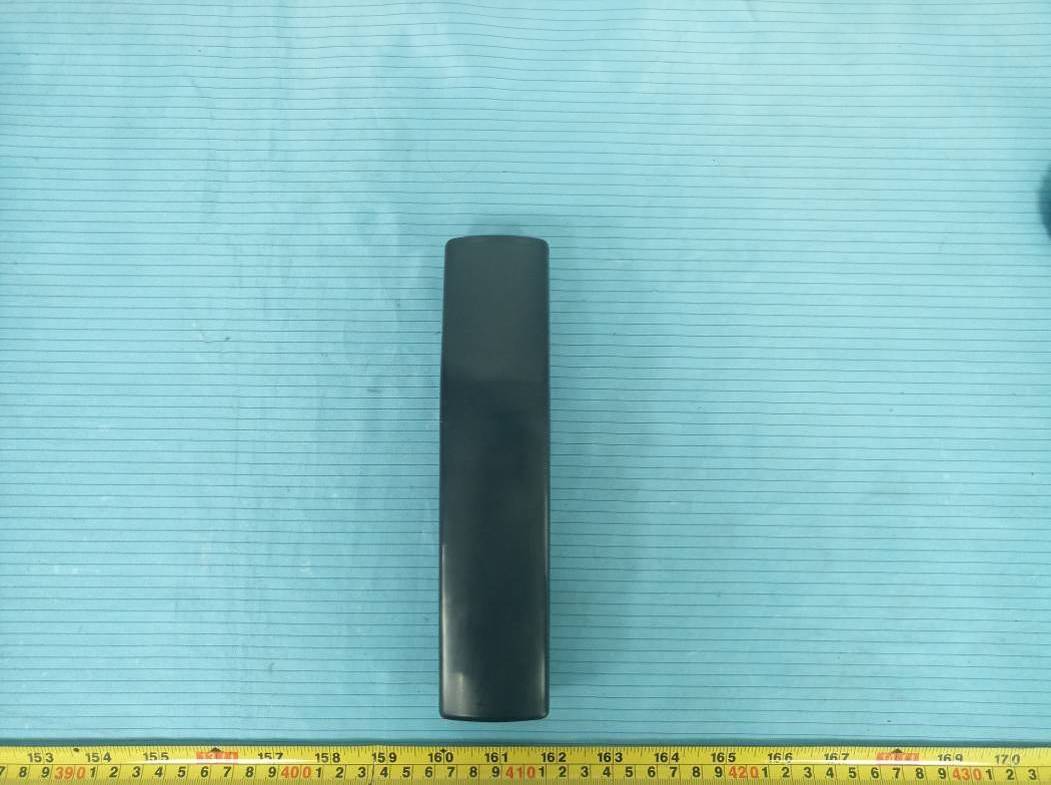

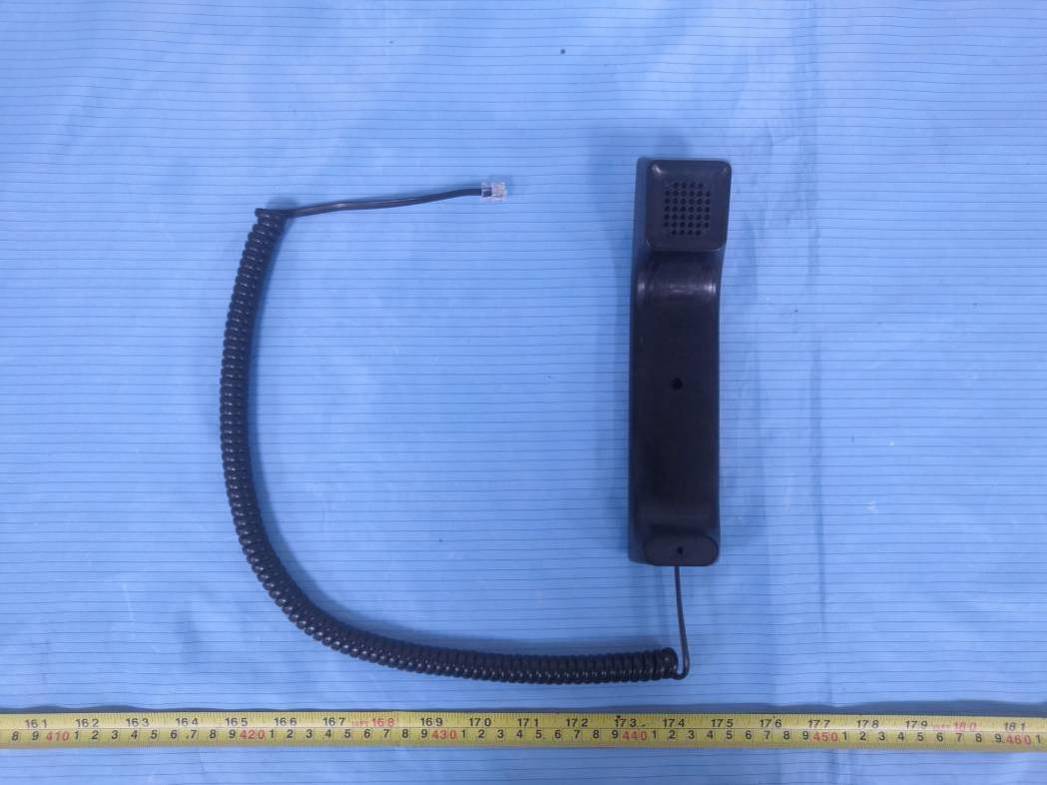

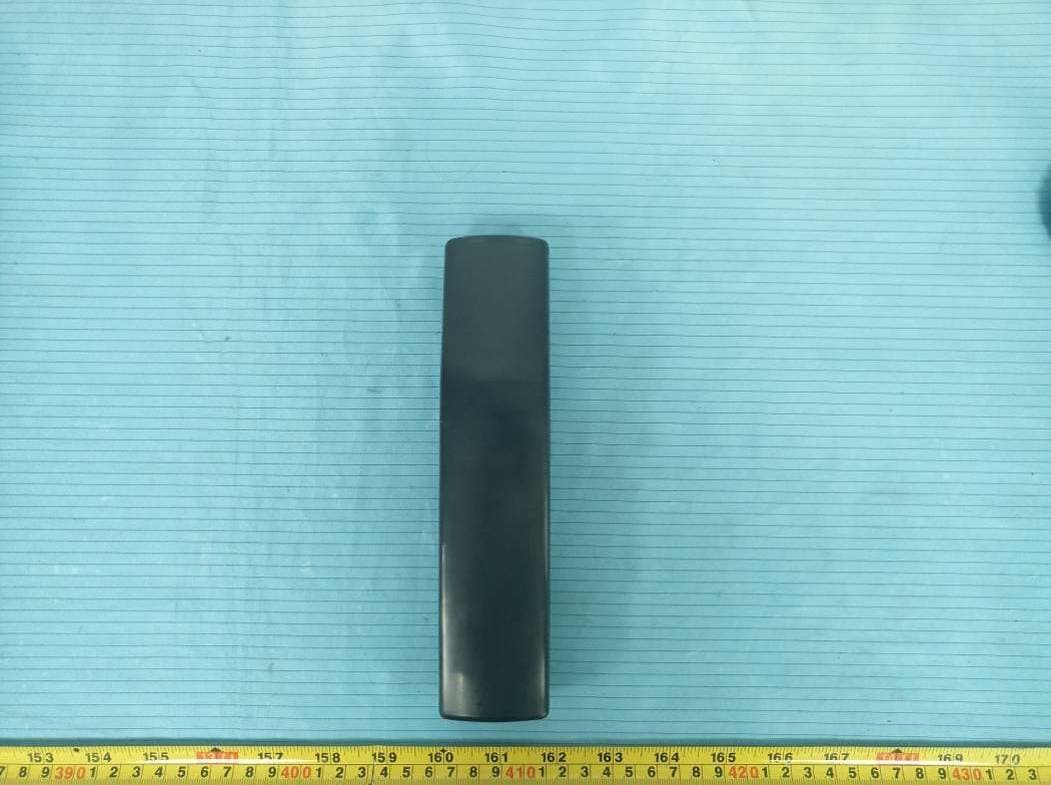

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 1 of 10 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Test Combination Mode 1: M202029002(SKU: UC-P8-T-C-HS) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 2 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 5 of 10 Test Combination Mode 2: M202029002(SKU: UC-P8-T-HS) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 7 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 8 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 9 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 10 of 10

ID Label/Location Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 1 of 14 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Test Combination Mode 1 : M202029002(SKU: UC-P8-T-C-HS) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 2 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 3 of 14 Antenn Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 4 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 5 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 6 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 7 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 8 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 9 of 14 Test Combination Mode 2 : M202029002(SKU: UC-P8-T) M202029002(SKU: UC-P8-T-HS) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 10 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 11 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 12 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 13 of 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201030001-RF Page 14 of 14 Wifi antenna

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201030001-00D FCC Part 15.407 Page 12 of 122 1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 5150-5250 6 4 15.6 36.31 20 0.029 1 5250-5350 6 4 15.0 31.62 20 0.025 1 5470-5725 6 4 14.5 28.18 20 0.022 1 5725-5850 6 4 15.0 31.62 20 0.025 1 Note: The 2.4G Wi-Fi can’t transmit at the same time with the 5G Wi-Fi. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Pass

Test Report

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.407 TEST REPORT For Crestron Electronics Inc 15 Volvo Drive, Rockleigh, New Jersey, 07647, USA FCC ID: EROUC-P8 Report Type: Original Report Product Type: PERSONAL COMMUNICATION DEVICE Re port Number: RSZ201030001-00D Re port Date: 2020-12-11 Reviewed B y: Jacob Kong RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201030001-00D FCC Part 15.407 Page 2 of 122 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 9 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE .................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 RESULT ...................................................................................................................................................................... 12 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 15 §15.205 & §15.209 & §15.407(B) (1), (2), (3), (4),(6),(7) – UNDESIRABLE EMISSION ...................................... 18 APPLICAB…

Text truncated - open the document above for the full version.

Test Report

FCC PART 15.407 DYNAMIC FREQUENCY SELECTION TEST REPORT For Crestron Electronics Inc 15 Volvo Drive, Rockleigh, New Jersey, 07647, USA FCC ID: EROUC-P8 Report Type: Original Report Product Type: PERSONAL COMMUNICATION DEVICE Report Number: RSZ201105010-00 Report Date: 2020-11-19 Reviewed By: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201105010-00 FCC Part 15.407 DFS Test Report Page 2 of 20 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL CABLE ........................................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 APPLICABLE STANDARDS ........................................................................................................................................ 7 DFS REQUIREMENT ..................................................................................................................................................... 7 DFS MEASUREMENT SYSTEM .................................................................................................................................... 11 SYSTEM BLOCK DIAGRAM ......................................................................................................................................... 11 CONDUCTED METHOD ............................................................................................................................................... 12 RADIATED METHOD ................................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST RESULTS .......................................................................................................................................................... 14 DESCRIPTION OF EUT ................................................................................................................................................ 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 RADAR WAVEFORM CALIBRATION ............................................................................................................................ 15 TEST ENVIRONMENTAL CONDITIONS ......................................................................................................................... 15 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME ............................................. 17 TEST PROCEDURE ...................................................................................................................................................... 17 TEST RESULTS ........................................................................................................................................................... 17 NON-OCCUPANCY PERIOD ................................................................................................................................... 20 TEST PROCEDURE ...................................................................................................................................................... 20 TEST RESULT ............................................................................................................................................................. 20 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201105010-00 FCC Part 15.407 DFS Test Report Page 3 of 20 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product PERSONAL COMMUNICATION DEVICE Tested Model M202029002 Frequency Range 5150-5250 MHz; 5250-5350 MHz; 5470-5725 MHz, 5725-5850 MHz Modulati…

Text truncated - open the document above for the full version.

Test Setup Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201030001-RF Page 1 of 2 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201030001-RF Page 2 of 2 Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS

Contact Information

Applicant

Chirag Patel(Lead Compliance Engineer)
[email protected]201-750-7004Fax: 201-767-5771

Test Firm

Bay Area Compliance Laboratories Corp. (Shenzhen)Well Wang
[email protected]+86 (0) 755 33320018

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz31.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 MHz, 40 MHz and 80 MHz bandwidth modes.
