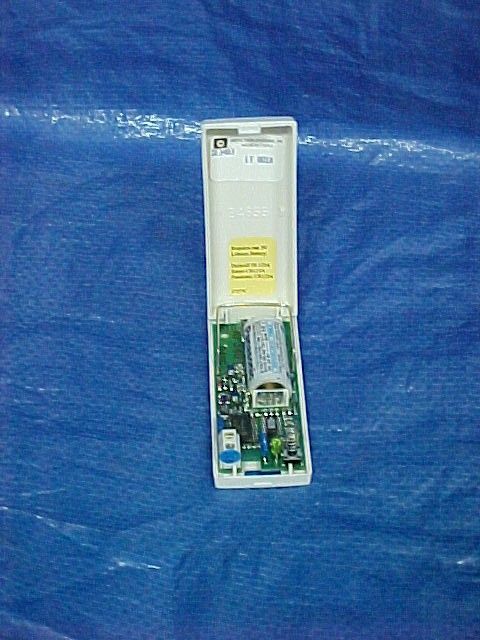

ESV-0407-7Wireless (RF) Point Transmitter

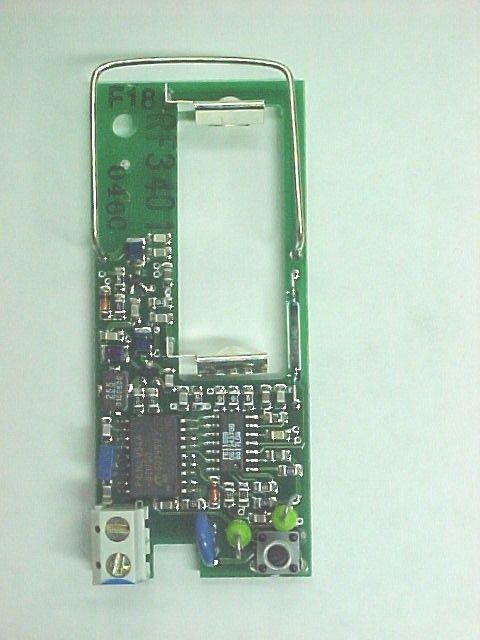

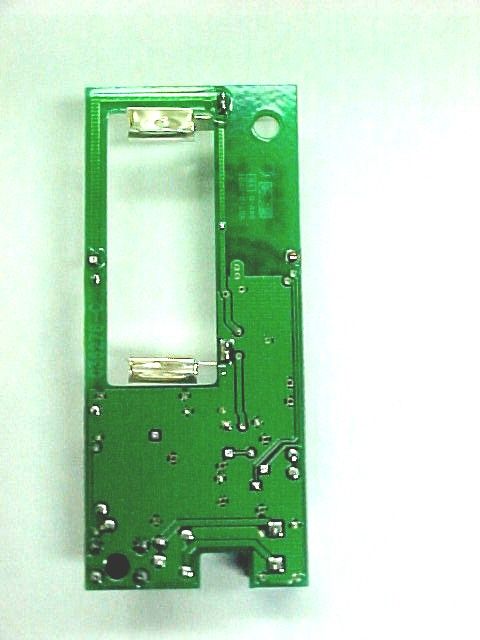

DATE DRAWN DRAWING NUMBER DRAWING TITLE DRAWN BY: SD APPR BY: SCALE A37941REV-B ds ® SHEET 1 OF 1 DETECTION SYSTEMS, INC. 130 PERINTON PARKWAY FAIRPORT, NEW YORK, 14450-9099, USA (716) 223 4060, FAX (716) 223 9180 SD 1/28/98B ECR# DR AUTHDATESYMREVISION RECORD ACCEPTED DRAWING 1/28/98 BLOCK DIAGRAM (RF3401) MDR MICROCONTROLLER Waken up by ASIC Communicate with ASIC Task Determination RF Transmission 800 KHz Resonator RF Oscillator RF Amplifier Interface Circuit RESET MODULATION POWER CONTROL I/O / Interupt Control Low BT Detect Timer Oscillator Detection Circuit RC Circuit Reed• Switch Cover Tamper Switch Supervised External Zone (Terminal Strip)

DTL ECR# DR AUTH DATE SYMREVISION RECORD ACCEPTED DRAWING B 9/23/02 ds ® DETECTION SYSTEMS, INC. MADE IN CHINA LOTSE3403 FCC ID: ESV-0407-7 CANADA XXXXXXXXXXX XXX Printed on DSI Label #30511. Replace * with inguide revision REF. 36259 * DATE DRAWN DRAWING TITLE SCALE N/A DETECTION SYSTEMS, INC., 130 PERINTON PARKWAY FAIRPORT, NEW YORK, 14450, USA (716) 223 4060, FAX (716) 223 9180 PART NO. 4998122368B 9/23/02 SE3403 GP LABEL INFO (HK) SHEET 1 OF 1 DRAWING NUMBER DRAWN BY: DTL APPR BY: A4998122368 Rev. B

DETECTION SYSTEMS, INC. SE3403 High Power Asset Transmitter Drawing Number Not Assigned orig: 10/19/2002 Robert Barrington Sheet 1 of 5 ® DETECTION SYSTEMS, INC. 130 PERINTON PARKWAY FAIRPORT, NEW YORK 14450 USA phone: 585-223-4060 FAX: 585-223-9180 SE3403 High Power Asset Transmitter Product Specification Contents 1. Overview:...........................................................................................................................................3 2. Features: .............................................................................................................................................3 3. Functions:...........................................................................................................................................3 4. Specifications:....................................................................................................................................3 4.1. RF................................................................................................................................................3 4.2. Data .............................................................................................................................................3 4.3. Compatibility ..............................................................................................................................4 4.4. Electrical .....................................................................................................................................4 4.5. Mechanical ..................................................................................................................................4 4.6. Markings: ....................................................................................................................................4 4.7. Cost: ............................................................................................................................................4 4.8. Approvals:...................................................................................................................................4 5. Detail Specifications ..........................................................................................................................5 5.1. Reed switch .................................................................................................................................5 5.2. Tamper Switch ............................................................................................................................5 5.3. External zone contacts ................................................................................................................5 5.4. Supervisory .................................................................................................................................5 5.5. Transmissions .............................................................................................................................5 DETECTION SYSTEMS, INC. SE3403 High Power Asset Transmitter Drawing Number Not Assigned orig: 10/19/2002 Robert Barrington Sheet 2 of 5 Revision page DETECTION SYSTEMS, INC. SE3403 High Power Asset Transmitter Drawing Number Not Assigned orig: 10/19/2002 Robert Barrington Sheet 3 of 5 SE3403 High Power Asset Transmitter DS Model Number SE3403 Product Type Wireless Asset Transmitter. Vendor / Manufacturer Detection Systems, Inc.. Compatible Products All DS and Radionics 304.00MHz, 5Kbps Receiver and Repeater Products. 1. Overview: SE3403 is a small mounted sensor to detect and report the status of the monitored asset to receiver(s). The sensor has a built in RF transmitter. The sensor also reports supervisory signal to the receiver(s) once per seven minutes to confirm the integrity of the RF link and the battery status. The SE3403 is a modified RF3401 transmitter that only utilizes the supervisory, tamper and low battery portion of the RF3401 transmitter. 2. Features: SAW based RF oscillator. Powered by one 123A Lithium 3v battery with 1400mAH capacity (User replaceable). Factory programmed ID with serialization. Low battery detection. Built in reed switch. One external reed switch input supervised terminal strip to monitor external loop. Status supervisory with report rate: Once per 7 minutes. Battery life: 5 years minimum. Cover tamper switch. 3. Functions: Transmits multiple data bursts under the following conditions and all transmissions include battery status: 8 packets transmitted with full power whenever status of tamper switch changes. 8 packets transmitted with full power whenever status of the terminal changes. 2 packet supervisory signals with full power once per 7 minutes, if no other transmissions. 4. Specifications: 4.1. RF Carrier Frequency 304.00 MHz. 20 dB Bandwidth 750 kHz max (per FCC Part 15.231). Peak status change Signal Strength 95 dBuv/m ± 3dB (at 3m distance). 4.2. Data Format Comply with RF_5Kbps_Protocol. DETECTION SYSTEMS, INC. SE3403 High Power Asset Transmitter Drawing Number Not Assigned orig: 10/19/2002 Robert Barrington Sheet 4 of 5 Distance Between Packets No less than 90 ms psuedorandom timing interval between two packets. 4.3. Compatibility RF Link RF_5Kbps_Protocol . Reception Devices All DS and Radionics 304.00MHz, 5Kbps Receiver Devices. 4.4. Electrical Operating Voltage 3.3 to 2.4 Vdc within spec, with target to operate 2.0 Vdc. Maximum Burst Current 20 mA. Operating Temperature Range 0° to 50°C with target -20 to +65°C. 4.5. Mechanical Housing dimensions Refer to DS P/N: 34654B, 34655B, 34656B, 34656B, 34657B, 34658B and 35725B. Housing Material: ABS grade T. Housing Color White. 4.6. Markings: Internal product identification label showing model number, manufacturer, date of manufacture. Internal label showing the ID number of each individual transmitter. FCC label appears on the outside of the enclosure. Foreign approval labels may be used in place of the FCC label for export equipment. 4.7. Co…

Text truncated - open the document above for the full version.

BOSCH

Test Report No. R-9647-1 FCC ID: ESV-0117-05 APPLICANT Detection Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 MANUFACTURER Detection Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:2000 TEST SAMPLE DESCRIPTION BRANDNAME: Detection Systems, Inc. MODEL: SE3403 TYPE: Pulsed Transmitter POWER REQUIREMENTS: 3 VDC derived from a Panasonic CR123A Lithium Battery FREQUENCY OF OPERATION: 304.1 MHz TESTS PERFORMED Para. 15.231(a), Radiated Emissions, Fundamental and Harmonics Para. 15.231(b), Radiated Emissions, Spurious Case Para. 15.231(c), Occupied Bandwidth Duty Cycle Determination REPORT OF MEASUREMENTS Applicant: Detection Systems, Inc. Test Report No. R-9647-1 FCC ID: ESV-0117-05 Device: Pulsed Transmitter FCC ID: ESV-0407-7 Test Report No. R-9647-1 FCC ID: ESV-0117-05 REPORT OF MEASUREMENTS (continued) TEST RESULTS 15.231 (a) - The device is used as a transmitter for security purposes. 15.231 (a)(1) & - The transmitter is manually operated and ceases transmission within 5 15.231(2) seconds after deactivation. 15.231 (a)(3) - The transmitter does perform periodic transmissions not more than once every 60 minutes. 15.231 (a)(4)- The device is employed for RC purposes involving security and when activated to signal an alarm, operates during the pendency of the alarm condition. 15.231 (b) - The fundamental field strength did not exceed 5590 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 559 μV/M (AVERAGE). 15.231 (c) - The device operates at 304.1 MHz. The bandwidth of emissions did not exceed 0.25% of the operating frequency (760.25 kHz). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231. Frequency Limit F1 = 260 3750 = L1 Fo = 304 Lo F2 = 470 12500 = L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields: Fundamental Limit = 5,590 μV/M (AVERAGE) @ 3 Meters Harmonic Limit = 559 μV/M (AVERAGE) @ 3 Meters Test Report No. R-9647-1 FCC ID: ESV-0117-05 REPORT OF MEASUREMENTS (continued) DETERMINATION OF DUTY CYCLE The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle.( See plots for additional information) Transmitter On Time = 6.8 milliseconds (maximum- worst case in 100 ms) Transmitter Cycle Time = 114.6 milliseconds Transmitter Duty Cycle = 6.8 % CALCULATION: SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 9.8μs yields a minimum required bandwidth of 6,802.7 Hz. FCC specified bandwidths of 100kHz and 1MHz were utilized below and above 1GHz, respectively. Test Report No. R-9647-1 FCC ID: ESV-0117-05 REPORT OF MEASUREMENTS (continued) GENERAL NOTES All readings were taken utilizing a peak detector function at a test distance of 3 meters. The duty cycle was applied to the peak readings in order to determine the average value of the emissions. All measurements were made with 3 VDC derived from a Panasonic CR123A Lithium Battery. The frequency range was scanned from 30 MHz to 3.1 GHz. All emissions not reported were more than 20 dB below the specified limit. Test Report No. R-9647-1 FCC ID: ESV-0117-05 EQUIPMENT LIST FCC15.231 Compliance Testing EN Type Manufacturer Description Model No. Cal Date Due 027 Oscilloscope Tektronix DC - 500 MHz 2440 5/20/02 5/20/03 067 Open Area Test Site Retlif 3 Meter RNY 9/20/00 9/20/03 128 Double Ridged Guide Electro-Mechanics 1 GHz - 18 GHz 3105 6/7/02 6/7/03 133 Broadband Pre-Amplifier Electro-Metrics 10 kHz - 1 GHz, 26dB BPA-1000 6/11/02 6/11/03 141 Spectrum Analyzer Hewlett Packard 100 Hz - 40 GHz 8566B 7/17/02 1/17/03 141A Graphics Plotter Hewlett Packard N/A 7470A 3/5/02 3/5/03 141B Quasi-Peak Adaptor Hewlett Packard 100 Hz - 1 GHz 85650A 7/16/02 1/16/03 206B 6.0 dB Attenuator Texscan 0 - 1.0 GHz FP-50 - 6 dB 6/11/02 6/11/03 543 Preamplifier Hewlett Packard 1.0 GHz - 26.5 GHz 8449B 7/11/02 7/11/03 617 Interference Analyzer Electro-Metrics 10 kHz - 1 GHz EMC-30 8/23/02 8/23/03 767 Biconilog EMCO 26 - 2000 MHz 3142B 9/3/02 9/3/03 Test Report No. R-9647-1 FCC ID: ESV-0117-05 FCC 15.231 RADIATED EMISSIONS, FUNDAMENTAL & SPURIOUS CASE Please refer to separate electronic file named Refundharm.pdf and Respur.pdf Test Report No. R-9647-1 FCC ID: ESV-0407-7 FCC 15.231(c) OCCUPIED BANDWIDTH Please refer to separate electronic file named Occbw.pdf Test Report No. R-9647-1 FCC ID: ESV-0407-7 FCC 15.231(c) DUTY CYCLE Please refer to separate electronic file named Dutycycle.pdf Test Report No. R-9647-1 FCC ID: ESV-0407-7 TEST SETUP PHOTOGRAPHS

Retlif Testing Laboratories R Test Report No. R-9647-1 FCC ID: ESV-0407-7 TEST SETUPPHOTOGRA PHS
